Week 9 - Challenge 1 - Base Bracket Design

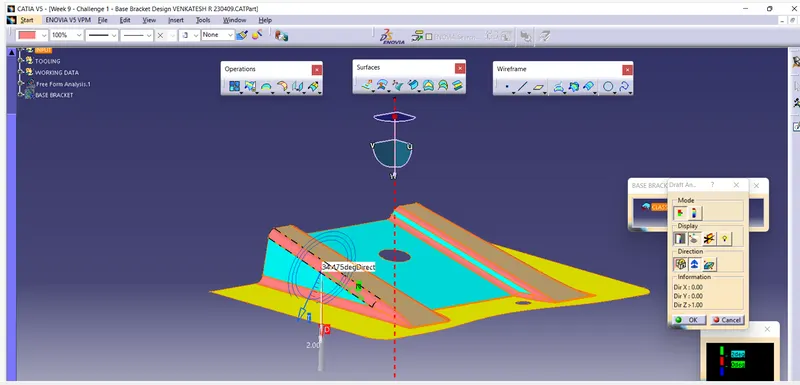

Draft Analysis

• A base point is created at the top hole to place a axis system.
• Using the axis system the surface parting is checked visually in XY plane orientation.

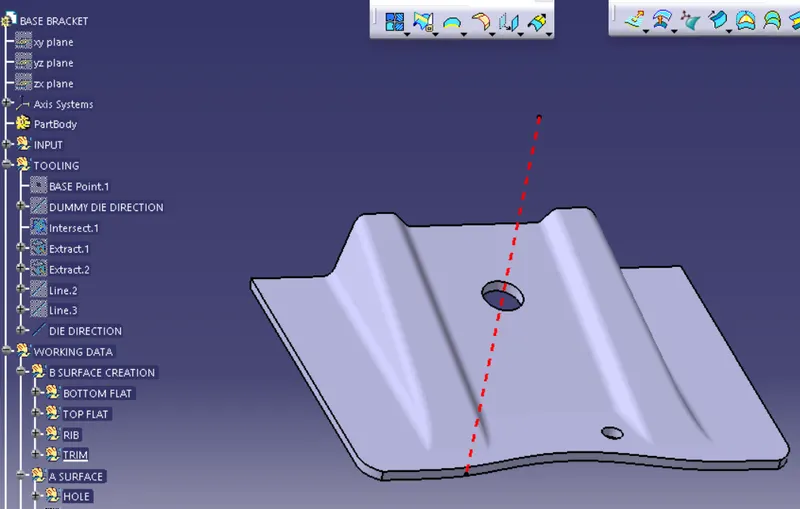

• A dummy die direction is created from the base point as a line in Z direction.
• Using the bisecting method the original die direction is created.
• The surface is intersected with the YZ axis plane.
• The rib extreme height surfaces are taken as reference for creation of the bisecting line.
• As for the given A surface clears in Z direction orientation.
