Week 9 - Challenge 2 - Switch Bezel Design

Draft Anylises

The Draft Analysis allows the user to easily analyze a part for proper draft angle. A Draft Angle describes the amount of taper for molded or cast parts perpendicular to the parting line.

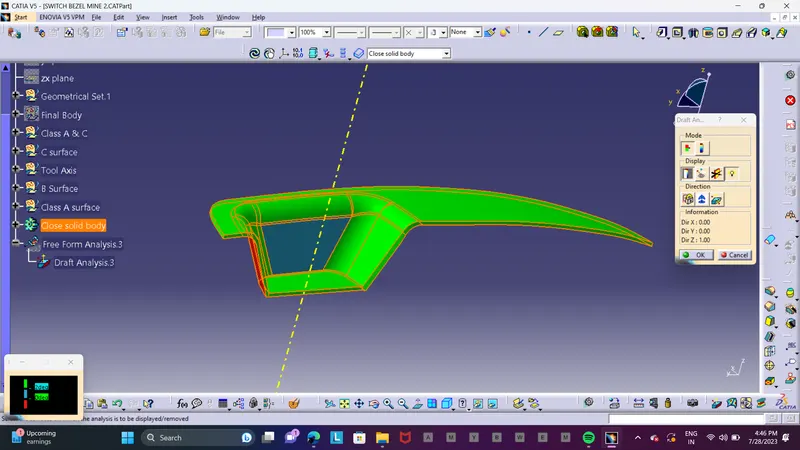

The minimum draft angle of the plastic desing is 3 degree. If the product satisfied that angle it will show green colour like in the image I attached. If its below 3 it show in red colour it will be allow depent upon the manufactuer. If its below 0 or equal to 0 its show blue in colour we must change the desing of that material.

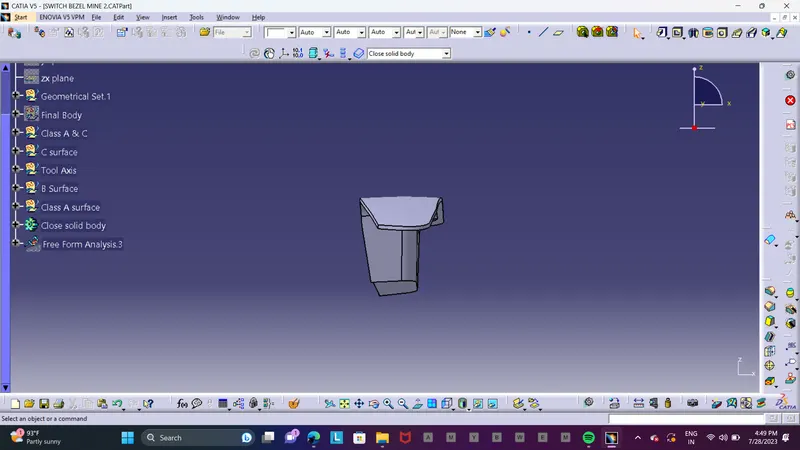

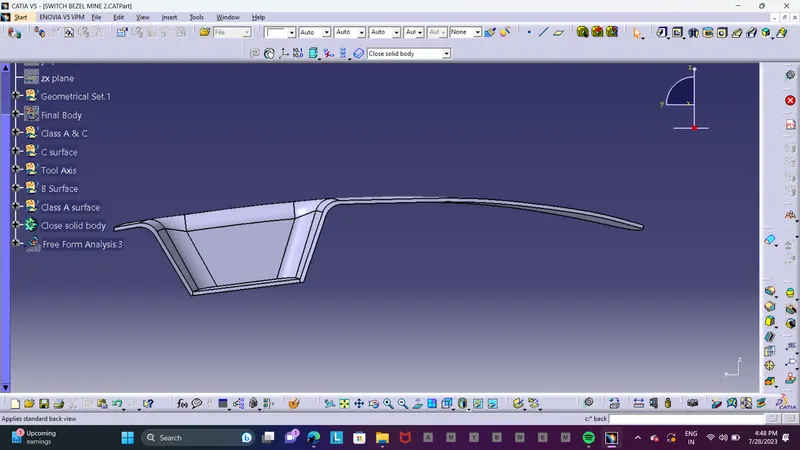

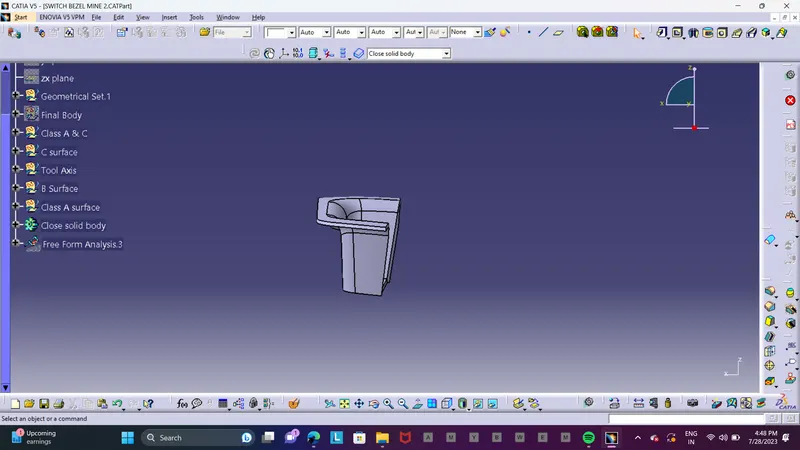

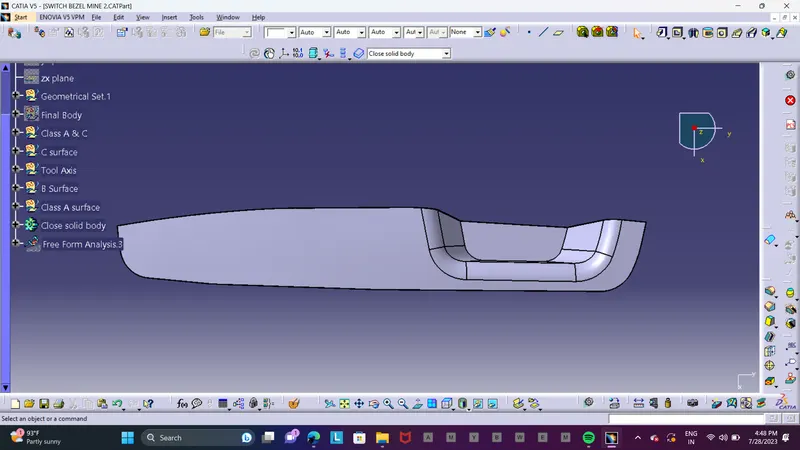

Orientations Views
