Fender Design - Wheel Arch Challenge

Regulation

Japan requirement

In japan fender inner & wheel distance must be in 5mm & above and the distance form outer wheel & fender is 5mm

For this we need to take 50degree right from the wheel centor and 30degree left side form the wheel centor

European requirement

In european fender inner & wheel distance must be in 10mm & above and the distance form outer wheel & fender is 5mm

For this we need to take 50degree right from the wheel centor and 30degree left side form the wheel centor and take 150mm hight from the zero mark the point and make a centor point between the line for measurning the distance

US requirement

In US fender inner & wheel distance must be in 5mm & above and the distance form outer wheel & fender is 5mm

For this we need to do the same process what we done in european country but in every 10degree from -20degree to 0

L lenght

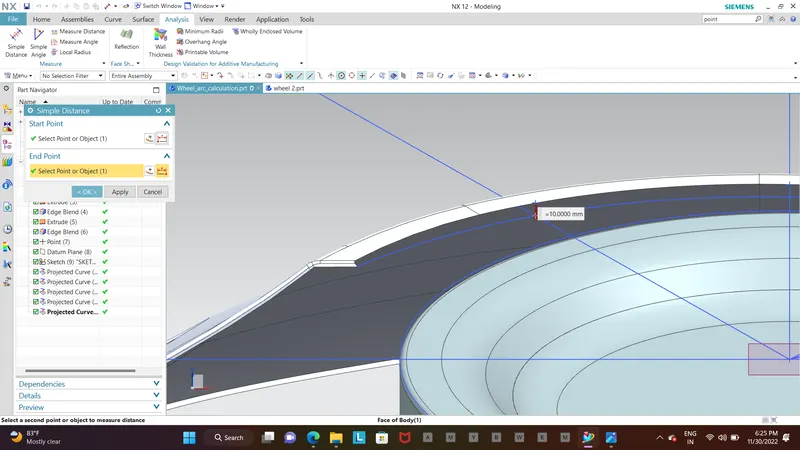

A 10mm It is sutable for european standard

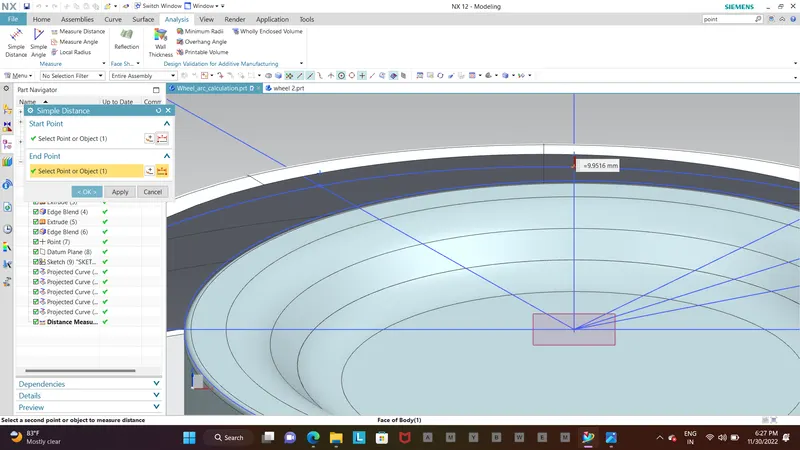

B 9.9mm It is not sutable for european standard

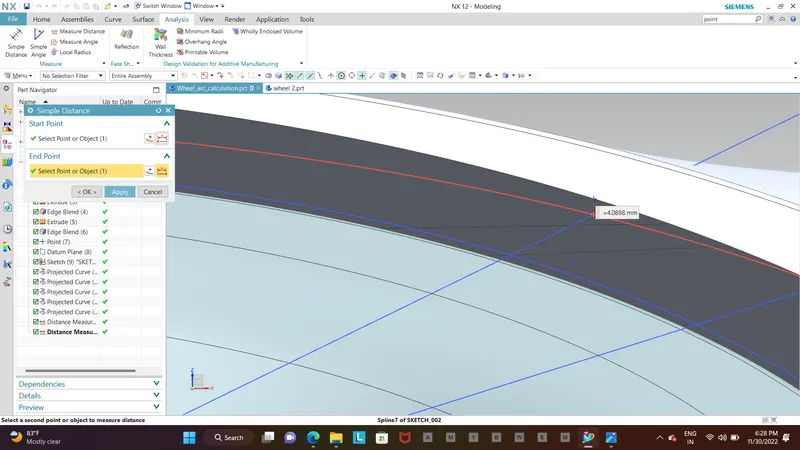

C 4.08mm It is not sutable for european standard

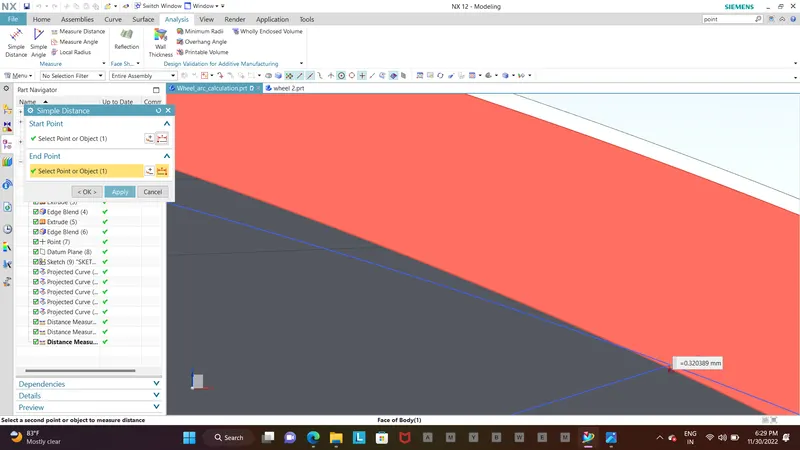

D -0.32 It is not sutable for european standard

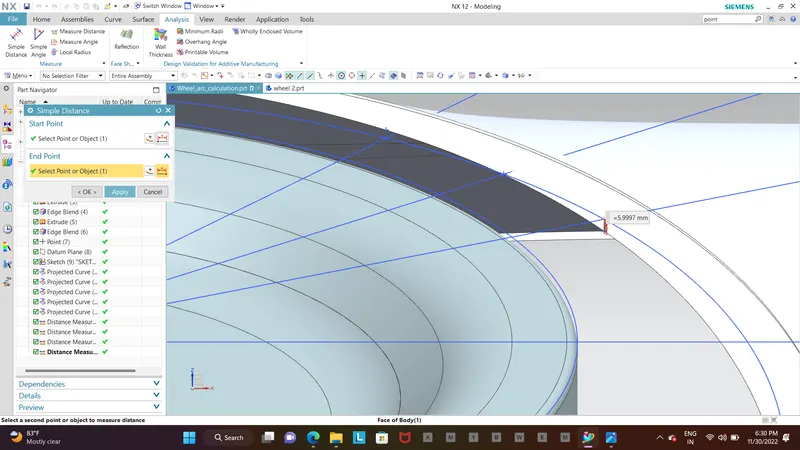

E -5.99 It is not sutable for european standard

Lenght of fender to wheel outer mimimum distance for european is 5mm

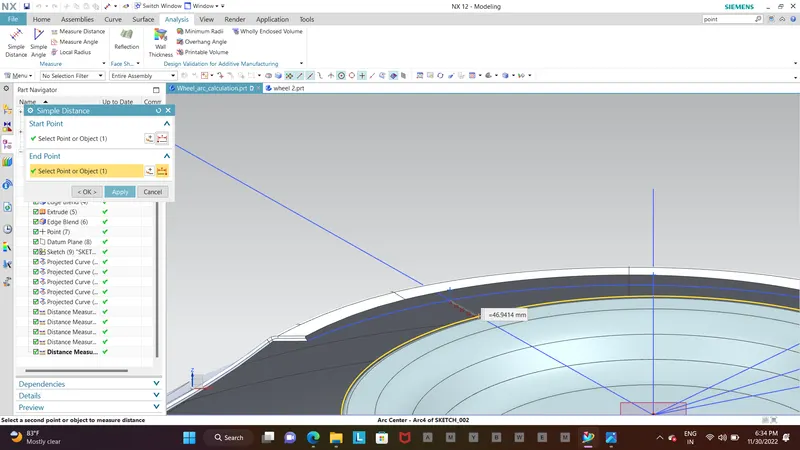

A 46.94 It is sutable for european standard

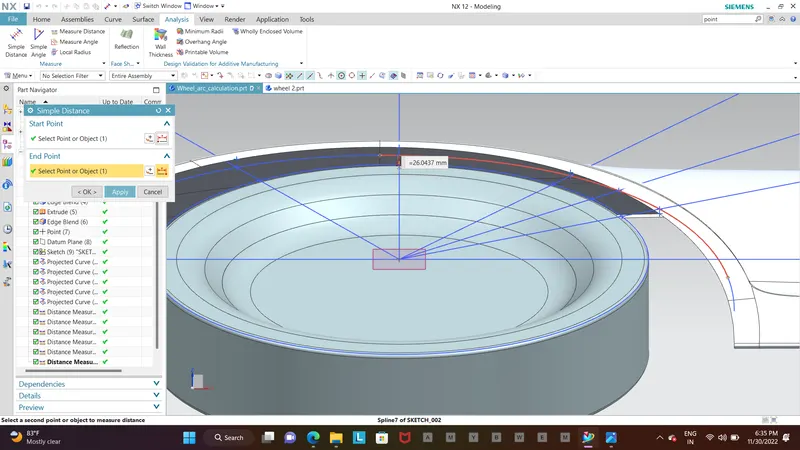

B 26.04 It is sutable for european standard

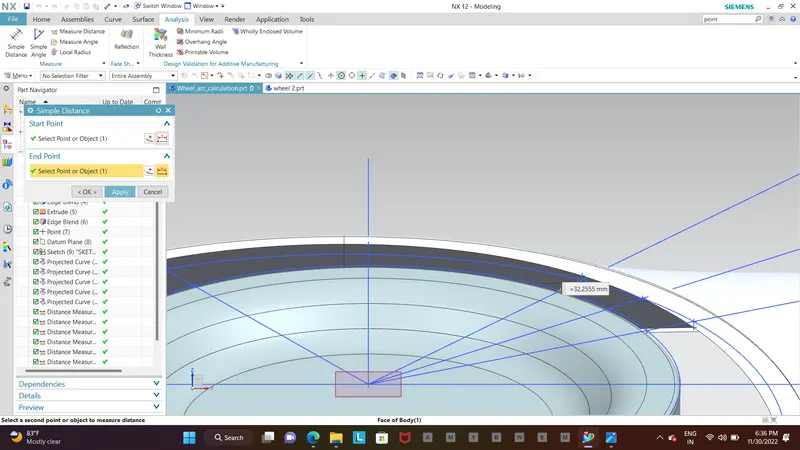

C 32.25 It is sutable for european standard

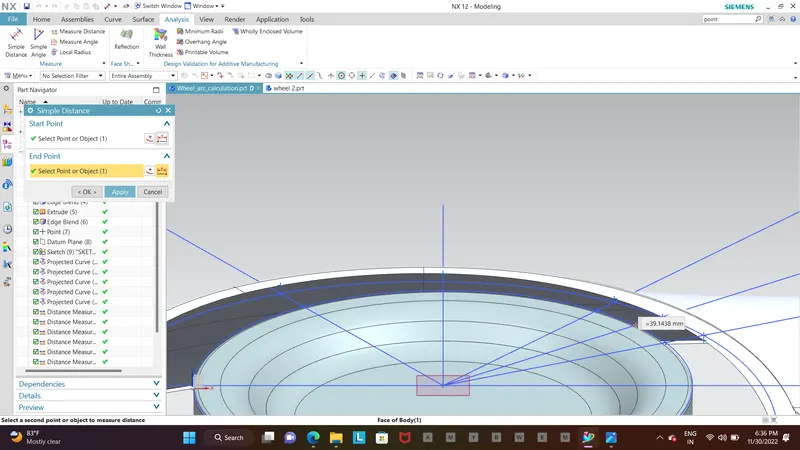

D 39.14 It is sutable for european standard

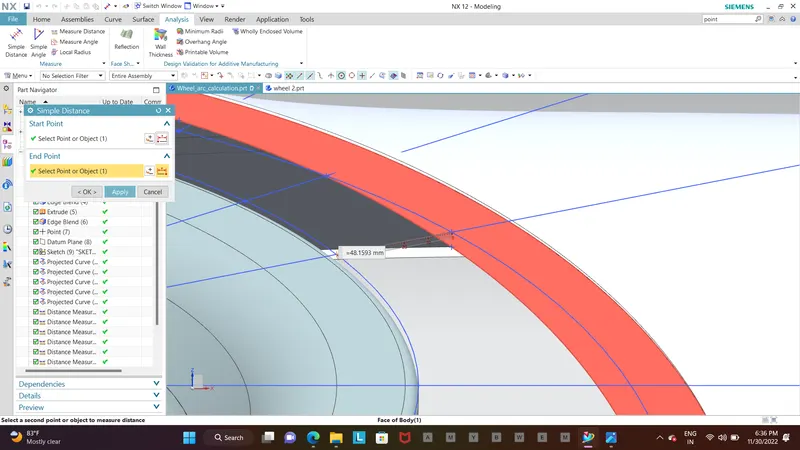

E 48.15 It is sutable for european standard

Conclusion

According to european standard this fender is not sutable we need to change the design
