Week 9 - Challenge 2 - Switch Bezel Design

EXERCISE:-

NOTE:-

THE BASE BRACKET CLASS A SURFACE GIVEN IS USED FOR THE CREATION OF CLASS B AND CLASS C SURFACE RESPECTIVELY KEEPING ALL THE STANDARD PROCEDURE IN MIND.

AT THE END THE CLOSE SURFACE IS USED.

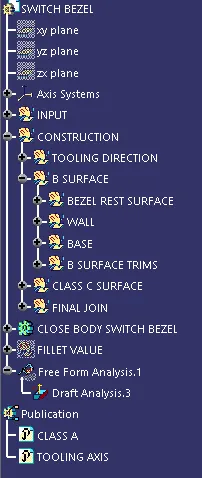

TREE STRUCTURE:-

DIFFERRENT VIEWS OF THE BODY:-

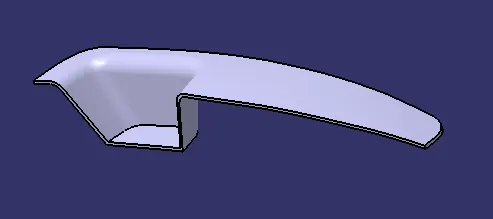

ISOMETRIC VIEW:-

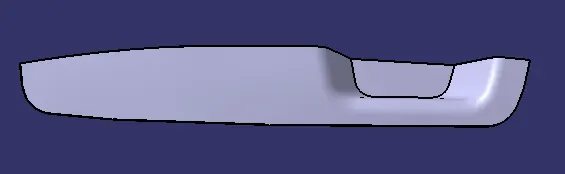

FRONT VIEW:-

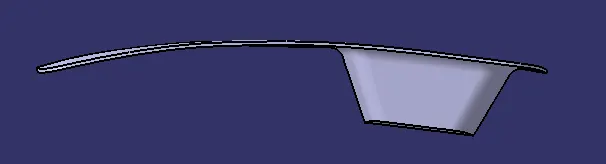

TOP VIEW:-

SIDE VIEW:-

DRAFT ANALYSIS:-

TOOLING AXIS IS TAKEN IN Z DIRECTION SO THAT WE DONT NEED TO USE SIDE CORE WHICH HELP IN REDUCING THE COST OF PRODUCTION.

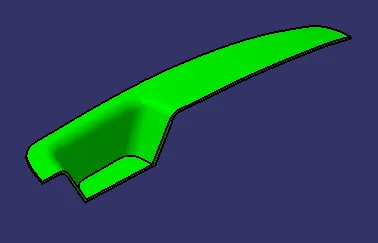

DRAFT ANALYSIS OF CLASS A SURFACE:-

THE DRAFT ANALYSIS IS DONE FOR 3 DEGREE DRAFT AND AS RESULT WE CAN SEEEXERYTHING IS GREEN MEANS ALL THE SURFACES ARE MORE THAN 3 DEGREE.

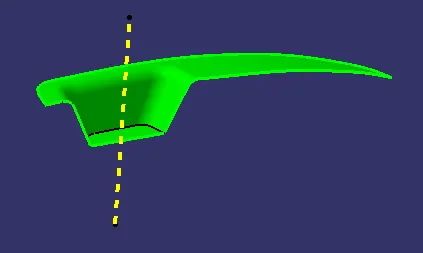

CREATION OF TOOLING AXIS:-

BASICALLY WE TOOK THE BASE SURFACE OF CLASS A THEN WE CREATE REFERENCE POINT ON THE SURFACE AND USING THIS POINT WE CREATE A LINE IN THE Z DIRECTION.WE PROJECT INTERSECTION ALONG YZ PLANE AND DRAW THE LINE TO GET THE DUMMY TOOLING AXIS.

WE ALSO DO THE SAME PROCEDURE ALONG XZ PLANE BUT DUE TO ONE SURFACE WE ONE CREATE A LINE ALONG THAT SURFACE AND ANOTHER LINE FROM CENTRE POINT AND GIVE THE ANGLE BETWEEN THEM

NOTE:- IN THE DRAFT ANALYSIS WE ADJUST THIS ANGLE TO GET DESIRED RESULT.

DRAFT ANALYSIS ON FINAL COMPONENT:-

THE DRAFT ANALYSIS IS DONE FOR 3 DEGREE DRAFT AND AS RESULT WE CAN SEEEXERYTHING IS GREEN MEANS ALL THE SURFACES ARE MORE THAN 3 DEGREE.
