Week 9 - Challenge 2 - Switch Bezel Design

Aim

Create the Switch Bezel Plastic component through the given Class - A surface

Design steps:

• Before making any plastic product surface design we need to create tooling axis and with the help of different surfaces we can create tooling axis and for tooling axis, Bisecting command is used.
• After making tooling axis with the help of bisecting command then need to create Class B surface with help of Class A surface. And use of extract, offset, trim, extrapolate, untrim and etc. command we can create Class B surface.
• After Class B surface with help of multi-extract we can generate boundry line of Class A surface which help to create Class C surface and for smooth and curvature surface we used smooth curvature command on generated boundry line.
• After that need to join Class A and Class C surface for trim with Class B surface to get proper final body and after that creating final solid body need to use Close surface command.

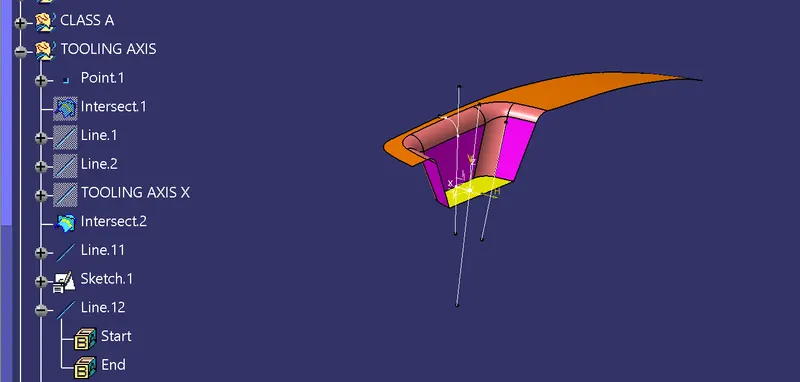

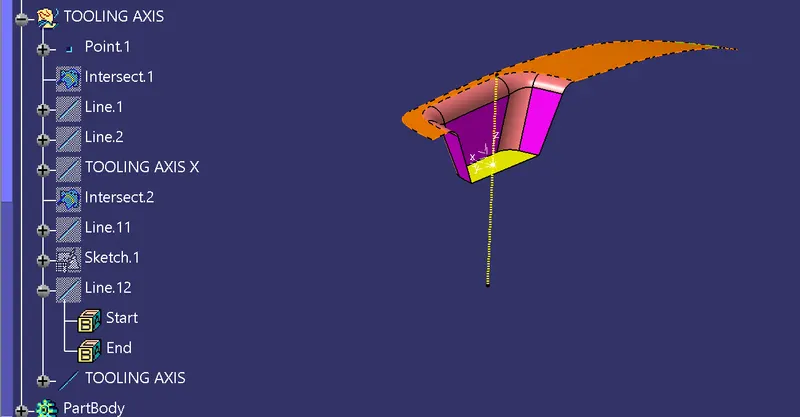

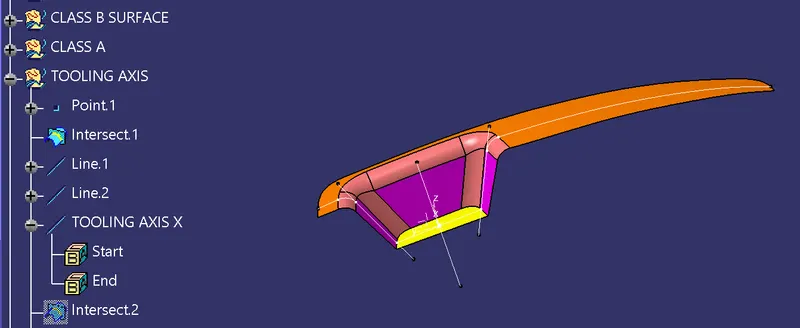

Creation of Tooling Direction

1. considering the ejection from the cavity of the mound after manufacturing the interior trim(switch bezel0 must have the nominal 3- degree draft angle

2. Hence the tooling direction is created by considering the above factor and bisecting method is used.

3. The base surface of the class - A was extracted and a point at the centre is created and an axis system was inserted to the point with the current feature is disabled.

4. Then,usingproject intersection along yz plane is created and the two inclined lines were drawn inside the positioned sketch.

5. Then bisecting lines with the two iclined lines were drawn

6. Now thw same procedures is done along the xz plane but on one side we don't have iclined lines so the centre point is used to extrude a line along the z- direction and gave a measurement of degree (Tentatively).

7. With these two lines frm sketches 1 and 2, the bisecting line is created and published as tooling axis( tooling direction)

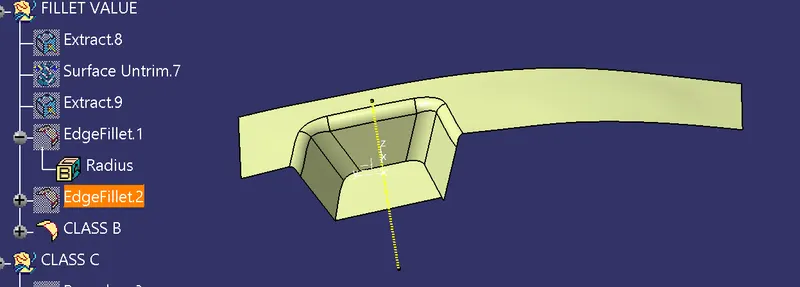

Creation of Class - B surface

1. For creating the class - B surfcae the required surface except the offset surface have been extracted and then untrimmed all the surface.

2. Then all the surfaces have been extrapolated to get intersections between them.

3. Since the thickness of the Switch bezel is 2.5 mm the B- Surface was offset to 2.5mm and the required trim operations must be carried out.

4. Finally, the required corners have been filleted 12.5mm ( 15mm-2.5).

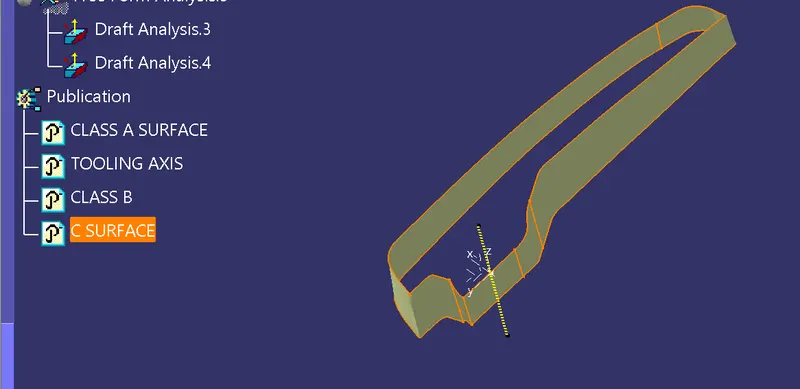

Creation Of Class - C surface

1. The requred outer edges of the A- surface were extracted using Multiple Extraxt. Then for avoiding the patches the curve is smoothened using the curve smooth option.

2. Then by using the sweep command the surface was created

3. Then by using extrapolate command the edges were intersected between the surface corners which eases the trimming operation

4. Now the requred portion of the c - surface were trimmed out.

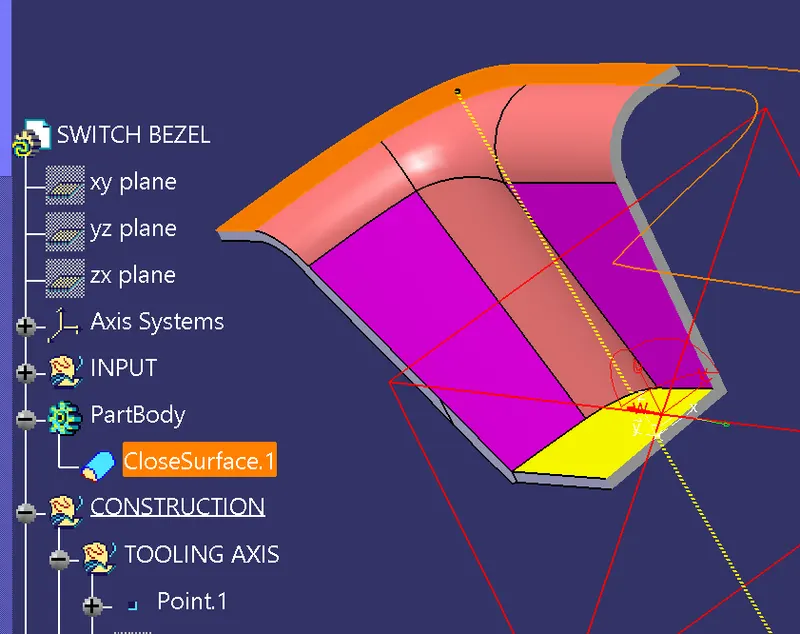

Creation Of Closed Surface

1. Now the class - A and Class - c surfaces were joined together by removing the gaps in between them with the help of extrapolation ( tangent continuity ) and trim surface

2. Then the exact surface of the switch Bezel was trimmed from the above - resulted trim surface with the class - b surface.

3. Then by defining the part body by using the closed surface command ib Part Design, the component's solid body is created.

Procedure For Draft Analysis

1. First the class - A surface is checked before creating the Class - B & C surface and finally the solid body must be analysed . Both cab be done by following the below procedures.

2. By changing the view mode to custom view parameters - Material mode then the feature draft analysis is enabled.

3. Then the compass was activated and placed with the tooling axis by dragging the redpointer and then lockes it

4. Then, by selecting the quick analysis mode, the nominal value will be 3 degrees and checked for the component's draft angle

5. The green colour area shows that it satisfies the 3 degree draft angle. If not satisfied then by using the Runnind point the area is measured and then altered to get a succesful draft for the created tooling direction.

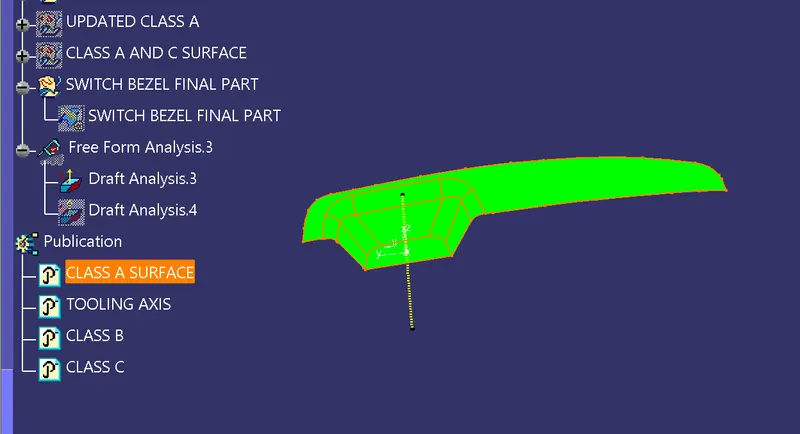

DRAFT ANALYSIS OF CLASS A SURFACE

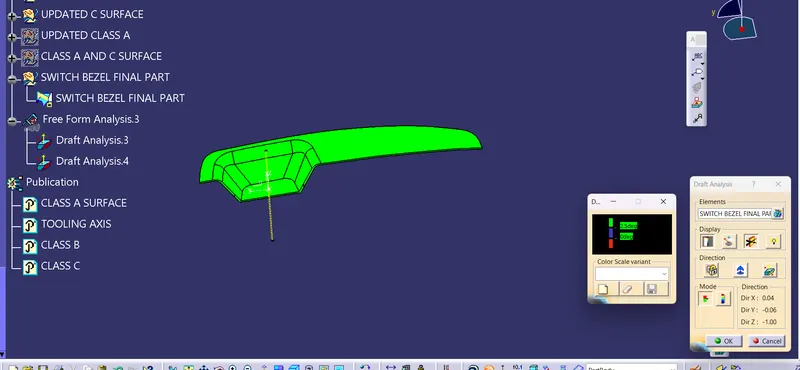

DRAFT ANALYSIS OF THE FINAL PRODUCT

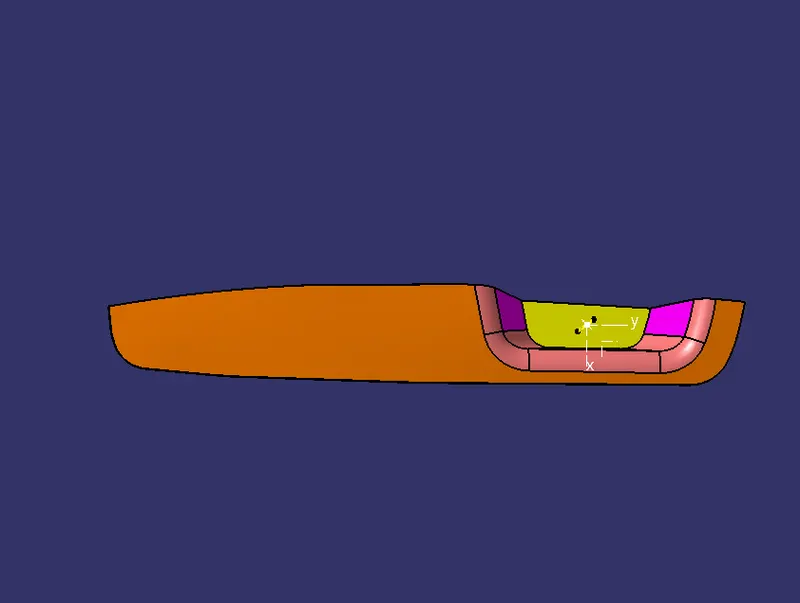

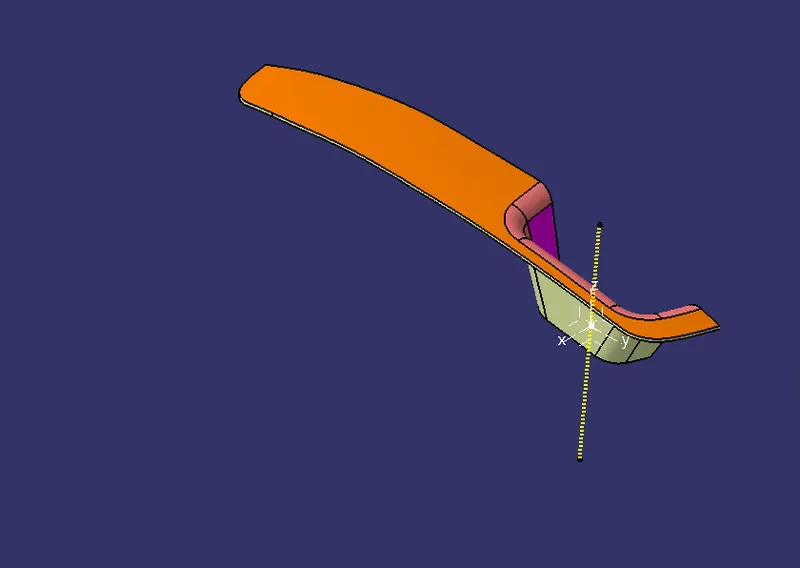

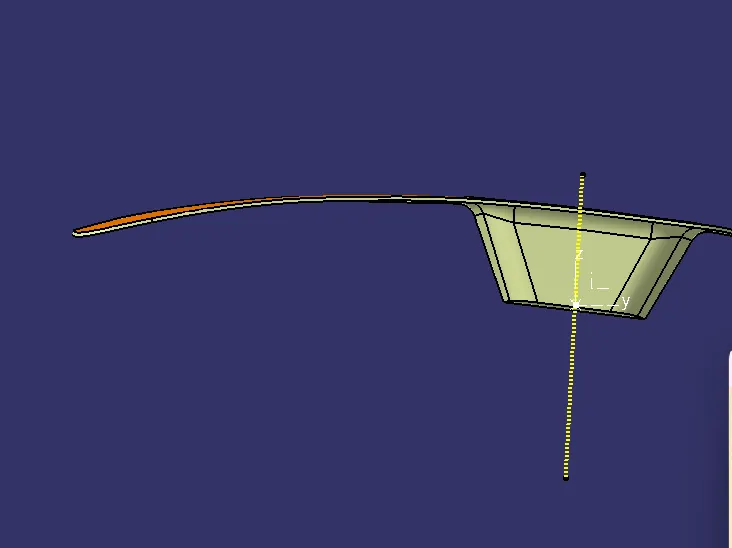

DIFFERENT VIEWS

Conclusion

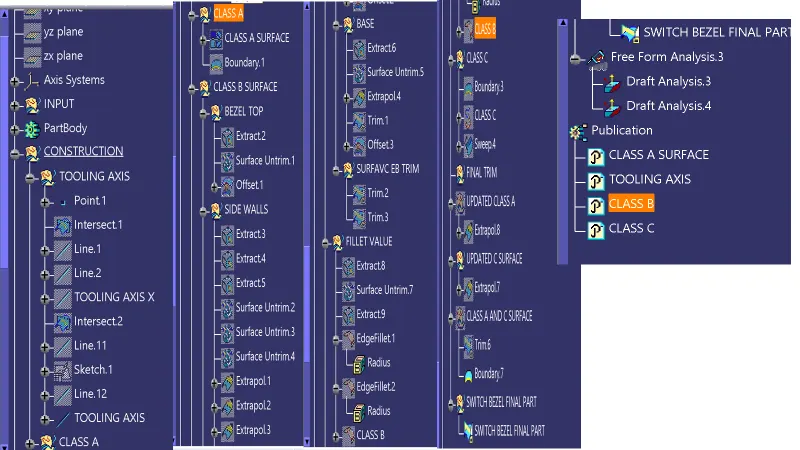

Finally the Class - A , B& C surfaces with the tooling direction have been publised
