Week 9 - Challenge 2 - Switch Bezel Design

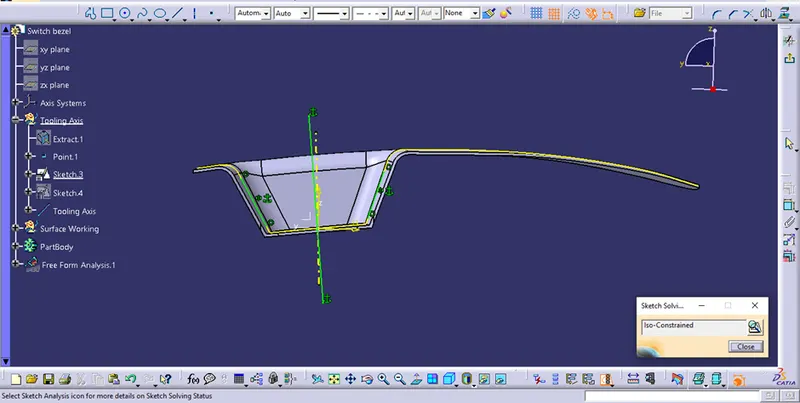

Tooling Axis Definition :-

• Here, there are three faces which has to take for Tooling axis reference.

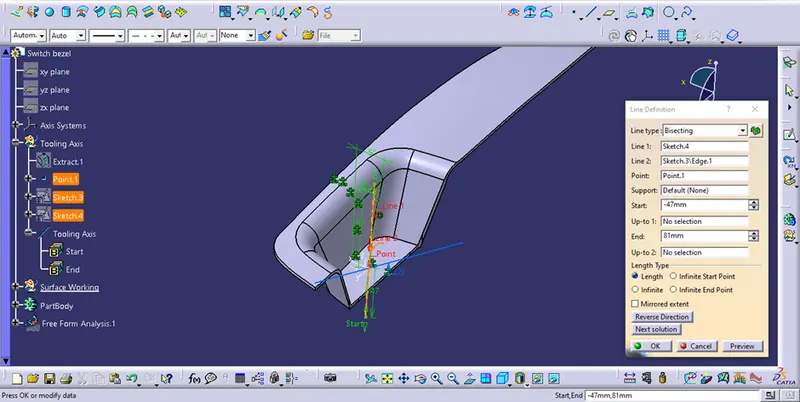

• First of all take two side walls and extract its planner direction. Then take out bisecting axis from middle axis for those two surfaces.

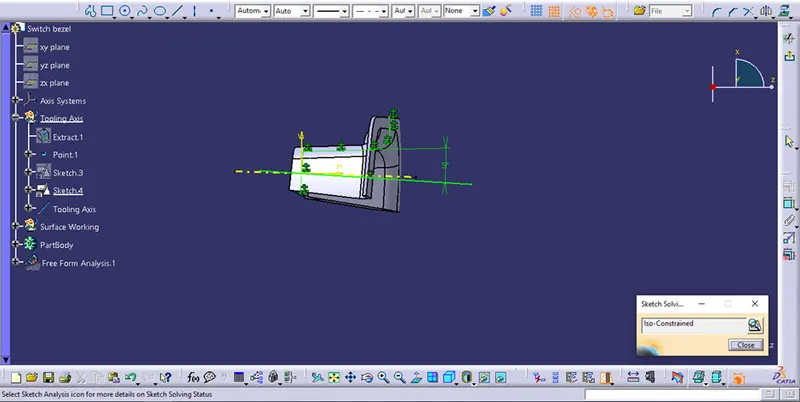

• Now take third surface and consider drafting angle and draw center reference line at draft angle of 5 degree from third surface planer.
• Finally we have two axis of all three refences. So take bisecting line which is our tooling axis which is at center for all three walls.

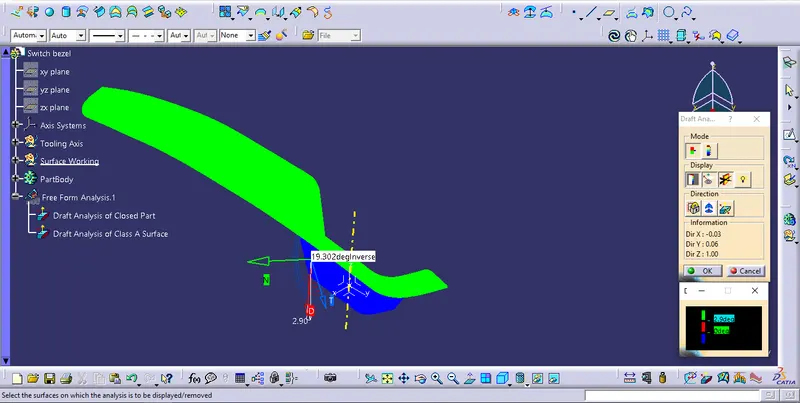

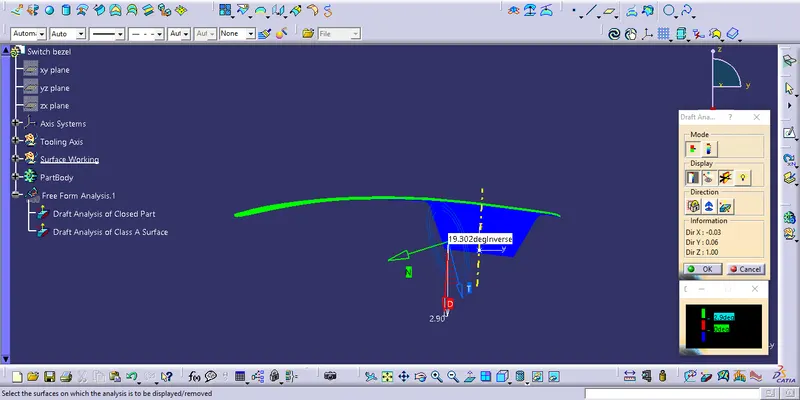

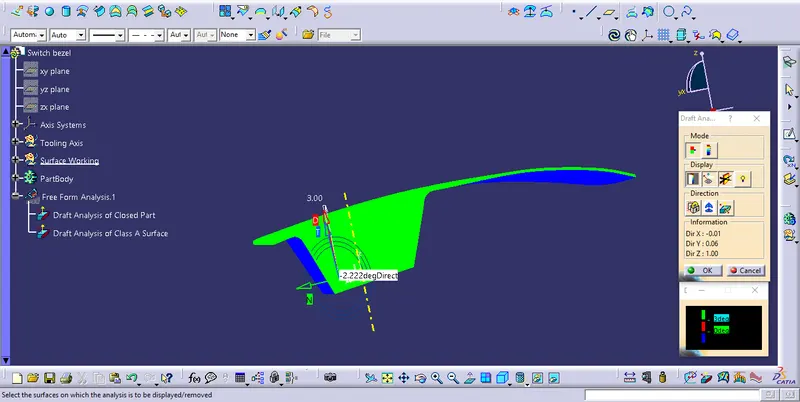

Class A Surface Draft Analysis :-

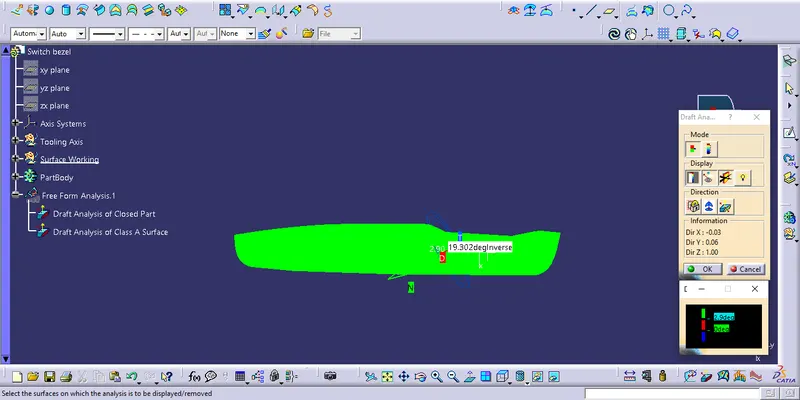

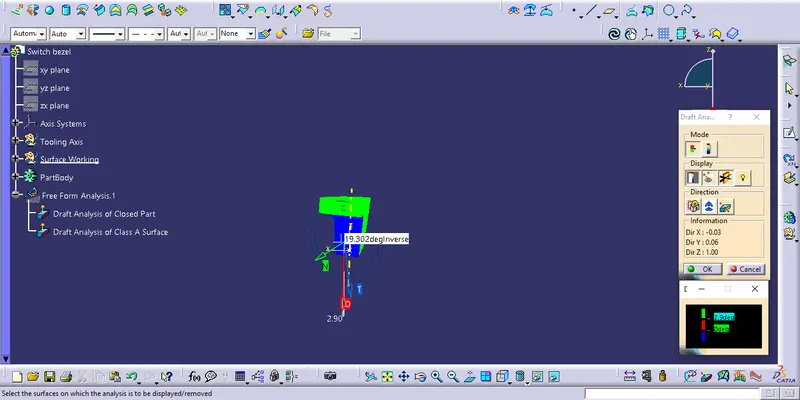

Part Draft Analysis :-

Isometric View

Front View

Top View

Side View
