Week 9 - Challenge 2 - Switch Bezel Design

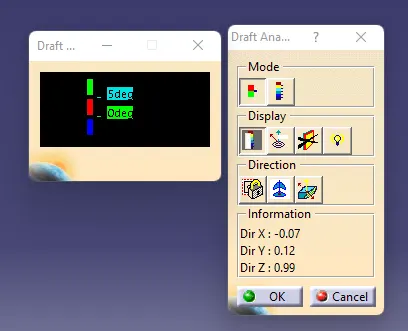

DRAFT ANALYSIS FOR GIVEN CLASS A SURFACE:

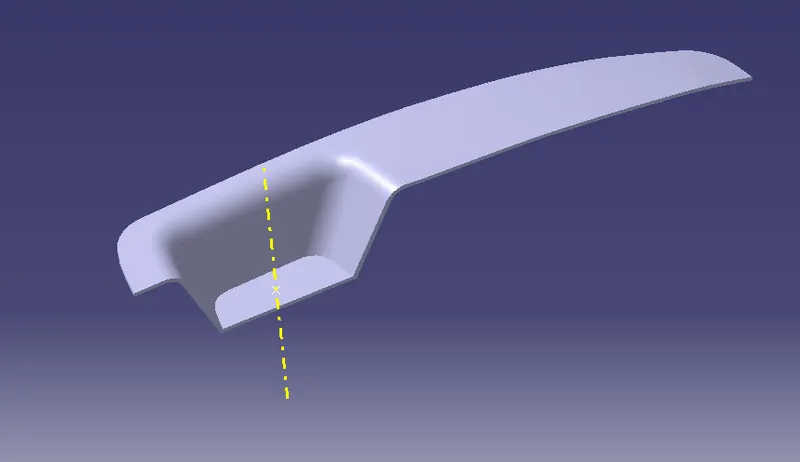

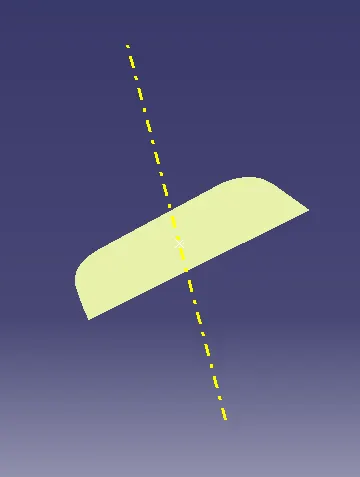

tolling axis:

It is the main axis along with which we are going to make our draft also with this axis the plastic component is going to be made. It is created with the help of the given class A surface given by the designer.

in this we use perpendicular to surface method we use if we use this method and cant not solve the draft anylisys then we use by secting line method or trial and error method is the last option to genarate the tolling axis

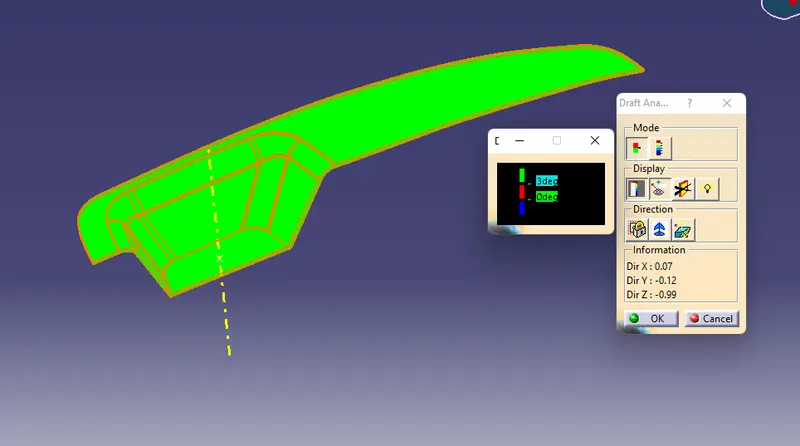

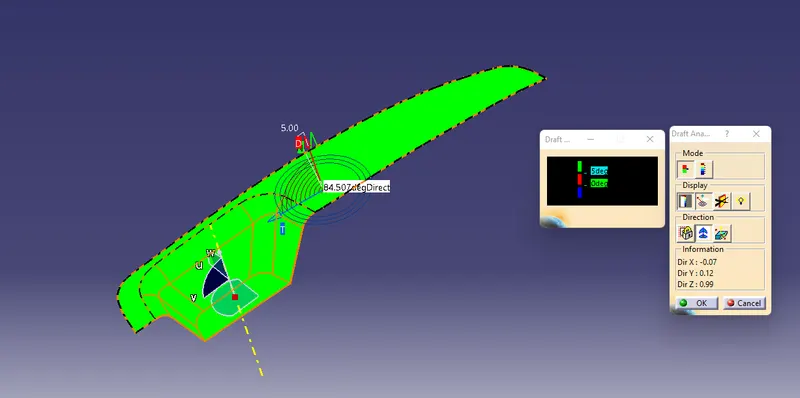

DRAFT ANAYSIS FOR THE FINAL PART:

So, as explained in previous example. The draft analysis is done to check the exact drafts of the component. As we are aware of the fact that a component with vertical or 0 degree draft can be manufacturebale so we have to provide at least 3 degree draft to make proccess easy and possible. For that purpose draft analysis is very important to check wethere the component will be manufactured easily or not.

close volume surface:

after genrate the close surface volume using the help of close surface commond we creat a final solid body

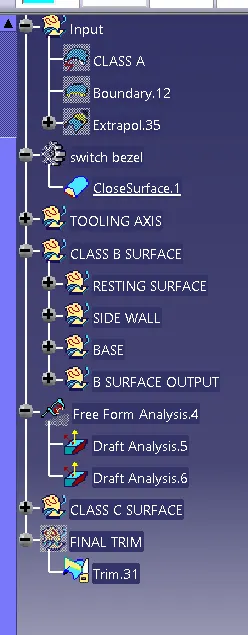

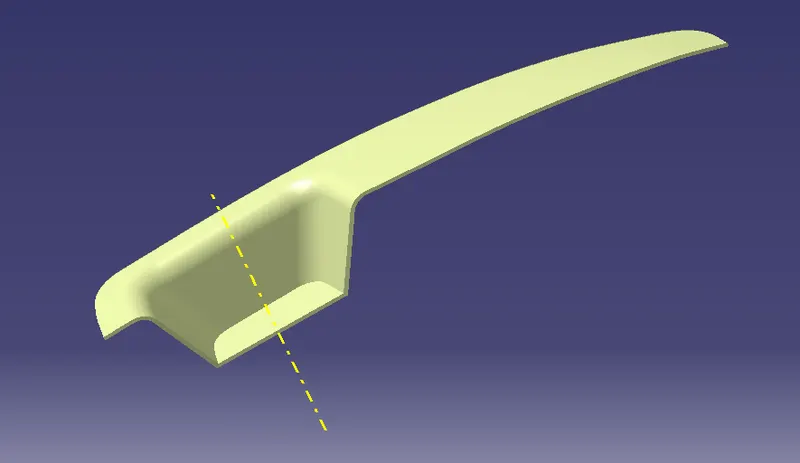

SCREENSHOTS OF THE SOLID MODEL:
