Week 9 - Challenge 1 - Base Bracket Design

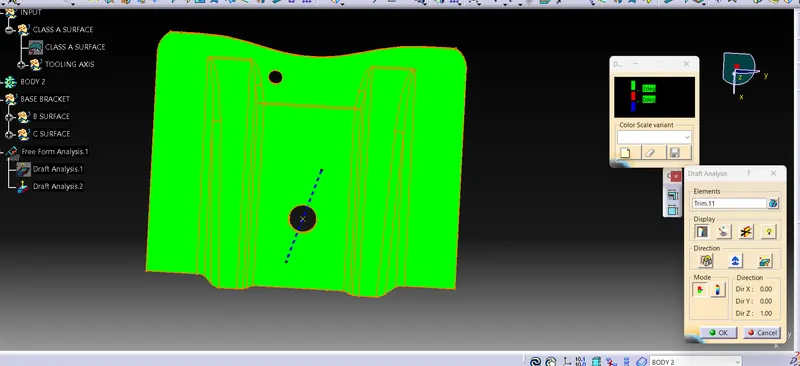

DRAFT ANALYSIS -

Draft is allows for part to release from mold.

Adding draft helps the part to release. most parts require a minimum of 1/2 degree to 1 degree,however 3 degree is widely accepted as a normal.

BASE BRACKET -

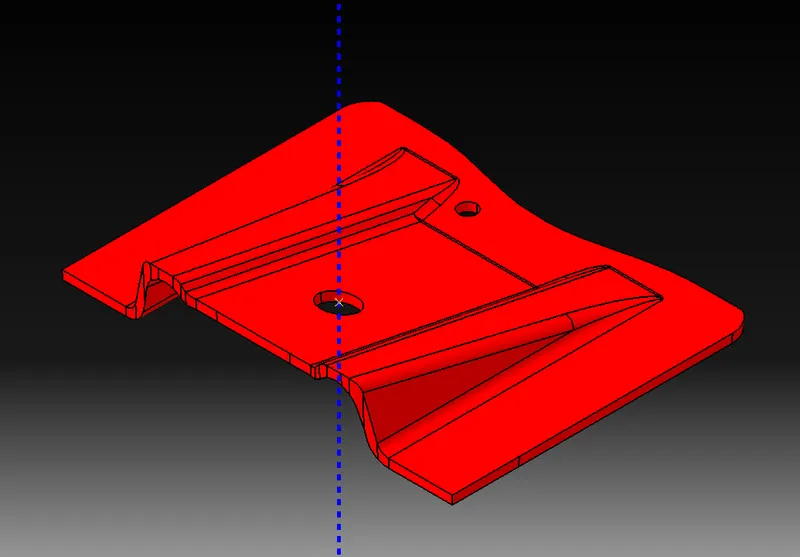

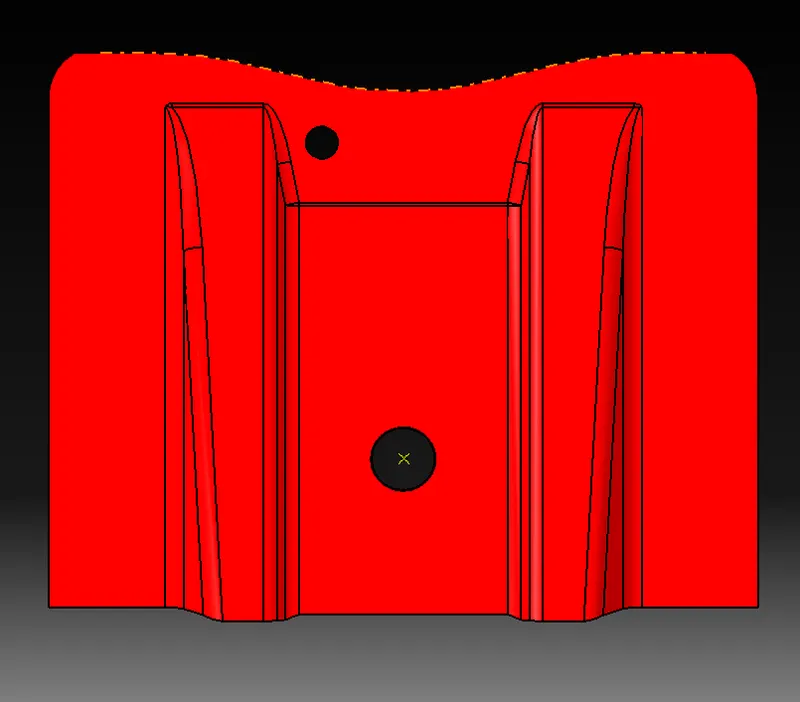

PLAN ISOMETRIC

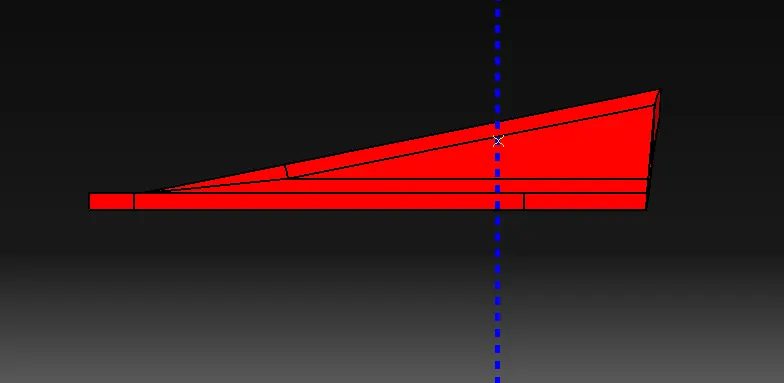

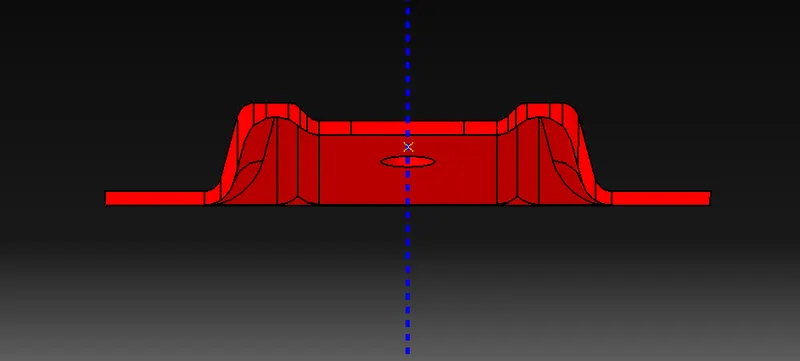

ELEVATION SIDE
