Week 9 - Challenge 1 - Base Bracket Design

Aim:

To be able to create solid from the given Class-A surface, by considering tooling axis and draft analysis.

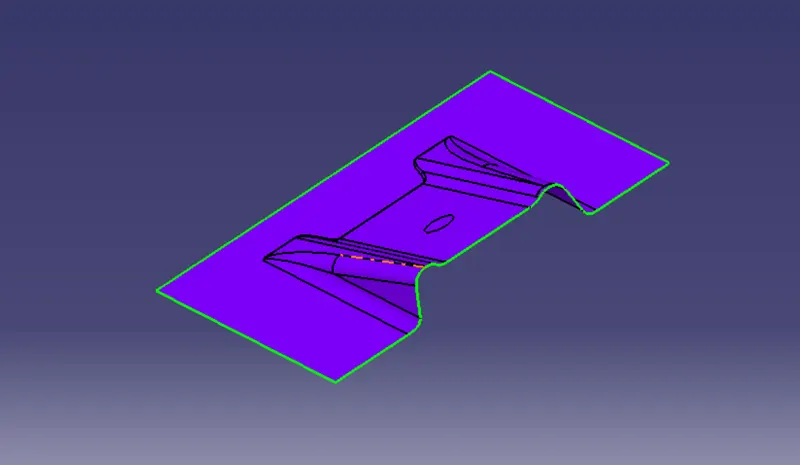

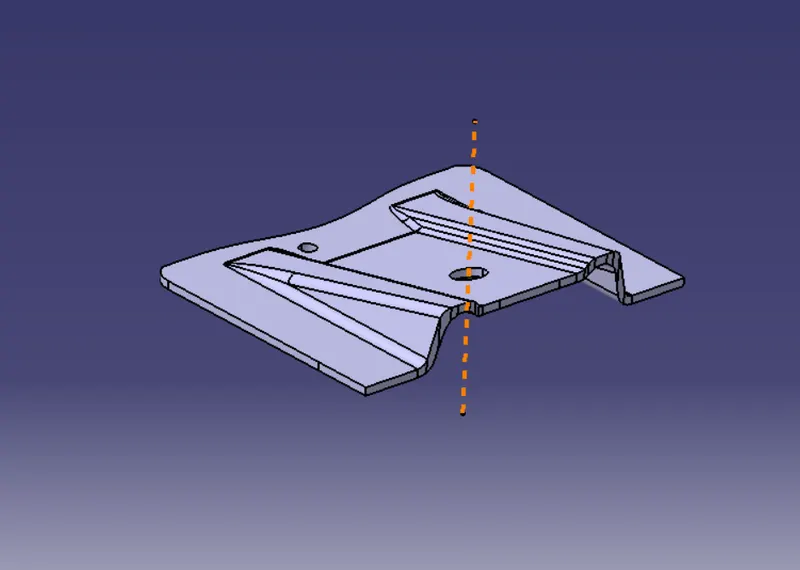

Class-A surface given:

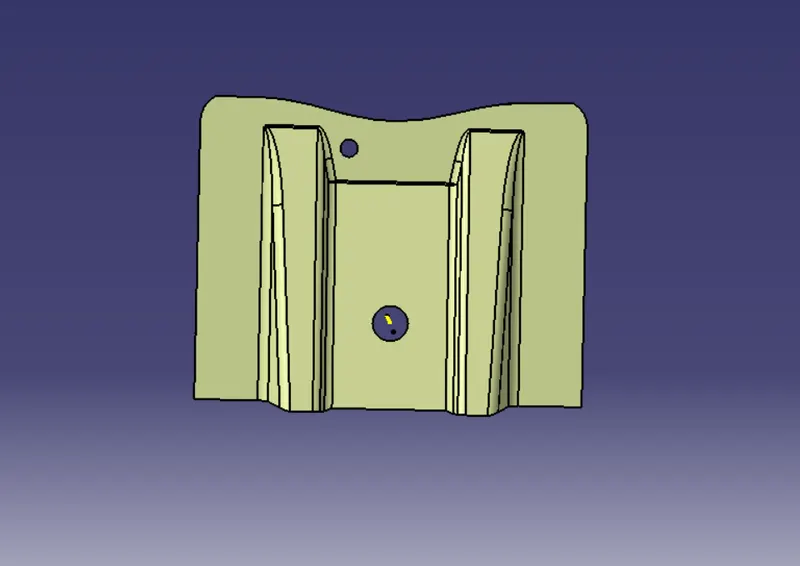

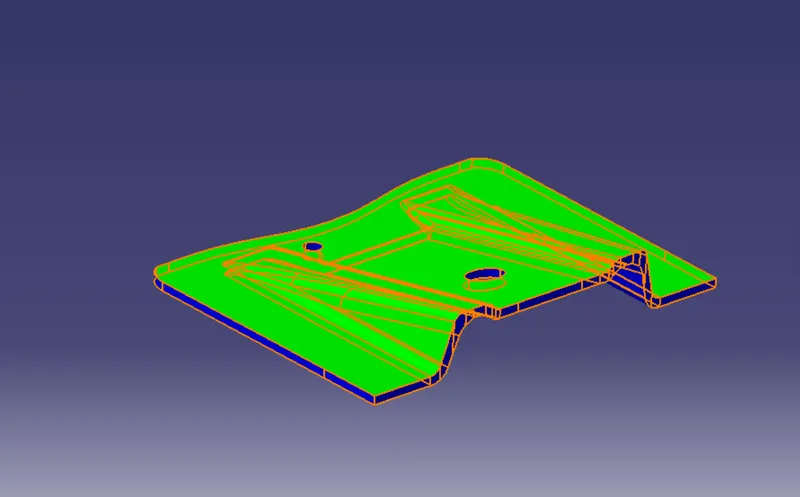

The above picture is the result of the draft analysis.

The draft is considered as 3 degrees.

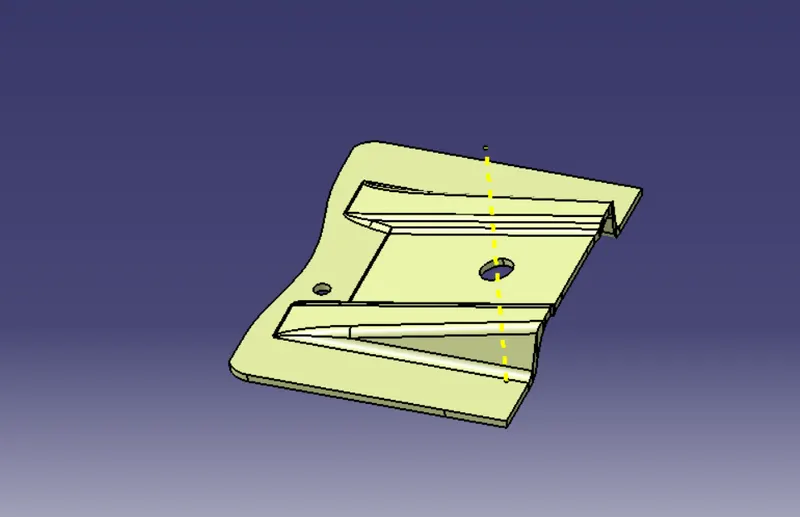

CLASS-B SURFACE

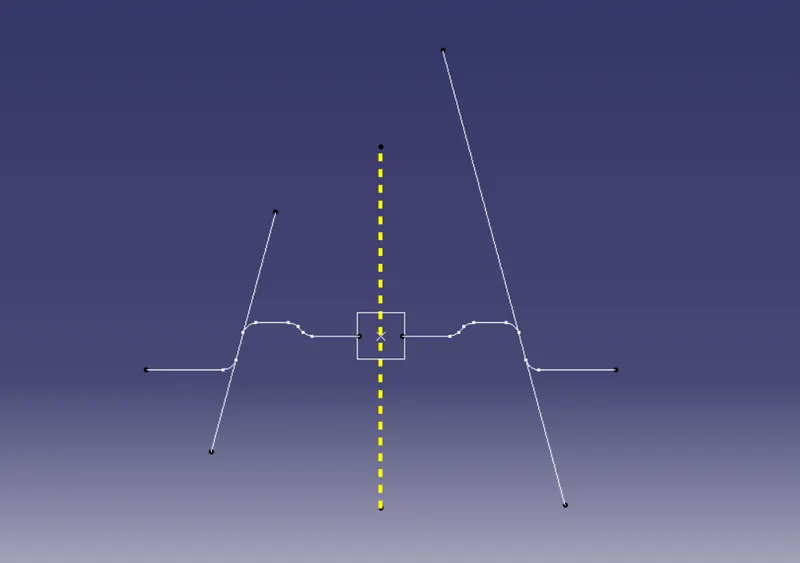

By using the boundary Sweep is created.

And the angle of draft given in Sweep is 3 Degrees

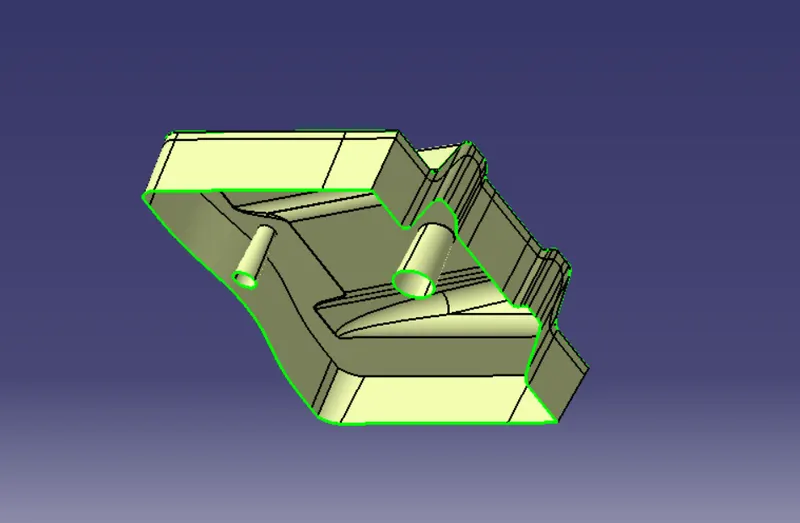

The above surface is trimmed/join from the Class A,B,C surfaces.

The Solid is made by using the Close surface tool.

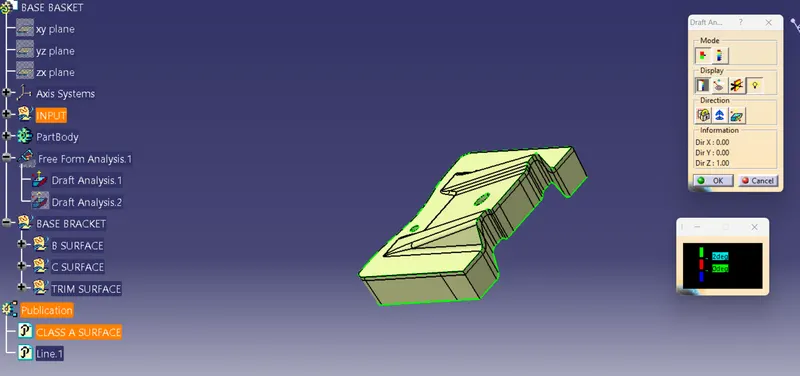

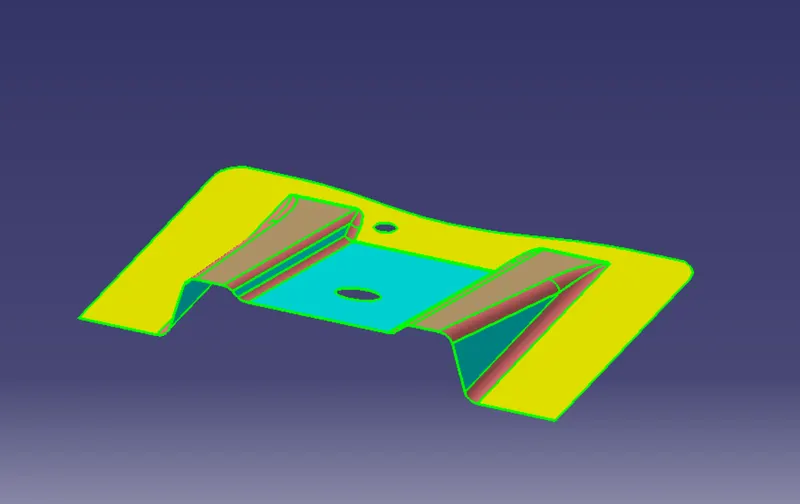

Draft Analysis for solid:

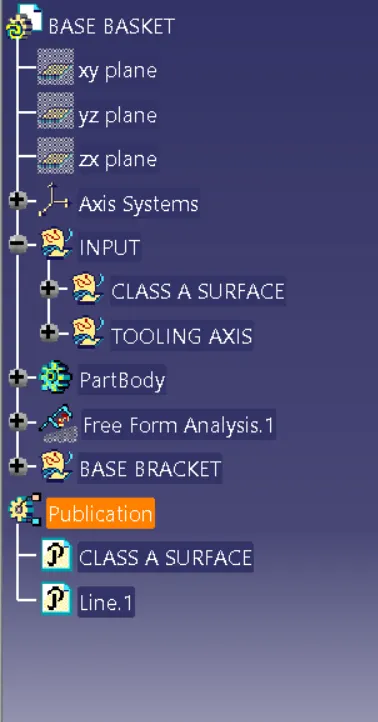

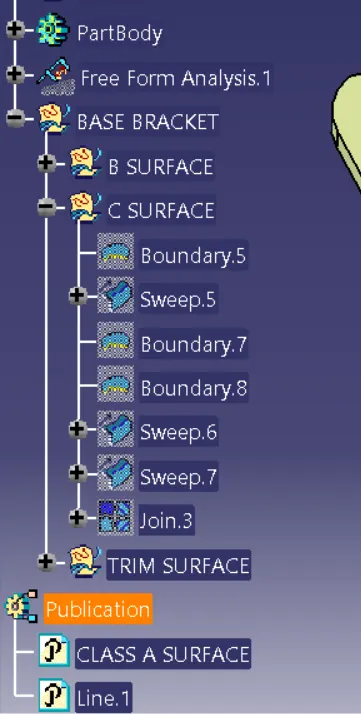

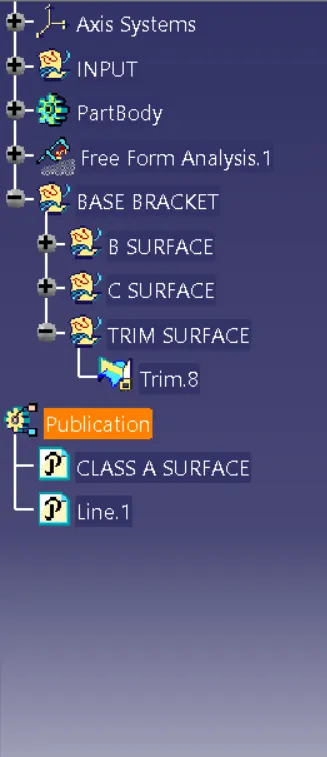

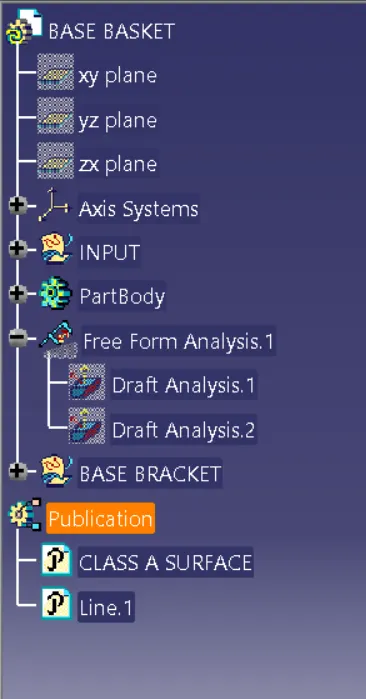

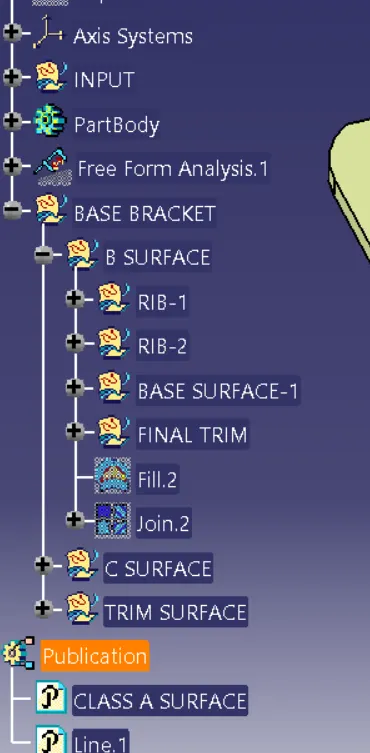

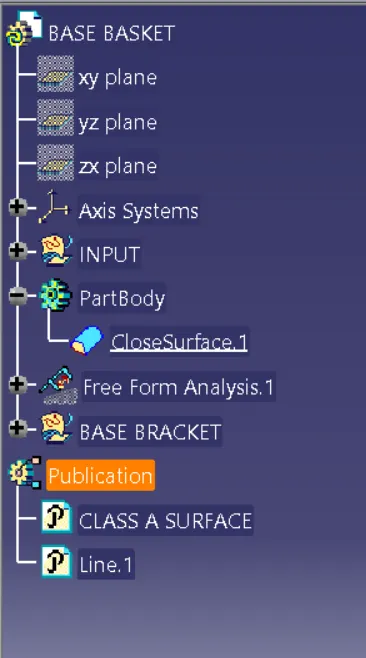

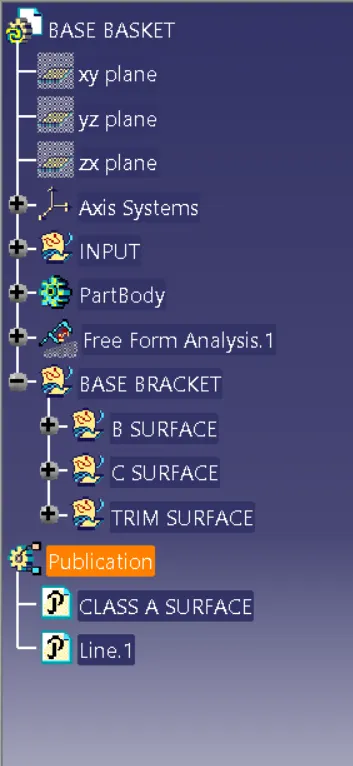

TREE STRUCTURE-
