Week 9 - Challenge 1 - Base Bracket Design

REPORT TOOLING AXIS : To Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Steps to perform given task:

• POINT TO LINE
• PLANE
• BISECTING LINE

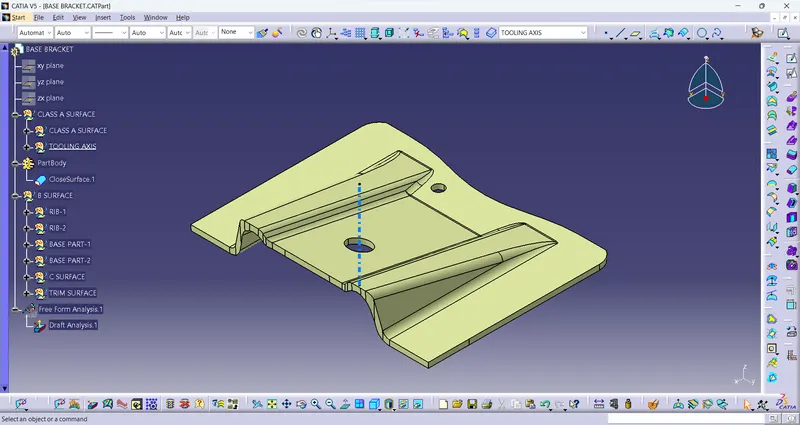

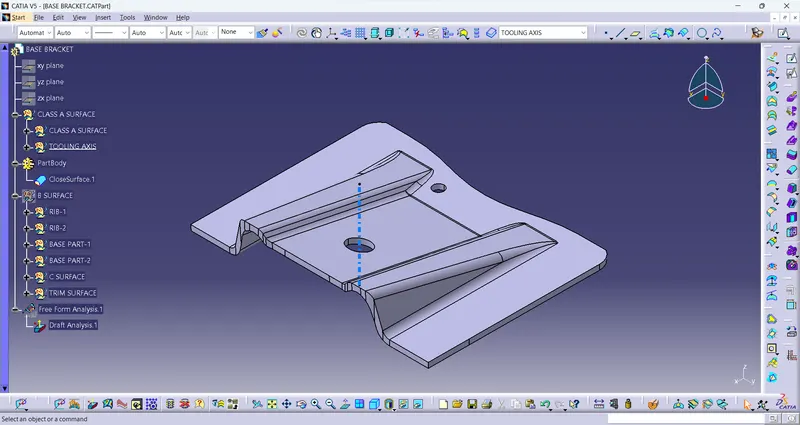

• DRAFT ANALYSIS GO TO TOOLBAR OR GO TO INSERT
• ANALYSIS
• FEATURE DRAFT ANALYSIS
• DRAG COMPASS ON THE OBJECT AND SELECT THE SURFACE
