Week 9 - Challenge 3 - Bumper

BUMPER DESIGN

AIM: to make a model from the provided class-A surface.

INTRODUCTION:

CLASS-A SURFACE: a surface made by the designer which is given as an input to the plastic modeler to work on. It is aesthetic surface and the outer most surface.

CLASS-B SURFACE: a surface below a certain thickness from the class-A surface is class-B surface. This is the surface that contains engineering aspects of a model.

CLASS-C SURFACE: a surface that joins class-A and class-B surfaces is class-C surface.

METHODOLOGY:

In this model we have focused on the following things:
Tooling axis
Draft analysis
Class-B surface
Class-C surface

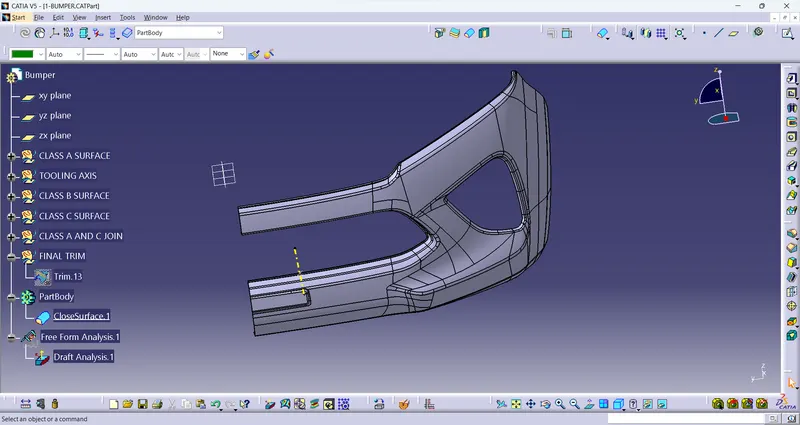

Making a solid model from surface.
Following tools were used to reach the final step:
Extract
Un-trim
Trim
Extrapolate
Offset
Edge fillet
Boundary
Sweep
Join
Close (part design)

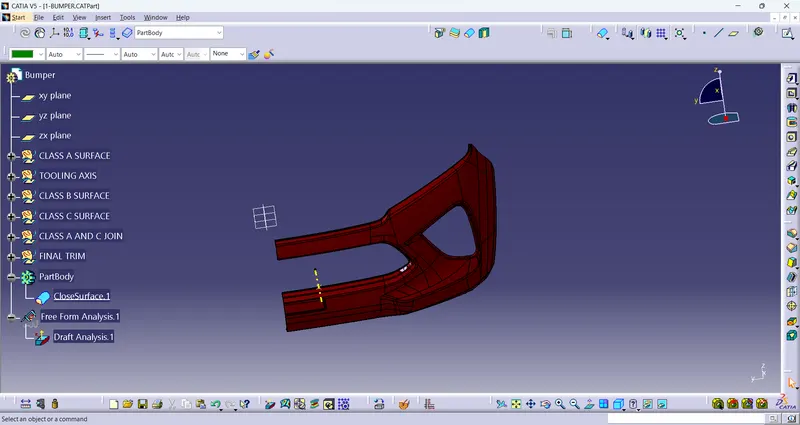

DRAFT ANALYSIS OF PART BODY:

The final solid part body has to be analyzed using Draft analysis. This is done to check if all the areas of the body are satisfying the draft angle which is 3 degrees.

A draft angle is a taper applied to the vertical walls of the injection-molded component to assist with releasing the part from the mold.

Draft angles are a required feature of injection-molded custom parts. A functional part for injection molding has to have draft angles that face both the cavity and core sides. This will reduce the risk of damage to the parts and ensure that they can be ejected from the machine.

CONCLUSION:

The Draft analysis of the component showed that the component is feasible to be molded without any issues.

Thus it satisfies all design and manufacturing criterias needed for a proper part.
