Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

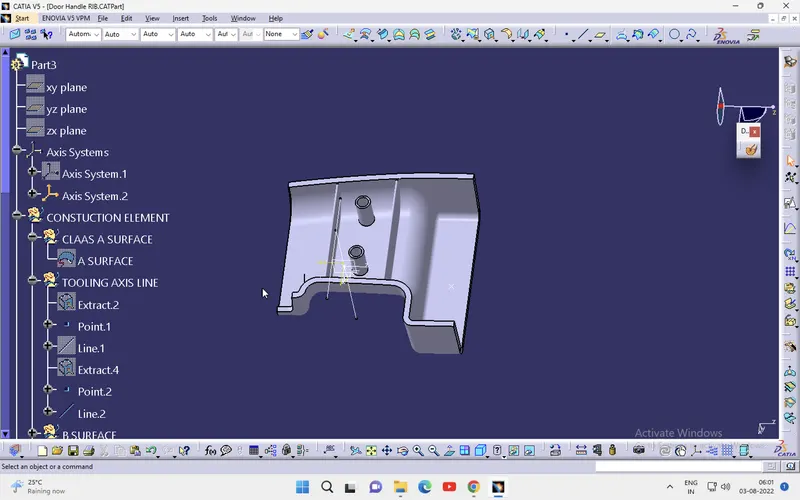

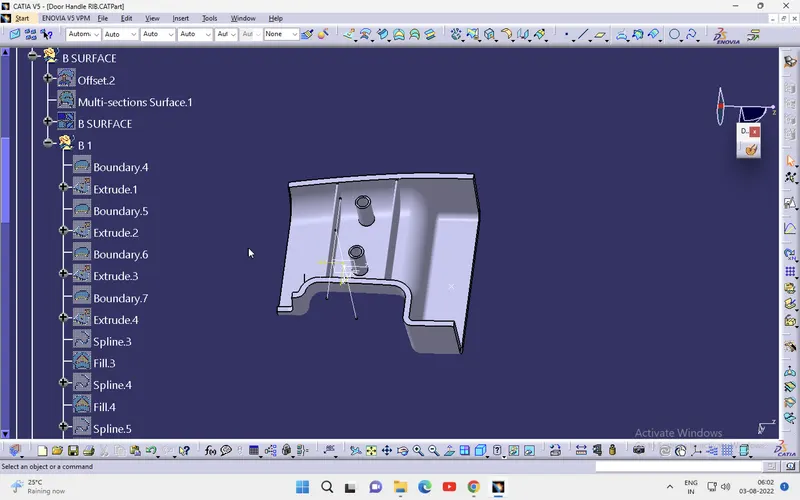

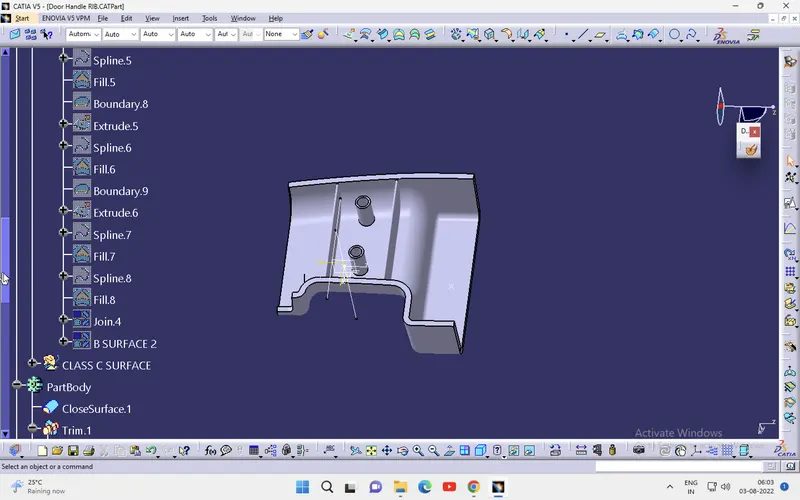

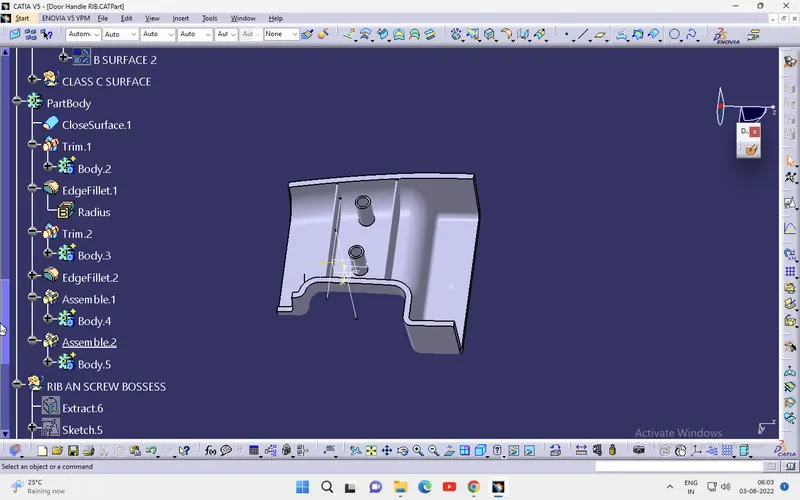

RIBS AND SCREWBOSSESS

DRA

DRAFT ANALYSIS

• DRAFT ANALYSIS: IN THAT ANALYS , BEFORE THAT THE BODY WILL BE DRAFT 3 DEGREE IN AFTER THE A SURFACE.
• AND I CHANGED THAT TO MATERIAL AND I CREATED DRAFT ANAKYSE TO CHECK ALL SIDE IS BEYOND 3 DEGREE.

NOTES

IN RIBS AND SCREW BOSSES I,M DRAFTED ALL SIDE BUT IN DRAFT ANALYSIS ITS NOT SHOWING CORRECTLY.
