Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

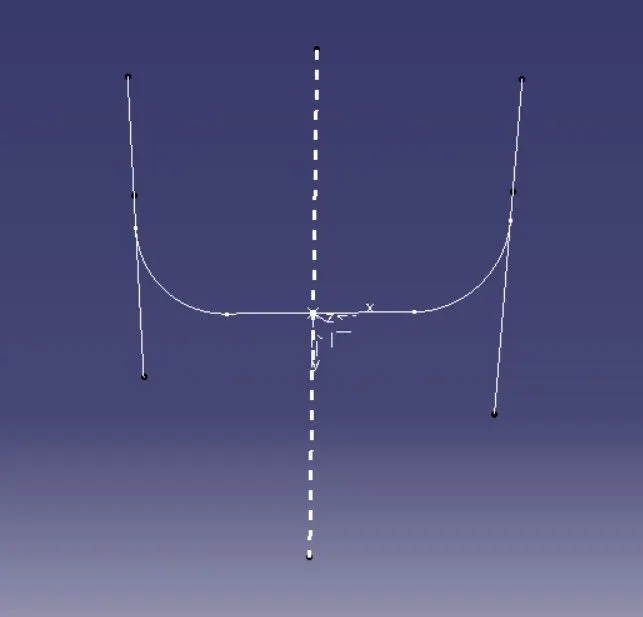

TOOLING AXIS CREATION USING BISECTING METHOD:

OFFSET CLASS A SURFACE (3 MM)

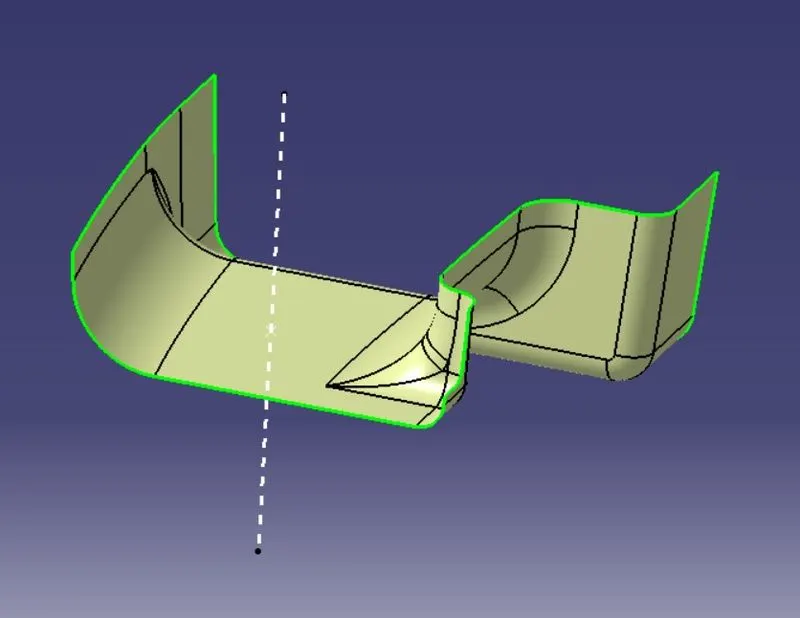

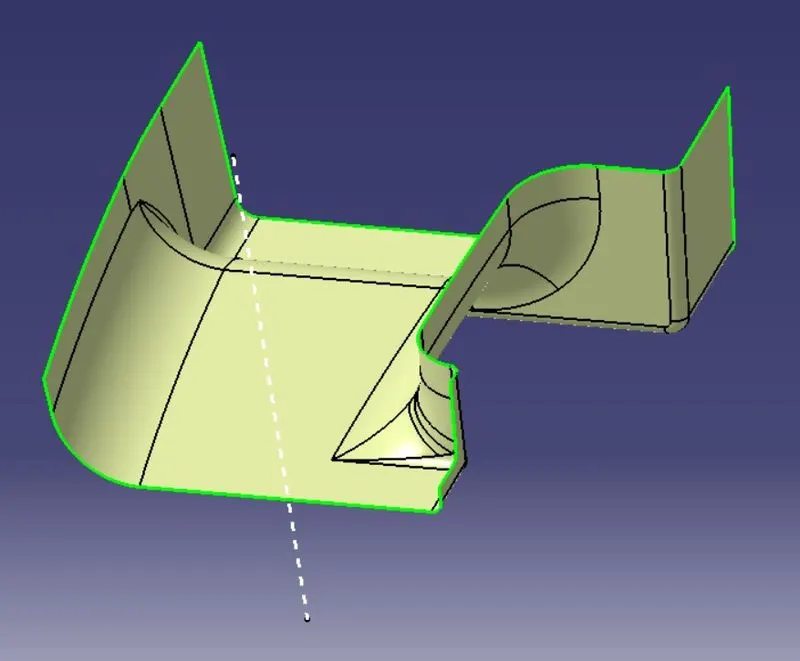

CREATE a CLASS C SURFACE:

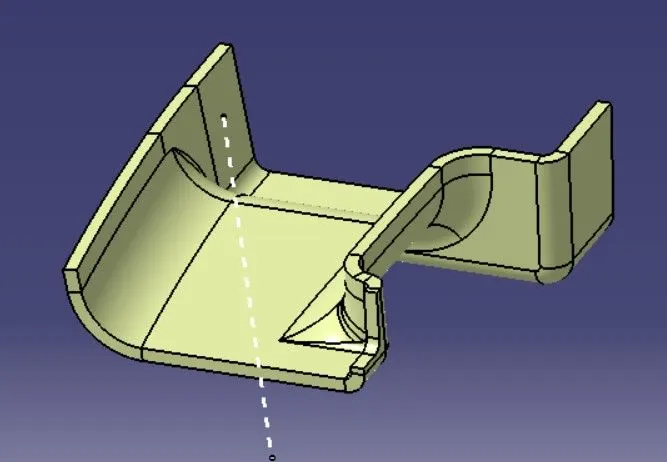

CREATION OF DOOR HANDLE:

• to find the height,h=Wall thickness * 5

  =3*5

  = 15 mm

  Therefore, the height is 15 mm

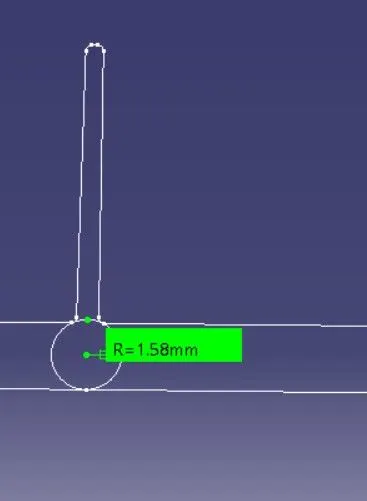

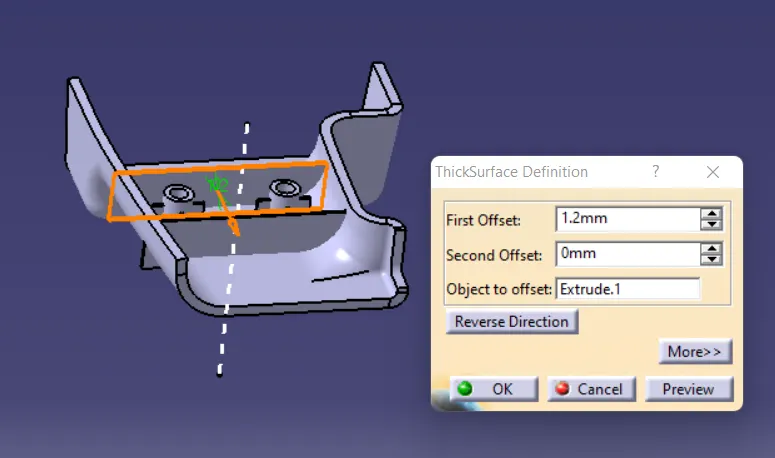

• The extruded surface is thickened,

  Thickness,w=0.4*t

  =0.4 * 3

  =1.2mm

  Therefore, the thickness of the rib is 1.2 mm

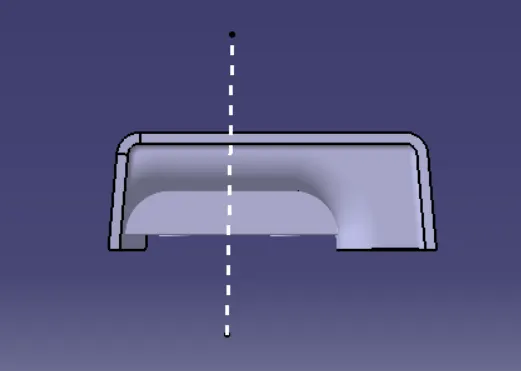

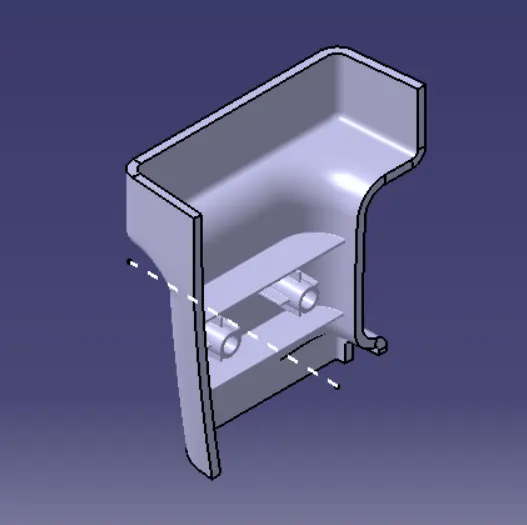

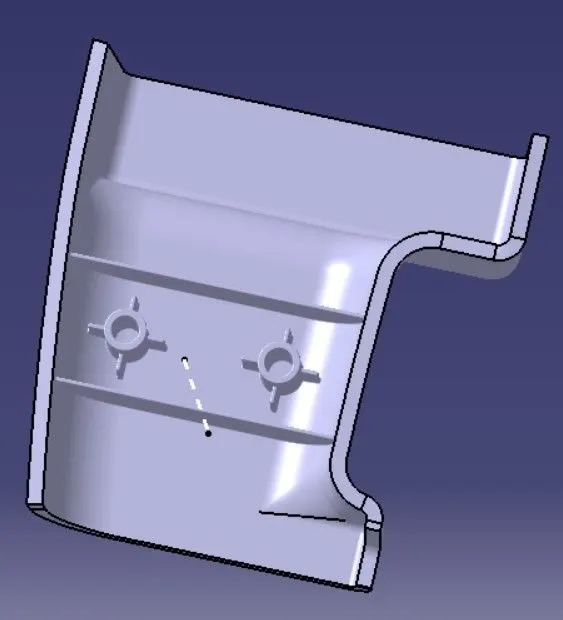

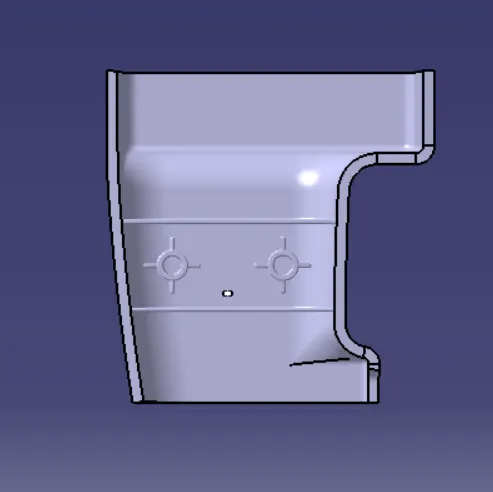

ISOMETRIC VIEW:

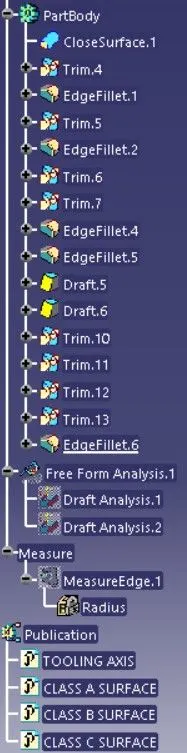

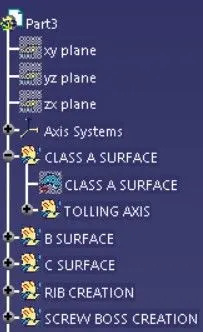

TREE STRUCTURE:

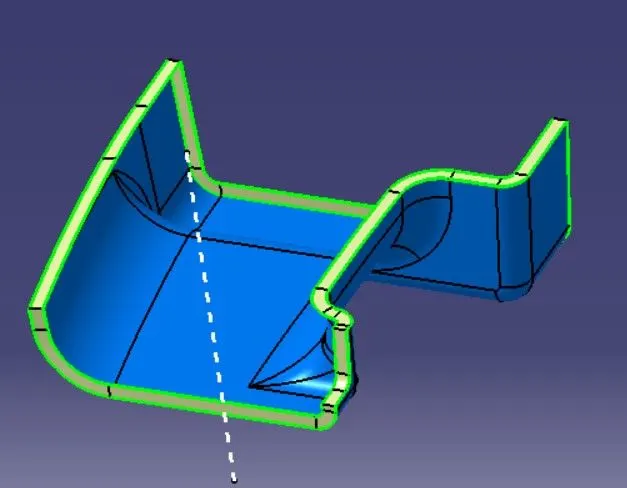

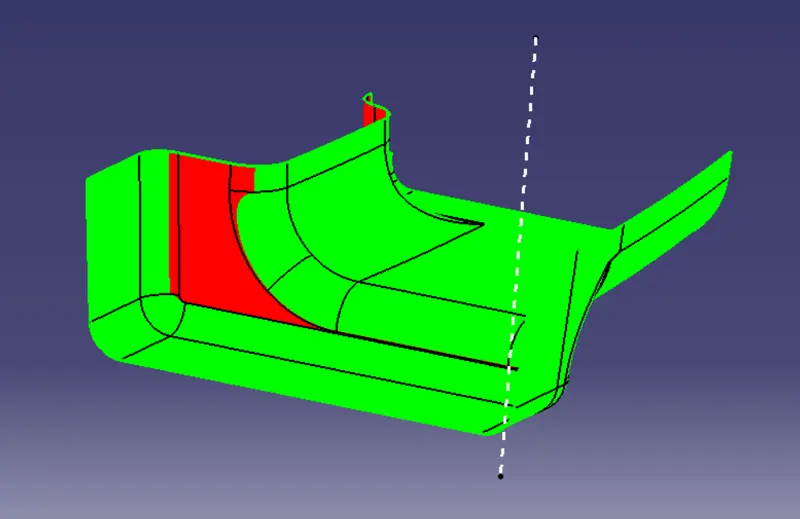

DRAFT ANALYSIS ON CLASS C

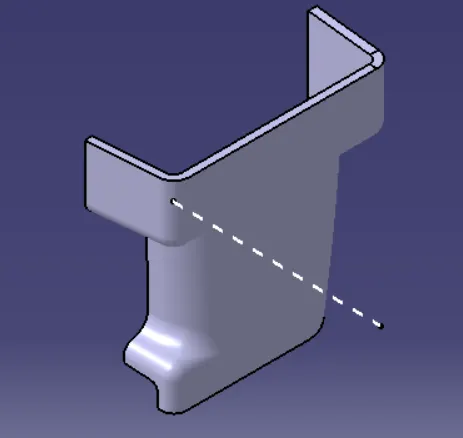

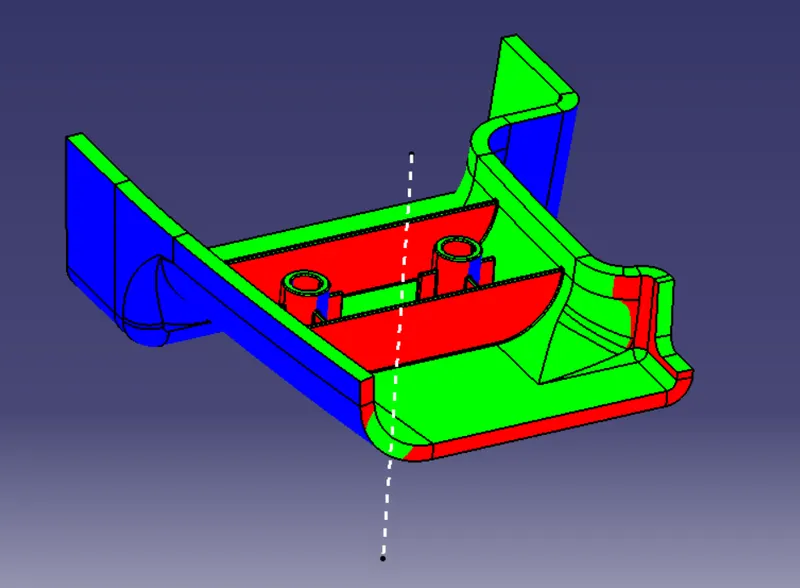

DRAFT ANALYSIS ON CLASS A SURFACE:
