Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Ribs & Screw Boss creation Challange

Class A surface:

Get the Class a surface form the Door handle and check the boundry for Class A surface .

Tooling axis:

Extract the flat surface Take the tooling axis on the surface Method Darw the the point on the surface draw the the line point and direction This is the line My Tooiling axis.

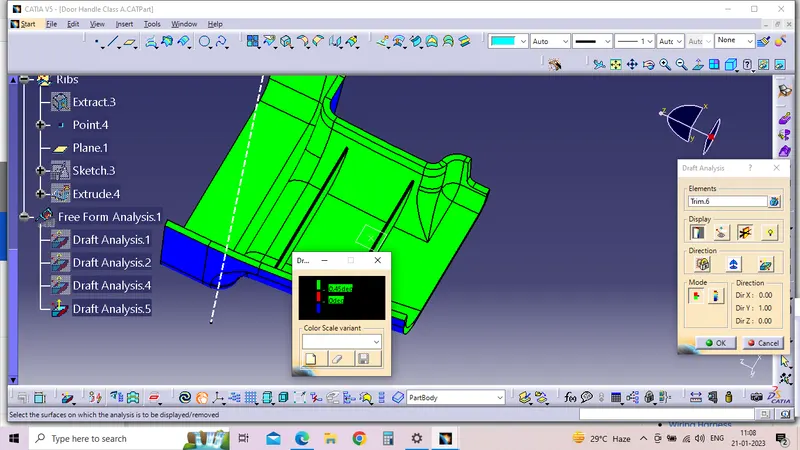

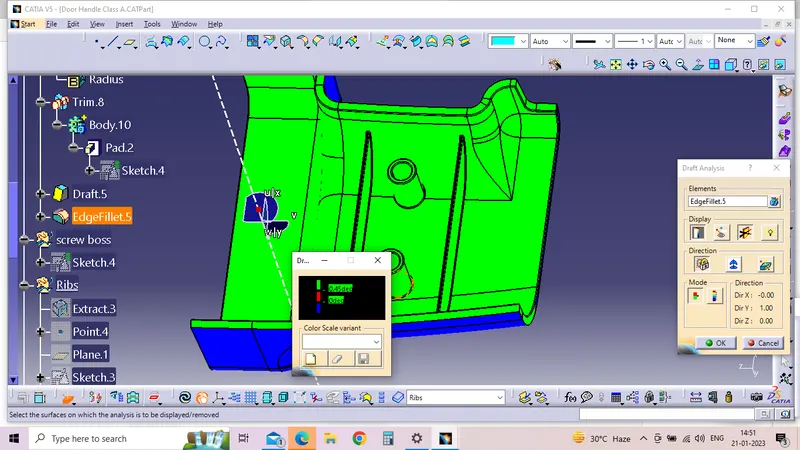

Draft Analaysis:

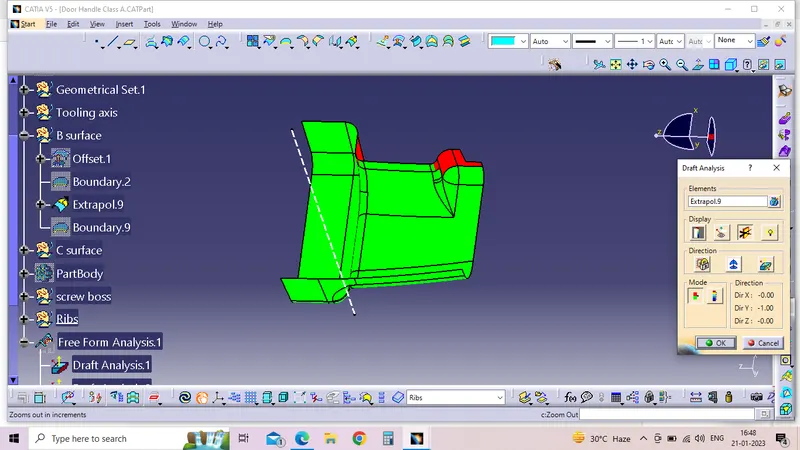

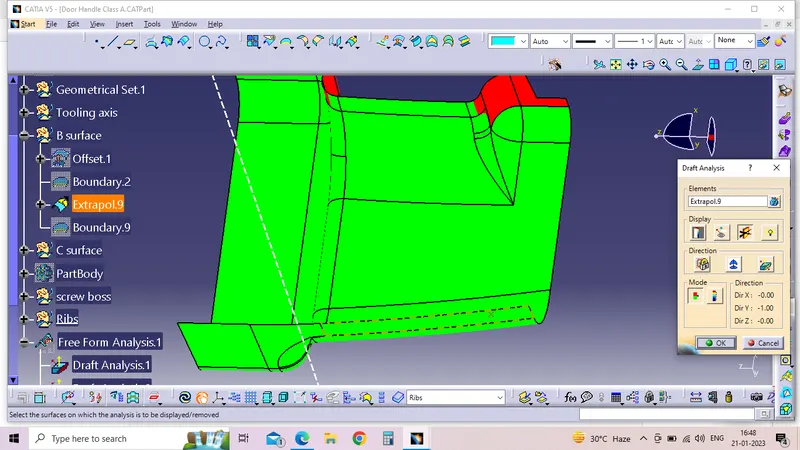

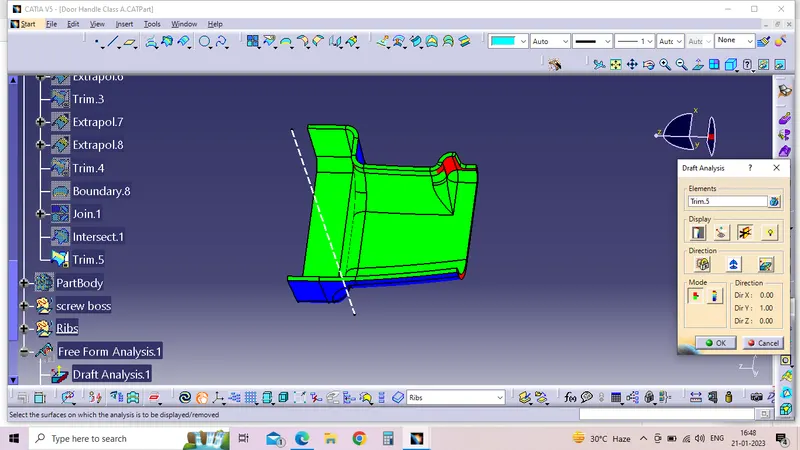

Tooling axis Parallel some area is not clearing in Both Class A & B surface and C surface & Closed surfase Also But Clearing Ribs &Screw boss 0.45Degeree Angles.
