Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

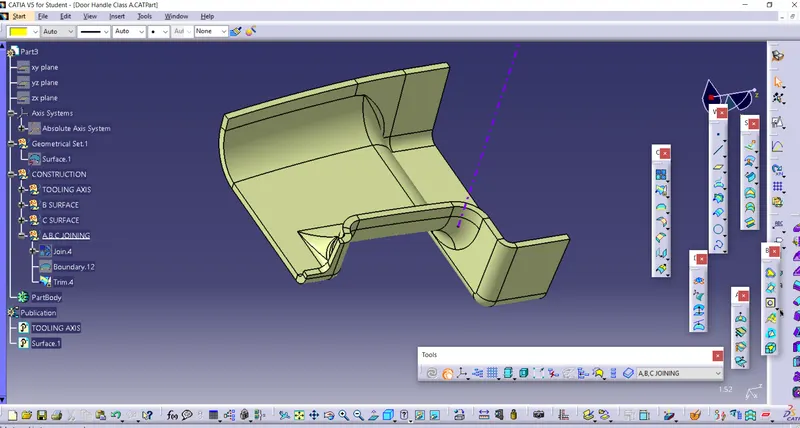

A,B,C SURACES JOINED IN BELOW SNAP:

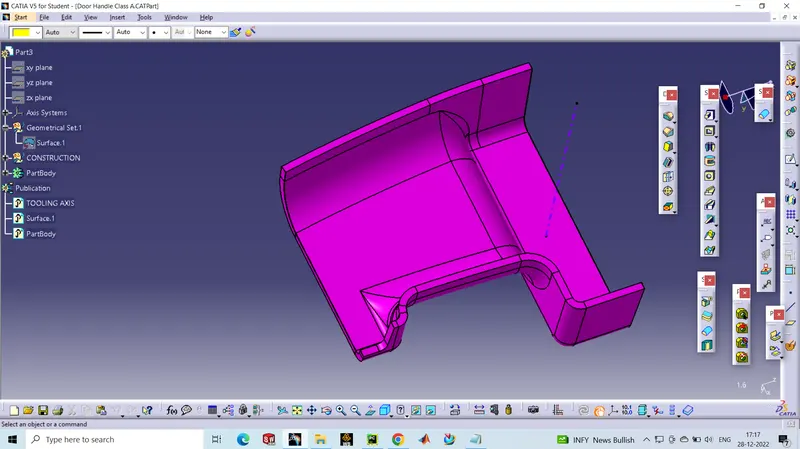

PART BODY:

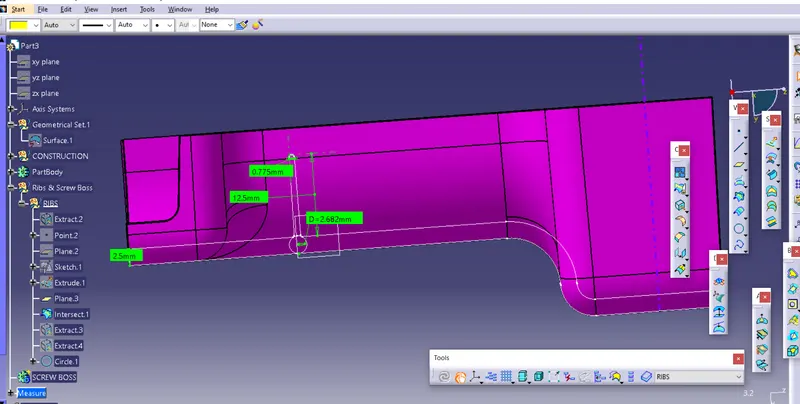

In below snap it has been shown the Rib design with guidelines.

distance betwen ribs centerline taken as 4.8 from above guideline.

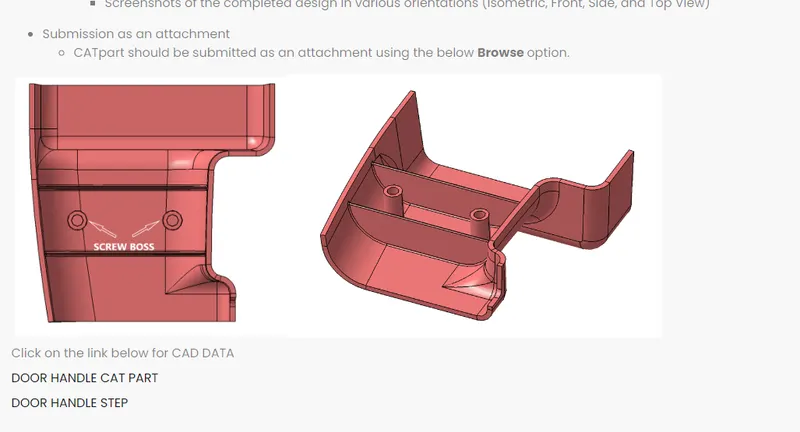

but in the challenge image the spacing between ribs are too high. so to create screw boss I followed below image and spacing guideline ignored.

I am taking screw boss for M6 and hole dia is 5.2mm taken.

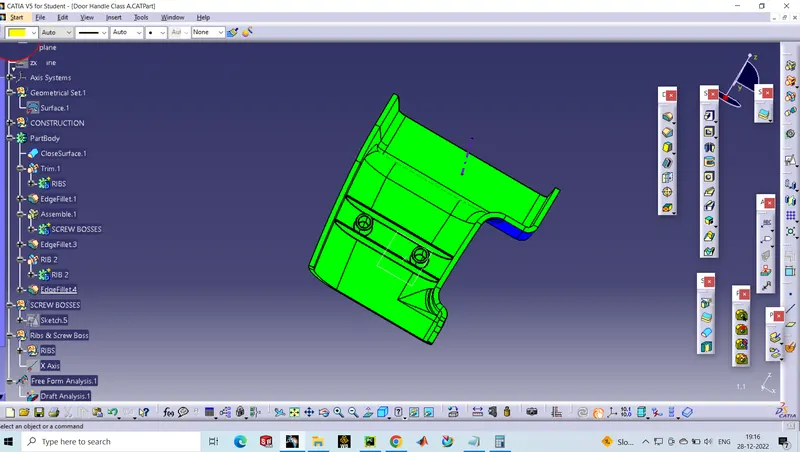

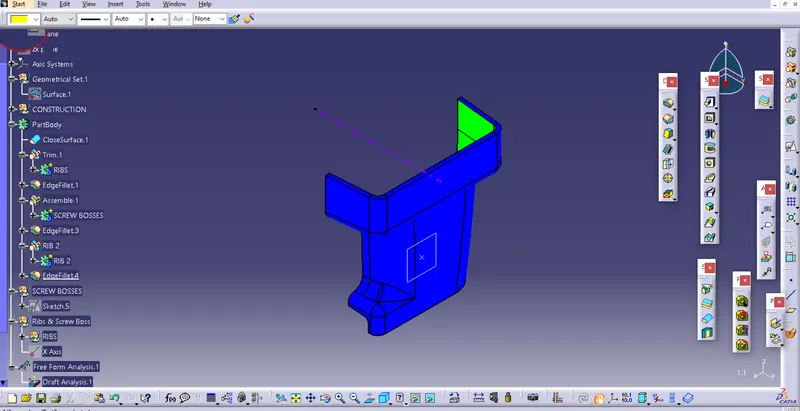

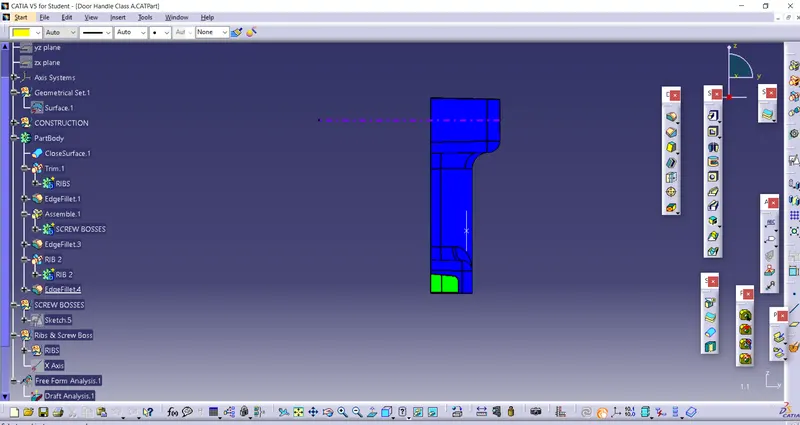

The final part body with 0.25mm draft analysis done for the part and snap given below.

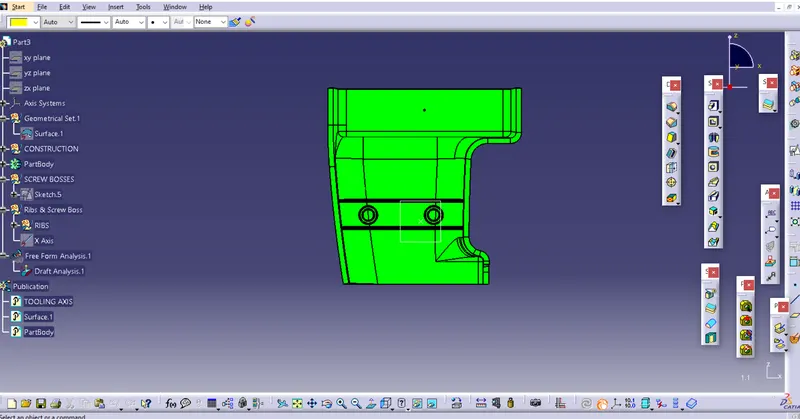

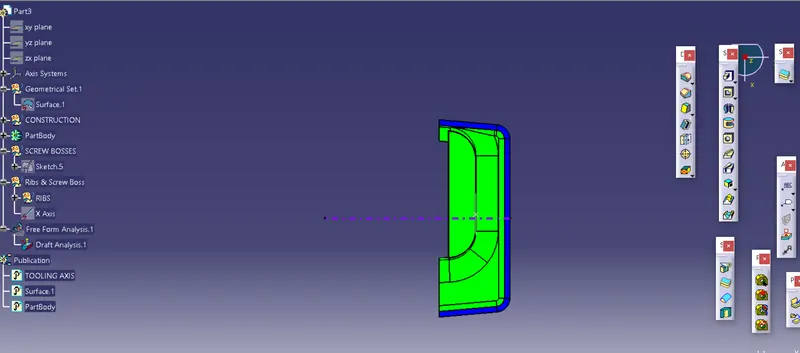

• Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View)
