Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Ribs:

Ribs are thin, wall-like features typically designed into the geometry of a part to add internal support to walls or other features like bosses.

Design consideration:

Screw Bosses:

Bosses are small cylindrical elements in a design. They are used for accepting screws or other fastening components for the assembly of molded parts

Design Considerstion:

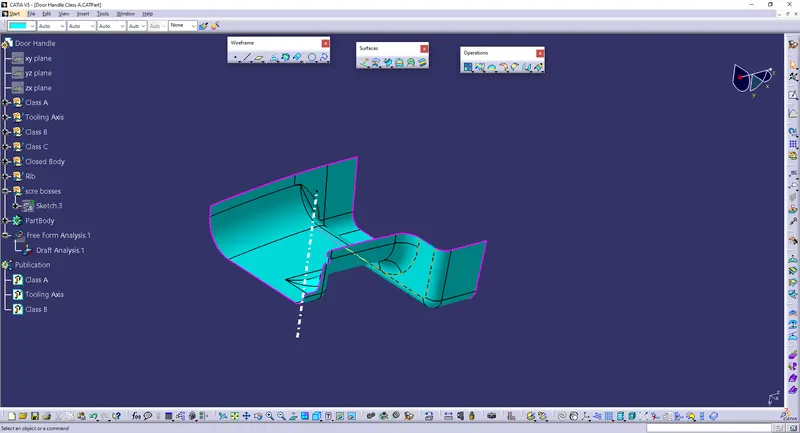

Tooling Axis :

• The direction in which the mold called the tooling axisor core and cavity opens is Tooling axis
• Considering the ejection from the cavity of the mold after manufactering the interior trim must have the nominal 3 degree draft angle. Hence the tooling axis is crested by considering this factor
• The white clour line is the tooling axis of this surface

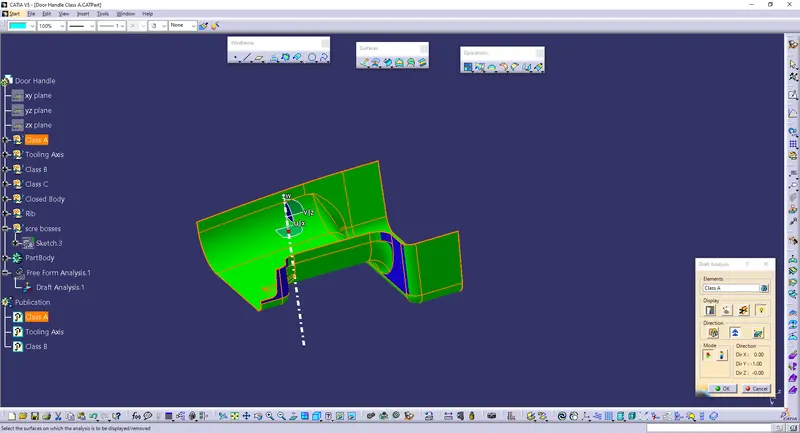

Class A Surafce :

• Class surface are the one which will be visible to the customer
• It's the exterior of the parts
• It has a optimal asthetic shape and high surface quality

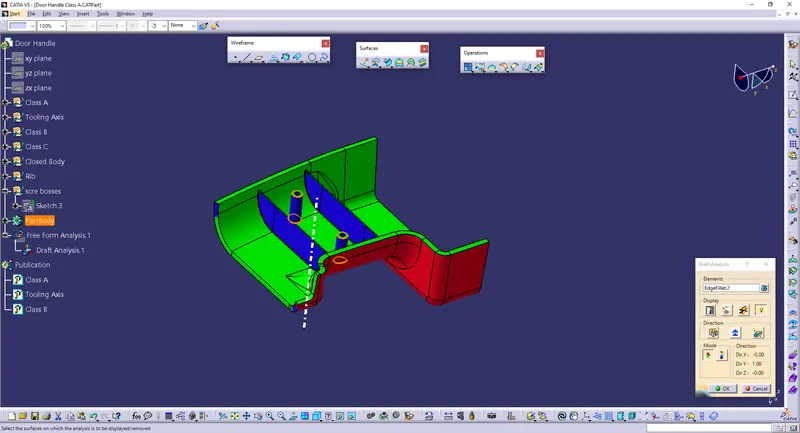

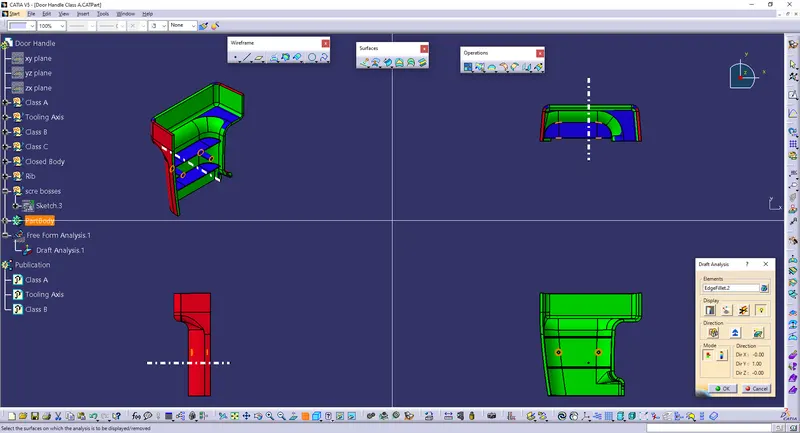

Draft Analysis :

• This type of analysis is performed based on colour ranges identifying zones on the analysed element where the deviation from the draft direction at any point.
• The Green colour denotes the draft angle is in the standards (3 degree).
• The Blue colour denoted its is below (3 degree).
• The Red colour denotes the surface is not producable.

For class A :

For Part :

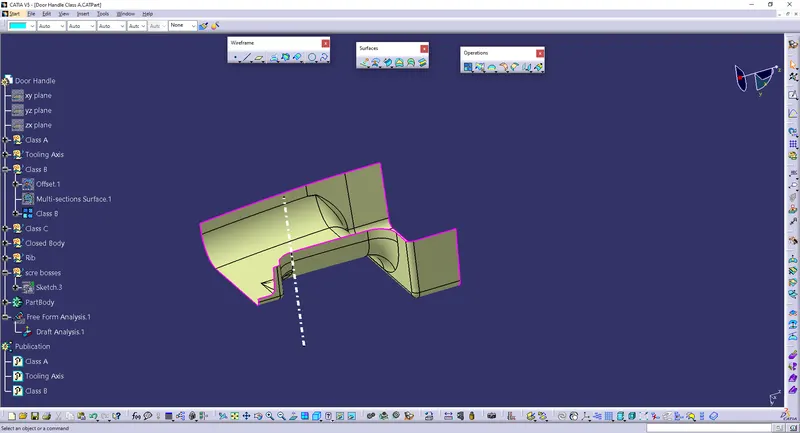

Class B Surface :

• Class B is the inner side of the Class a surface which will not be seen by the customer
• where it will faced in the side of core
• where the ejection will make there contact
• It contains the engineering aspects of a model.

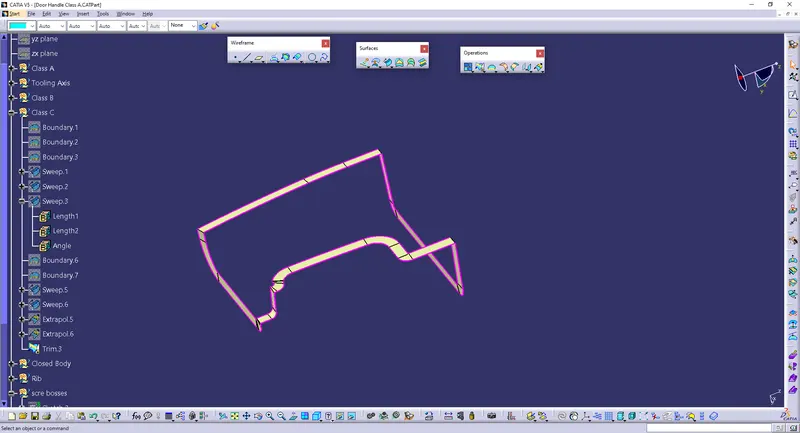

Class C Surface :

• Surface that joins class-A and class-B surfaces is class-C surface.
• Which will determine the thickness.
• Class C is often specified for interior surfaces not readily visible.

Conclusion:

The report of “Drill Handle” with Attachment feature Creation (Ribs & Screw Boss), And the project Is Done.
