Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Detailed report of Draft analysis

First of all we have to check whether what direction should be prefered for tooling.

step 2: we have to check x, y , z directions to create the tooling axis

step 3 : After considering one direction we have to insert the axis system to create the tooling axis.

step 4 : we have to intersect the prefered direction such as xy ,yz or zx with the surface to create the intersection.

step 5 : we can create the tooling axis by using the bisecting line method.

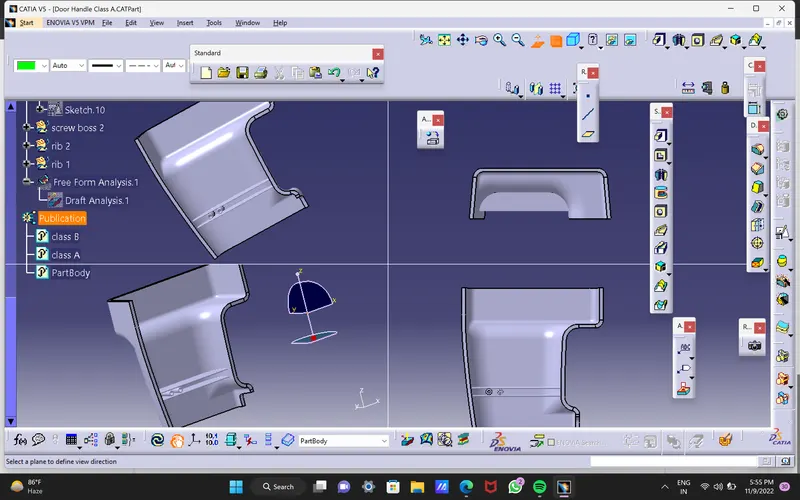

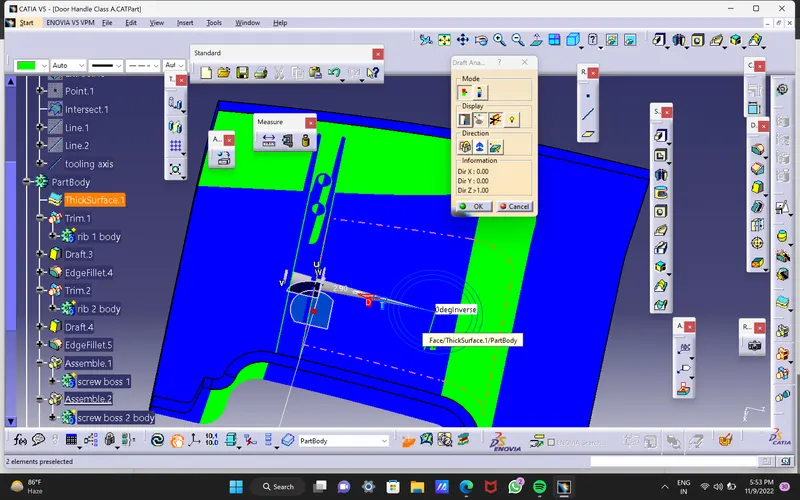

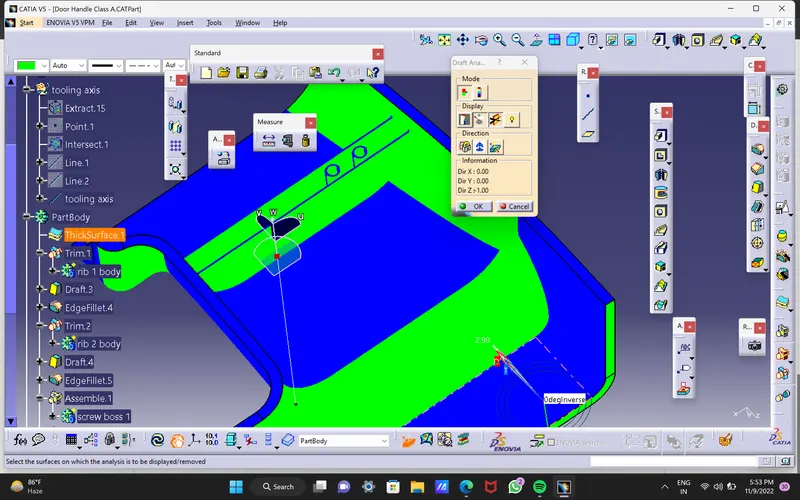

step 6 : we have to insert the draft analysis to find the draft analysis of the surface

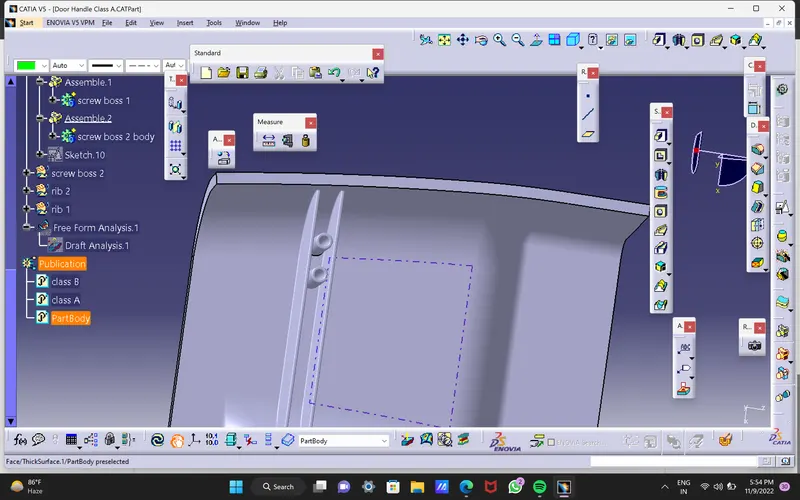

Screw boss and ribs images
