Week 8 - Challenge 6 - Core & Cavity Design

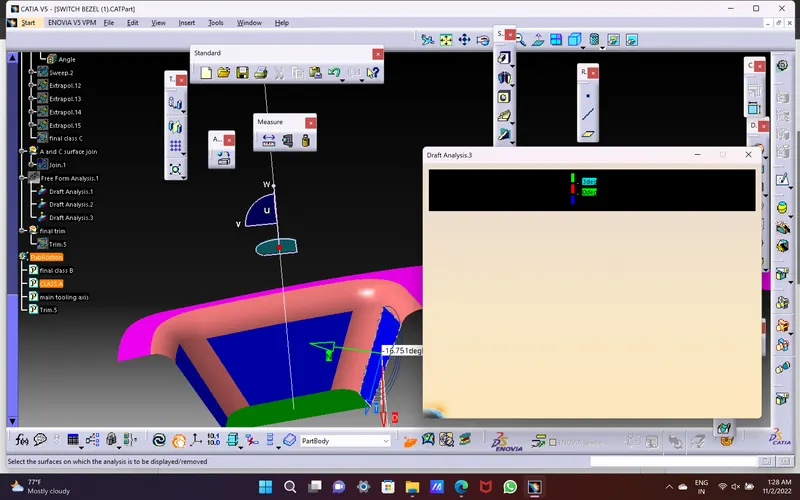

Draft analysis report :

step 1 : First of all insert the point on the surface where the switch bezel is going to be tooled and then axis should be created by using bi secting lin emethod

step 2 : After creaying tooling axis choose the option {i.e Draft analysis} so by that we can find the draft analysis of a component that we needed.

step 3 : first we have to find the draft analysis of the class A surface

step 4 : After creation of the final closed surface we have to do the same draft analysis on the body.

step 5 : make sure that the draft degree should not be more than 3 degrees.

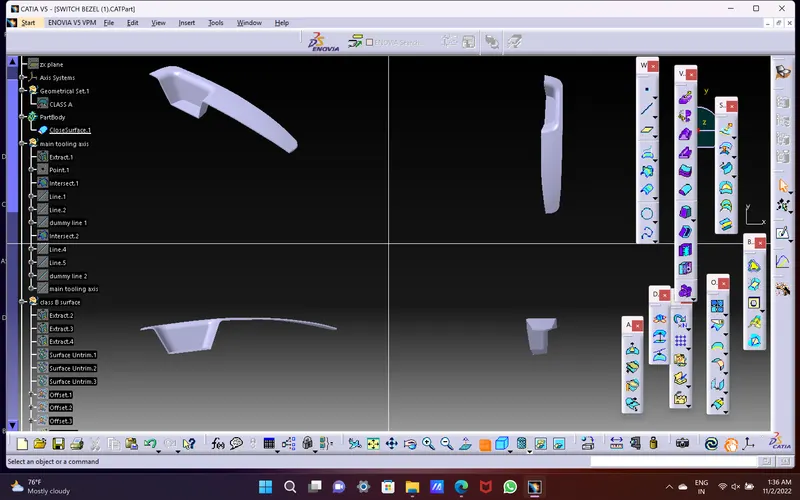

Images of the Switch Bezel PLastic Component and

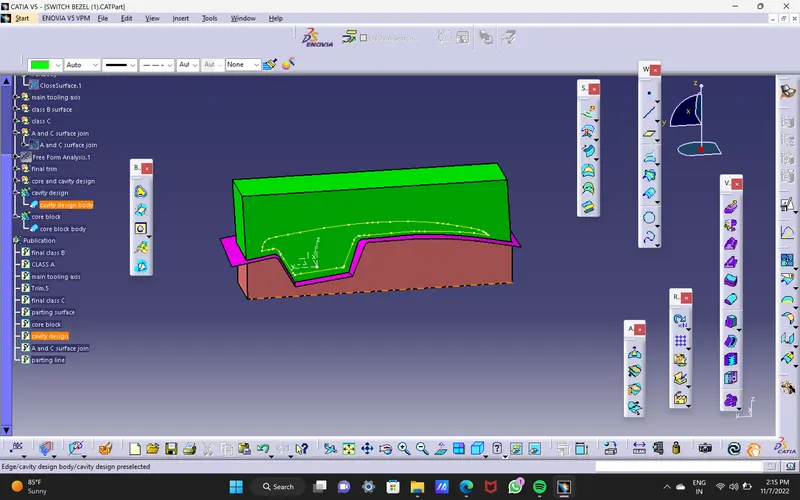

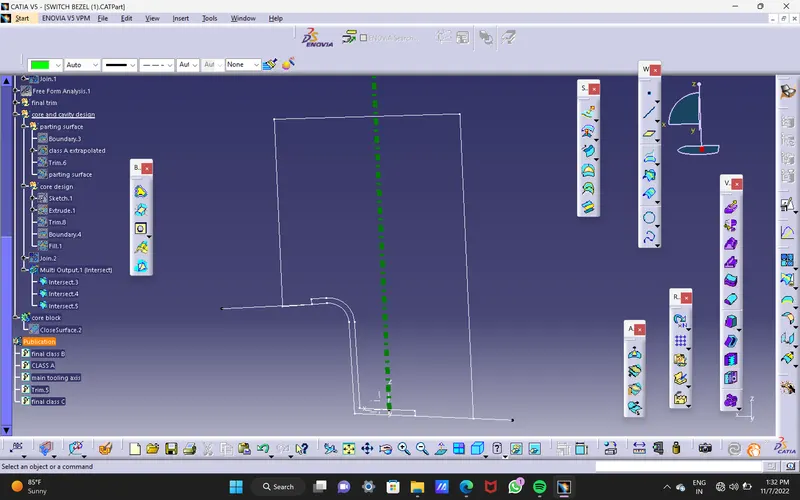

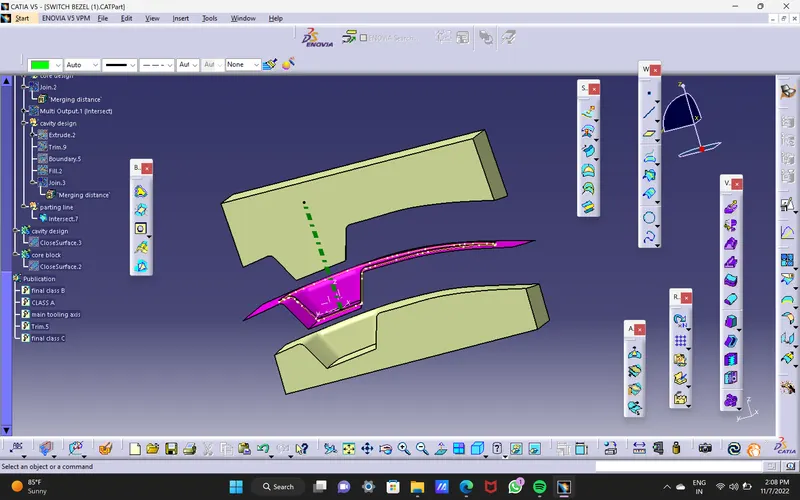

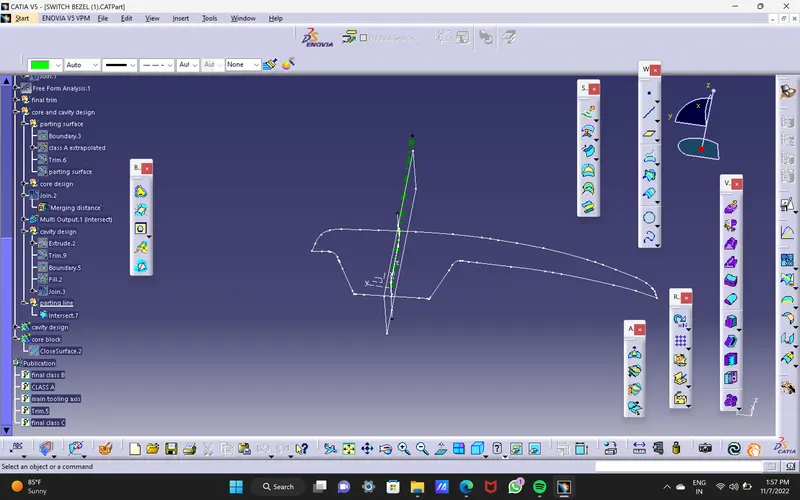

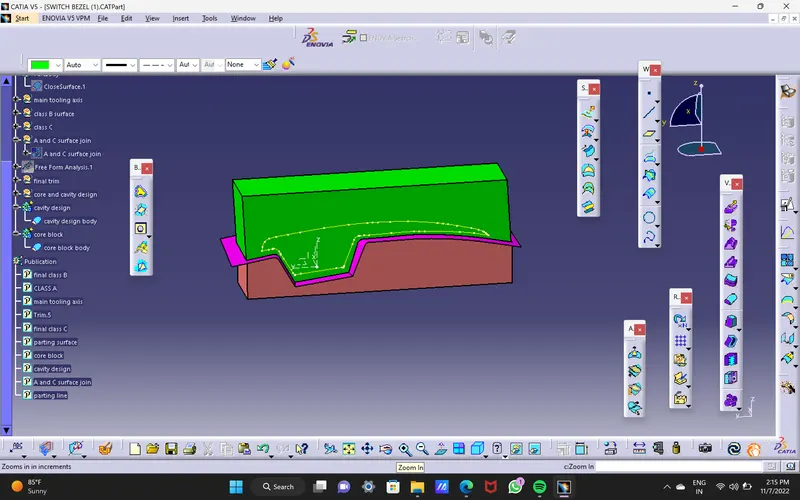

Images of the the Core and Design of Switch Bezel
