Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Door haldle Rib and screw boss

first creat tooling axis with intersection command creat line by using bisecting line then class a surfacce extract and offset it 2.5 mm and creat b suface then creat boundary of a surface and sweep it then trim with b surfacce and join with a surface and close surface command used.

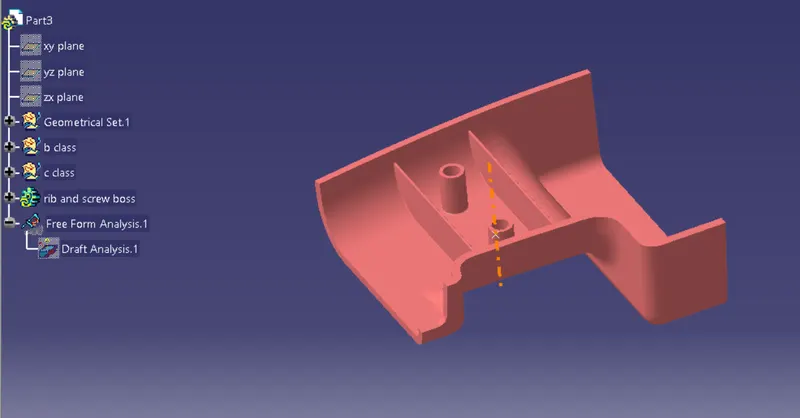

Rib sketch line and pad line with thickness *0.4 t and height thickness *5t then trim with main body then fillet command used is 0.25 mm filllet. and draft 0.5 deg.

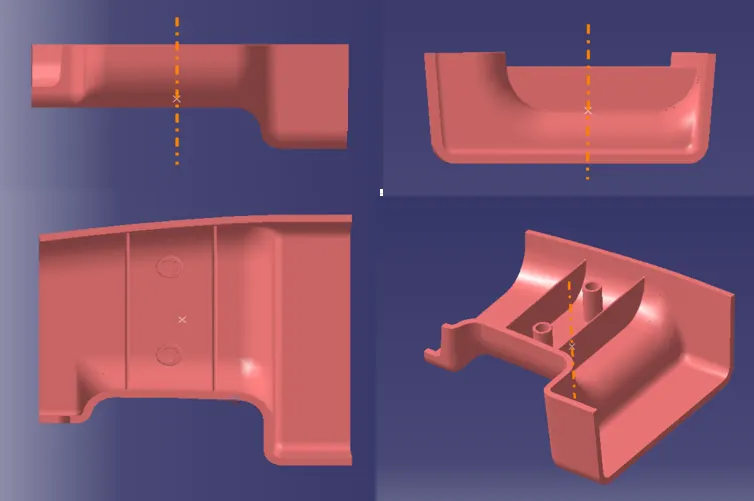

screw boss first creat sketch and pad it with 3:1 ratio then draft the screw boss then fillet command used is 0.25 mm.
