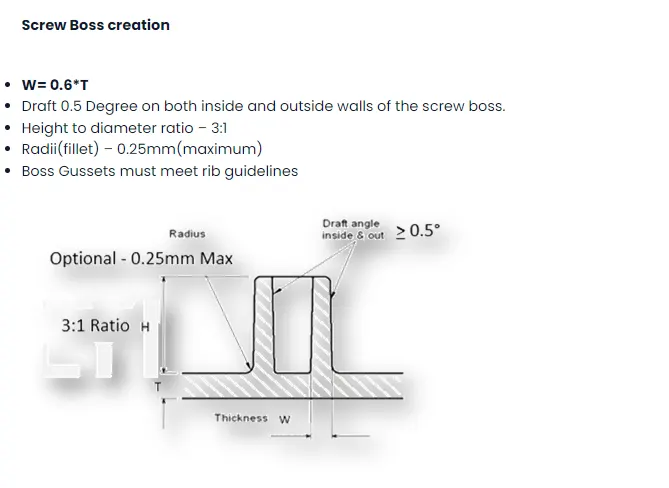

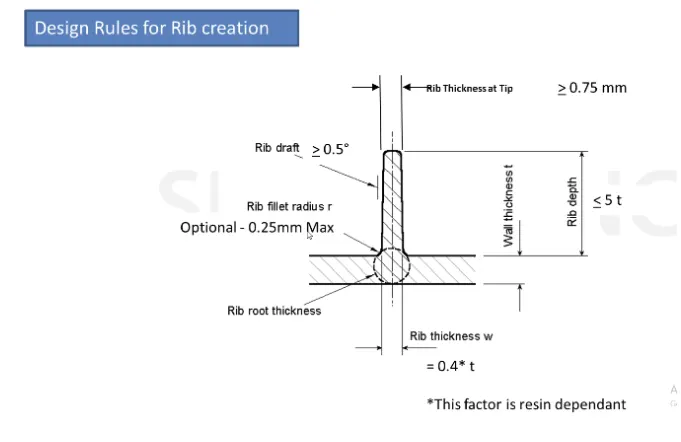

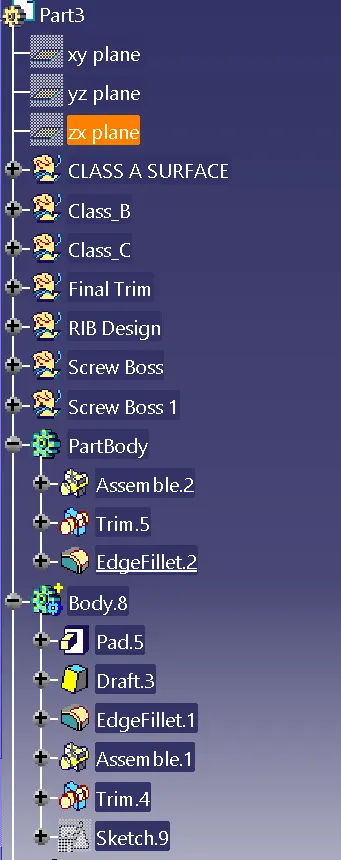

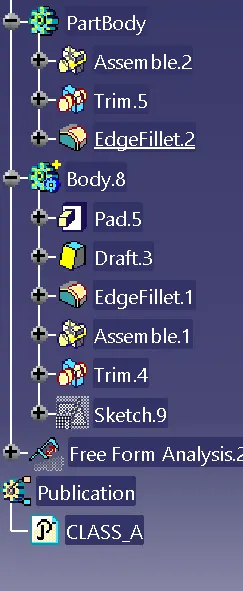

Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Objective:

To create a Door Handle component fron the given Class-A Surface, and creating a tooling Axis at the required draft, Create an Class B and Class C surface of the handle using the given CLASS A surface.

To perform the draft analysis on the model.

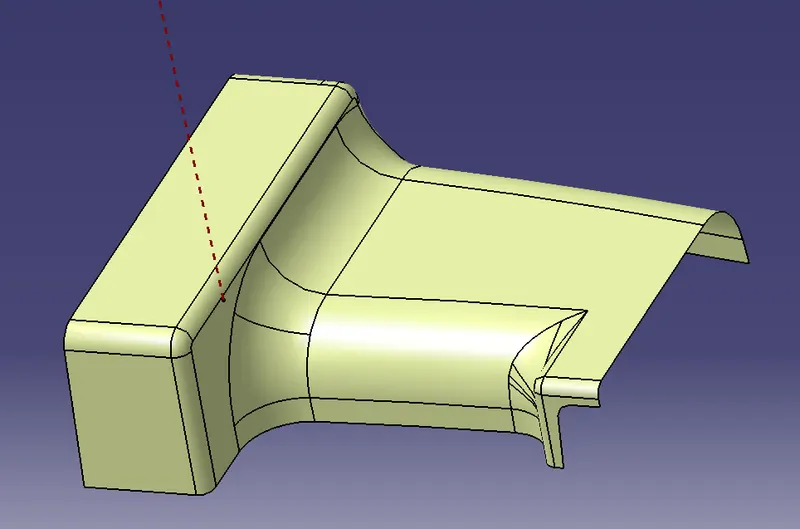

CLASS-B surface.

By offsetinfg the A surface aboue 2.5mm inward direction, work on the patches creted on the offset surface with the help of extracted curves and multisection surface feature, by joining the surfaces and check for continuity

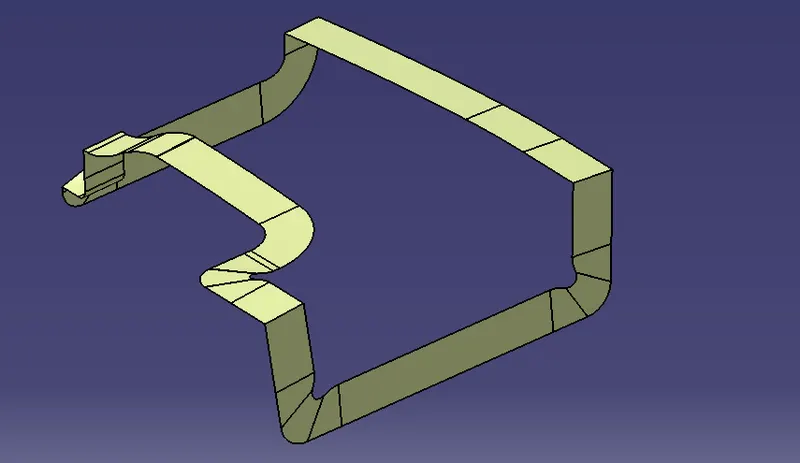

Class-C Surface

Multiextract the boundary edges and sweep it with reference to surface at 90 degrees, this method is useful when the created sweep surface is facing perpendicular to the tooling axis.

C surface sweep which is creating prallel to the tooling axis should have atleast 3deg angle

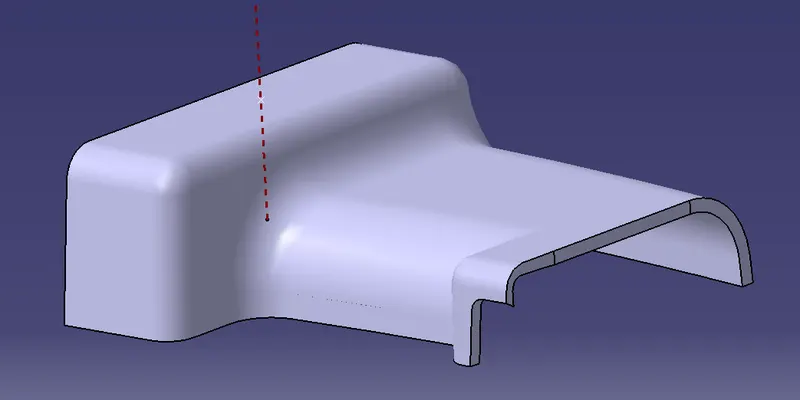

Creating Final Door Handle .

By joining the a CLASS-A with CLASS- C, Extrapolate the Class-B surface and trim it with joined surface.

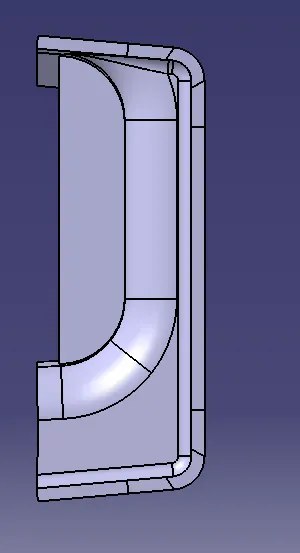

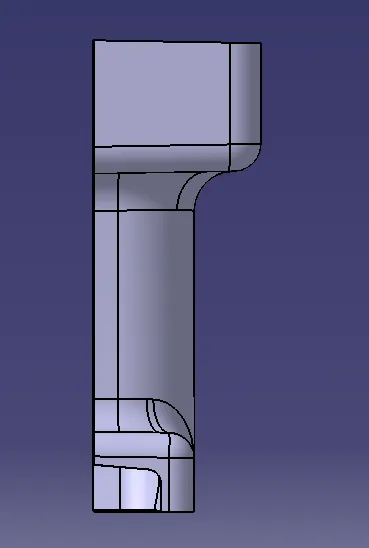

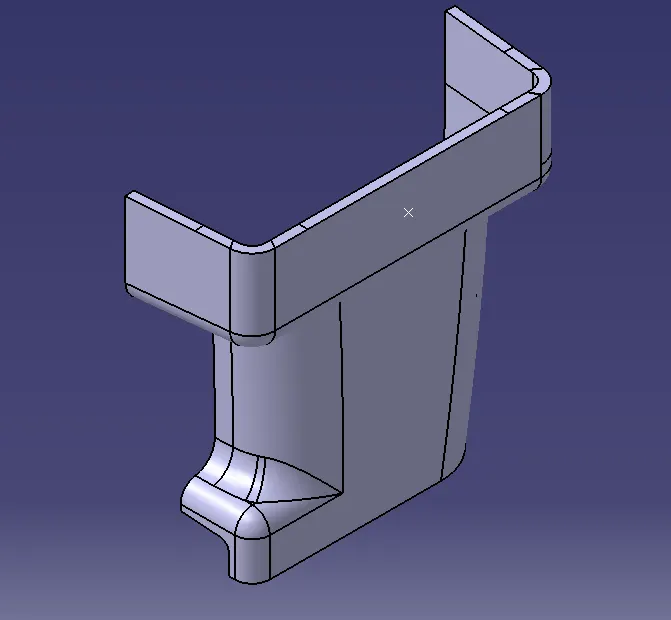

Front View Isometric View Side View

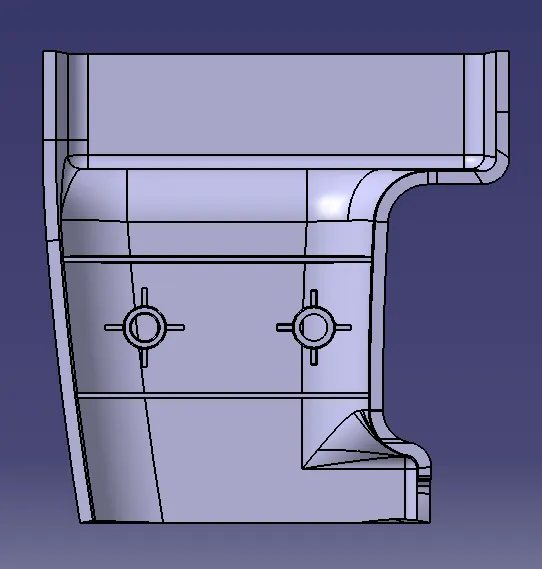

Top View
