Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

AIM:

To Create the Door Handle Component from the given Class-A surface.

To Create the tooling axis for the given Class-A Surface meeting the requirements of the

draft angle.

To Attach B side Features in the component.

To perform the Draft analysis on the model.

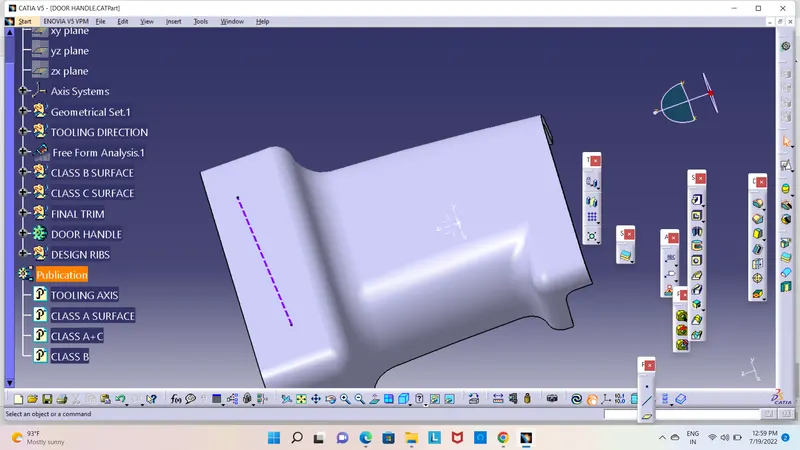

CREATING TOOLING AXIS -

The Tooling Direction is basically the direction that the mold pulls a part. The

mold is built in two separate pieces, basically. You have a Cavity side and you have the

Core side. The Core pulls apart from the Cavity and that's the Dye line or the Tooling

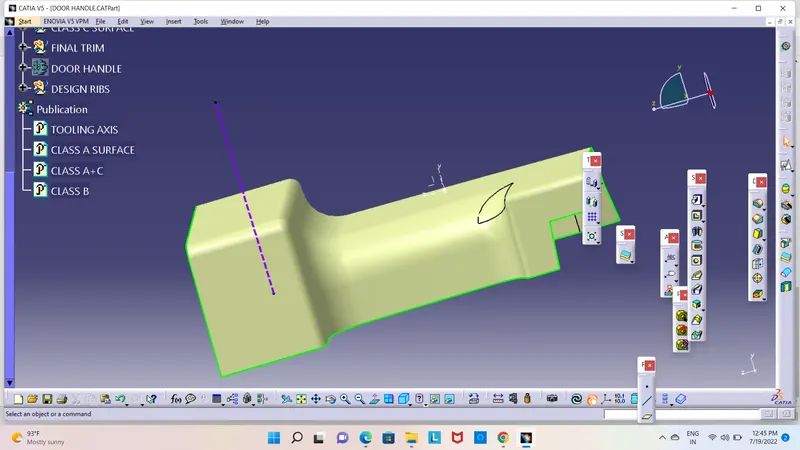

Select the face which is covering all faces of class A surface and using multi extract command extract the flat surface

and draw the normal to surface line and check it . this is the tooling axis of door handle.

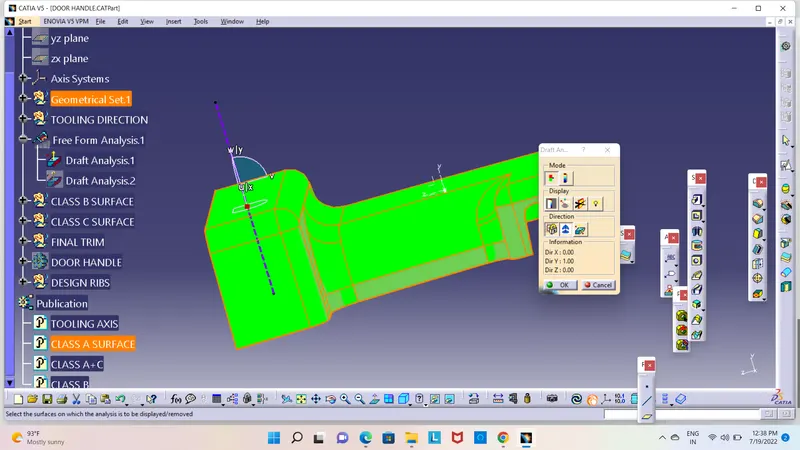

DRAFT ANALYSIS FOR CLASS A SURFACE

The Draft Analysis command enables you to detect if the part you drafted will be

easily removed. This type of analysis is performed based on color ranges identifying zones

on the analyzed element where the deviation from the draft direction at any point,

corresponds to specified values.

Before going to drat analysis go to customized view parameter >under mesh >check

material and then click ok.

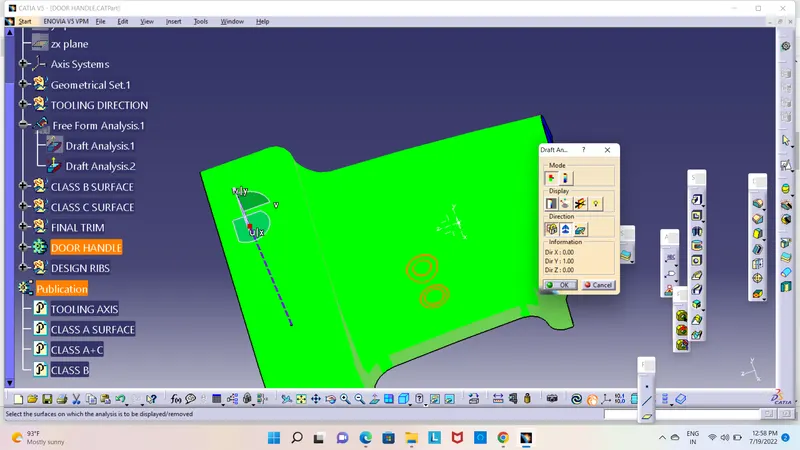

Now for draft analyses go to insert » analysis » feature draft analysis.

Use the compasss to define the draft direction.

In the colour scale change the draft angle to 3 degree.

The component changes to green in indication of passing draft angle.

Use running point to check the angle on the component

DRAFT ANALYSIS FOR SOLID PART

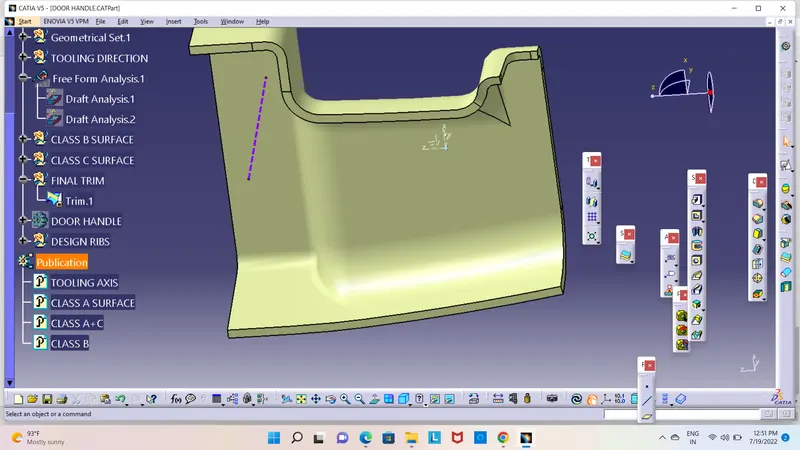

CREATING CLASS B SURFACE

Extract the surfaces from the class A using multiple extract ,

Use Extrapolate to make sure that all the untrims are properly intersected to trim and offset

the surfaces to 2.5 mm to create the thickness

Insert them into new geometrical set and name it with respective parts

extraolate the edges of b surface 12mm.

make sure that there is only one boundry and published the b surface.

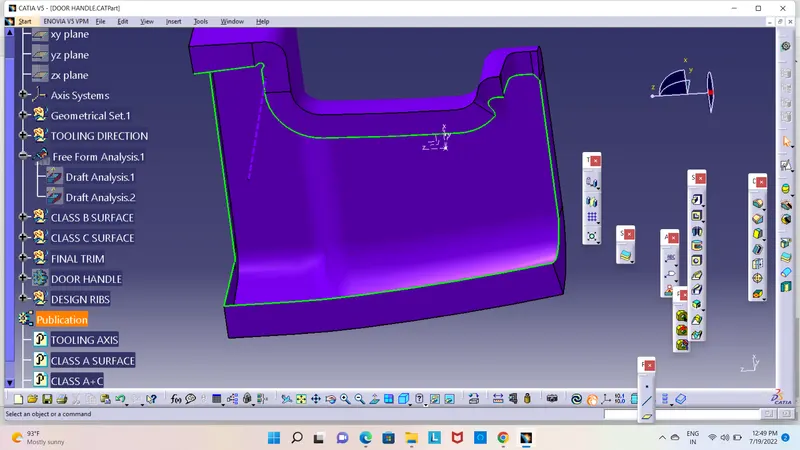

CREATING CLASS C SURFACE

Extract the boundary from the class A surface using boundary command.

Using disassemble tool to divide the boundary as the boundary contains domains.

Use sweep command > choose profile type line > subtype as with draft direction > choose

guide curve and draft direction > draft angle as 3 deg

after done the sweep operation jion the class a surface using jion command

After getting class A+C jion then trim the output with class B surface to get final output.

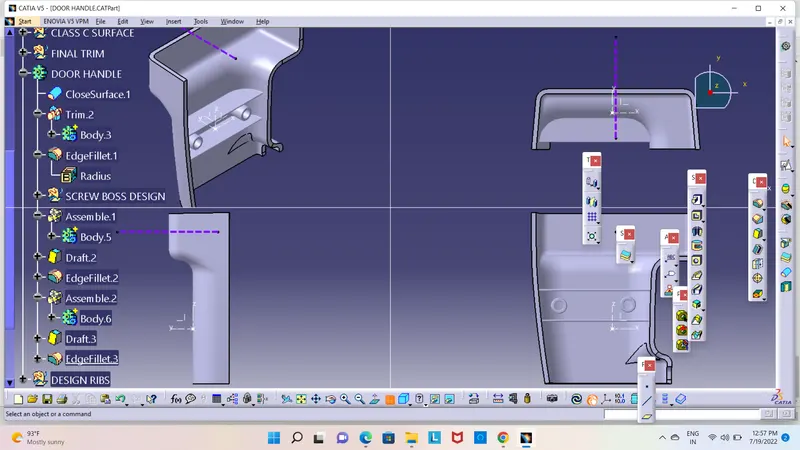

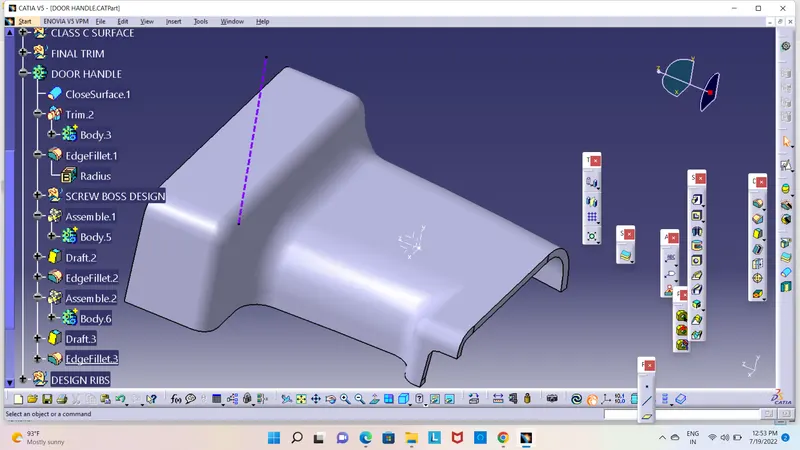

Now open part design workbench and using close body surface create a solid of the

component

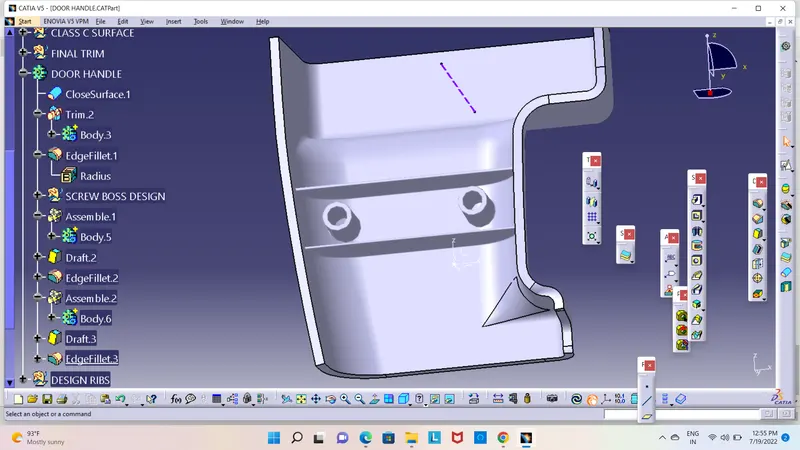

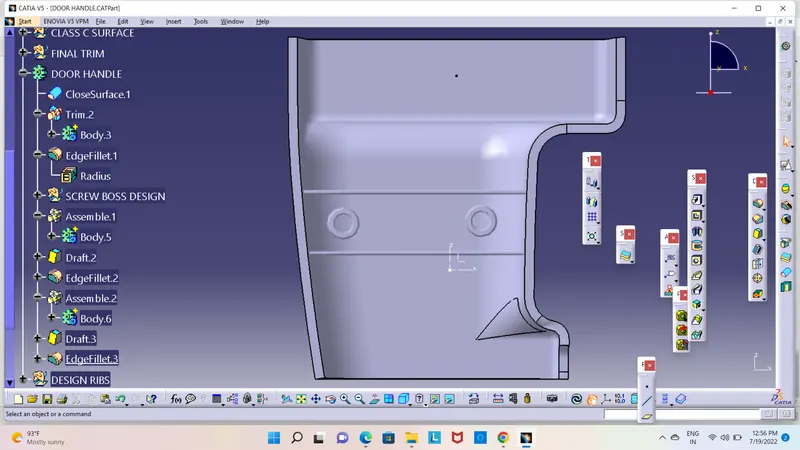

RIB CREATION AND SCREW BOSS CREATION
