Week 8 - Challenge 1 - Base Bracket Design

AIM : To be able to create solid from the given Class-A surface, by considering tooling axis and
draft analysis.
Class-A surface given ;

A point was created at the center of the large circle, Using that axis system is inserted,

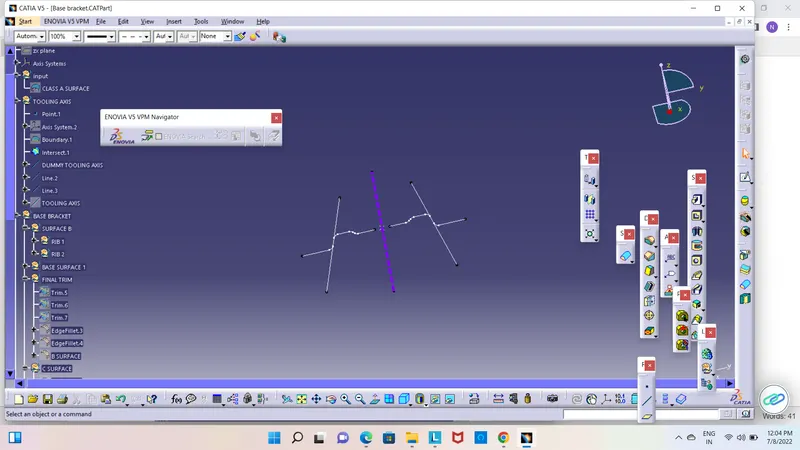

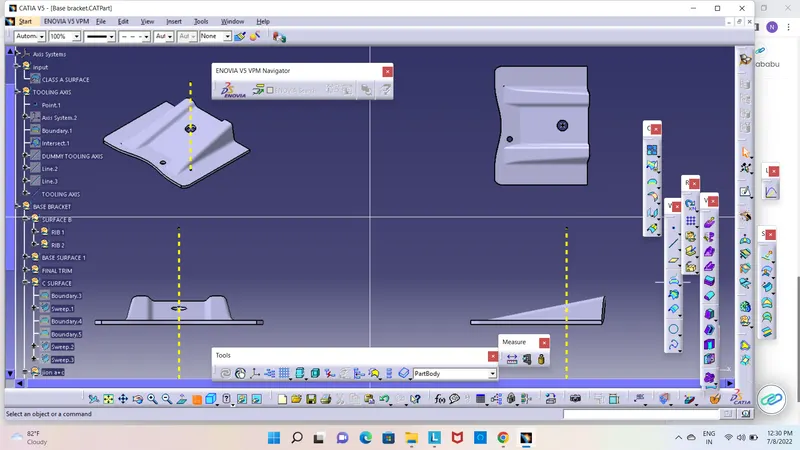

Tooling Axis

Create a bisecting line for the inclination lines,

The tooling axis is the tool movement axis (core/cavity).
This axis will decide the draft direction.

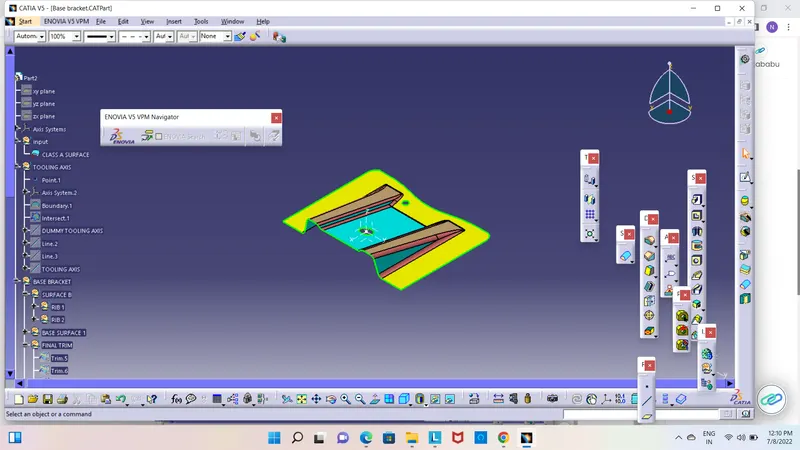

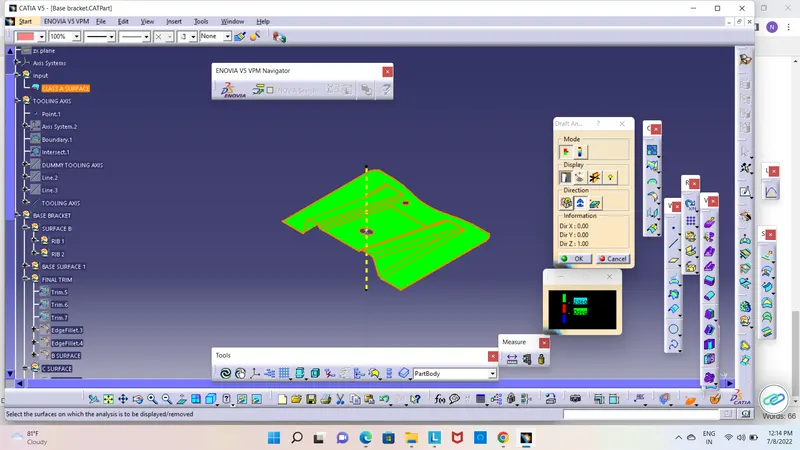

The above picture is the result of the draft analysis.
The draft is considered as 3 degrees.

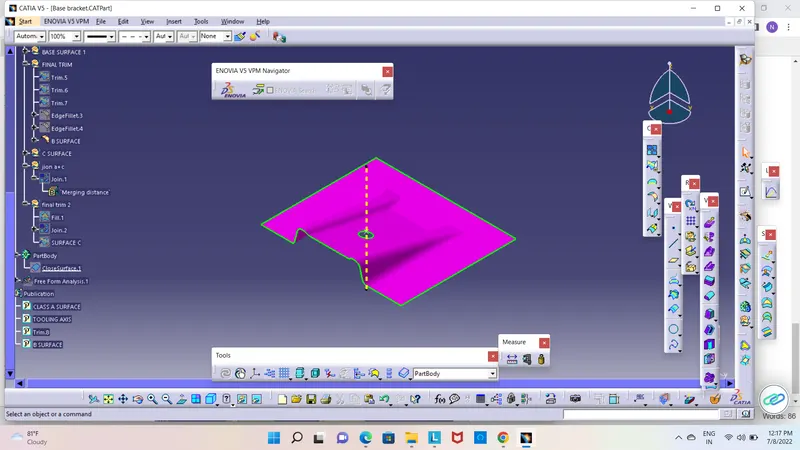

CLASS B SURFACE ;

by extracting the surfaces from class A and then offsetting the extracted surface we got a
Class B surface that is 2.5mm below class A Surface

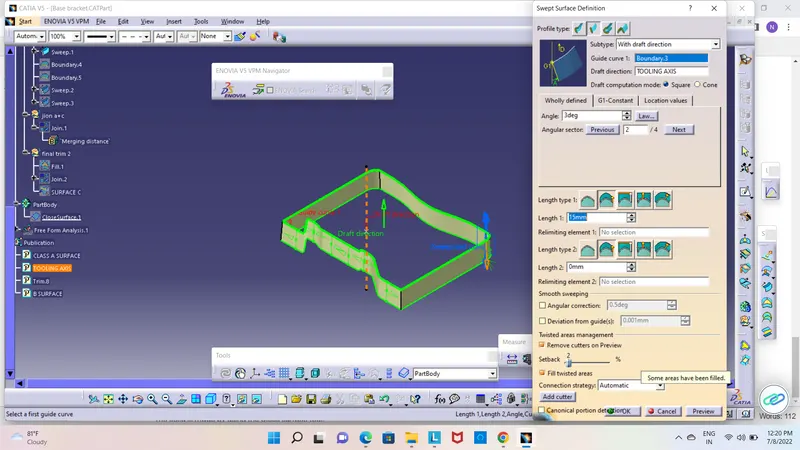

By using the boundary Sweep is created.
And the angle of draft given in Sweep is 3 Degrees

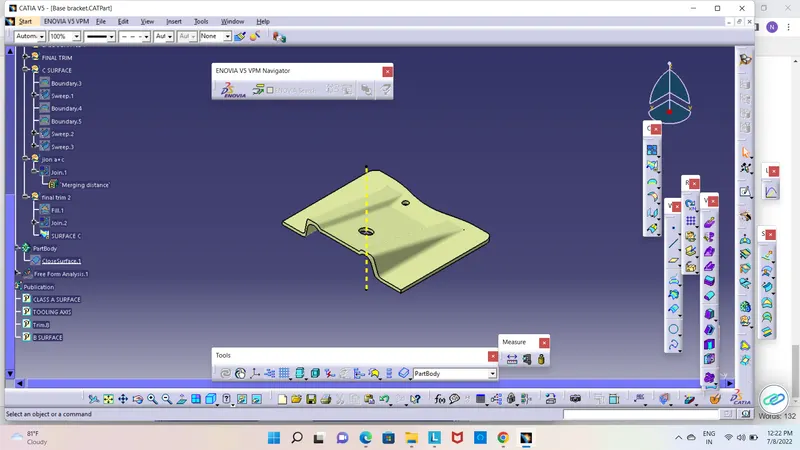

Closed Surface

The above surface is trimmed/join from the Class A,B,C surfaces.

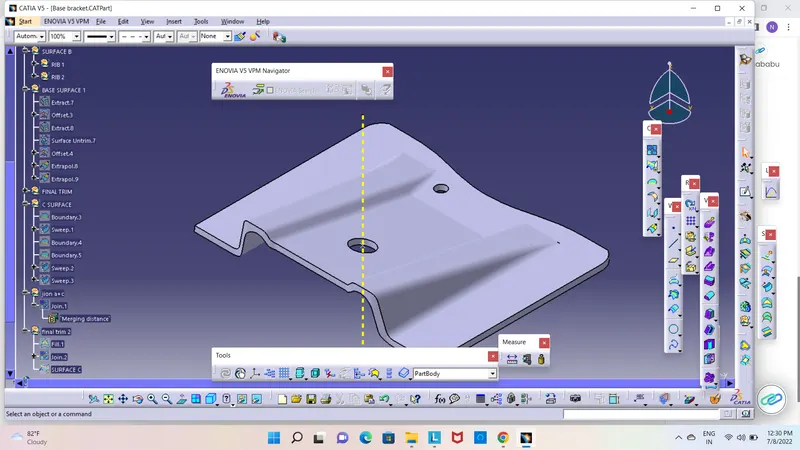

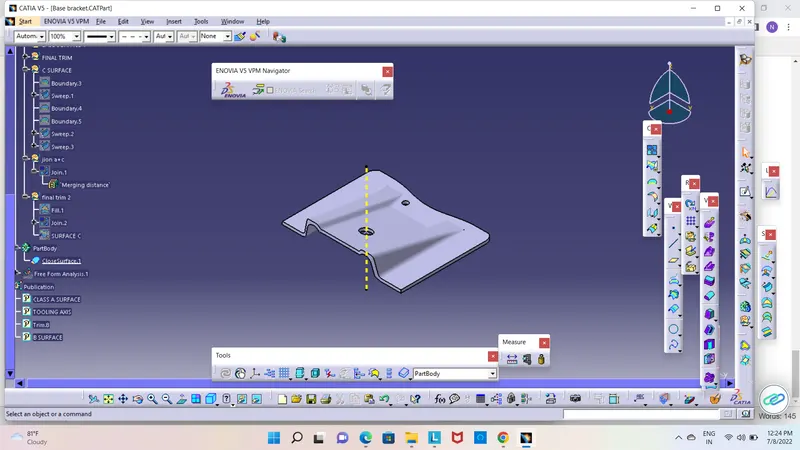

The Solid is made by using the Close surface tool.

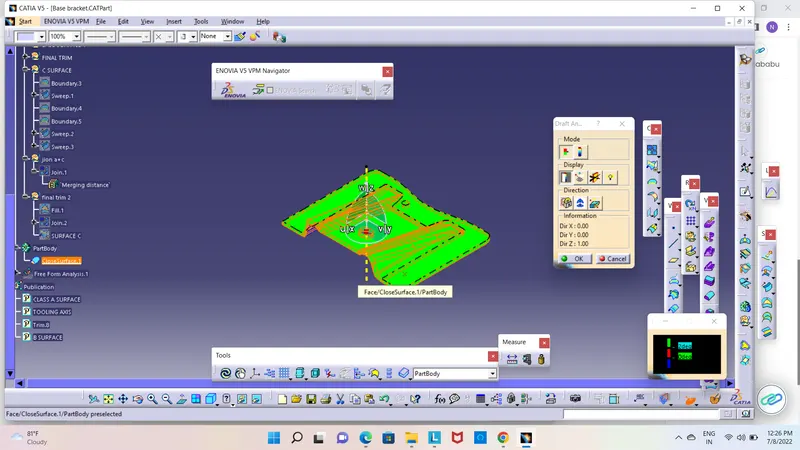

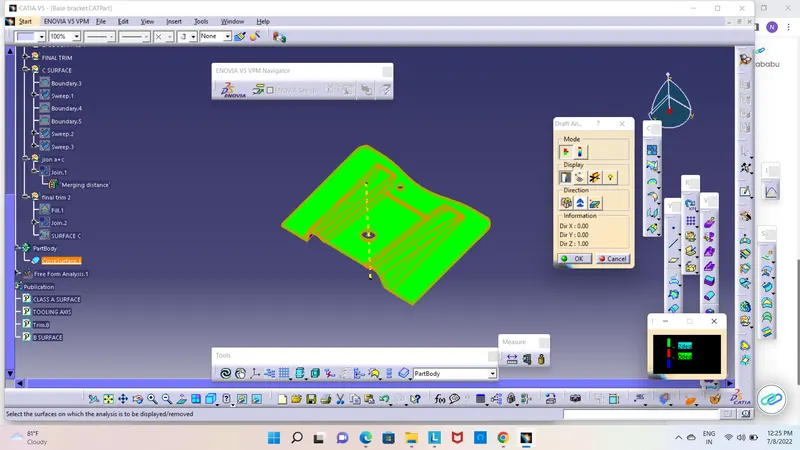

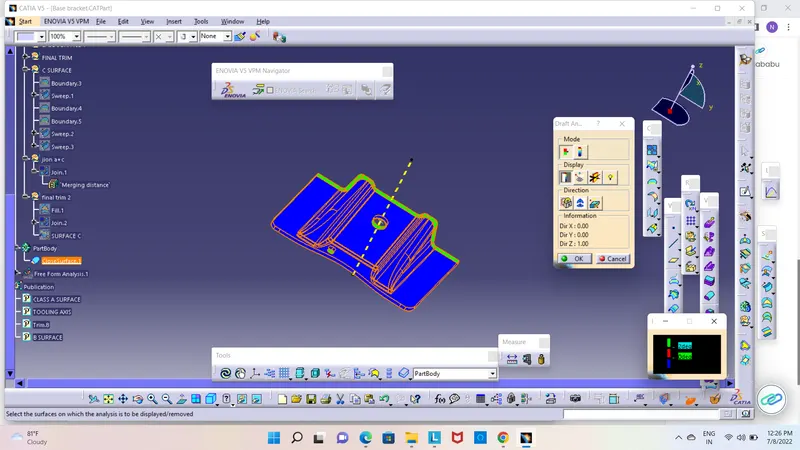

Draft Analysis for solid;
