Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

door handle

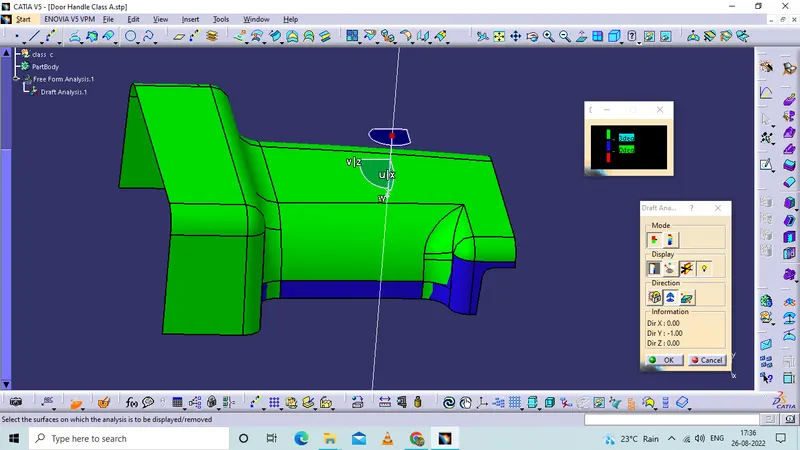

draft analysis is not clear in this areas

tree structure and explanation of sketchs

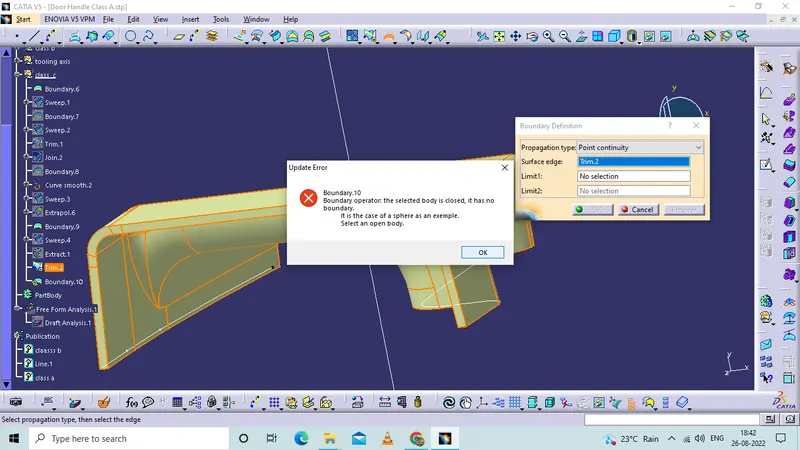

finalize the surface are closed are not checked by boundary command

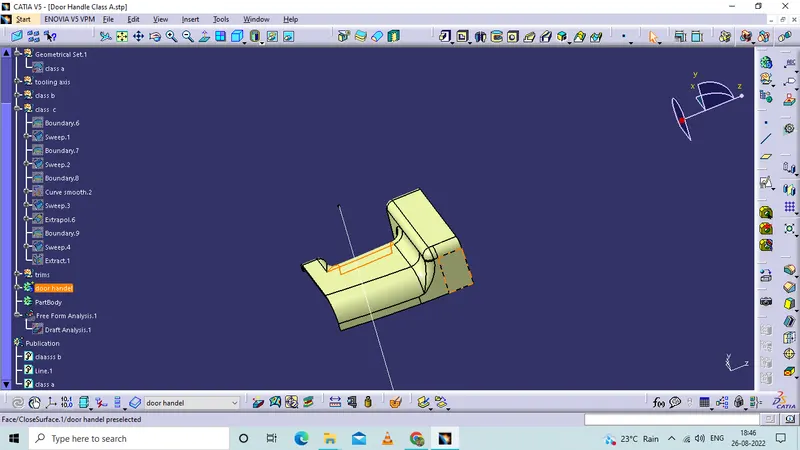

shifted to (GSD) to the part design workbench

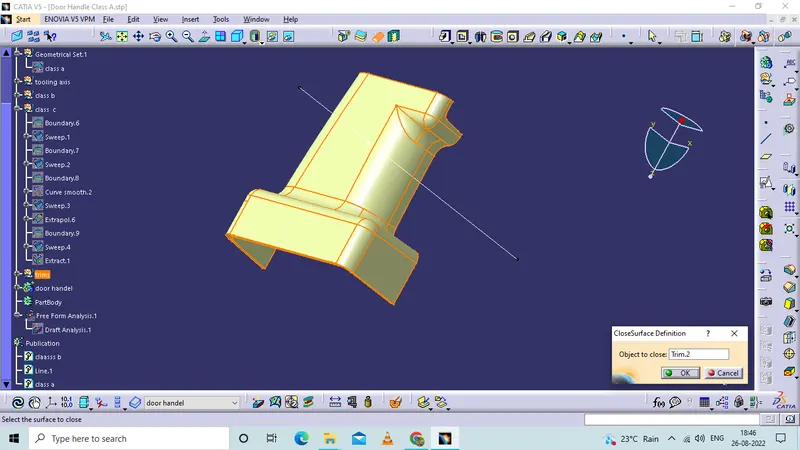

and created a part model by closed surface ccommand

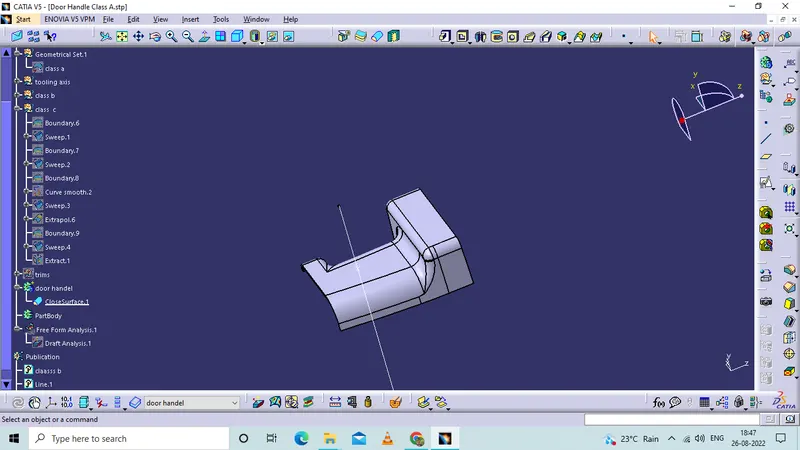

part model is created with the closed surface tool.in part design.

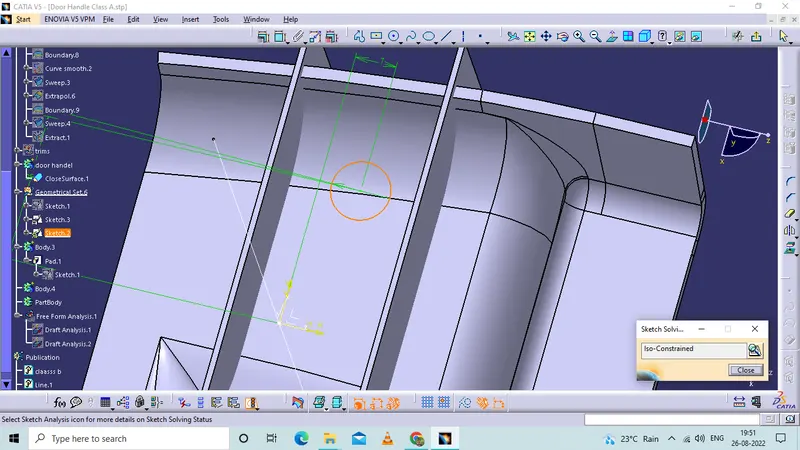

screw boss sketch with iso constrain

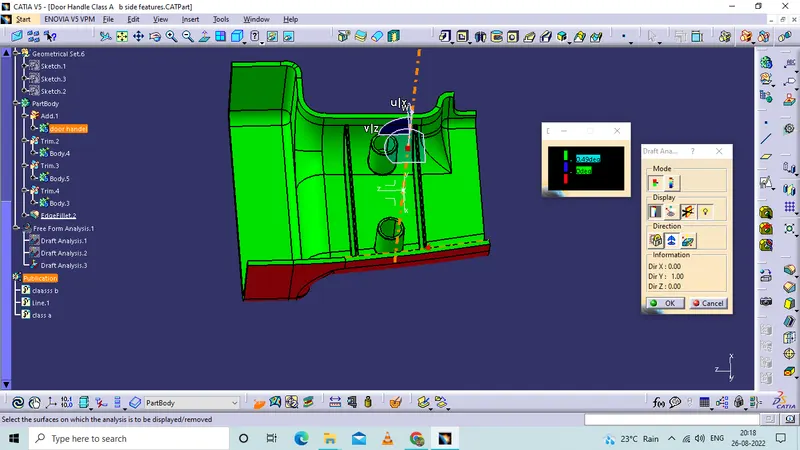

draft analysis for the screw boss and ribs
