Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

RIB AND SCREW BOSS

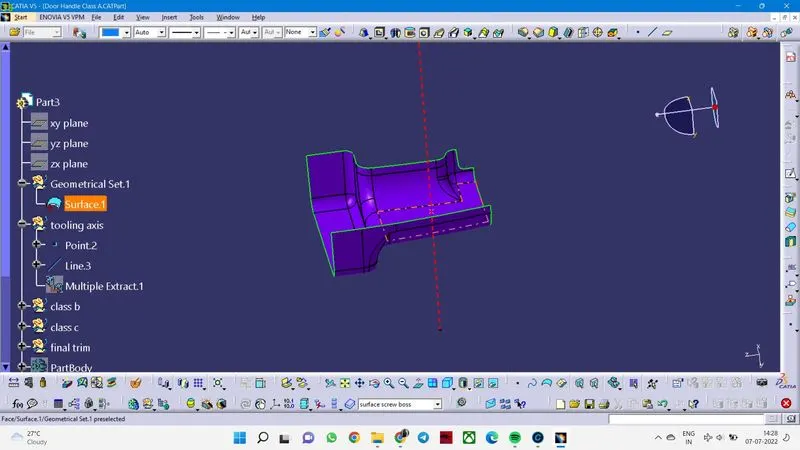

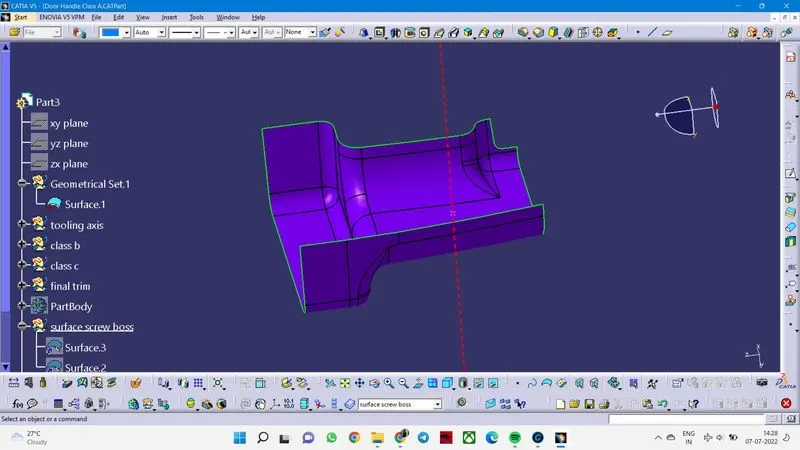

class A

create tooling axis

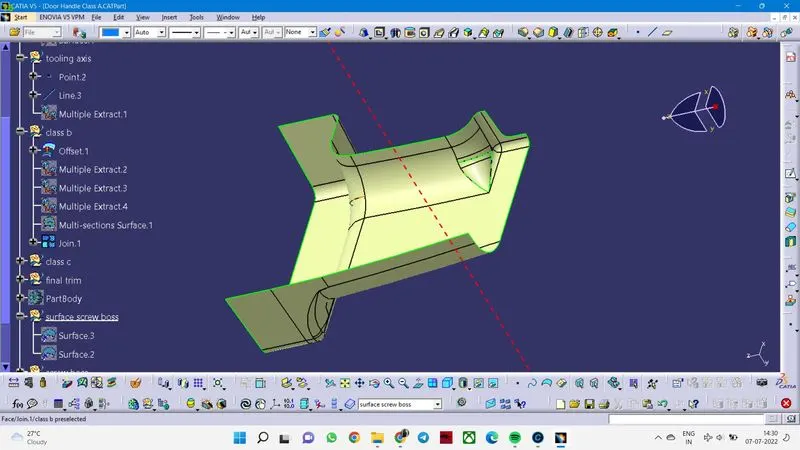

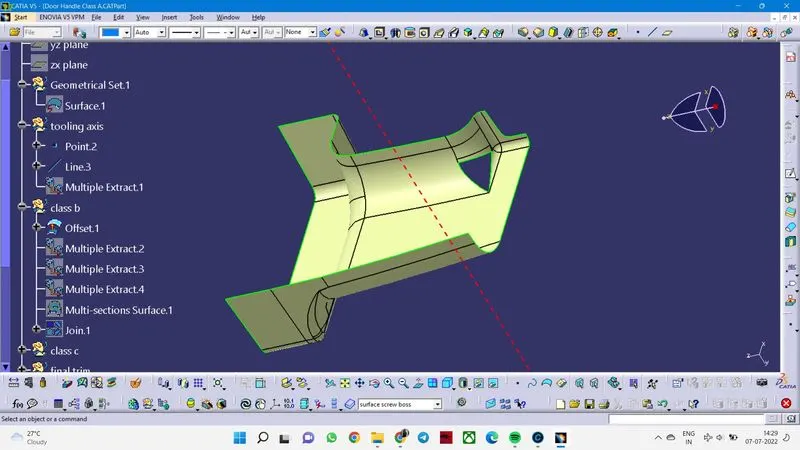

create class B by offseting class A

the missing parts are created by using multisection and join

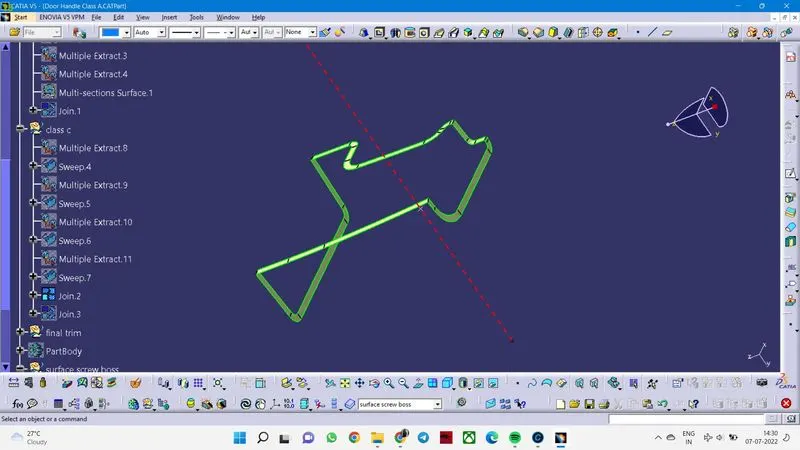

class c was created

multiple extracts

sweep and join are used

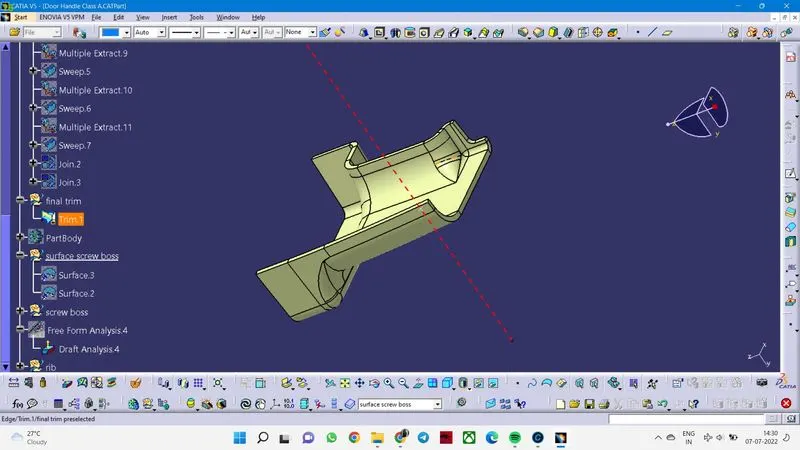

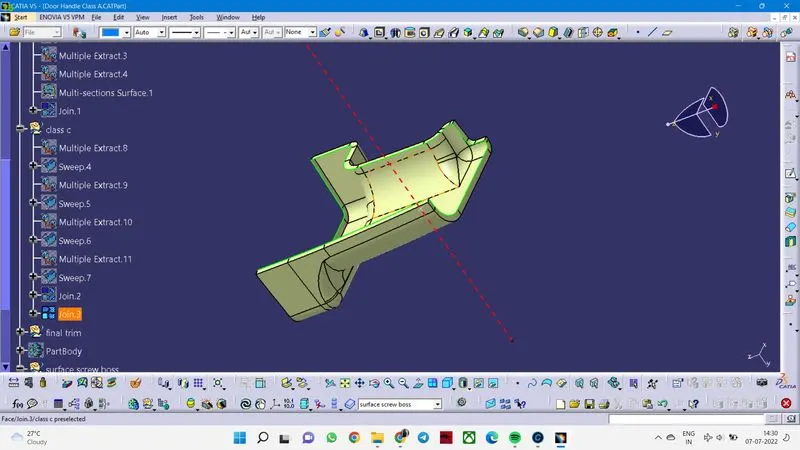

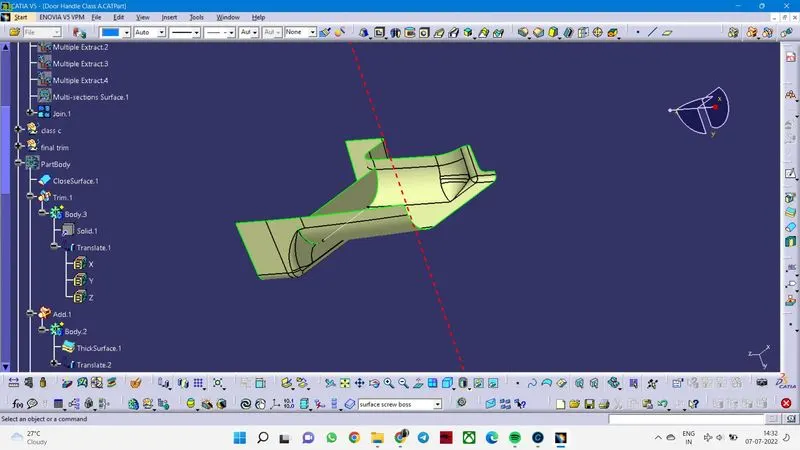

join class C with class b by using TRIM

started the creation of RIB

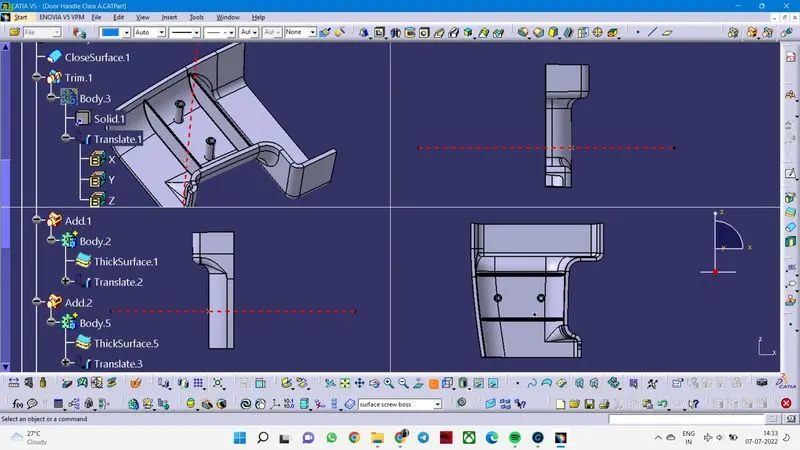

use translation tool to create the second one.

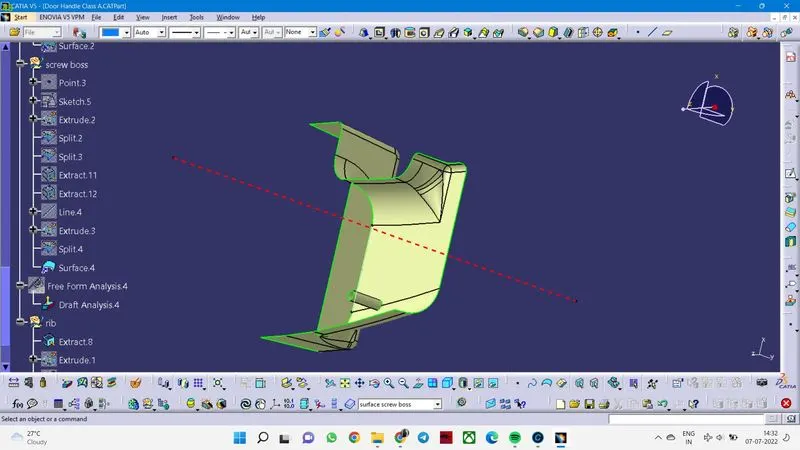

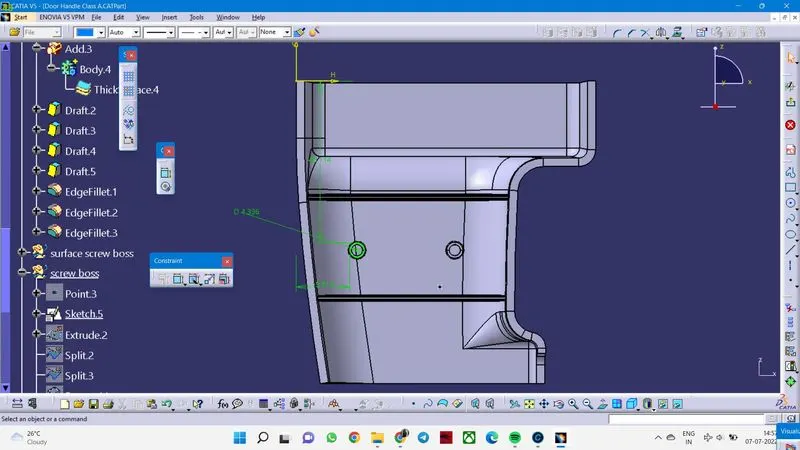

screw boss creation was started

use the translation tool to create the second one.

used copy and paste as special

height and dia took as a 3:1 ratio

height = 13.008mm

dia = 4.336mm

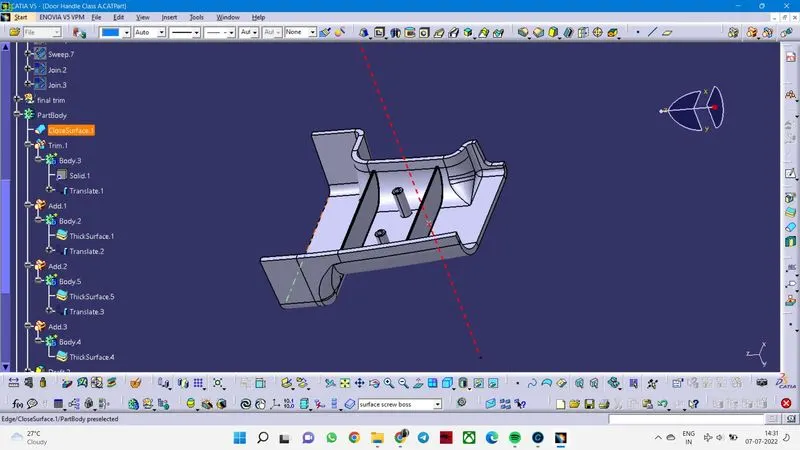

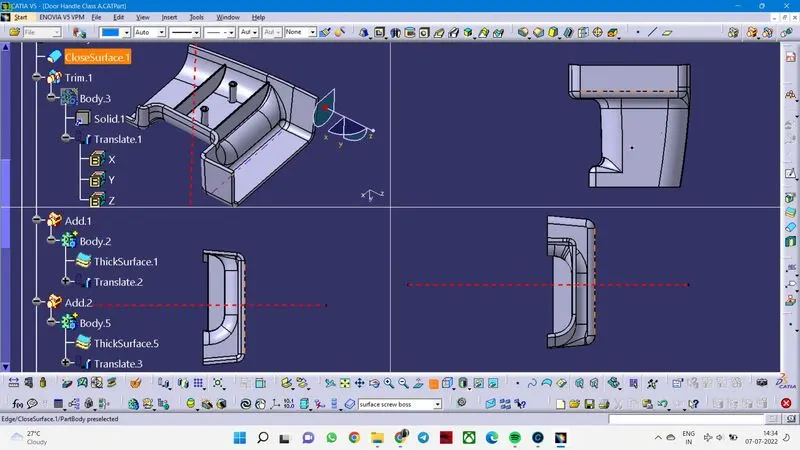

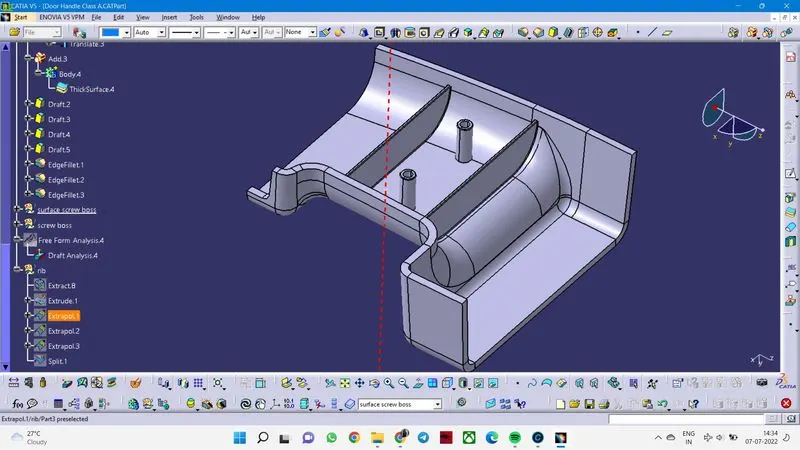

The ribs and screw boss are joined with the close surface by using boolean operations add and trim

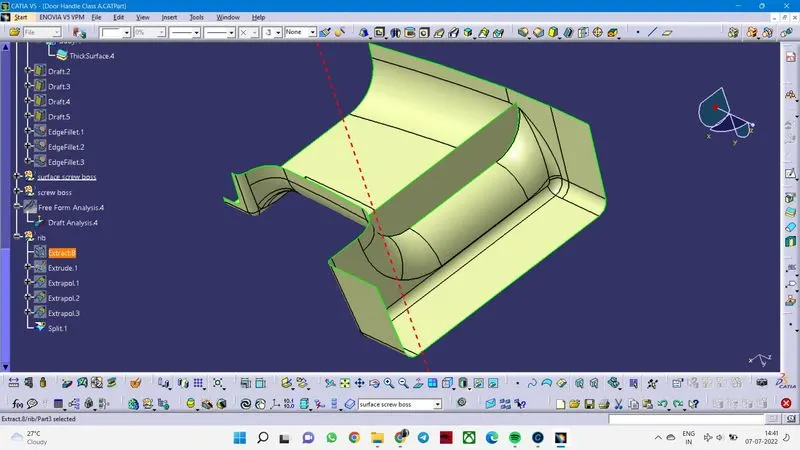

and also provide the draft and fillet to these two.
