Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

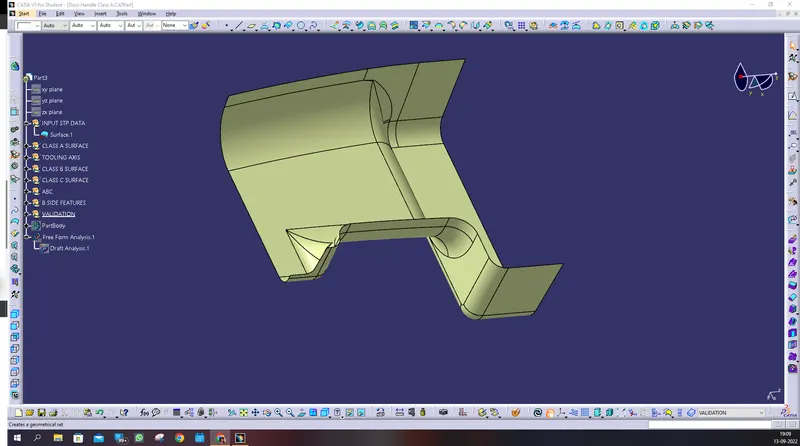

WE IMPORT THE STP DATA IN A GEO-SET:

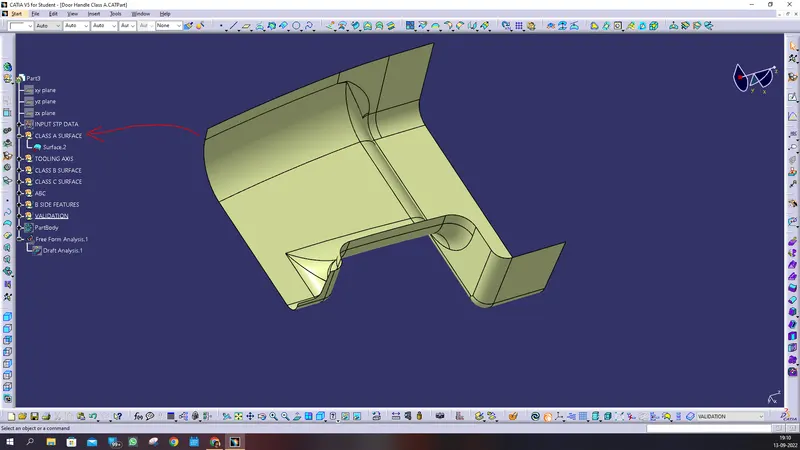

NOW, I HAVE COPIED THE GEO-SET AND NAMED AS CLASSED SURFACE A:

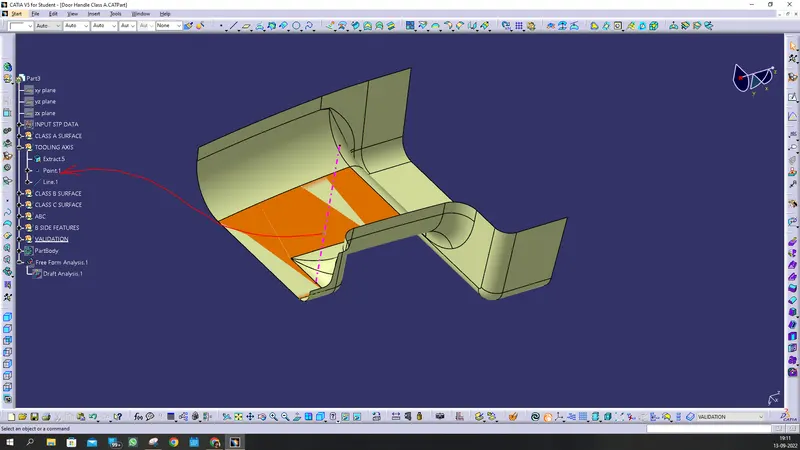

NOW, I CREATED A OTHER GEO-SET AS TOOLING AXIS, AND AFTER EXTRACTION OF FACE, I CREATED AN-AXIS:

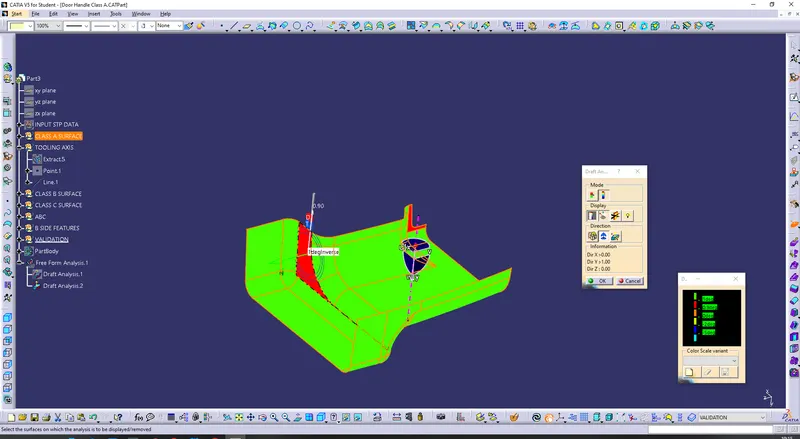

WE , CAN SEE IN DRAFT ANALYSIS, SOME FACE ARE 1 DEGREE OTHER MORE, WITH IN CLASS SURFACE A ,

SO ARE NOT ALLOWED TO CHANGE IN CLASS A SURFACE.

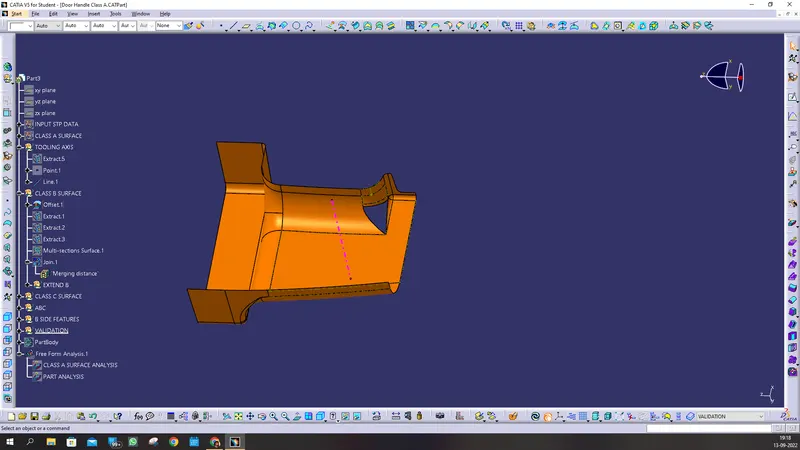

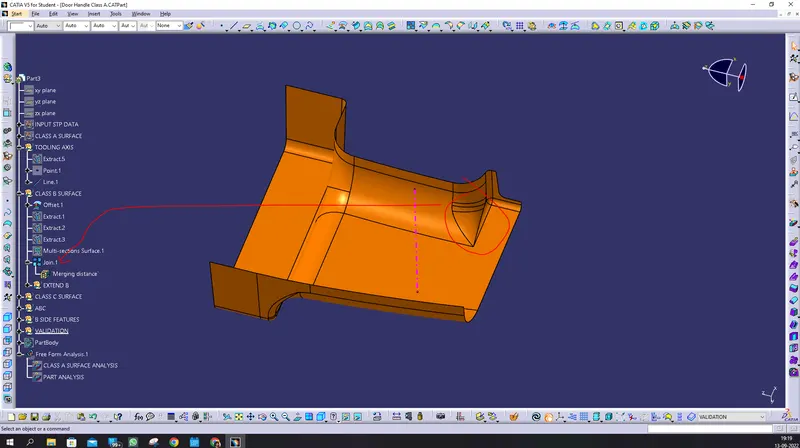

NOW WE OFFSET CLASS A SURFACE TO 3.0MM FOR INSTANCE, AND WE GET SOME ERROR PATCHES,:

PATCHES ARE THEN TO FILLED OUT:

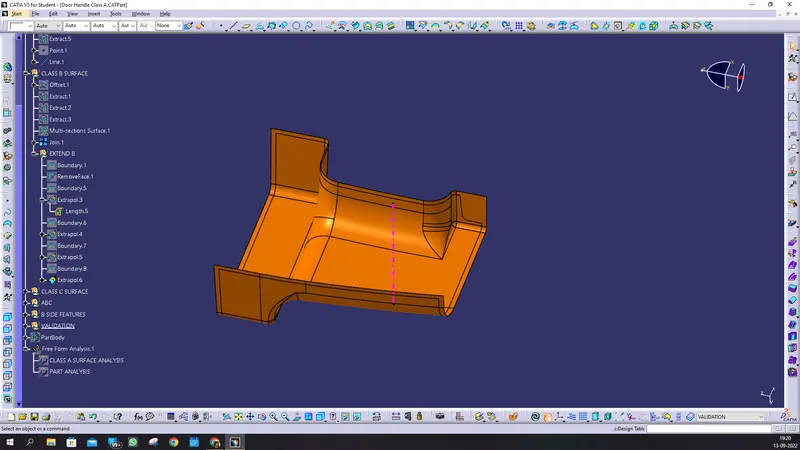

I HAVE EXTENDED THE CLASS B SURFACE, SINCE WE NEED TO TRIUM CLASS C, :

HENCE IN ANOTHER CLASS C SURFACE IS CREATED,

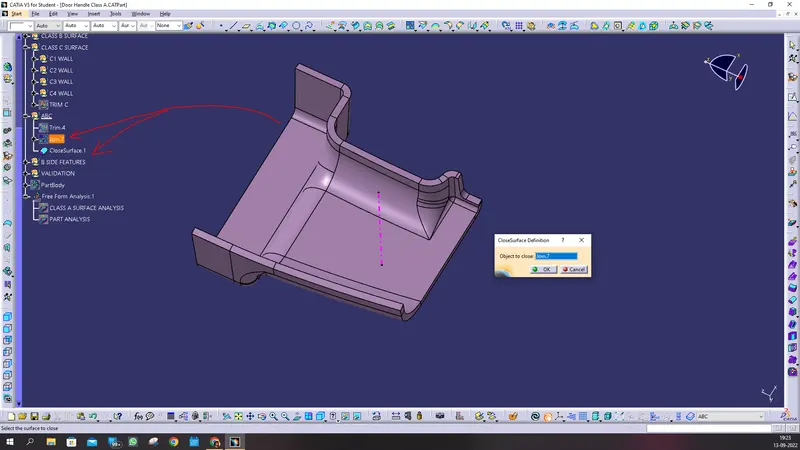

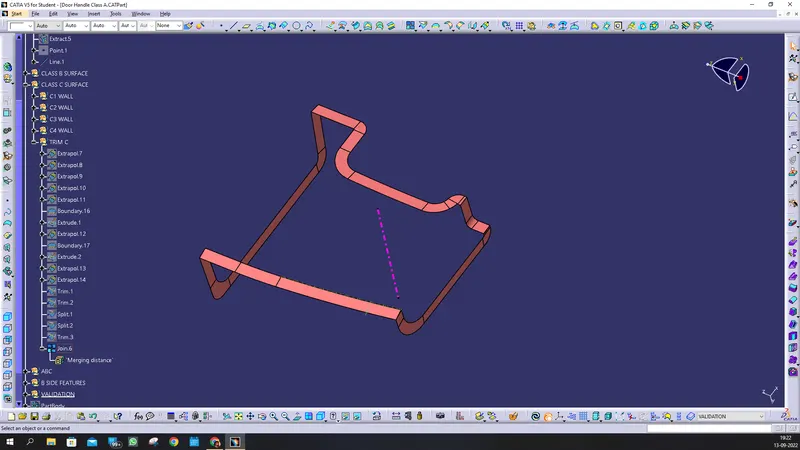

NOW, I HAVE JOINED CLASS A , B & C TRIM &JOINED TOGETHER, AS SHOWN: AND HENCE CLOSED VOLUME IS CREATED.

NOW I HAVE CREATED SKETCH FOR RIB, STRAIGHT LINE,:

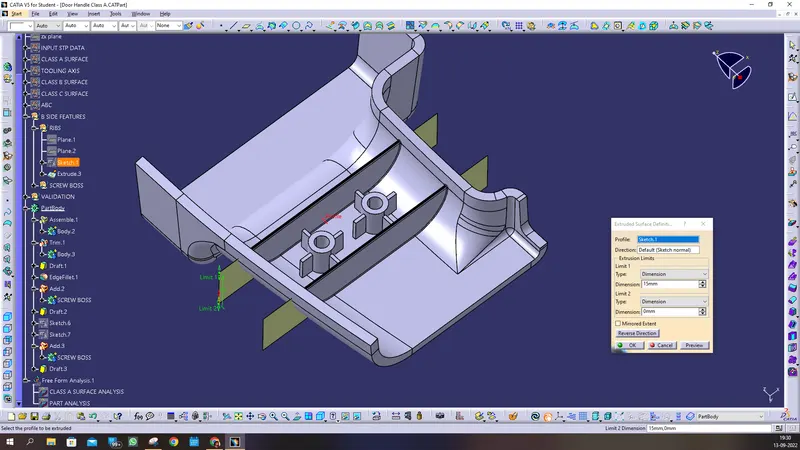

NOW, THEN CREATED SURFACE USING EXTRUDE , :

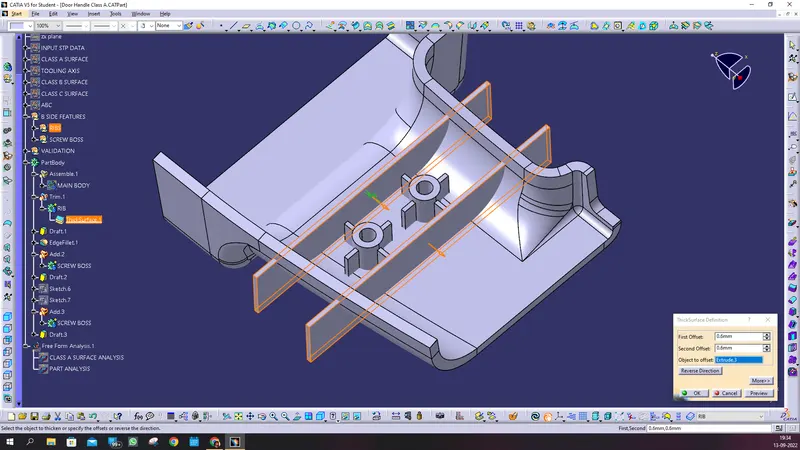

NOW I HAVE CREATED RIB, WITH THK SURFACE:

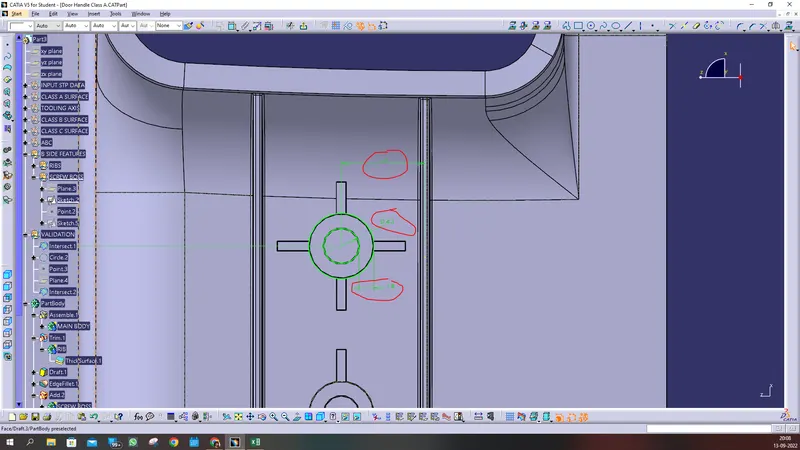

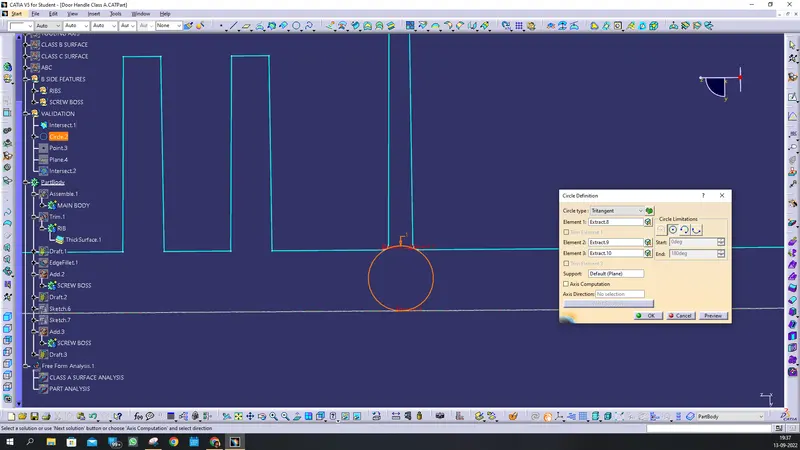

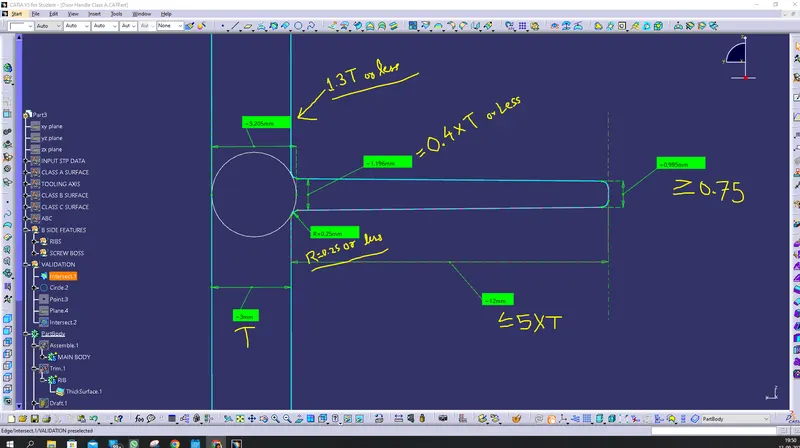

NOW FOR CHECKING , I HAVE CREATED INTERSECTION CURVE, AND AT THE ROOT I HAVE CREATED THE CIRCLE AS SHOWN:

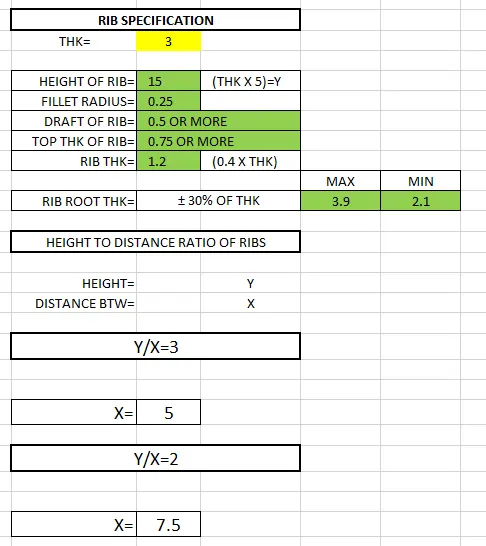

NOW, WE VALIDATE THROUGH STANDARD:

ALL THE PERAMTER IS PASSED.

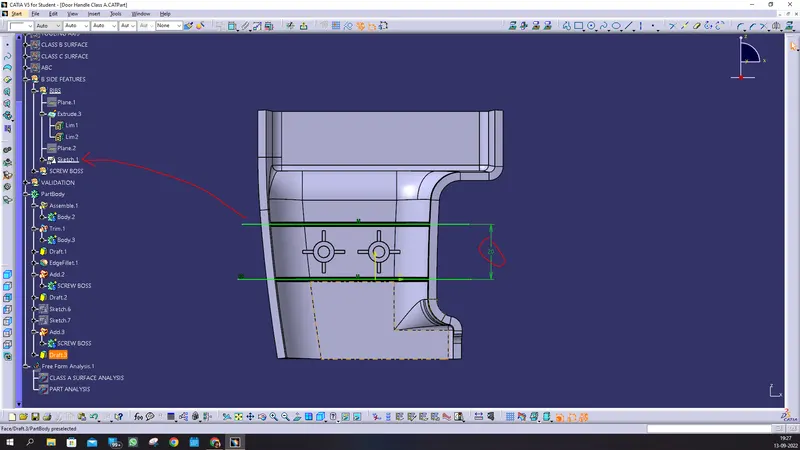

SINCE, THE DISTANCE BETWEEN TWO RIB IS DEFINED AS X=Y/3= 15/3=5, SO THE DISTANCE BETWEEN TWO RIBS IS 5 MM.

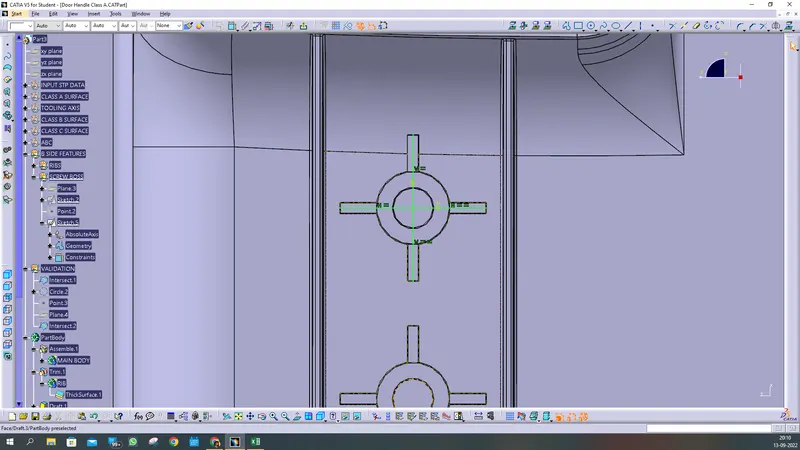

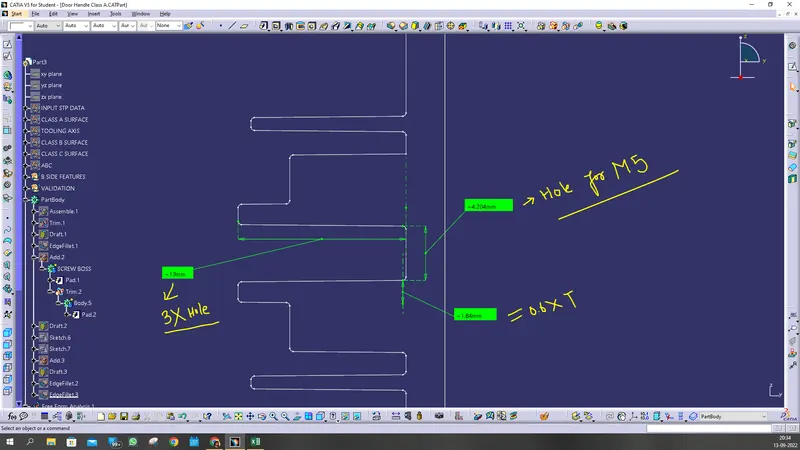

I HAVE CREATED A SKETCH FOR BOSS FOR M5, DIA IS 4.2, AND HENCE OD IS CREATED BY ADDING THK OF = 0.6XT=1.8, WHERE T=3.

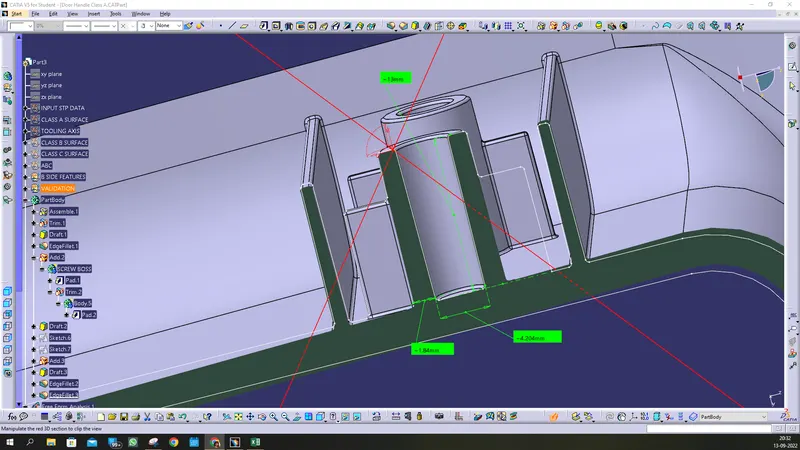

I HAVE CREATED ACCROS RIB FOR BOSS, WIOTH SAME RIB PARAMETER

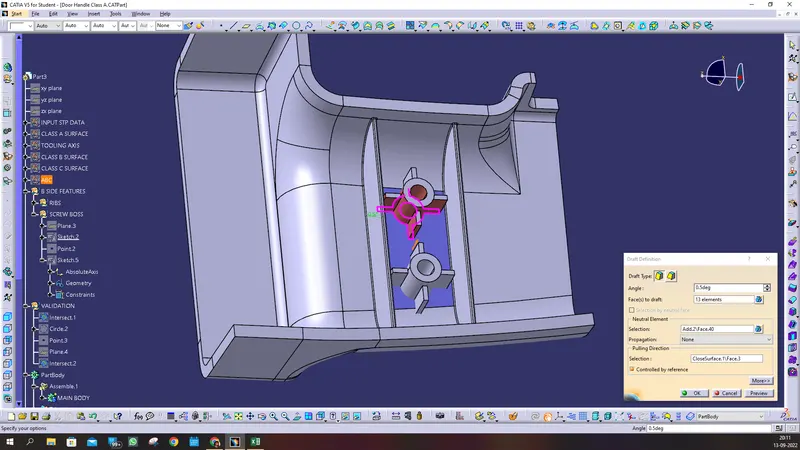

DRAFT IS 0.5 DEGREE IS GIVEN TO BOSS INNER AND OUTER DIA AND RIBS ALSO:

THANK YOU.
