Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Attachment Feature Creation(Ribs and Screw Boss)

Aim:

To create the door handle component from the given class A and then attach B side features in the component.

Software Used:

Catia V5

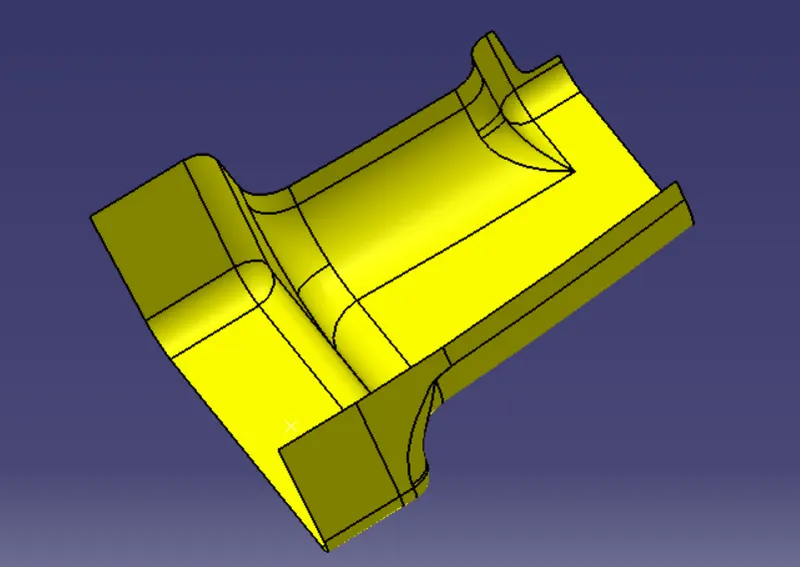

Given Class A:

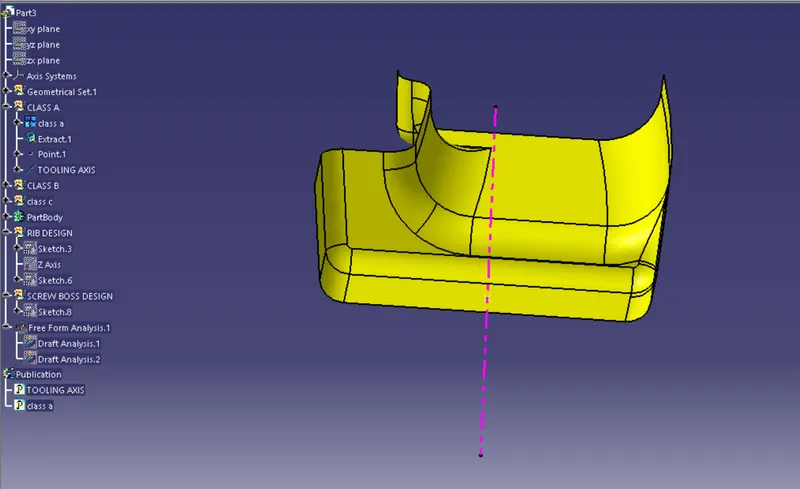

Tooling Axis Creation:

The given surface is joined first to avoid any gaps and extracted a surface from class A and by using point and creating a line the tooling axis is created.

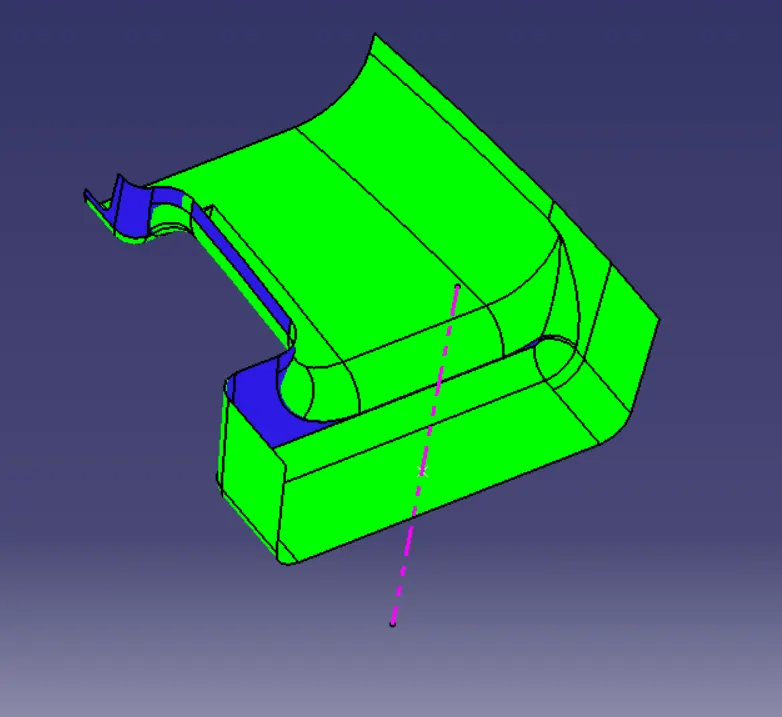

Draft analysis done on class A:

Creation Of Class B:

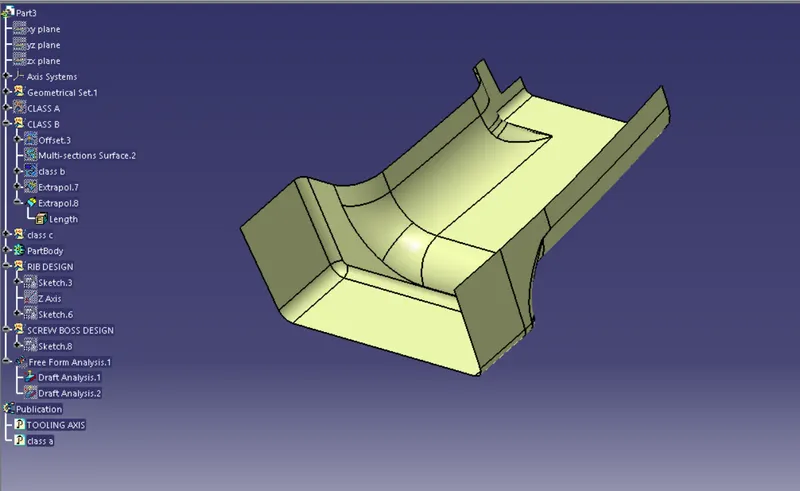

The given class A is offsetted and the patches created while offsetting is solved using multi section surface and the Class B is created.

Creation Of Class C:

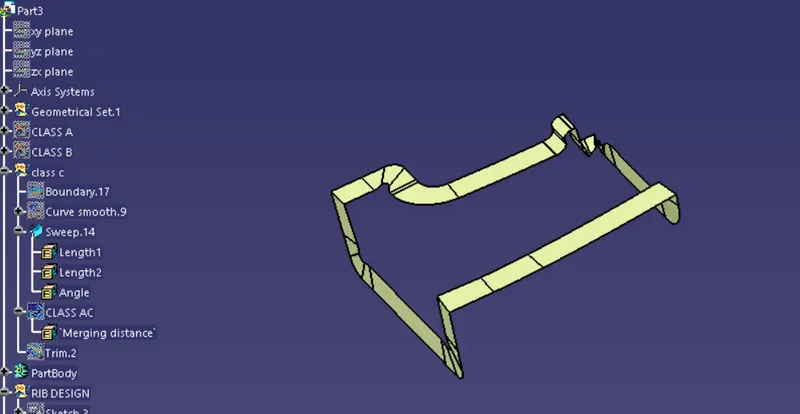

Class c surface is created by taking the boundary of class A and sweeping it.

then the Class A and C is joined and trimmed with B surface.

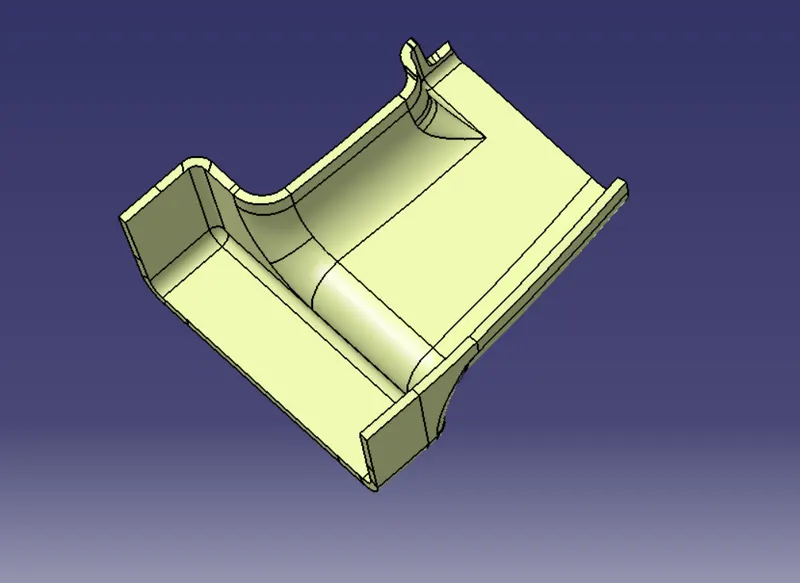

Final Closed Surface:

Using Closed Surface in part workbench the final closed surface is created.

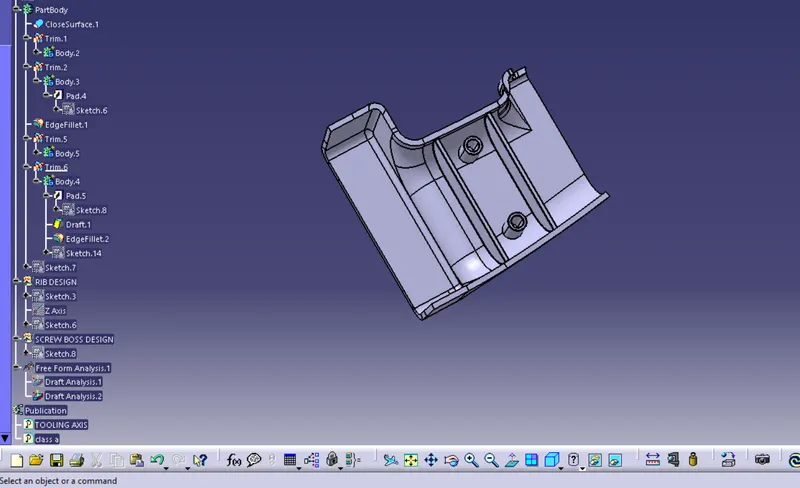

Then the B side features are created.

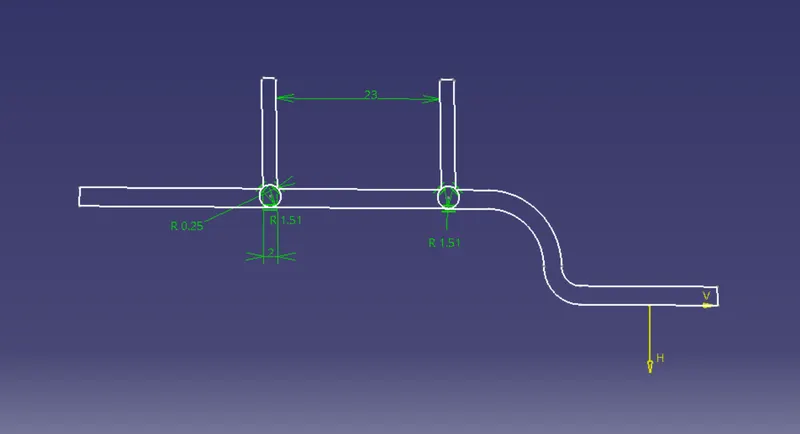

RIB AND SCREW BOSS DESIGN:

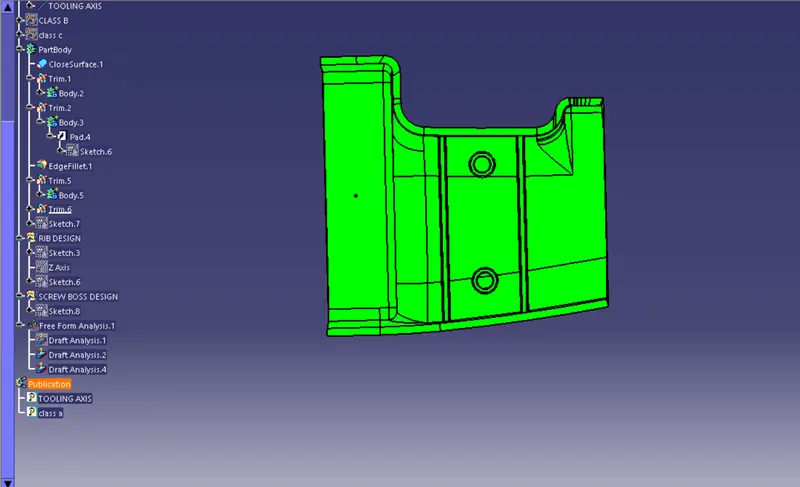

RIB ROOT ANALYSIS
