Week - 4

1

AIM

Implement washing machine

STEPS

Soaking

To soak the clothes in water.

Washing

To mix water with detergent

Rinsing

Soap is removed from water.

Drying

Water is removed from clothes.

PROCEDURE

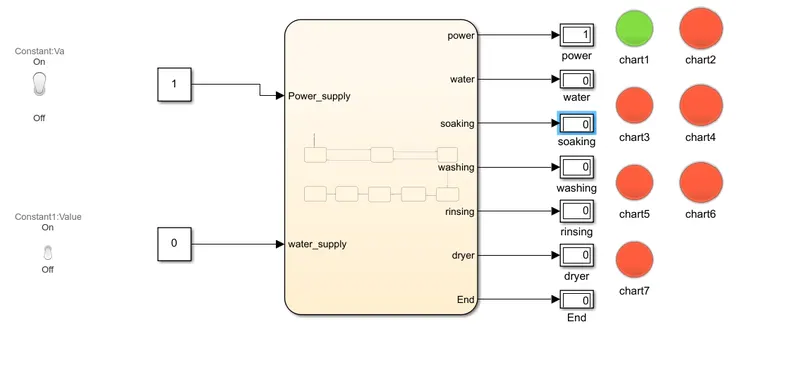

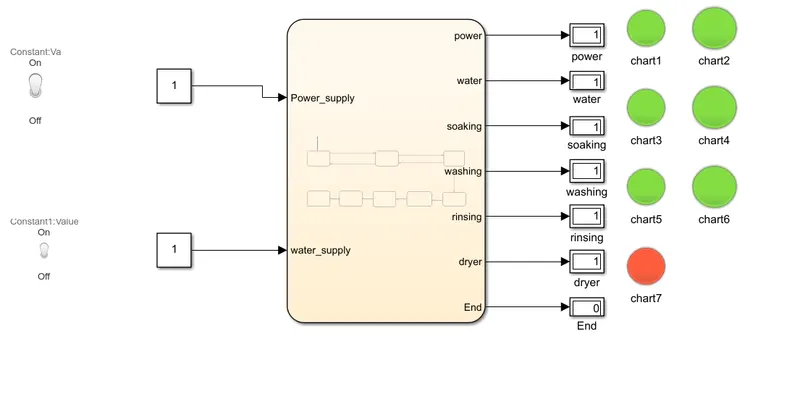

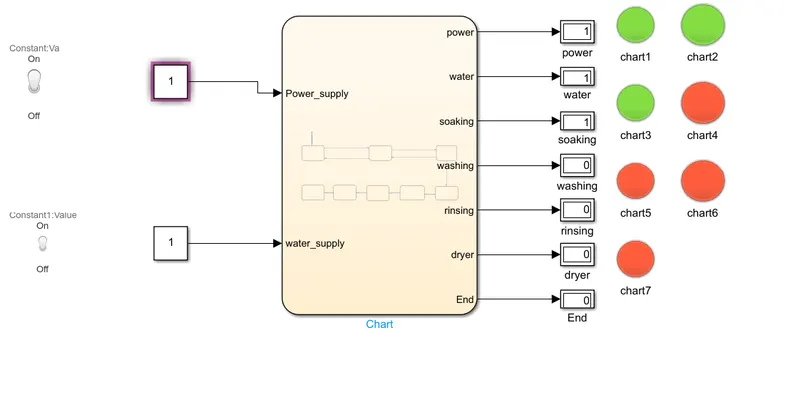

Simulink

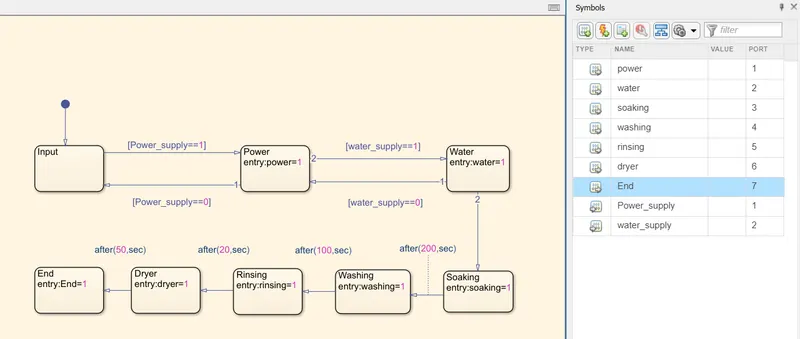

Chart

Required positions

a)

• If the power supply is available, the system gets activated

b)

• If the Water supply is not available, stop the process & indicate through LED

c)

• Soaking time should be 200s followed by Washing time of 100s.

d)

• Then rinsing happens for next 20s & dryer runs for 50s

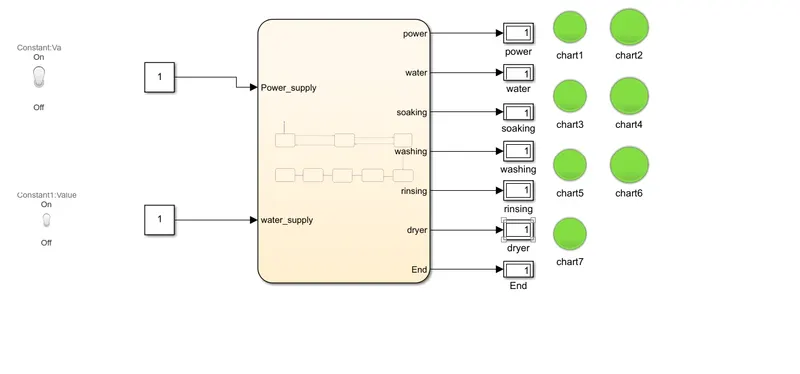

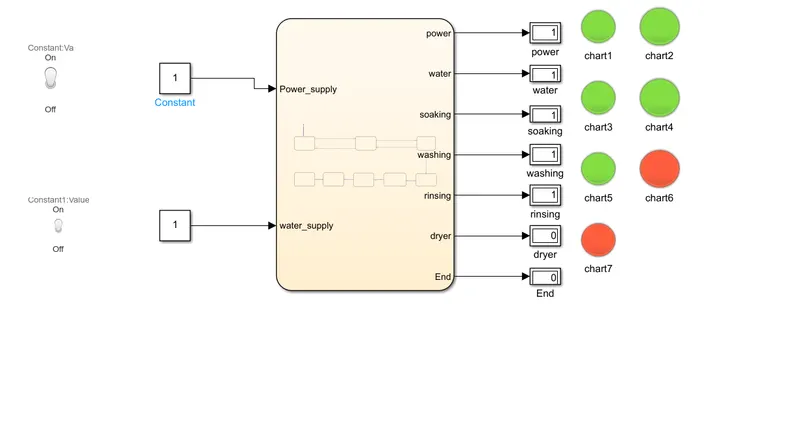

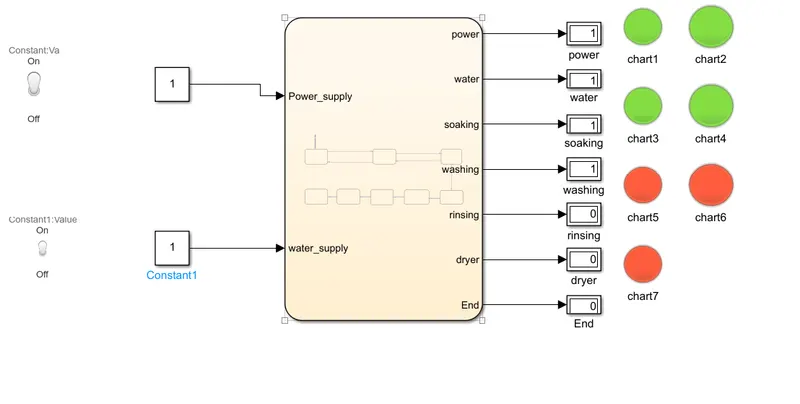

Results

All required criteria acheived

2

AIM

To simulate gear mechanism with these criteria

Speed Range(kmph) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

MECHANISM

Gear system is used to control speed

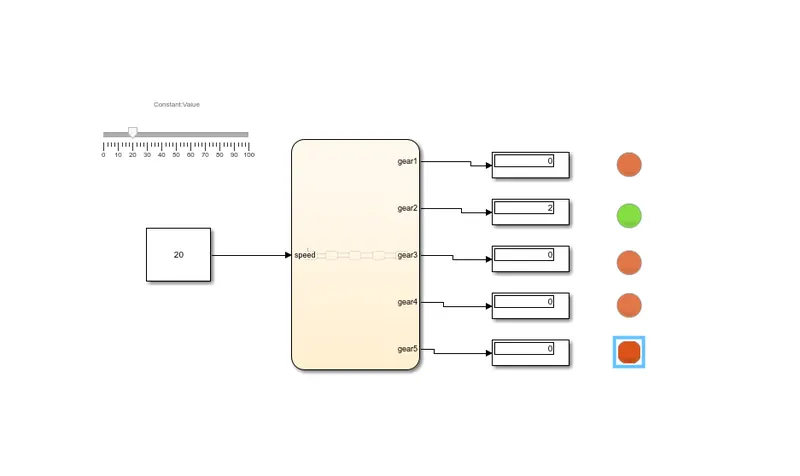

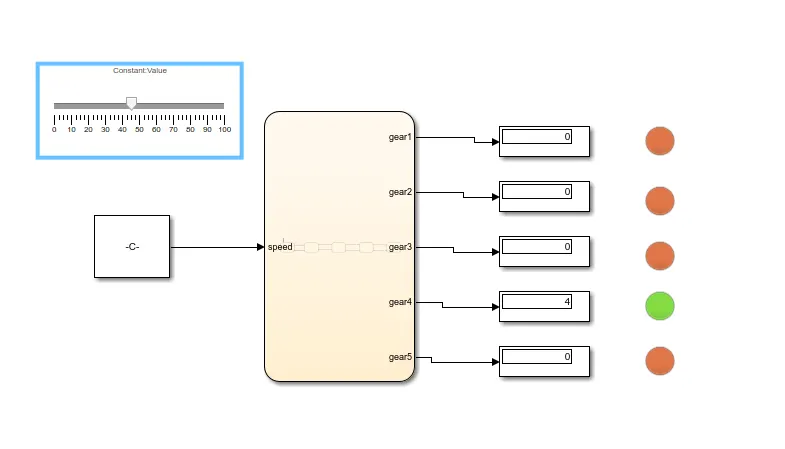

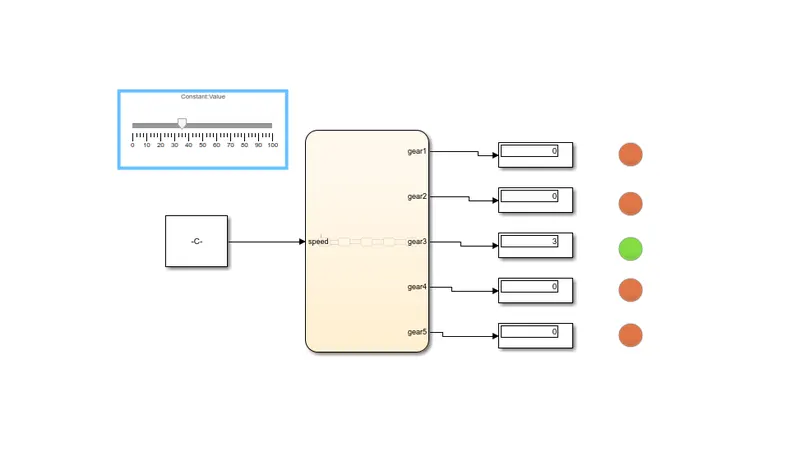

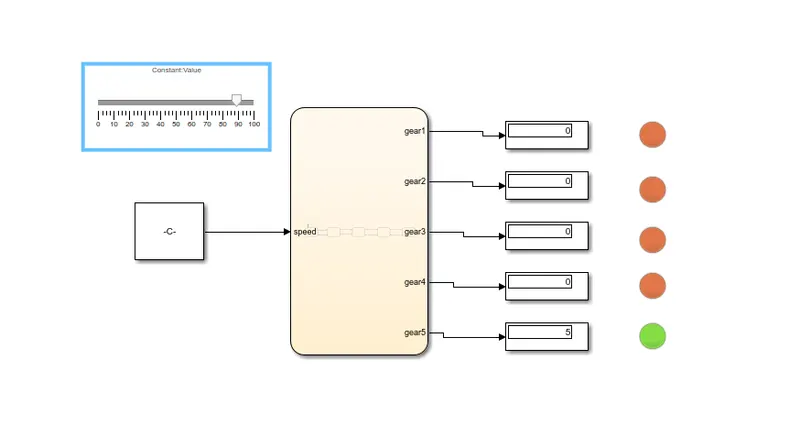

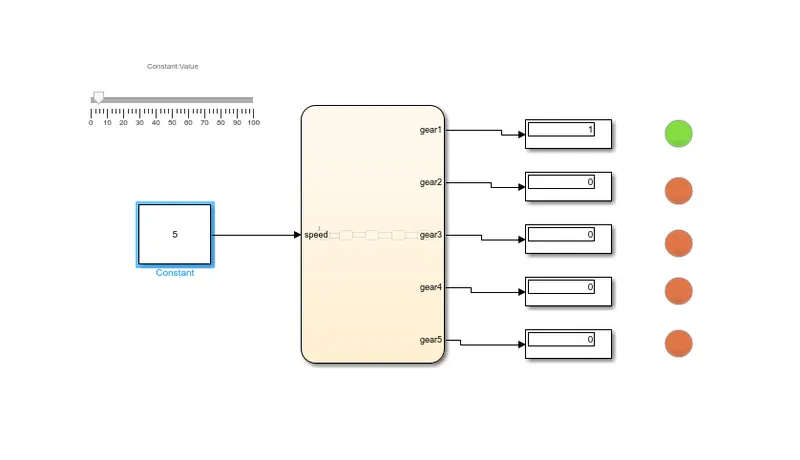

Simulink

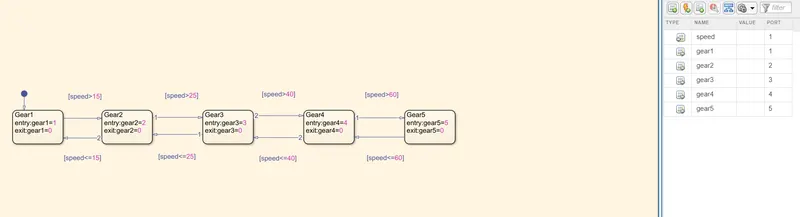

Chart

STAGES

gear1

gear2

gear3

gear4

gear5

RESULT

Required results acheived
