Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Aim:

To Create the rib and screw boss for the Drill Handle considering the design rules

Body of content:

• From the given class a Surface create a closed surface and create a body

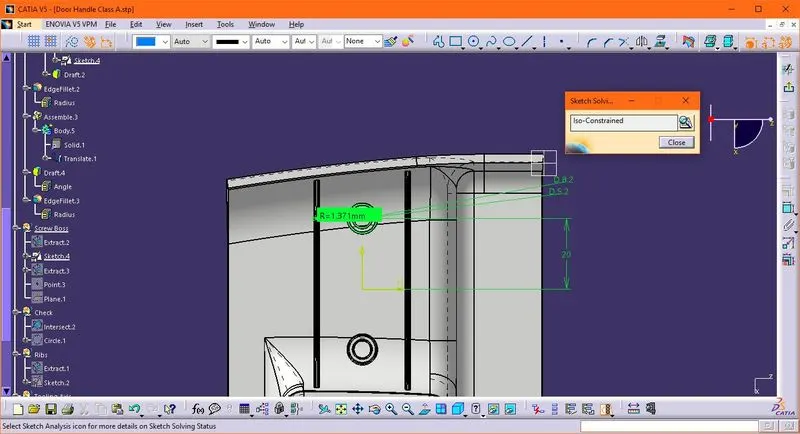

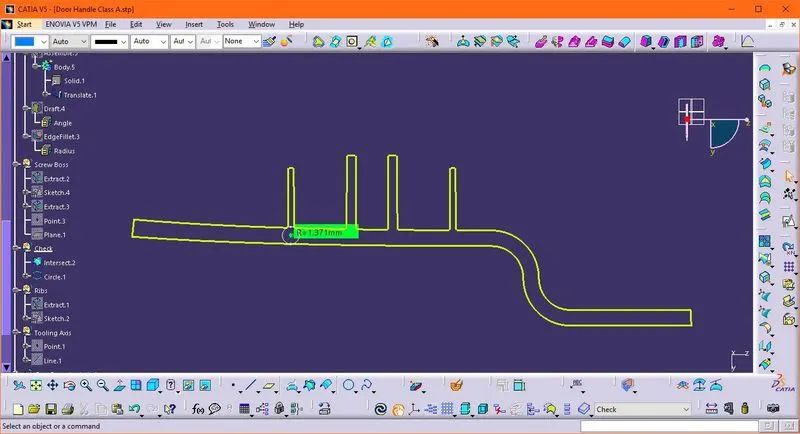

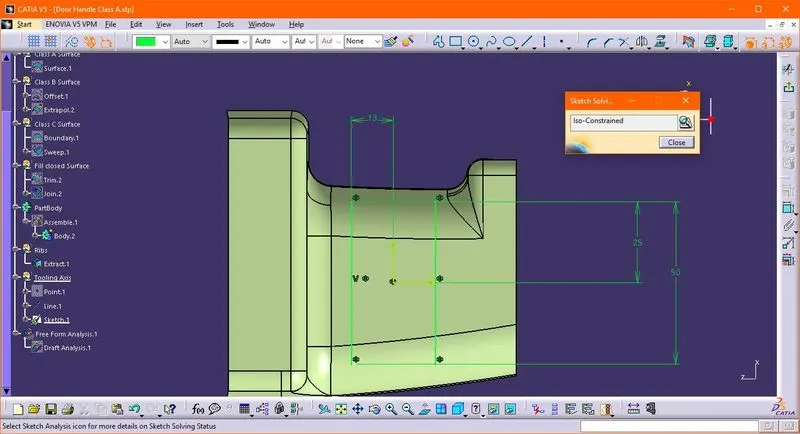

• Create a sketch for the ribs and the screw boss on the surface
• pad the sketches and assemble it to the main body
• Draft the sides and fillet the edges as per the rules

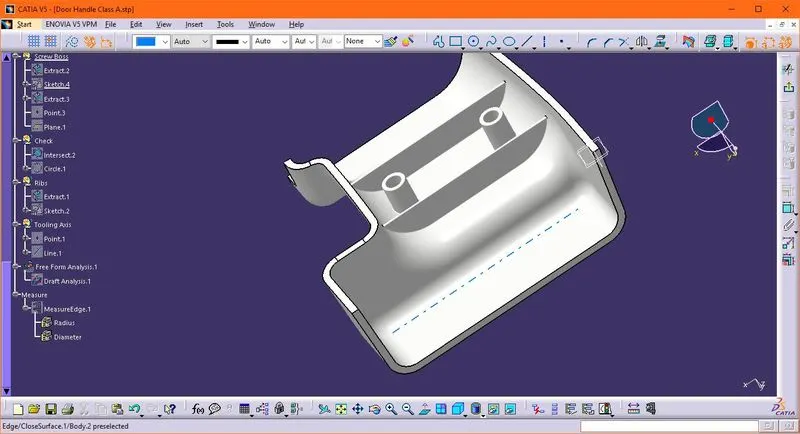

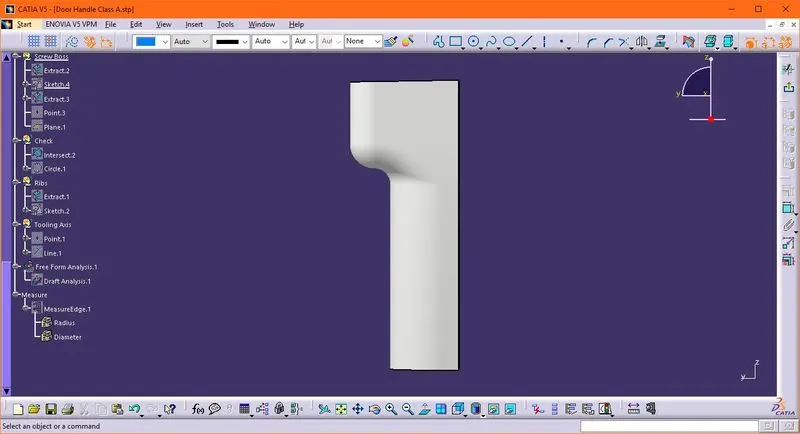

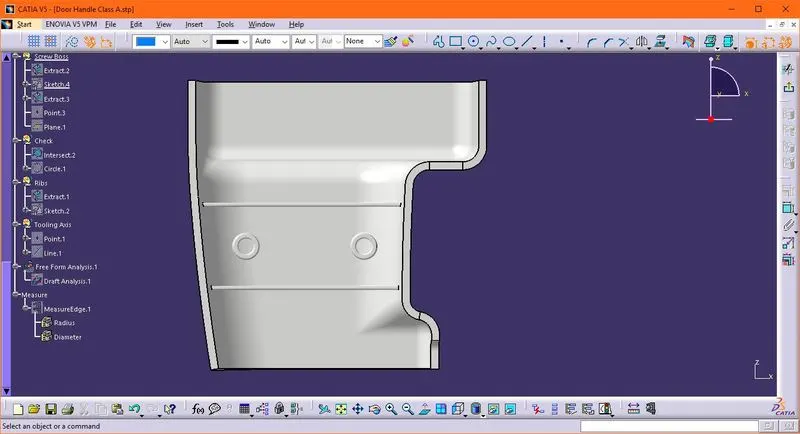

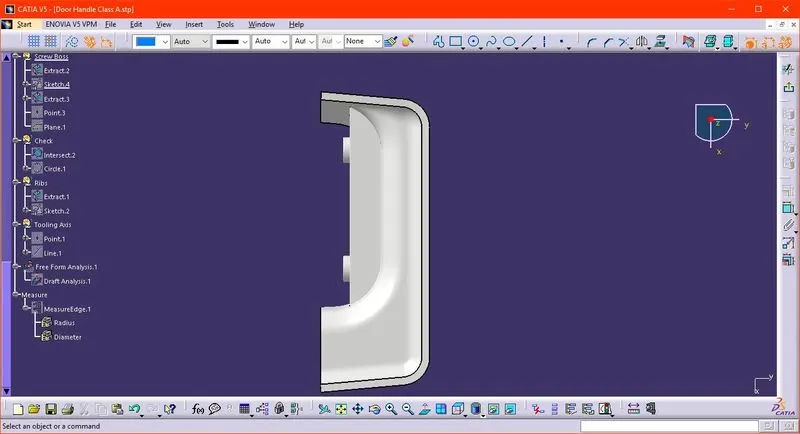

• the final output as follows
• screenshots are attached

Results

• CATPART is attched
• Zipfile is attached
• Drive :https://drive.google.com/drive/folders/1jjxxgLCeGX6XfUZShlf_q3YQpp_QSkwe?usp=sharing
