Week 9 - Attachment Feature Creation - Challenge 2

1

2

3

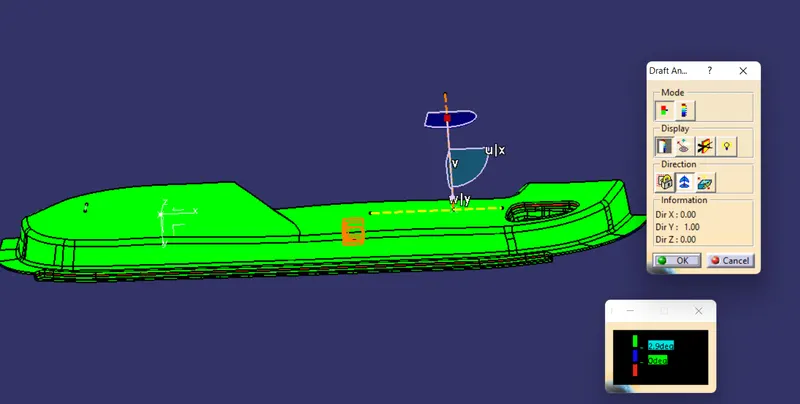

4 detail report of draft analysis

by using draft analysis the component should be toolabul. the minimum draft angle should maintain 3 degrees and when it is 3 degrees place a compass on the tolling axis it should convert green color

color representation in draft analysis GREEN, RED, BLUE. now when the draft angle is 3 degrees it shows green. when it is below 3 degrees it shows blue. when it is red the quality of plastic is not good

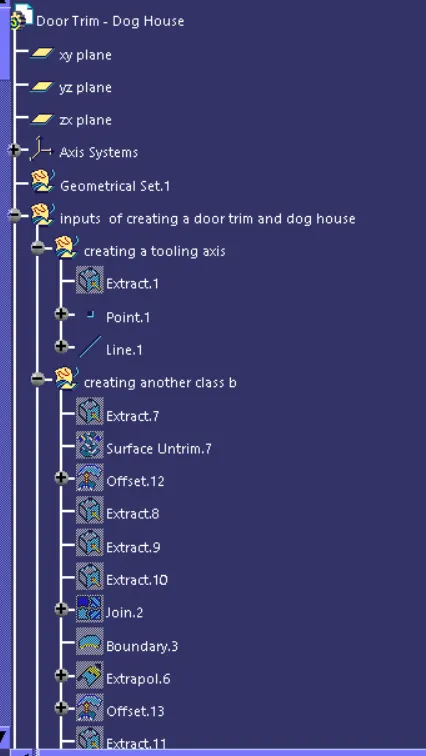

tolling axis

tooling axis means the axis of core and cavity and also ejection oo plastic component

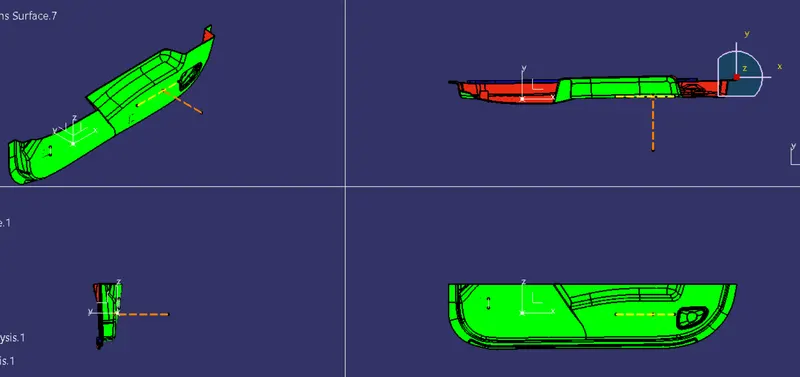

5 in this tooling axis the should be taking using biseting method means to intreset the component ant draw a two lines make to biset the line to perfome that on both y z plains and xy plains to form a one

singel biseting line that line is my major tooling axis
