Week 8 - Challenge 3 - Coin Holder Design

1

draft analysis of class a

2 draft analysis of complet componenet

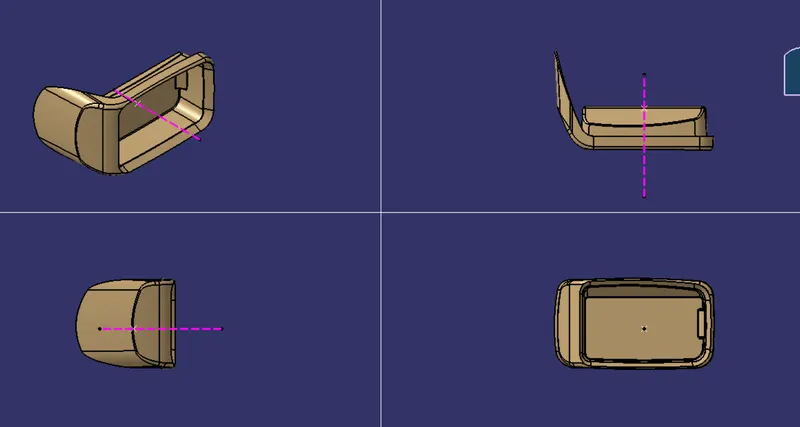

3 sesonal viwes

4 detail report of draft analysis

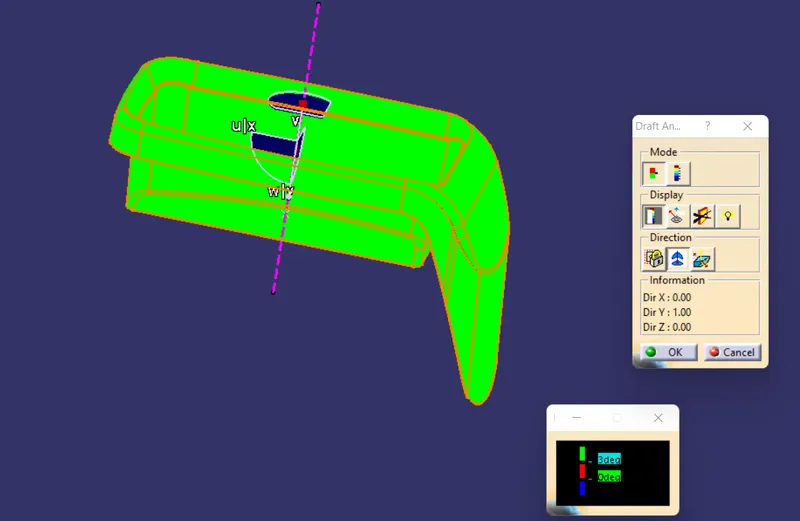

by using draft analyis the component should be toolbel . the minmum draft angle should maintain 3 drgree and when it is 3 degree the plase a compase on tolling axis it shoulld conversts green colour

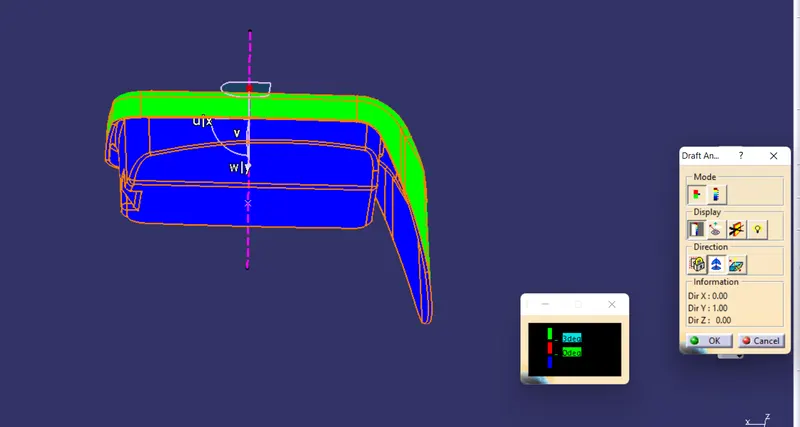

colour rerpresntation in draft analysis GREEN, RED, BLUE,. now when the draft angel is 3 degree itshows green . when it is below 3 degree it shows blue . when it is red the pqualyty of plastic is not good

tolling axis

tooling axis means the axis of core and cavaty and also ejection oo plastic component
