Week 8 - Challenge 4 - Bumper

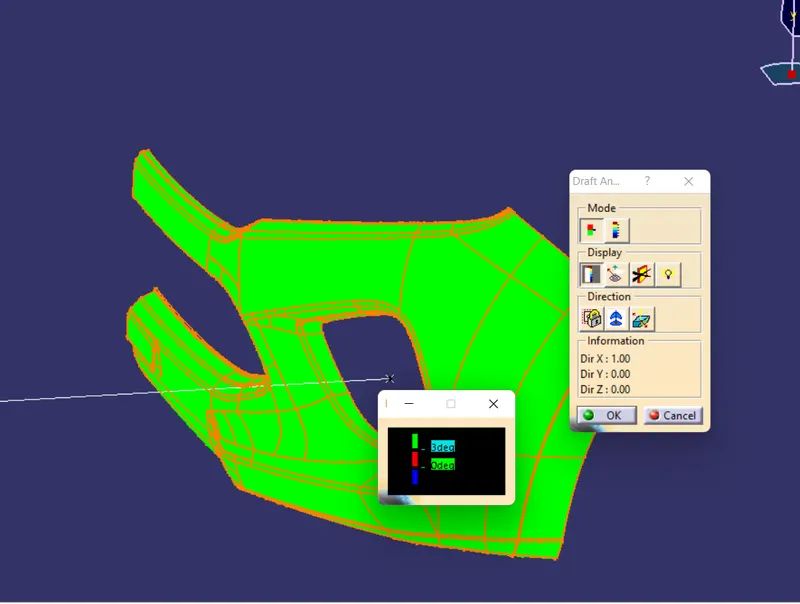

1draft analysis of full component

2

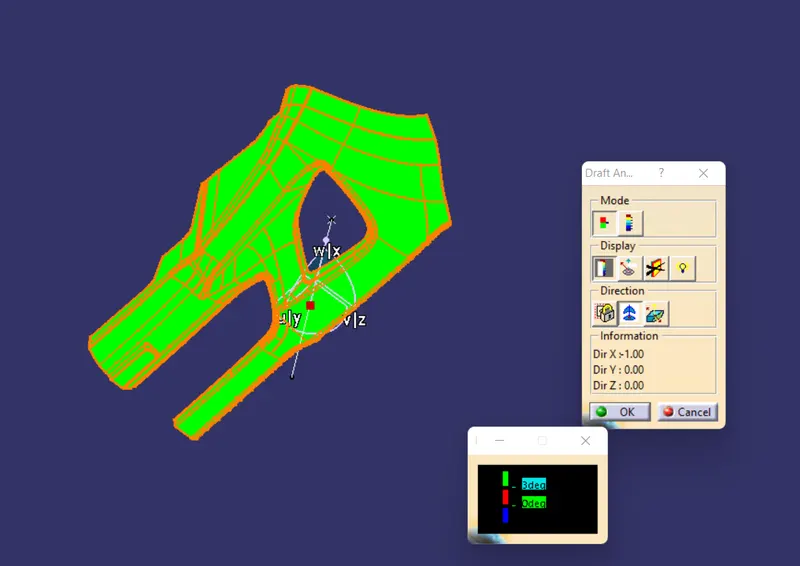

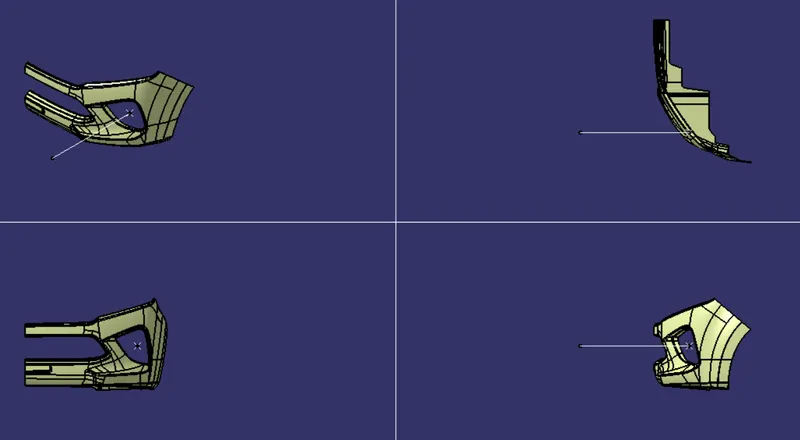

draft analysis of class a

viwes

4 detail report of draft analysis

by using draft analysis the component should be toolabul. the minimum draft angle should maintain 3 degrees and when it is 3 degrees place a compass on the tolling axis it should convert green color

color representation in draft analysis GREEN, RED, BLUE. now when the draft angle is 3 degrees it shows green. when it is below 3 degrees it shows blue. when it is red the quality of plastic is not good

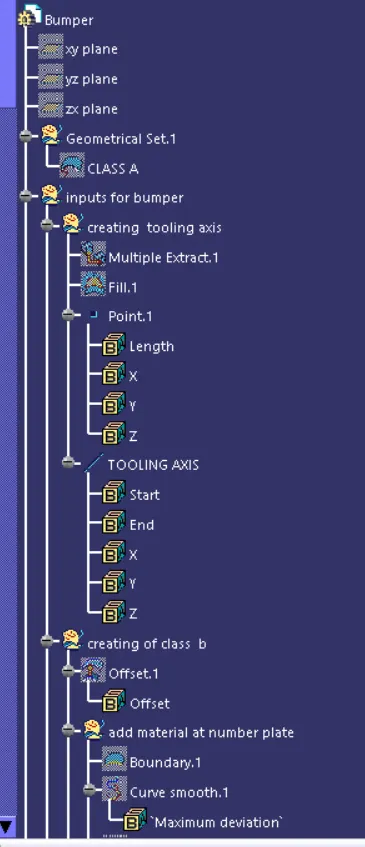

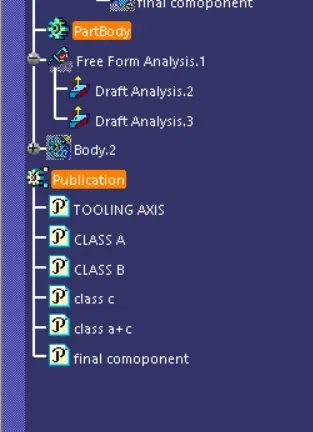

tolling axis

tooling axis means the axis of core and cavity and also ejection oo plastic component
