Week 9 - Attachment Feature Creation - Challenge 2

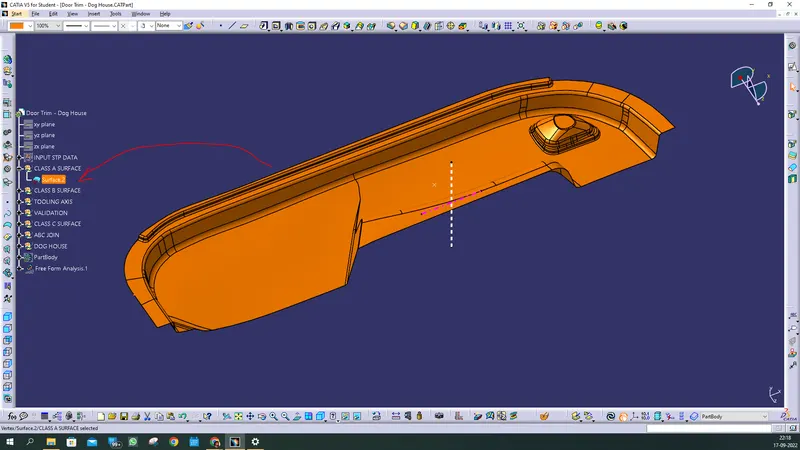

FIRST, We import the data in GEOSET, then copied it as a CLass a surface,

:

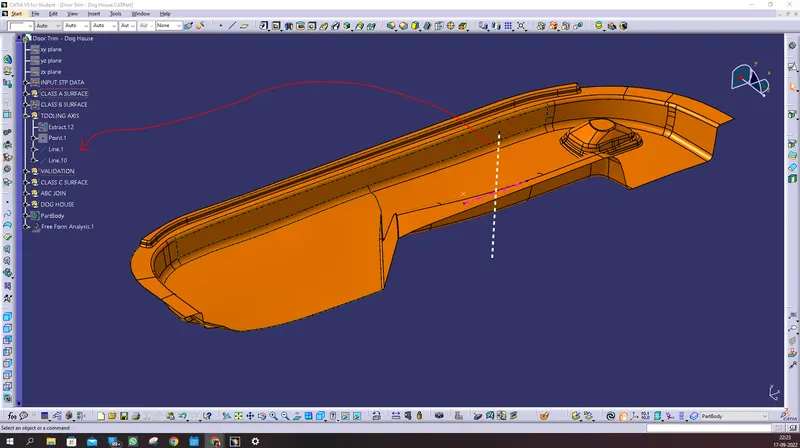

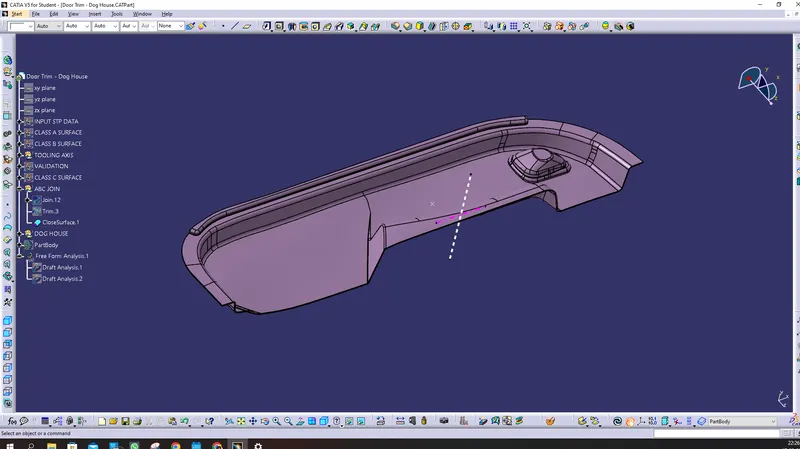

you can see that by extrating a point on face i have created a line and done with draft analysis, i found that some of the faces are Negative, means CLASS A surface is not correct a some point. i tried with crossectional surface but still found not okay. so i let it go, and hence, i go with the tooling axis what i have here,

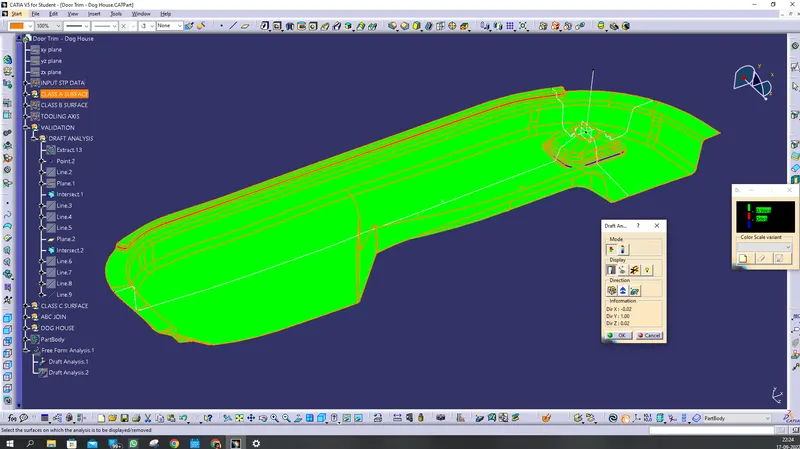

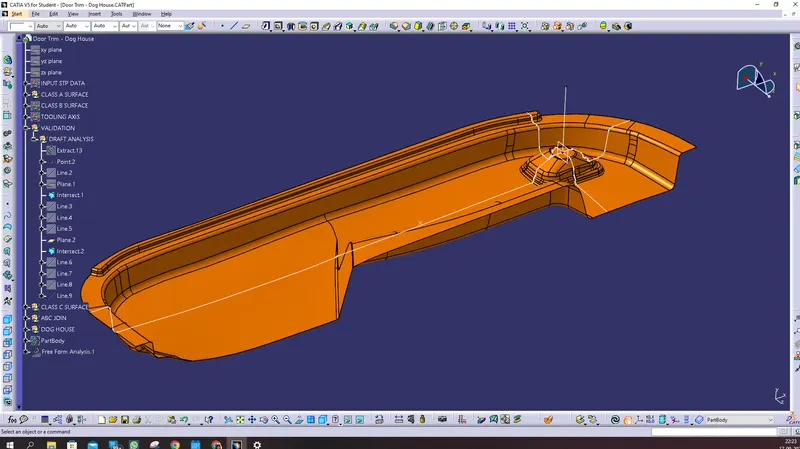

draft analysis i have found some error in class a surface:

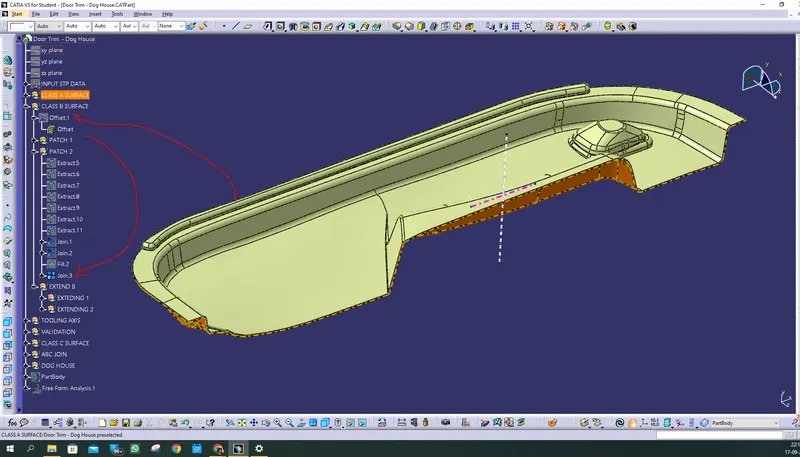

i have created offset of class a surface, then i have done all the patches were there. hence final class b surface is availavle.

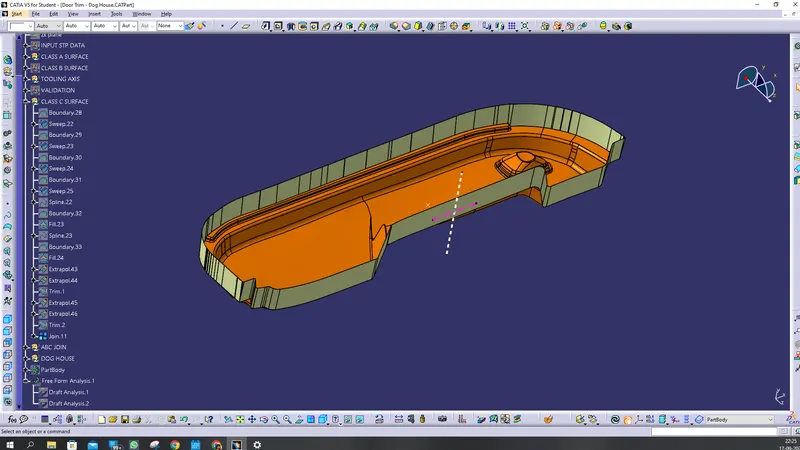

now then i have odne with class c surface, using draft direction,

hence part volume is created and added to solid body in part boyd:

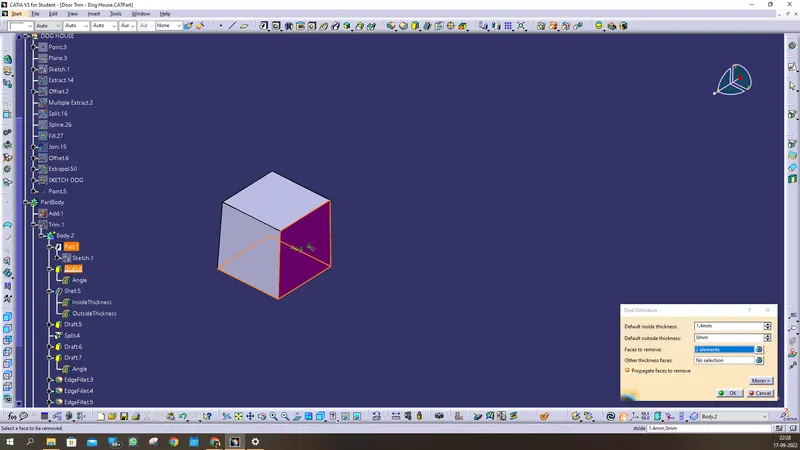

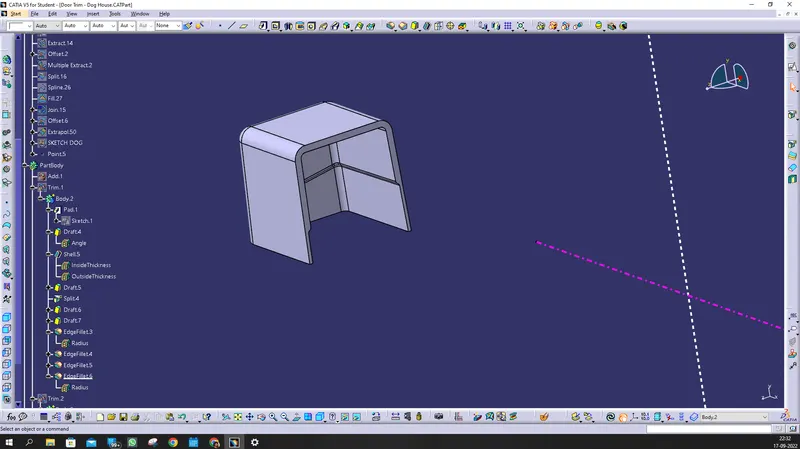

in an other GEO_SET, i have created dog house solid , given the draft and then shell it,

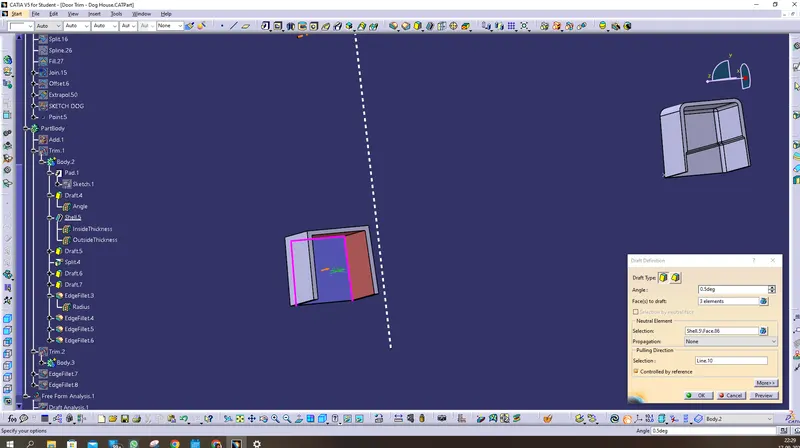

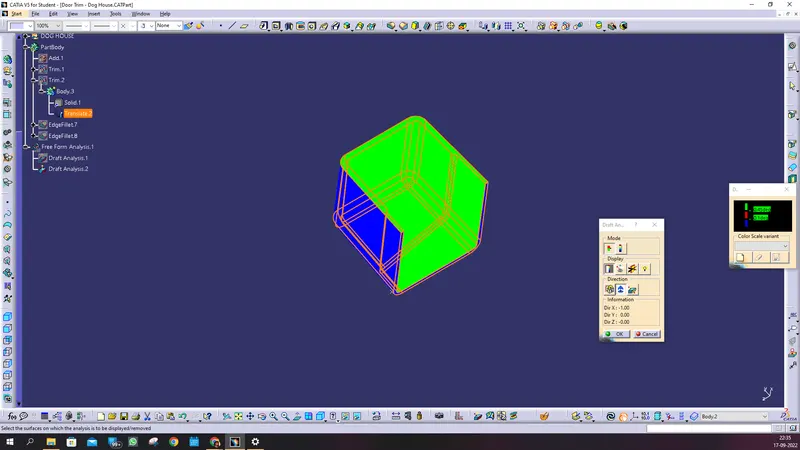

Given the draft:

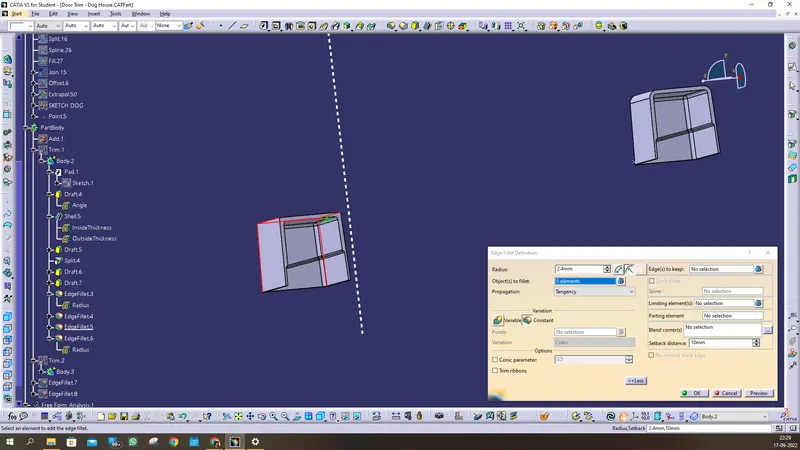

hence, done with outer and inner radoius according tp rule:

root thik = 0.4 x T

root ht = 3-6mm

dog wall thk = 0.7 x T,

Draft outside= 1-3 degree

draft in inner= 1-3 degree

root radius=0.25 x T

the dog house top face size is according to your boss size .

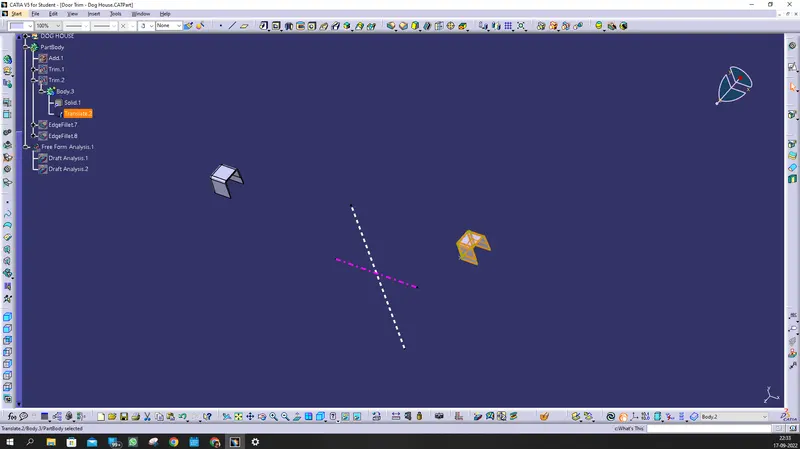

i have copied the dog house and translate it to point to point using point of origin.

there should diffenrt tooling direction of dog house , since insert will work:

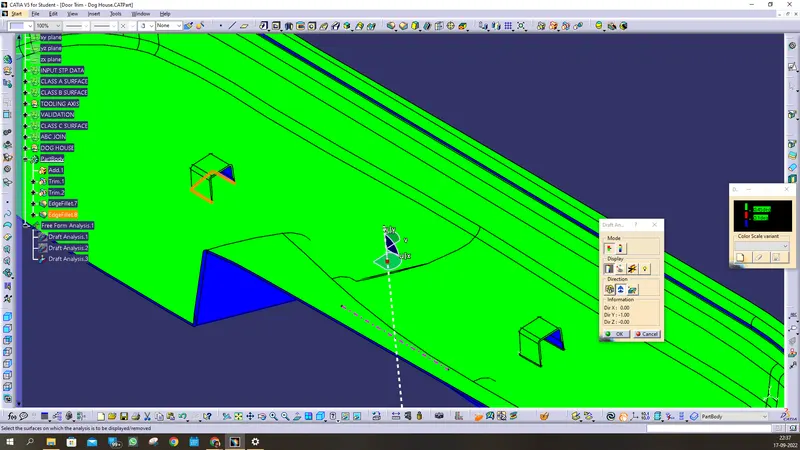

you see clear in analysis, some class b are odd due to class a was wrong, at that points, anyways, our Dog house is ok with 0.5 degree of draft.
