Week 9 - Attachment Feature Creation - Challenge 2

Back Door is a door which is located at the rear side of a car which gives access for the boot space to store luggage, spare wheel etc. These doors can be operated manually or electric powered. In most of the luxury cars door is electrically operated. Back Door Assembly parts: Inner panel outer panel hinge and its reinforcement…

Downloade and Worked on the Class A surface to reduce the corner fillet value to improve asthetic. Created flanges and Ditch area for mounting and welding of the roof rails. Provide clearence for A-pillar and C-Pillar. thicked the outer Roof  by 0.75mm as mentioned in input. created and designed front roof rail by…

Worked on downloaded Class A surface to reduce the fillet to R1.0 created Drip mounting with embossing, blend(stiffner) and holes as per the standards and master section provided as input. created A pillar mounting with emboss and holes for mounting. Created sill mounting with emboss and holes for mounting. Created body…

The given Wheel Arch design does not pass the European standard.   Kindly find the measurements of the points in given fender wheel arch design. Section Required Value Actual Value Go/No Go A 10mm 9.949mm No go B 10mm 10.0mm Go   C 10mm 0.778mm No go D 10mm 2.888mm No go E 10mm 5.997mm No go

Section Modulus is a geometric property for a given cross section used in design and it is also a ratio between the moment of inertia of the section and elastic modulus of the section.   steps followed to calculate section modulus. 1. created a intersection in inner and outer panel.2. offseted a plane and created…

Underbody coating is usually a dense cladding (often based on rubber) applied uniformly to the undercarriage of the automobile. It is normally sprayed or painted on when the car is just out of the dealership and is clean. Types of underbody coating 1. Rubberized underbody coating : This is generally thought of as…

Bench Marking is the comparison of the similar parts features which is already available in market or from compitators for development of new parts with better features and new features to customers and to save cost to company.   I would like to suggest Pughazhyendhii four cars which are Skoda Rapid, Maruthi…

Created Class B surface by offsetting class A. and improved the Class B surface quality by using multisection solid and sweep. Created Class C surface by using sweep(with reference surface). and Trimmed both AC with B and created a closed body. and started created Heat stackes and translated it to various location by point…

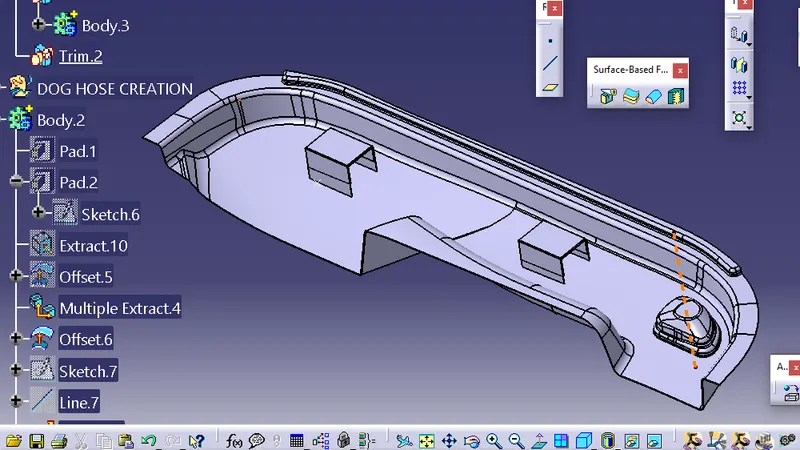

Created Class B surface. created a Tooling Axis. created Class C surface trimmed and created a closed surface. and by using closed surface created a solid part. then created a Dog house. and then copied and pasted the dog house and by using translation moved the dog house to another place. and conducted a draft analysis.…

Crested class B surface and Class C surface. extrapolated the class B larger than class A to intersect with class AC. but cant able to trim. both Class AC and Class B. sweep for class C is also not able to do more than 1mm, but we needed atlest 4mm for intersection and trimming. There is no mentoring section slots free…

Downloaded Cad Data and saved as .Cat part created a New Product and inserted the Back door assembly. and created a new product for Geomentric bundle. activated geomentric bundle product and and inserted connectors and clamps from my catalogue. Placed all the connectors and clamps in appropriate places by using snap, Smart…

Downloaded all the CAD data needed and converted and saved into Cat part. Defined all the connectors and supporting parts ans channels electrically by defining connector connection points, Bundle connection points. Created a new product and added Engine assembly and new geomentric bundle assembly into it. arranged and…

opened Product of Week 4 challenge opened a new flattening workbench. setted all flattening parameters. extracted the product file into flattening. using flatten command flattened the bundles. used roll and rotate command in necessery areas. created a new drawing sheet. inserted the flattened product into it. Kindly refer…

Bundle continuity has been checked by Edit - Search option and reference snap has been attached. Annotations has been added for all connectors. Bundle warning has been checked by creating error by moving the connector closer. CAT.part as been generated by Generate CAT part command in (Tool). by using the CAT part igs file…

All the connectors have been downloaded and then saved as catpart and then defined electrically as connectors with connector connection points and bundle connection points. Created a new product and changed its name and added a new product into it as a geomentric bundle and defined electrically by using geomentric bundle…

 First downloaded the igs file and opened and saved it. Then defined it as a back sheel in electrical part design and then difined back shell connection points and saved it into the back shell catalogue.             and then create all sizes of corrogated tubes by defining the inner dia…

All the connectors have been properly defined with connector connection point, Bundle connection point and Cavity connection point. And mounting device have been defined as a cavity and electrically connected with the connector. Kindly find the attached file and images for the conformation.
