Week 9 - Attachment Feature Creation - Challenge 2

• Aim: Create the Dog House for the Door Trim

• Report:

I had exatract the surface from the Class A surface and then create a point on the surface and through that point create a line normal to surface. with this tooling axis part get easily ejected from mould. tooling axis makes angle of 90 degree with surface.

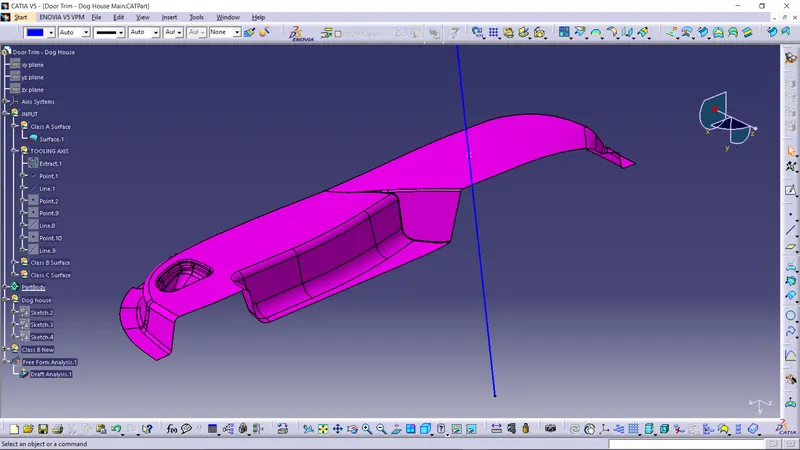

Tooling Axis is red colour line.

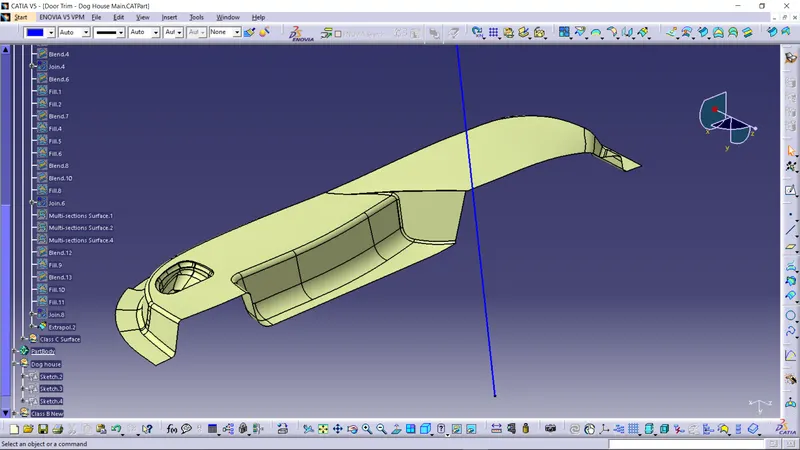

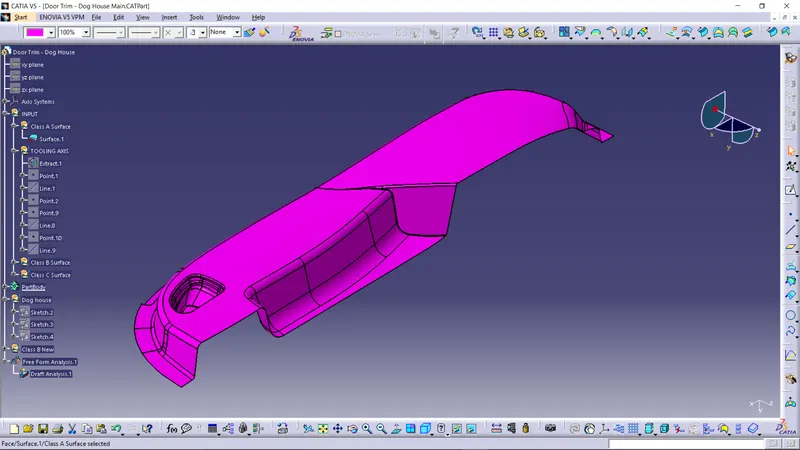

Class A Surface : class A surface is given as input.

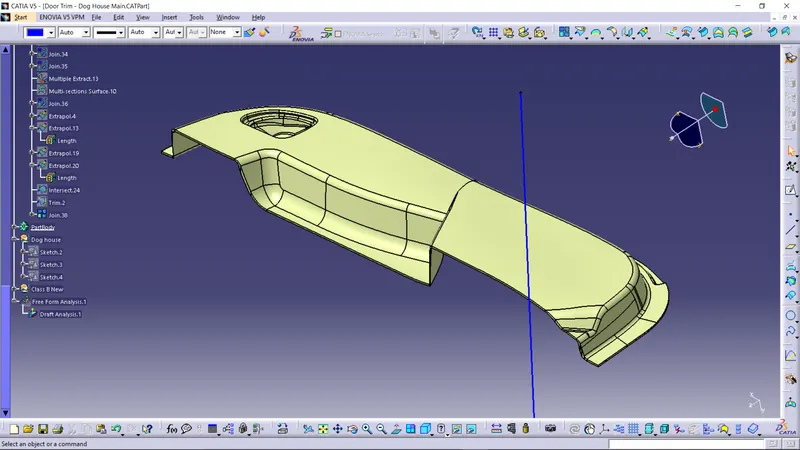

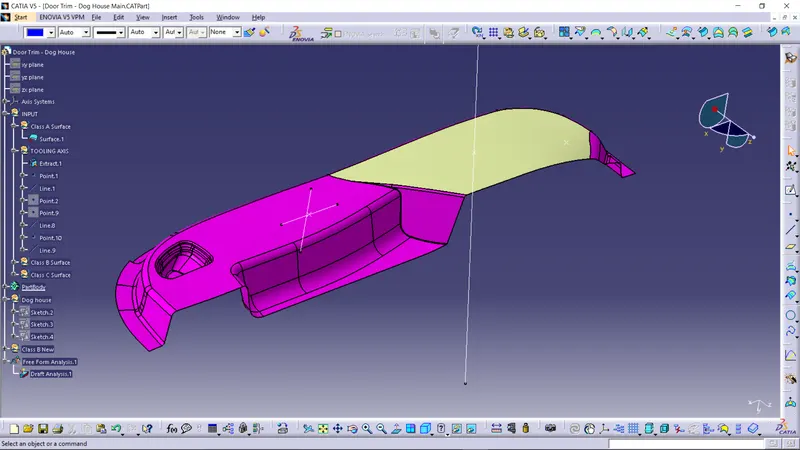

Class B Surface: I had created the class b Surface from the class A surface by extracting the surface then untrimming and extrapolation and trimed with other surfaces. the thickness of the final solid part is 2.5mm bacause that i had offseted the class B Surface from class A surface by 2.5mm.

class b Surface is same as of class A surface but it offseted from class A . class B surface is alway behind the class A surface.

Class C Surface : when Drafting suface is parallel to tooling axis then we given draft angle of 0 to 3 degree

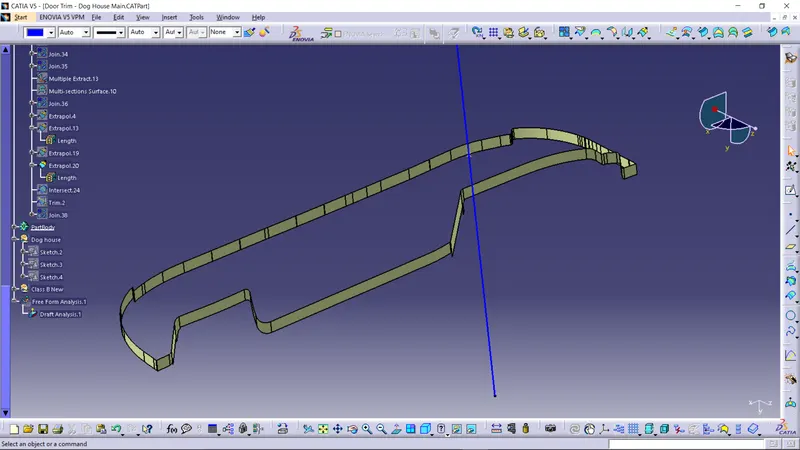

Class C surface join the Class A surface and the Class B surface size of the class C is thickness of the part.

Final Closed Surface of the coin holder is created by joining the Class A surface and Class C surface and that joined body trim with the Class B surface and created the final closed body.

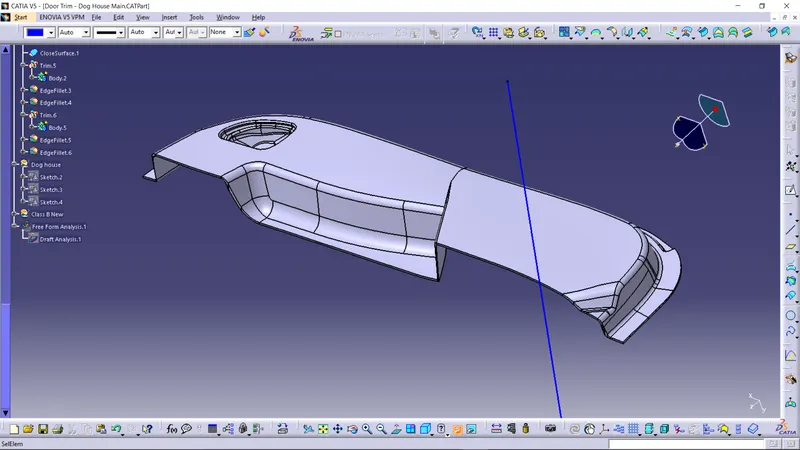

Solid part : I had created the solid body by using close surface command in part design from that closed body.

Draft Analysis :

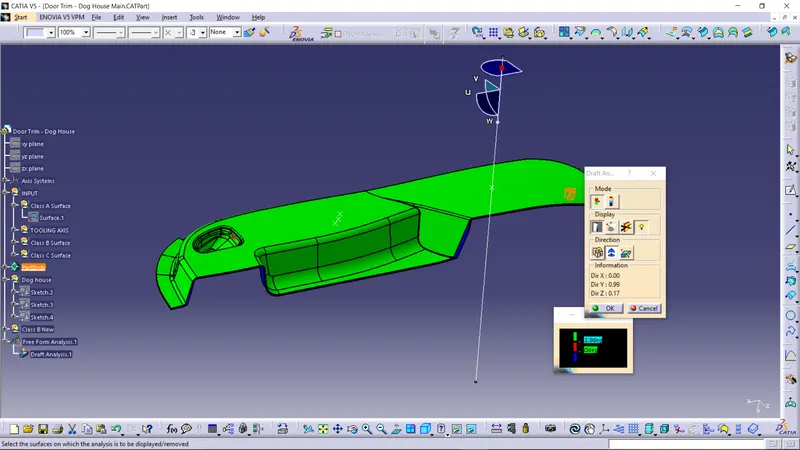

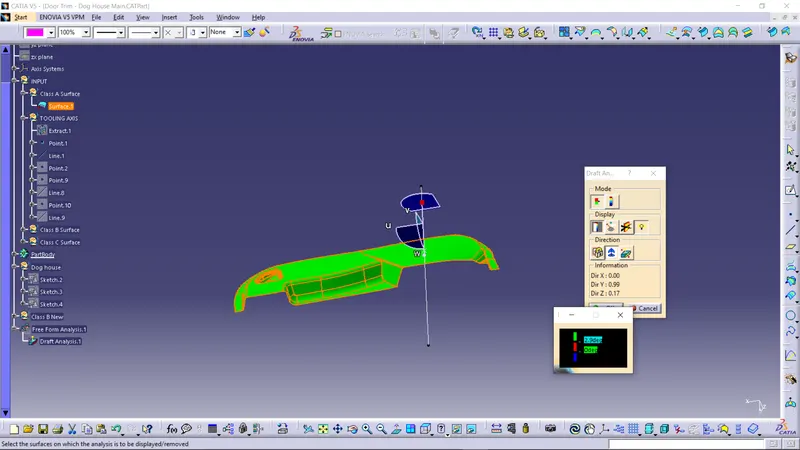

Draft Analysis of Class A surface:

I had done the draft analysis of the class A surface with draft angle of 2.9 degree.

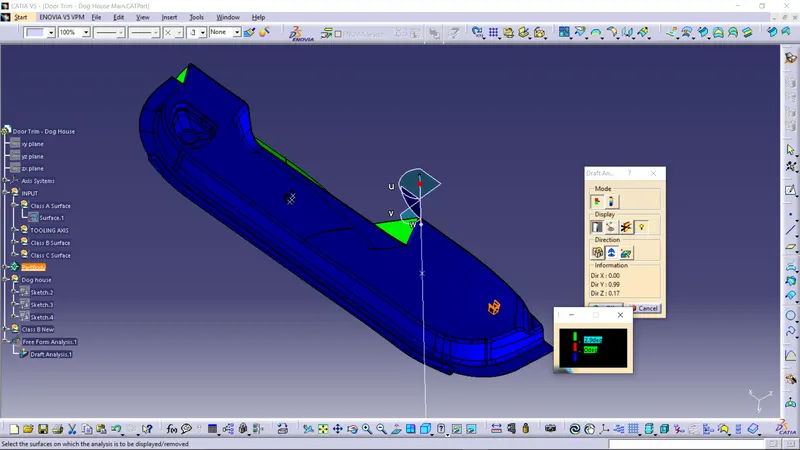

Draft Analysis of Solid Part:

I had done the draft analysis of the solid part with draft angle of 2.9 degree. it easily get ejected from the mould. with this tooling axis it easily get ejected from mould.

Fillet of the dog highlighting because it has negative degree of angle

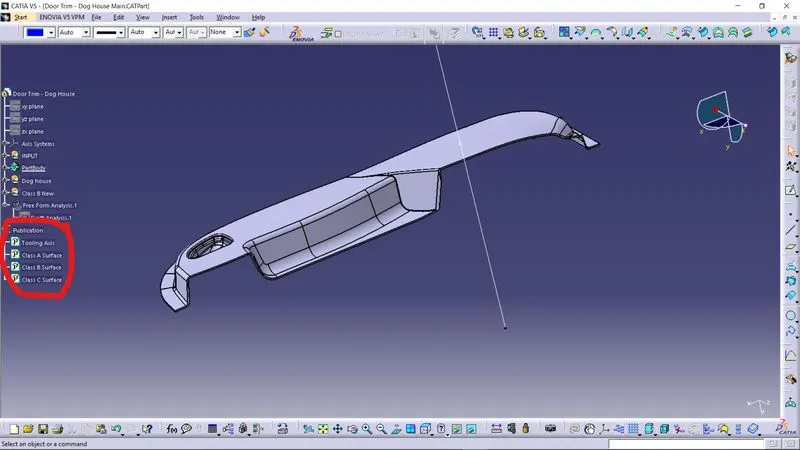

Publication:

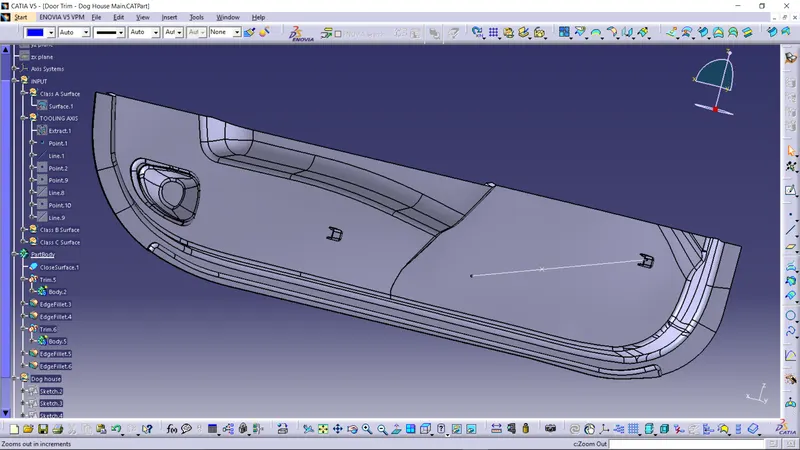

Engineering Features:

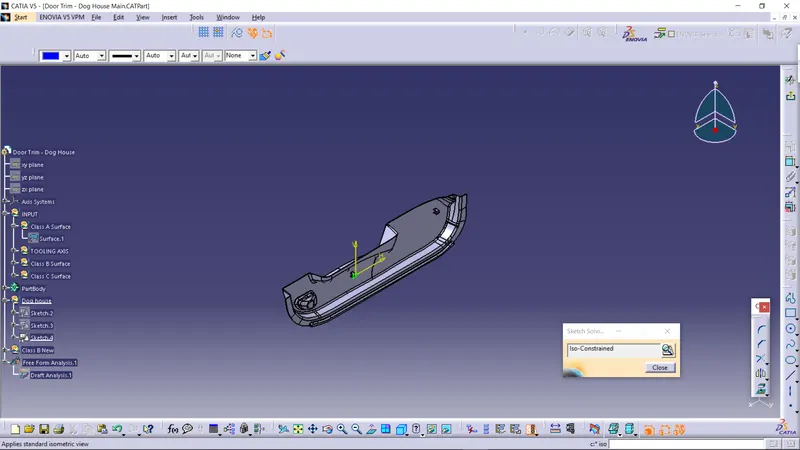

Isometric view:

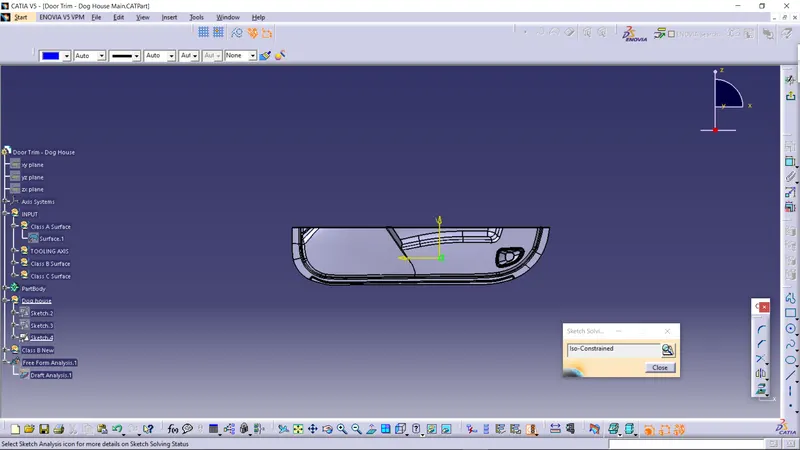

Top View:

Front View:

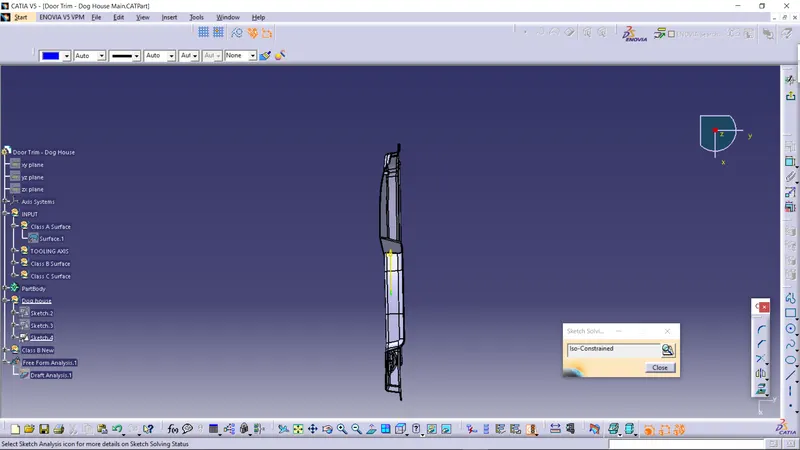

Right View:

Left View:
