Week 9 - Attachment Feature Creation - Challenge 2

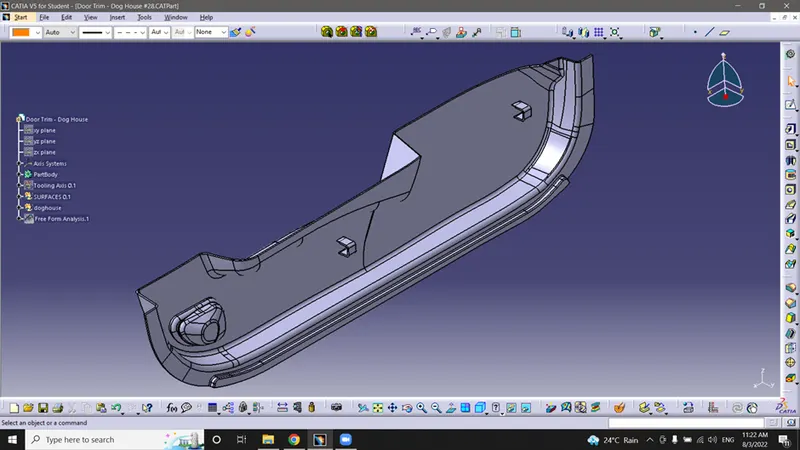

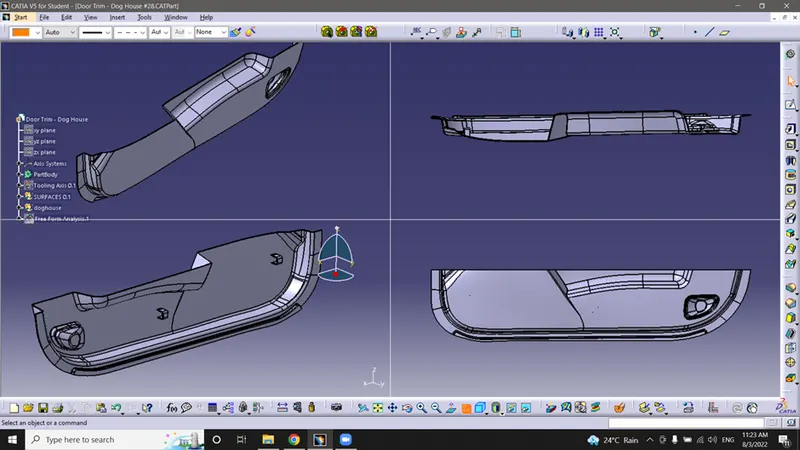

Screenshots of completed design

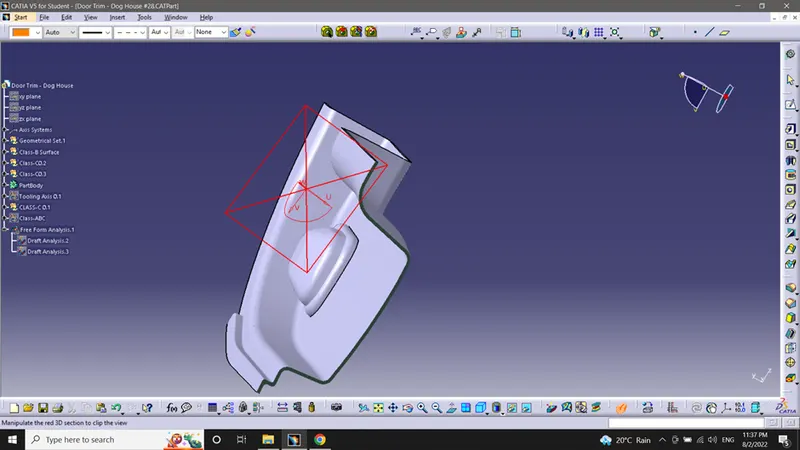

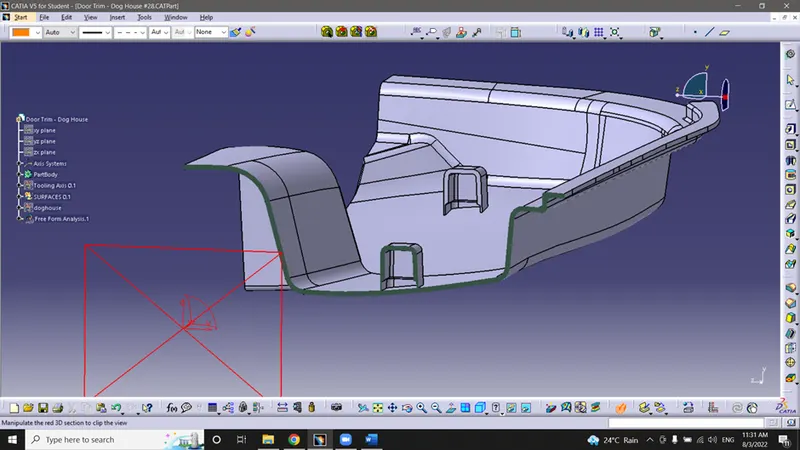

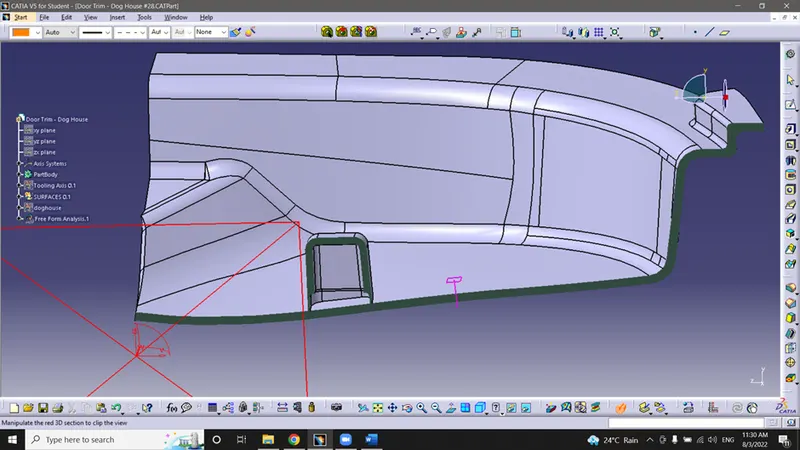

Some sectional views

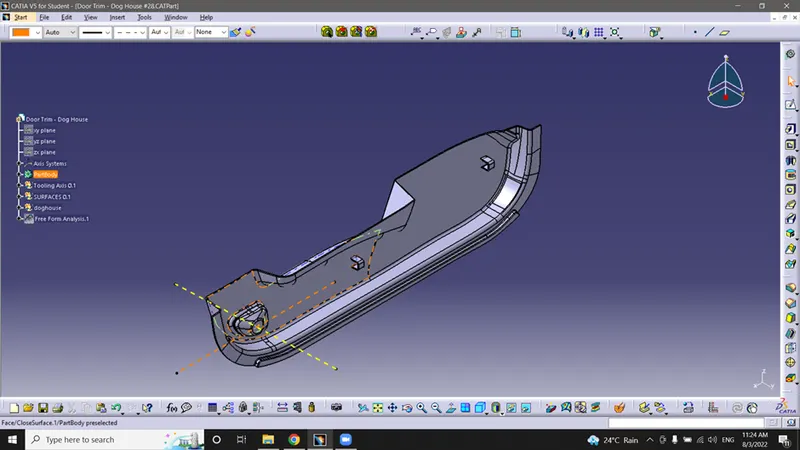

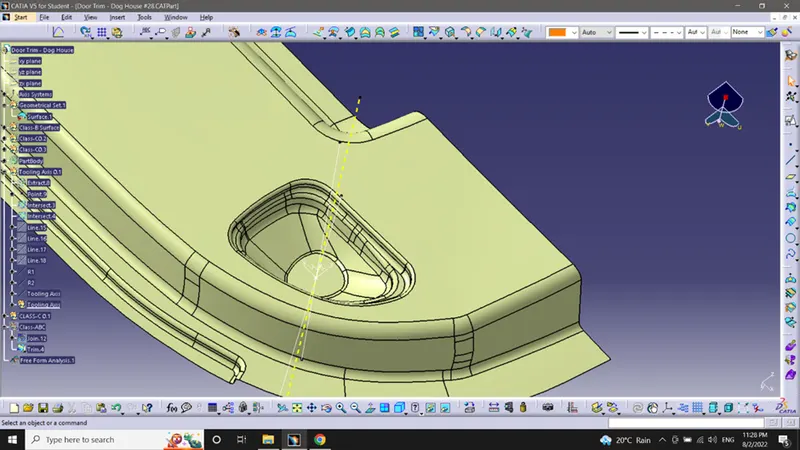

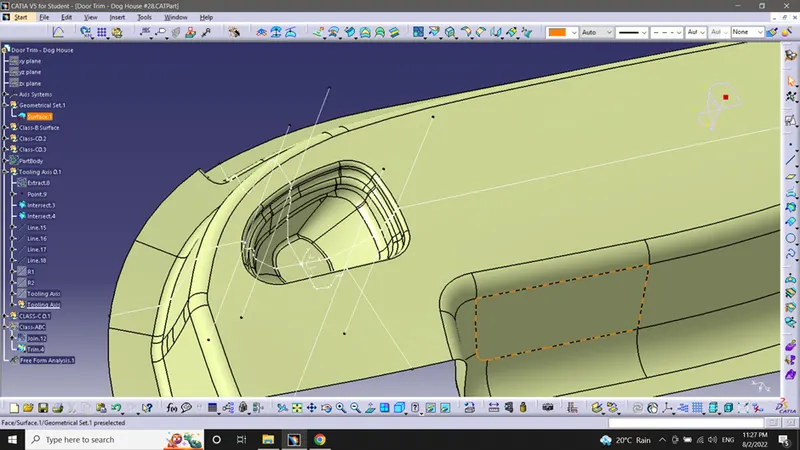

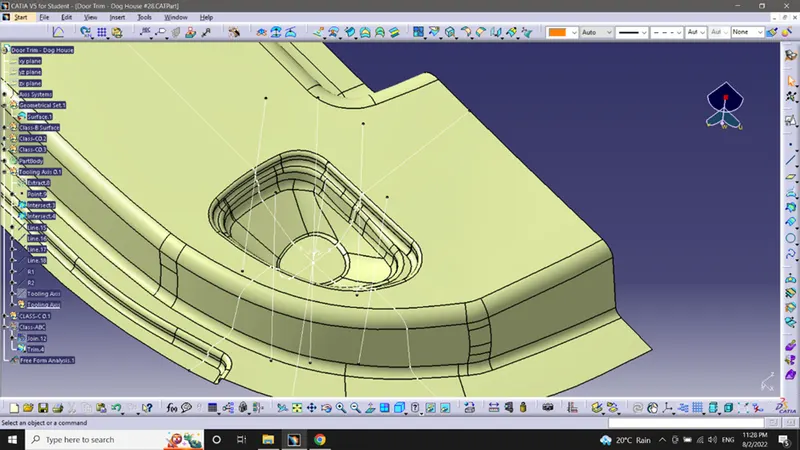

Tooling Axis

• Created a point on the down surafce of the hole and inserted an axis system.
• Made intersects with reference to two perpendicular plane of the new axis( XY- plane and YZ-plane)
• Four lines are created like above picture, using point-point line type.

• Created line R1 and R2, using bisect line. reference lines are used in the respective planes.
• Using R1 and R2 as reference by bisect line type created our Tooling axis.

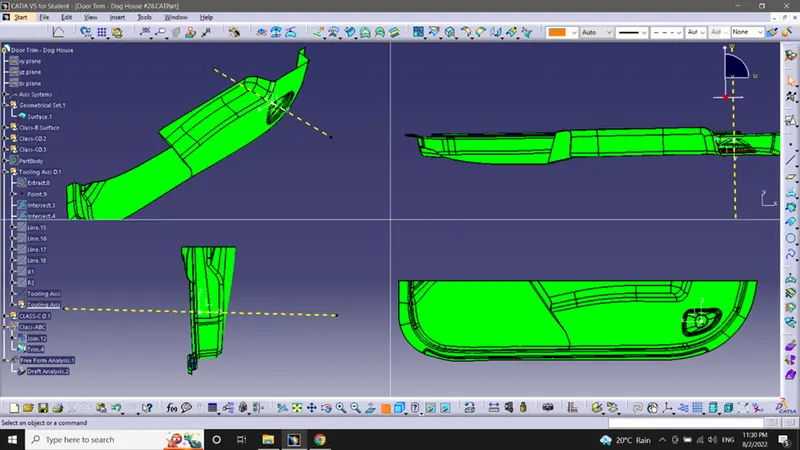

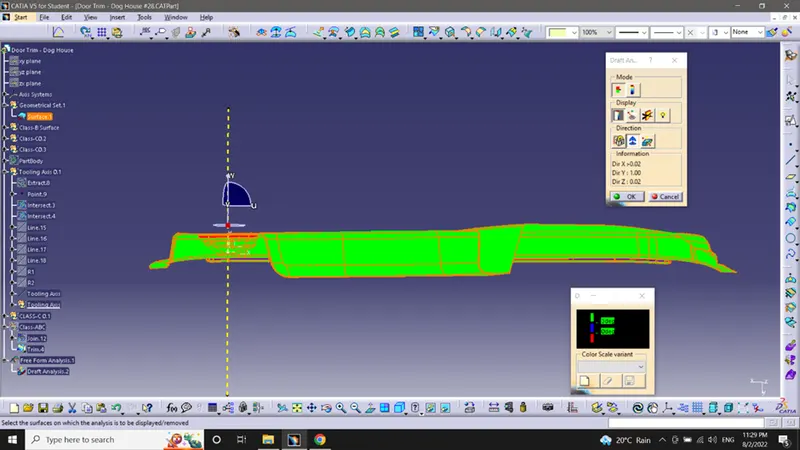

Drafting Analysis of the Surface A

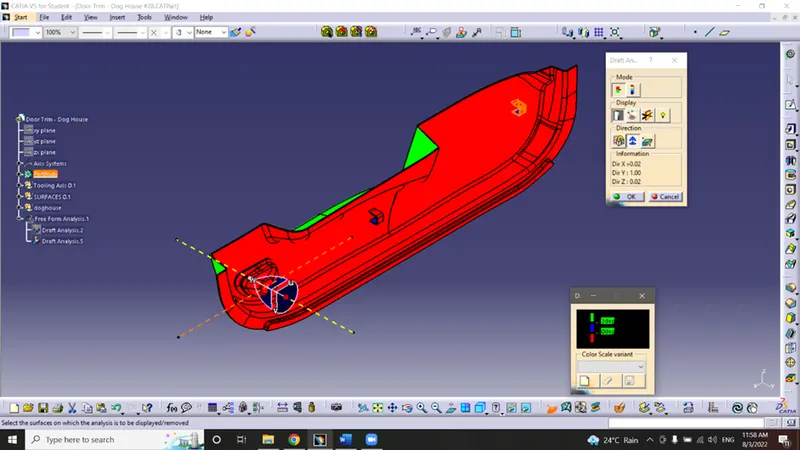

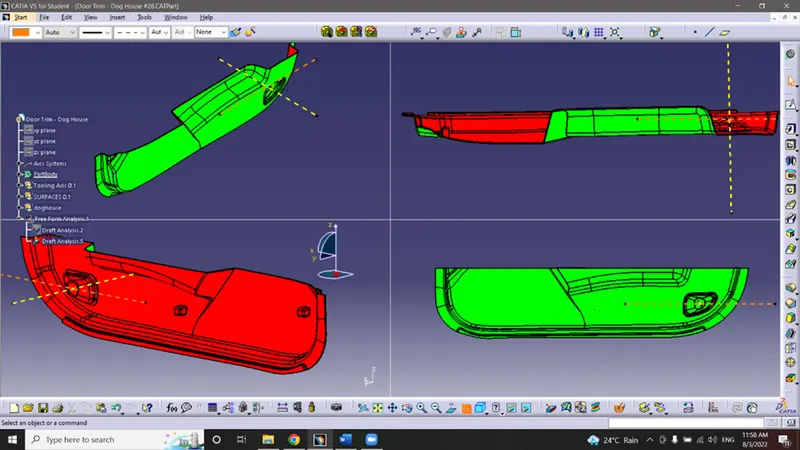

Drafting Analysis of solid body
