Week 9 - Attachment Feature Creation - Challenge 2

DOOR TRIM DOG HOUSE

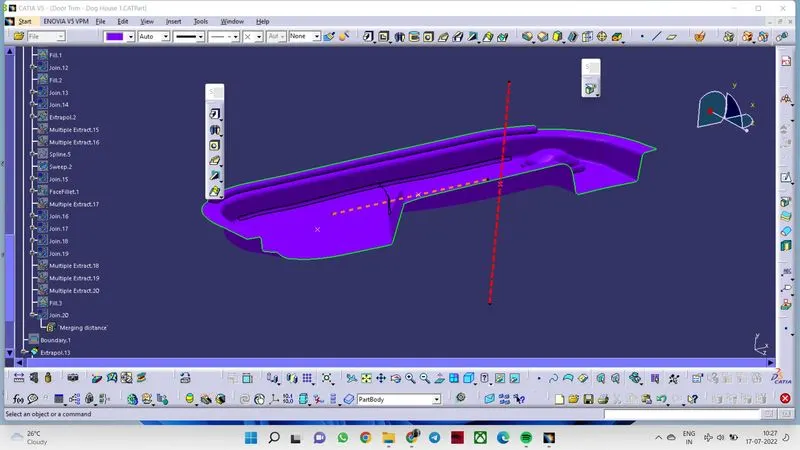

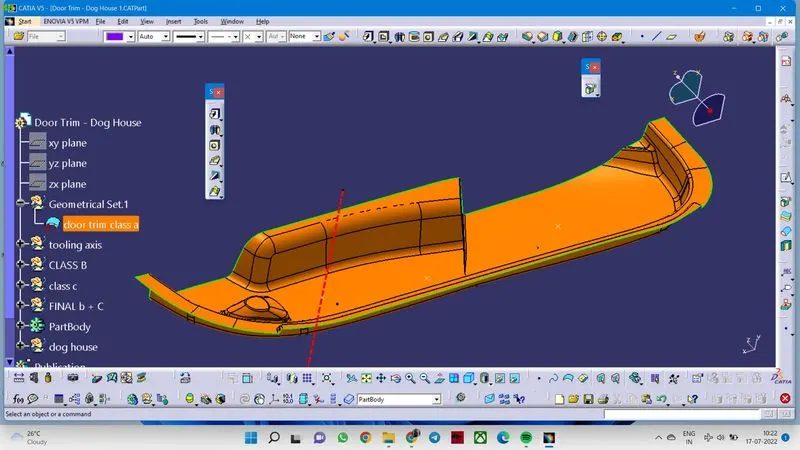

THE given surface

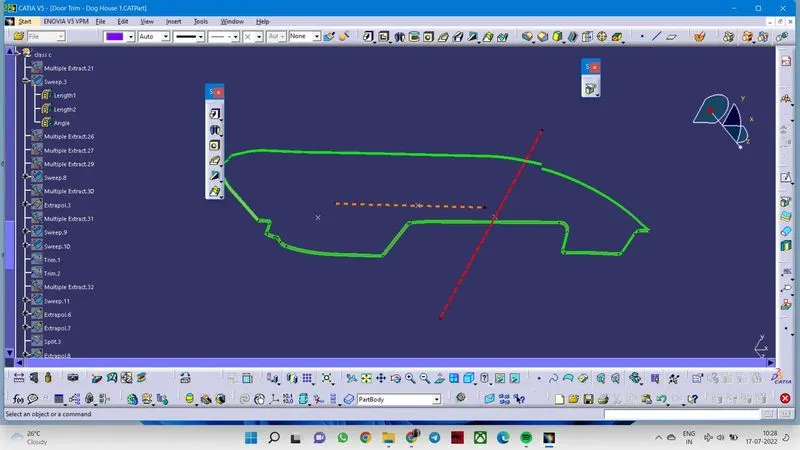

tooling axis for class A

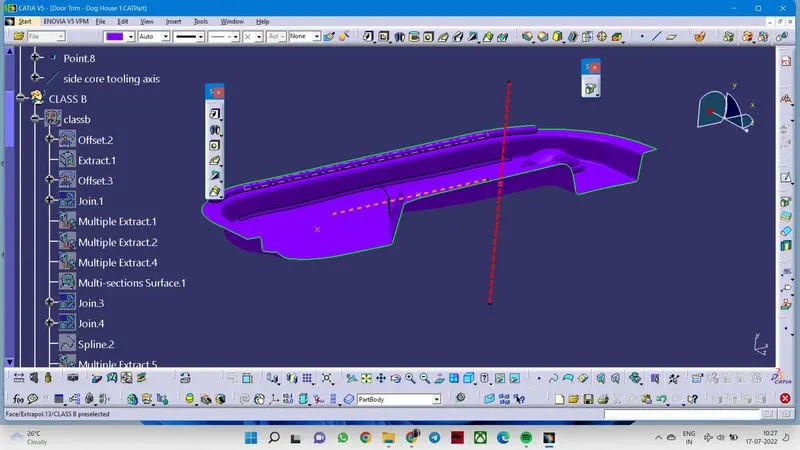

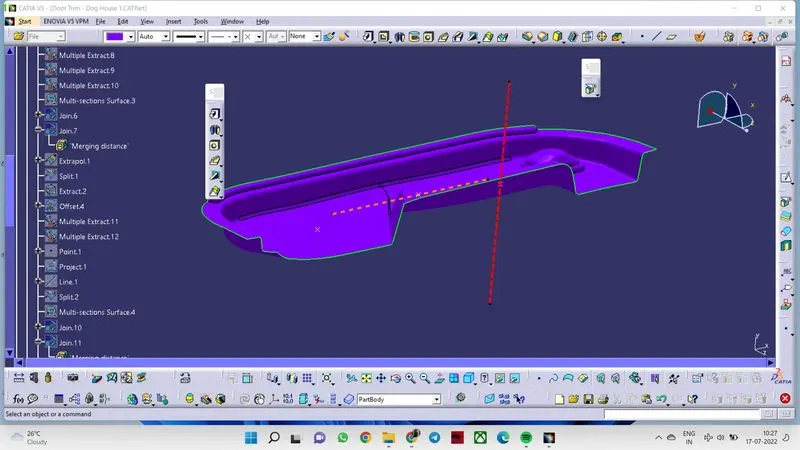

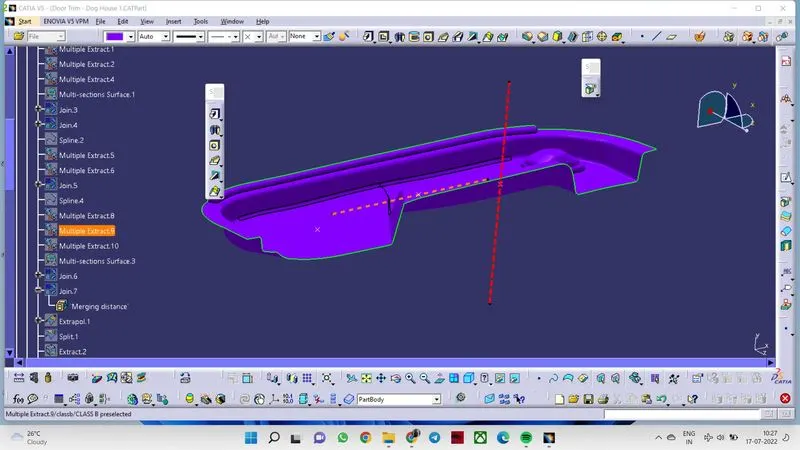

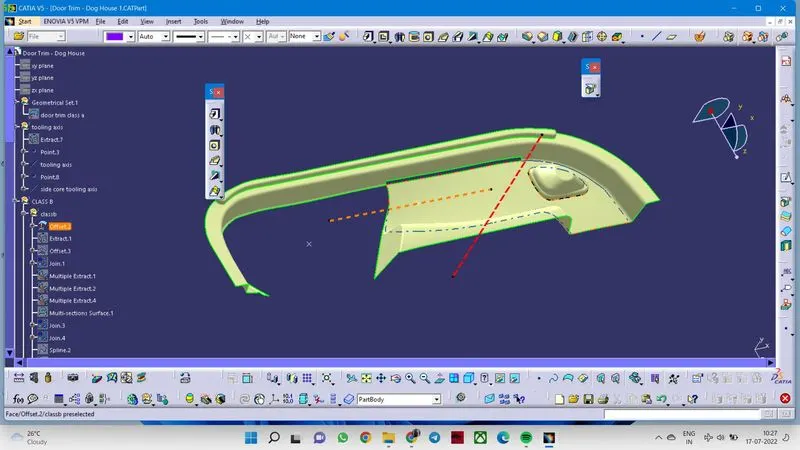

offset class A at 2.5mm to get class b

fix patches

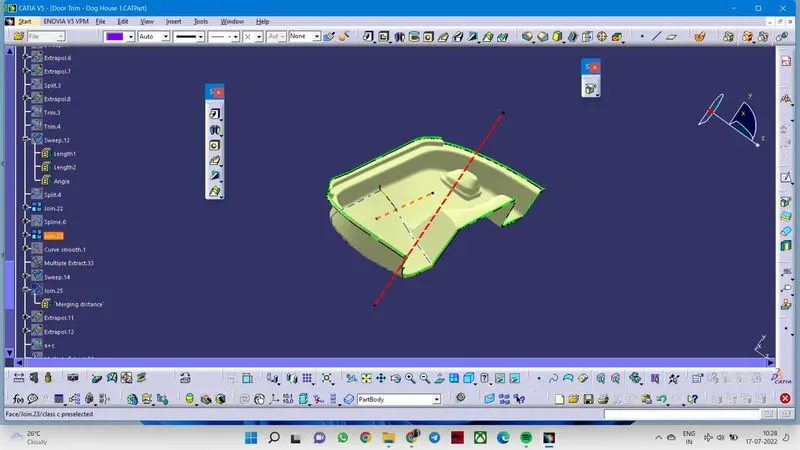

class c creation

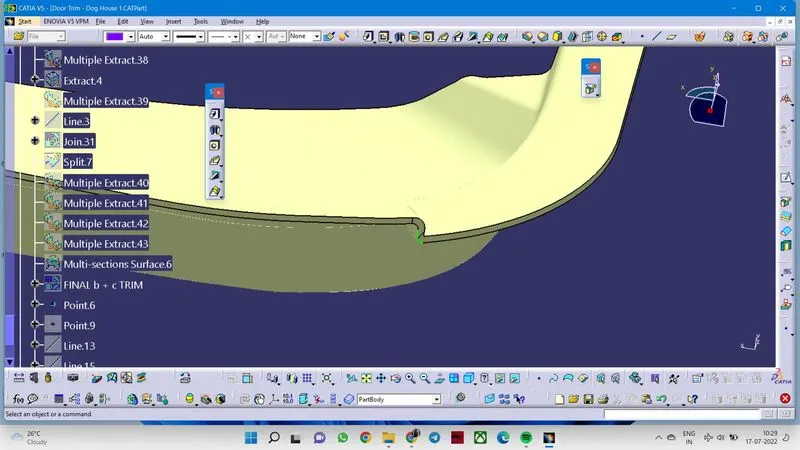

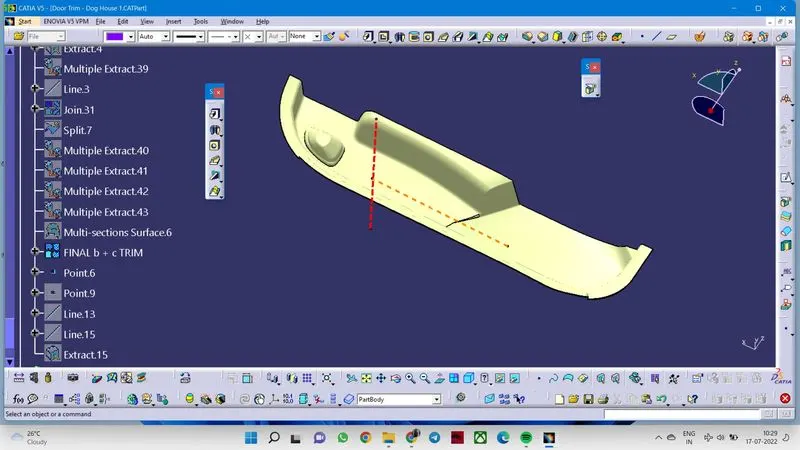

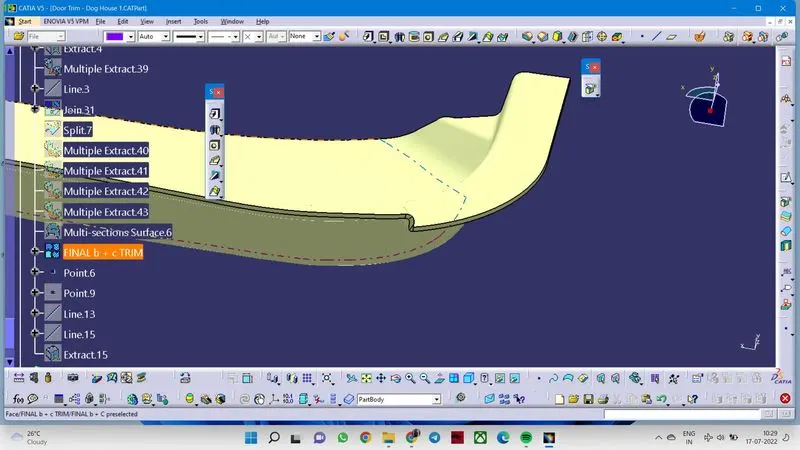

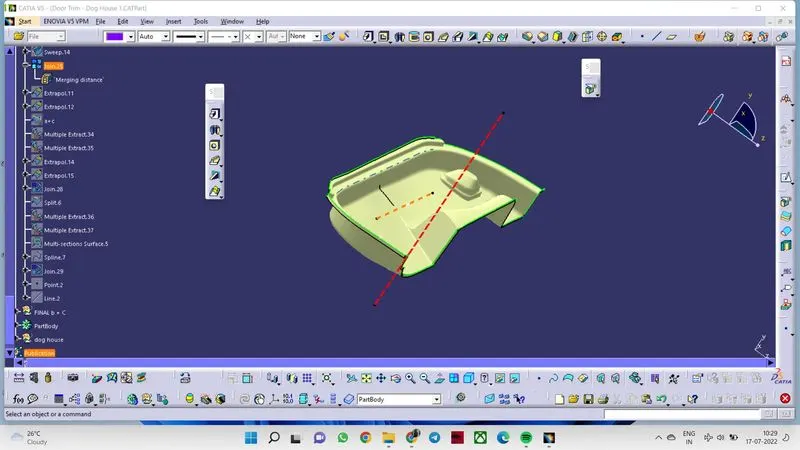

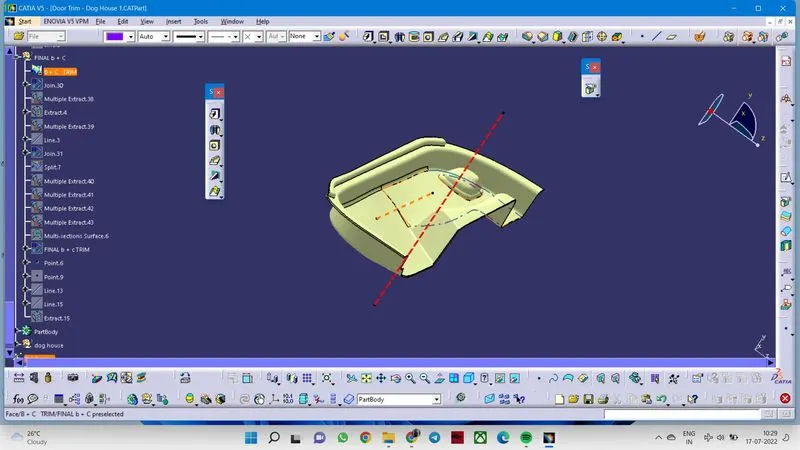

joining class A and class C

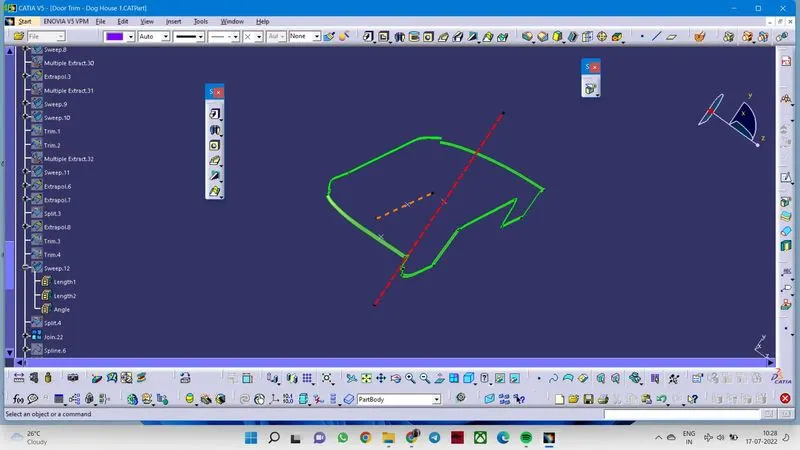

check the boundary and fix the error

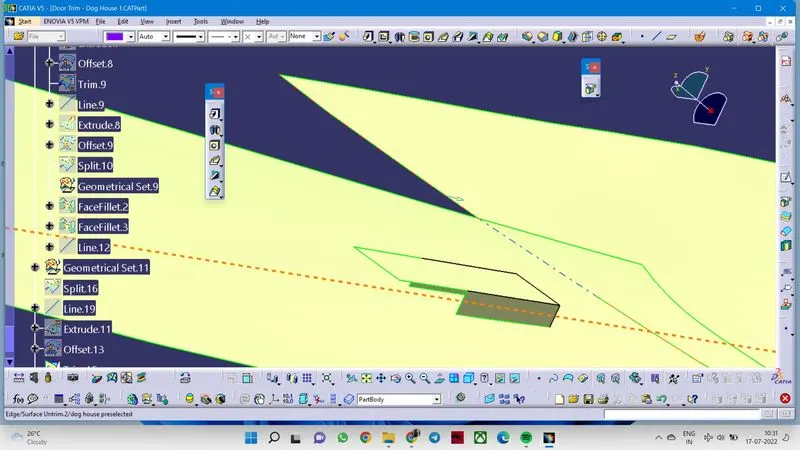

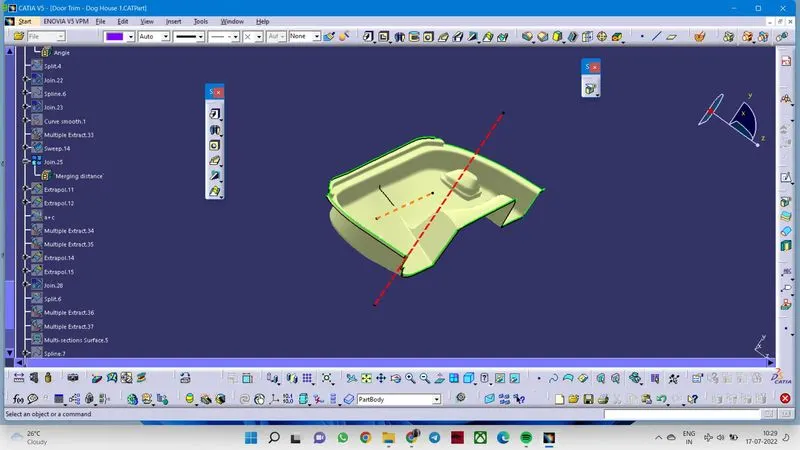

CREATION OF DOG HOUSE WITH RESPECT TO THE INDUSTRIAL GUIDELINES

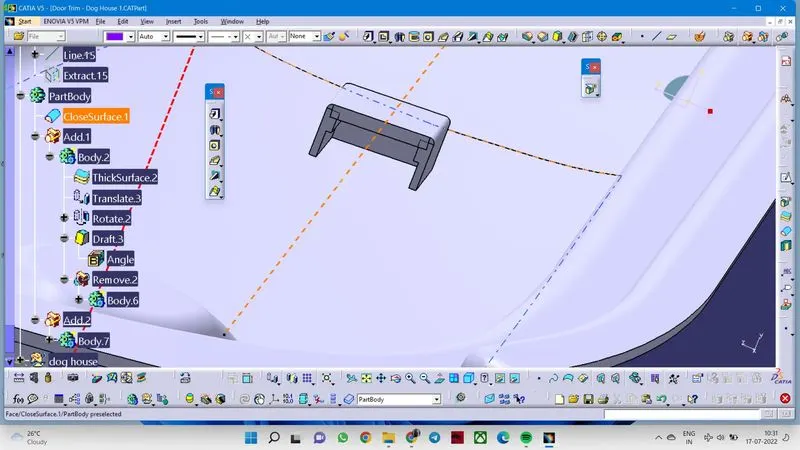

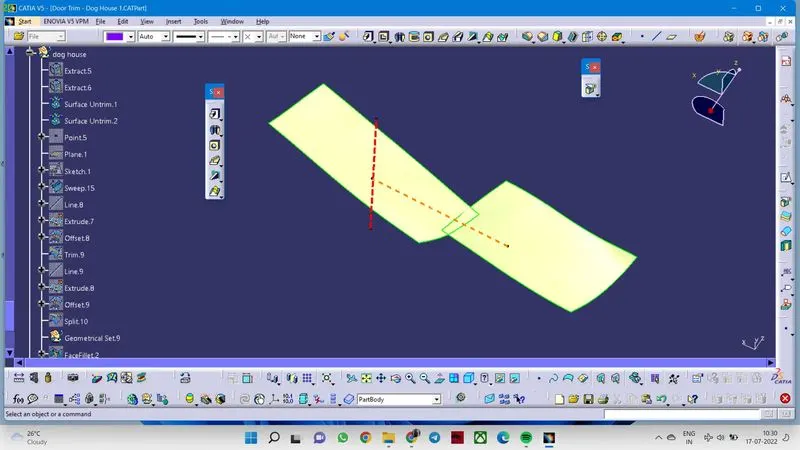

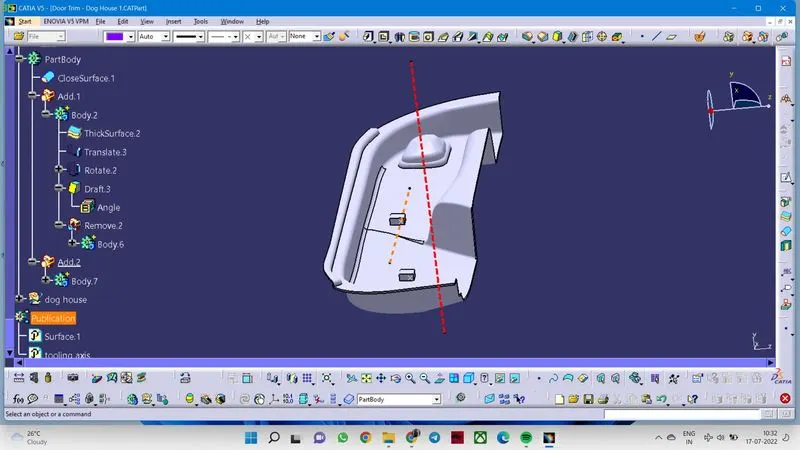

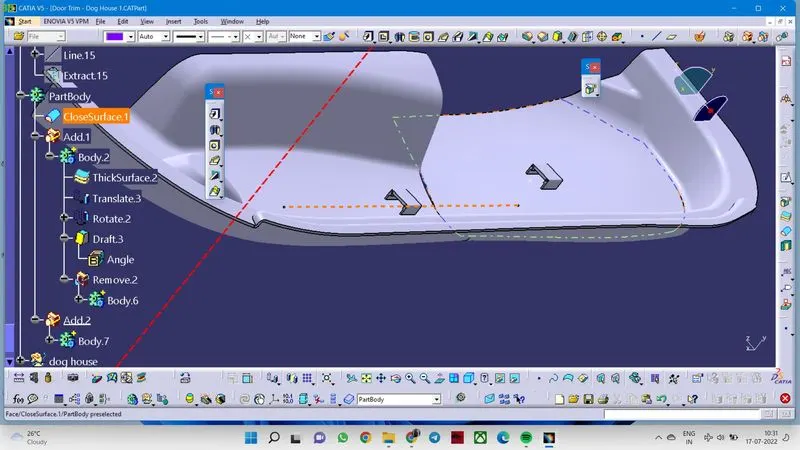

thickness is given to both surfaces and use boolean add and remove option to create the dog house

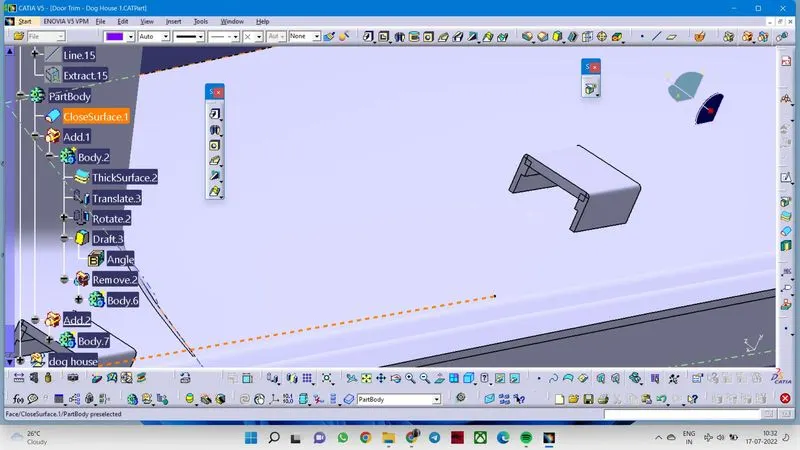

give the draft angle

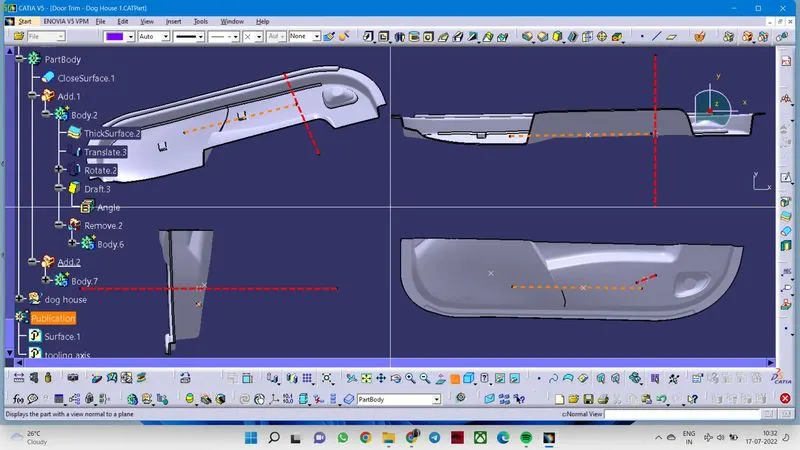

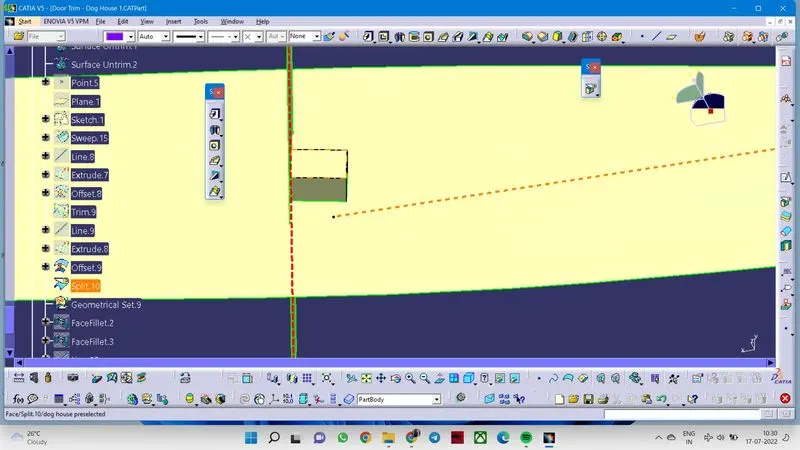

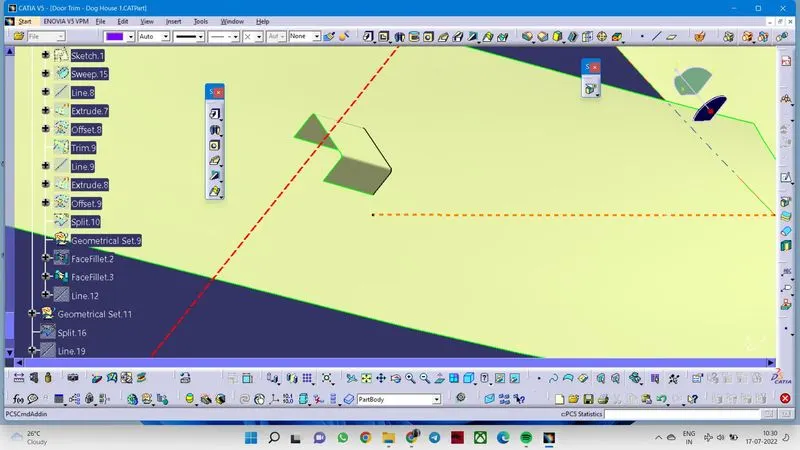

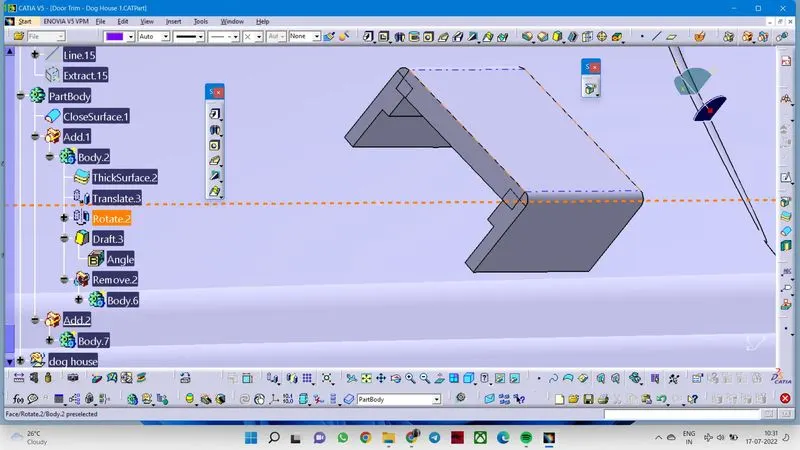

used the translation and rotation tools to place the dog house perfectly in the position

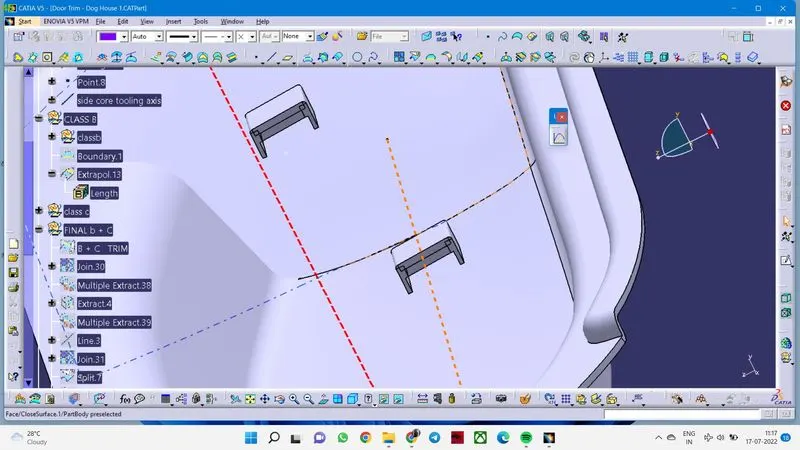

created the side core axis for the dog house

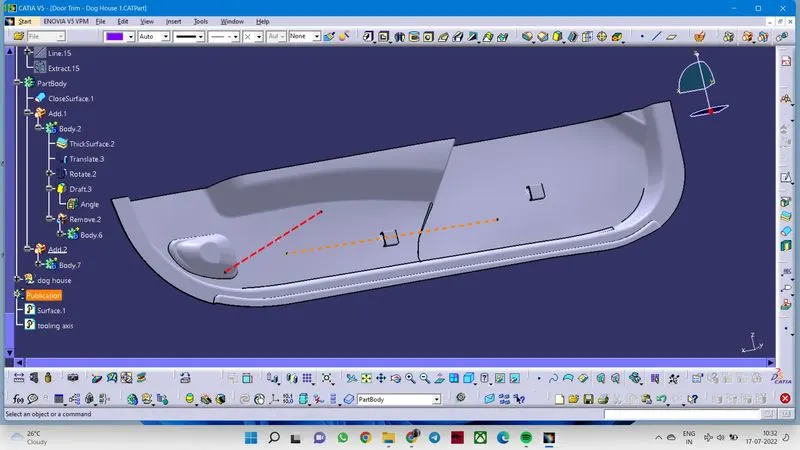

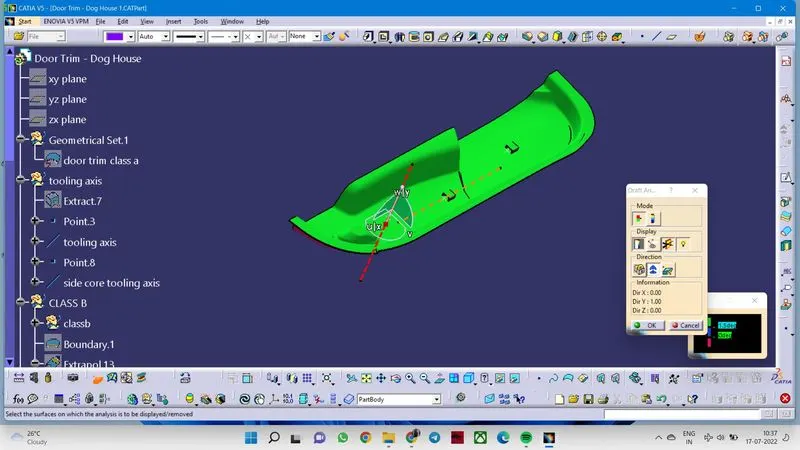

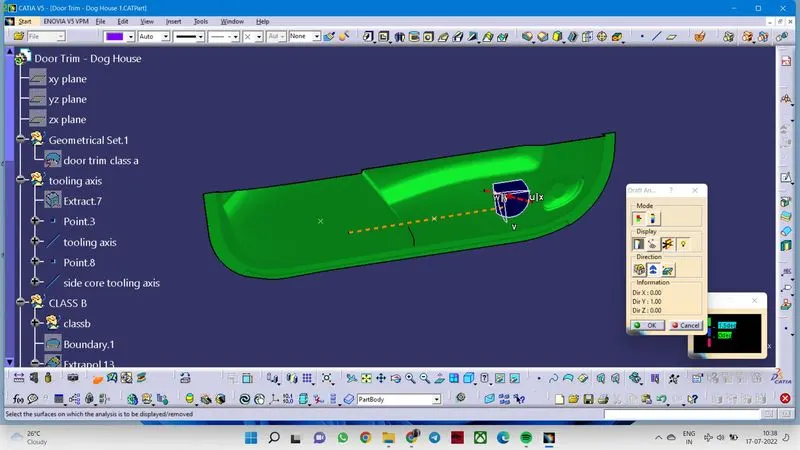

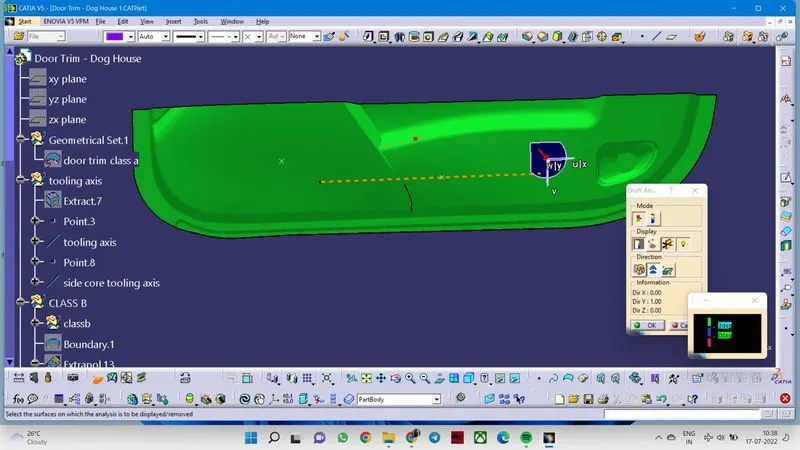

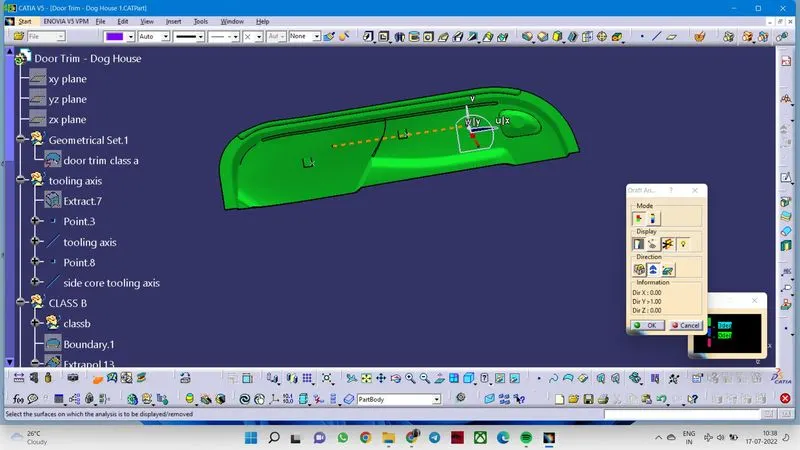

and did the draft analysis
