Attachment Feature Creation - Challenge 2:

Objective:

Create the boss and Dog House for the Centre console coin holder considering the design rules mentioned in the video.

Tool:

Catia V5

What is doghouse?

Dog house is an engineering feature used in plastic trim design. Dog houses are used as supporting feature. Sometimes other engineering features like snaps; locators etc. are mounded on them to increase their strength.

What is screw boss?

Boss is a feature raised above a surface. In plastic parts, bosses are typically used to assist in assembly, as a receptacle for a screw or threaded insert or as the locator for a mating pin on another part.

General Guidelines for Bosses:

• Draft - 0.5 degrees on walls of boss
• Thickness - Typically 40%* of the nominal wall at the base.
• Height to Diameter Ratio - 3:1
• Radii - 0.25mm maximum radii.

"C" is where the doghouse contacts the backside of the surface

• Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).

• Height of ( B ) should be between 3.0 – 6.0 mm

Draft analysis:

Draft analysis is a handy tool which allows to see there's a component or part if does it clear completly with tooling which means we can predetermind if the part can get ejected from the mold during the ejection process.

Creating the tooling axis:

Point direction method:

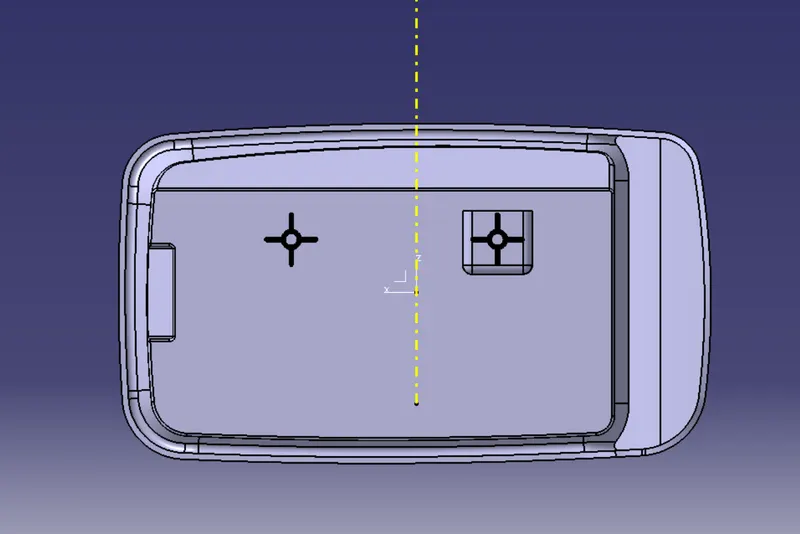

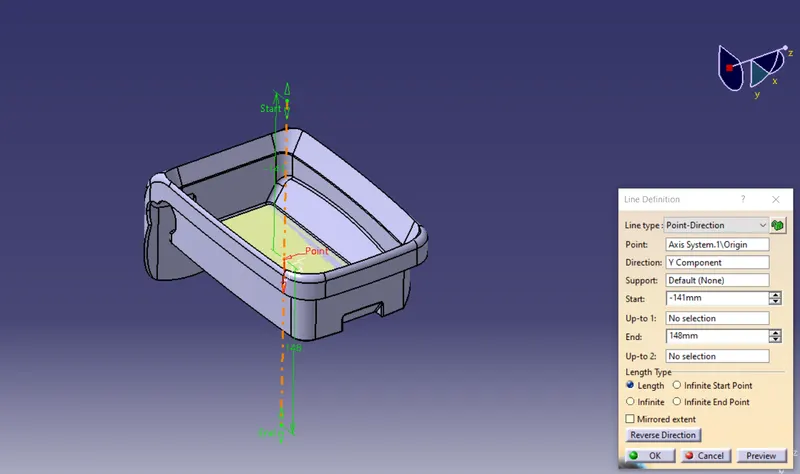

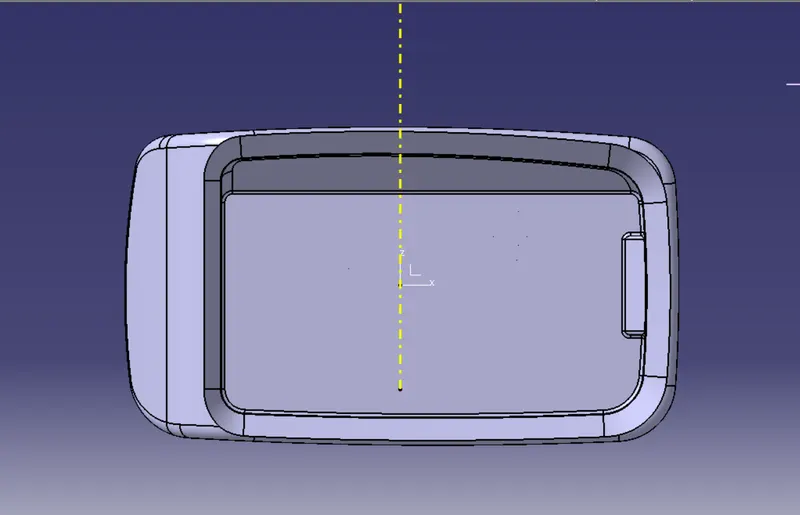

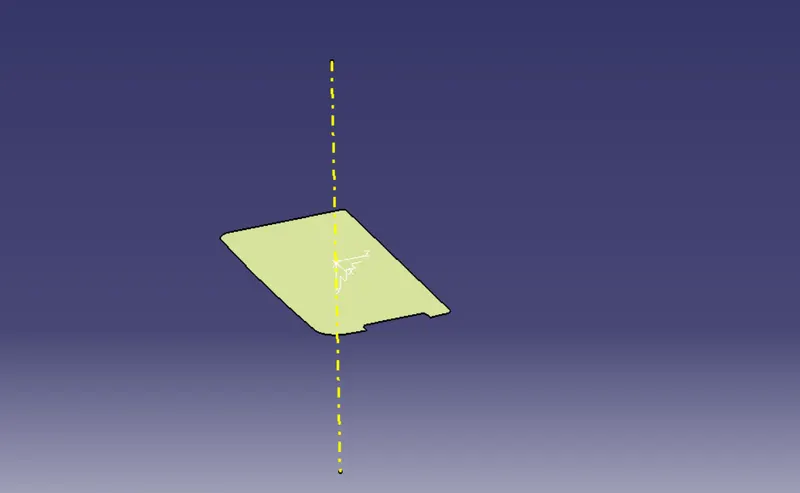

so that i've extracted the bottom surface and created a point and created a line in point direction method at z direction.

Bisecting method:

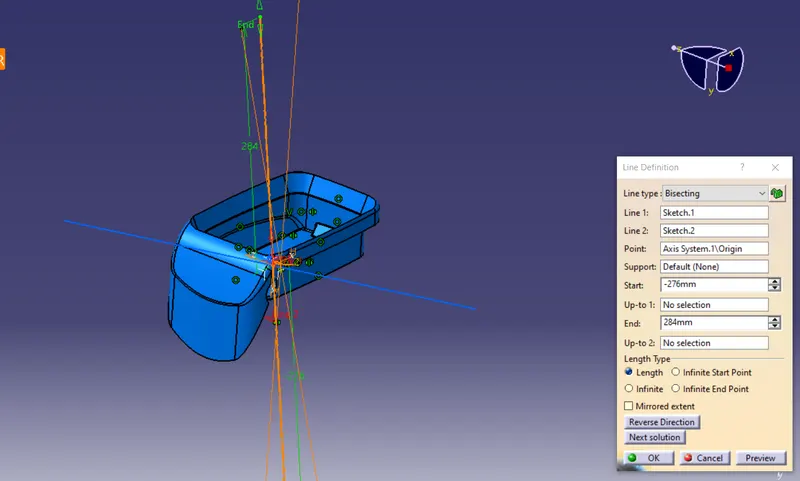

In this case i've lines on the intersection i took on x direction then i created a bicecting line between those sketches

then same thing i've done on the y direction as well.

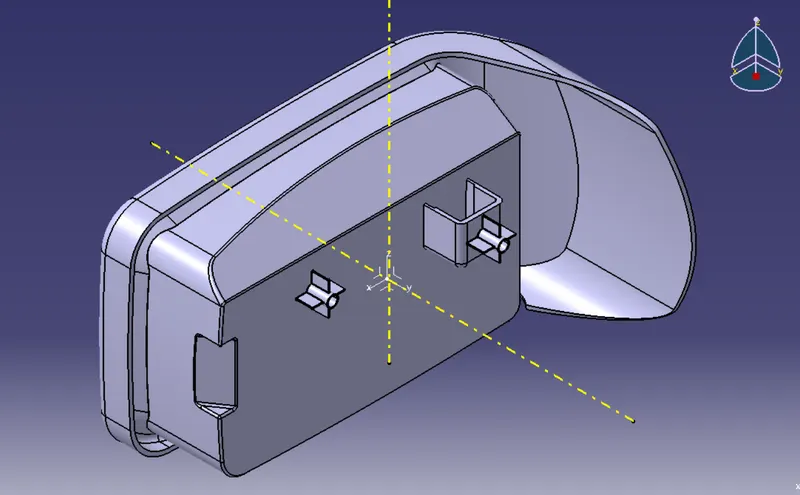

then i created a line between those two lines in bisecting method so this line's gonna be as our tooling direction

Creation of screw boss:

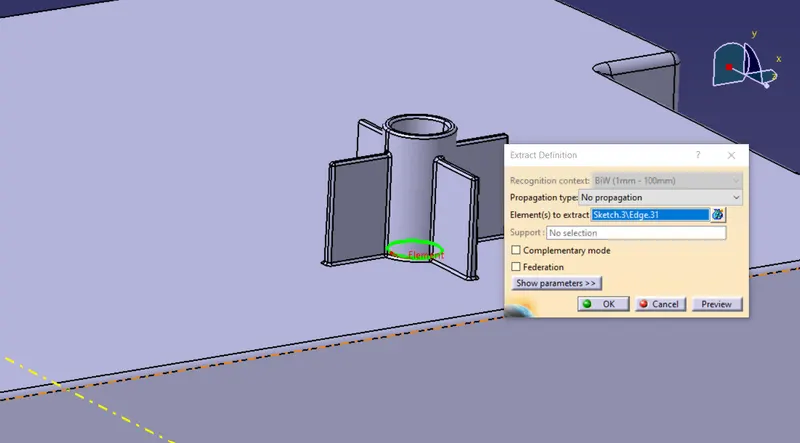

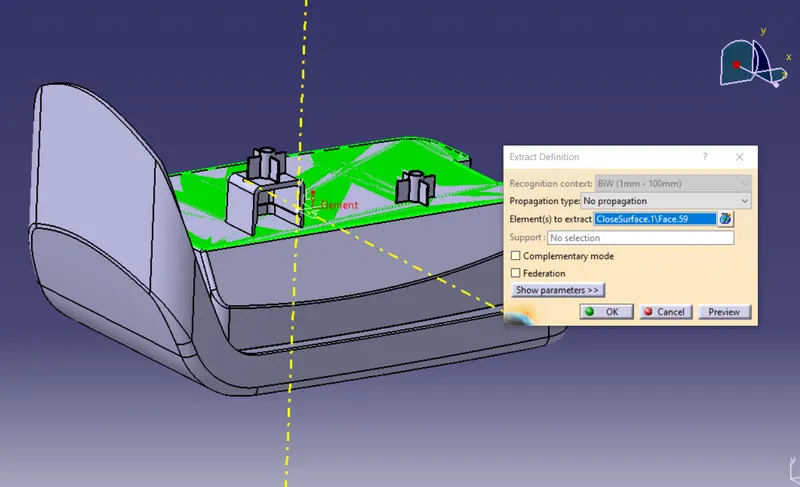

First of all i've extracted the surface

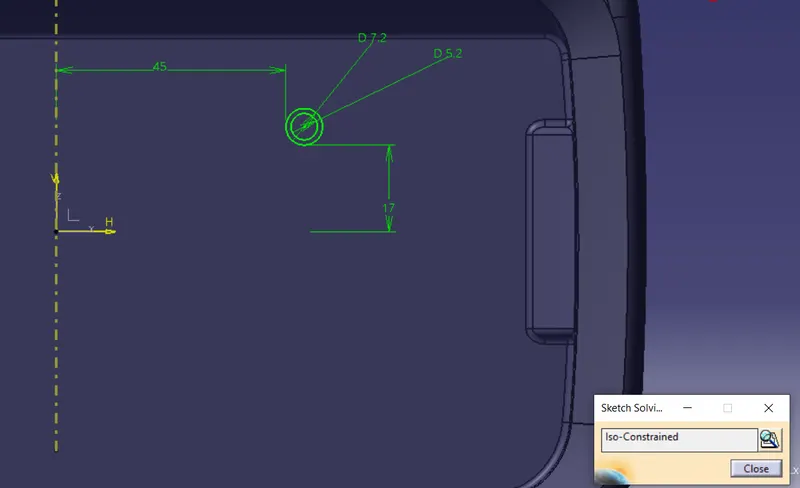

Since we gonna use M6 screw we take inner dia as 5.2mm and outer since the thickness of outer dia of boss is 2.5*.4 so the outer dia is 7.2mm

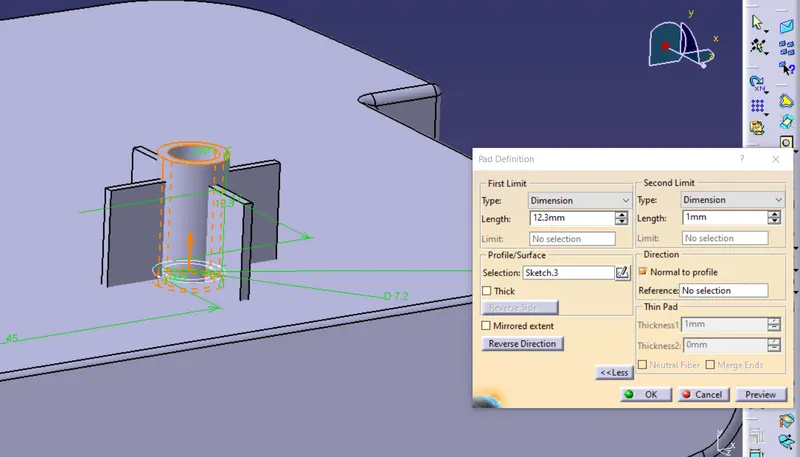

Then i created the pad

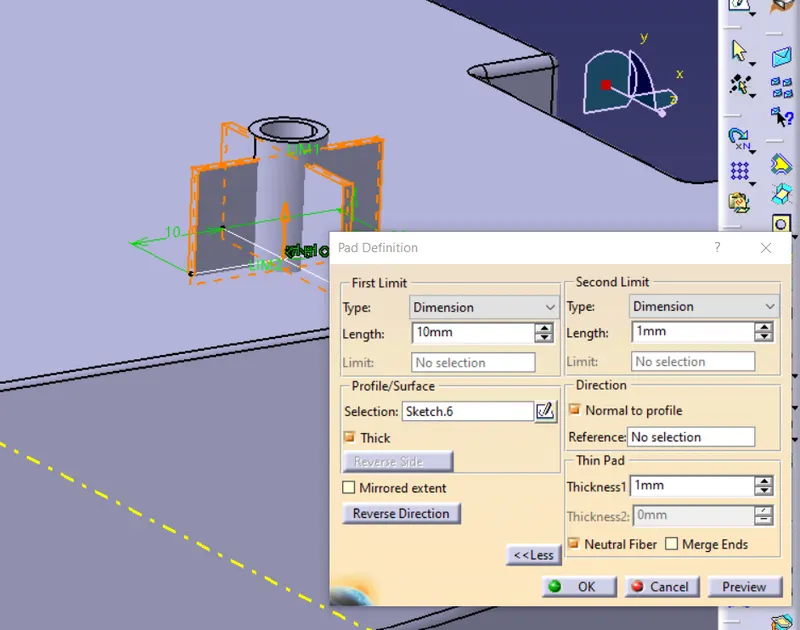

For the stiffeners i drew a sketch

And created the pad

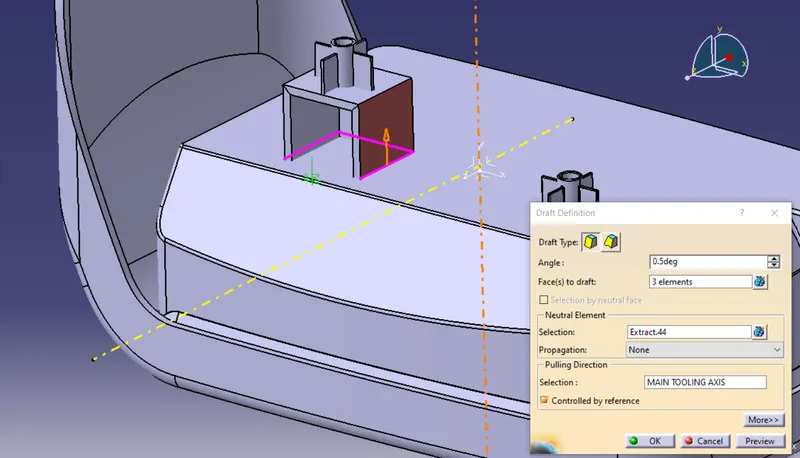

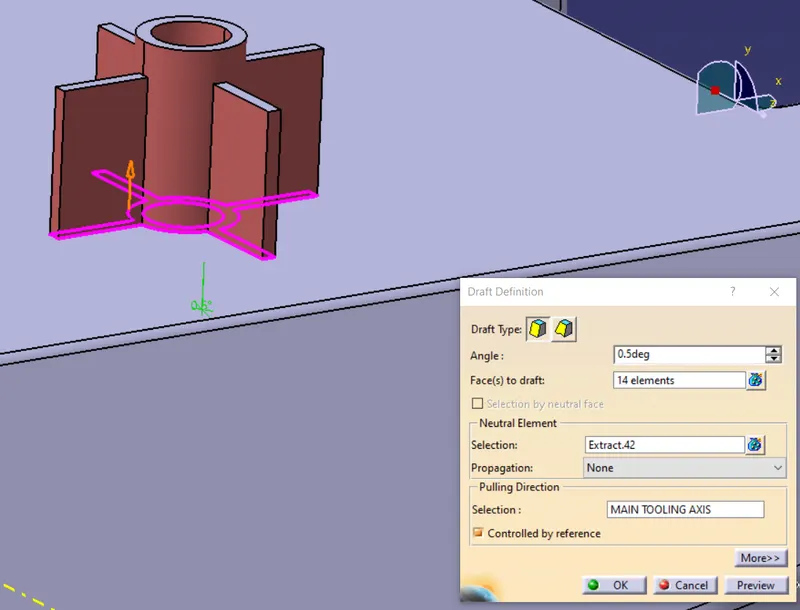

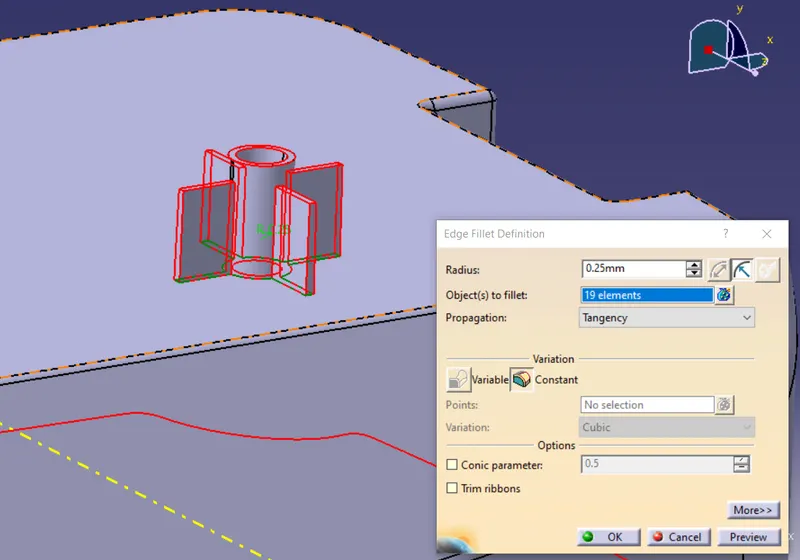

Then i gave a required draft for all faces and i gave required fillets

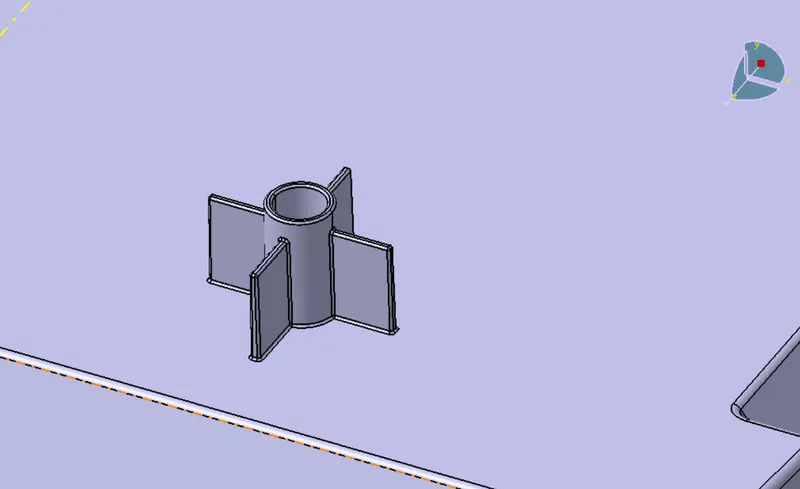

And here we've got a final output

Creation of dog house:

As i done before i've extracted the surface

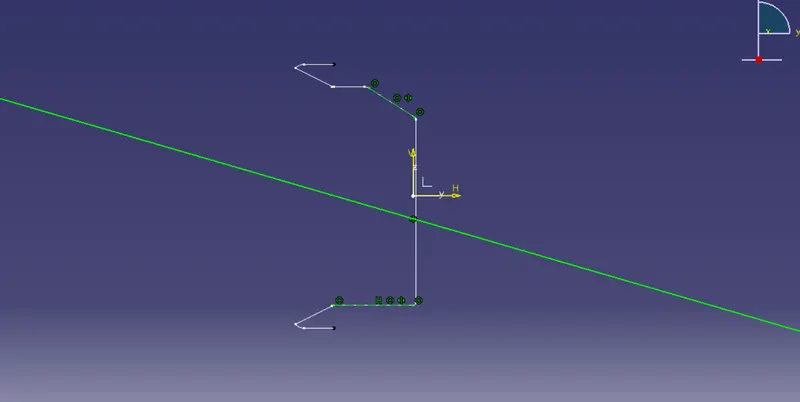

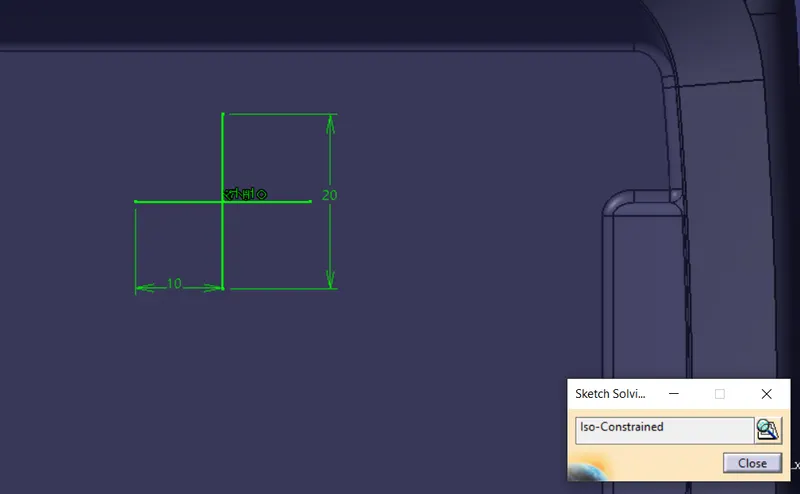

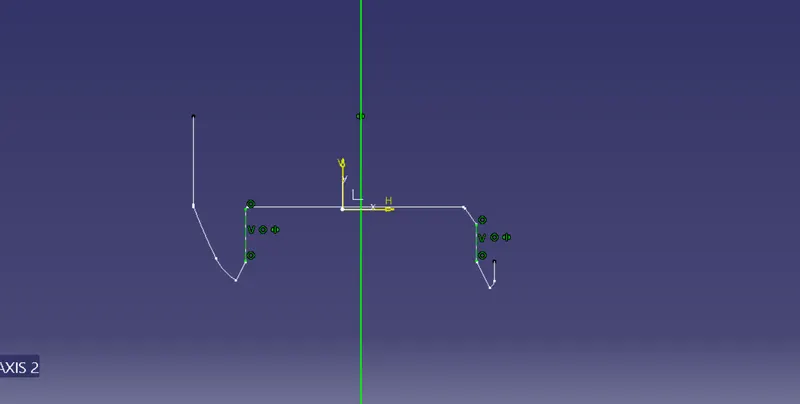

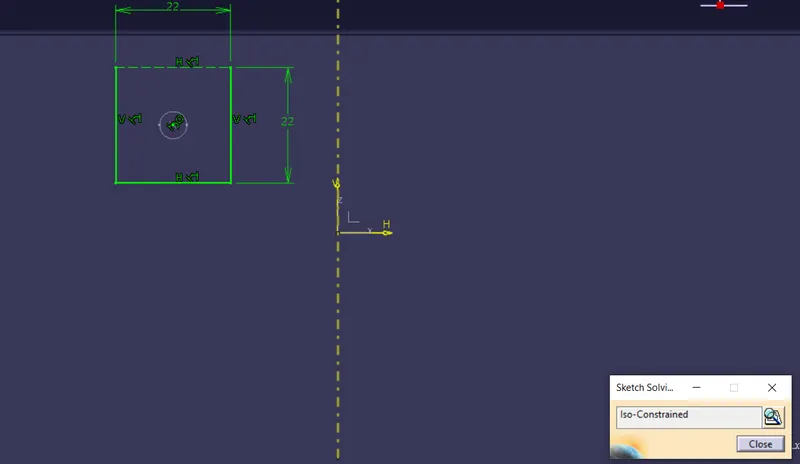

Then i created sketch

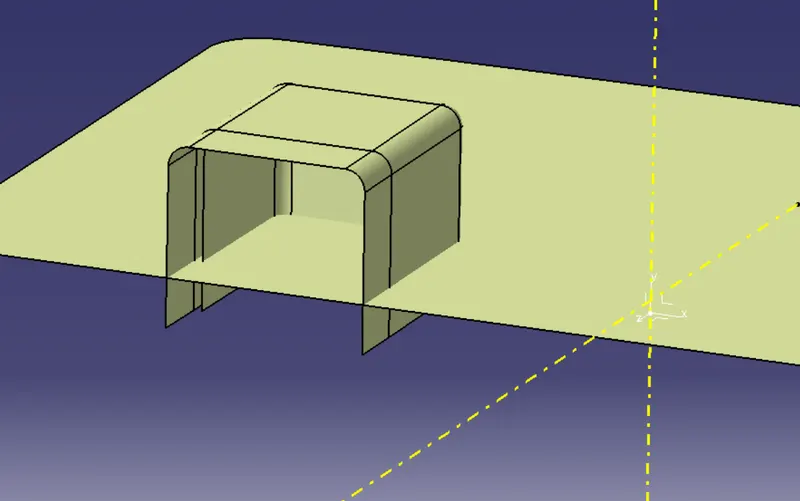

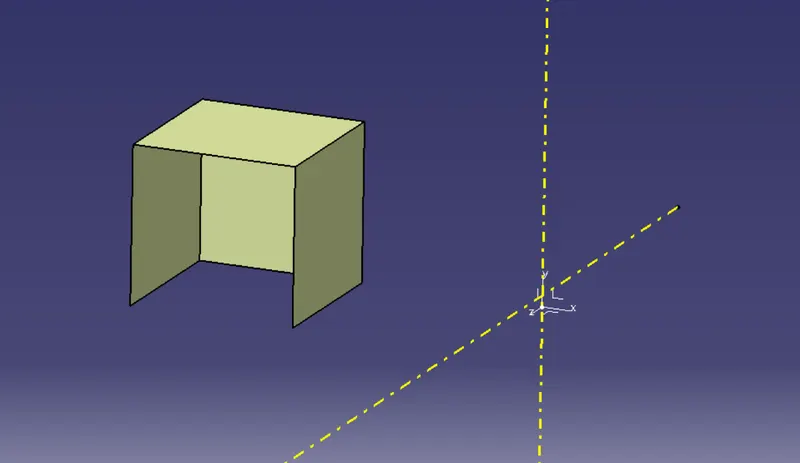

Then extrude it and trim that of

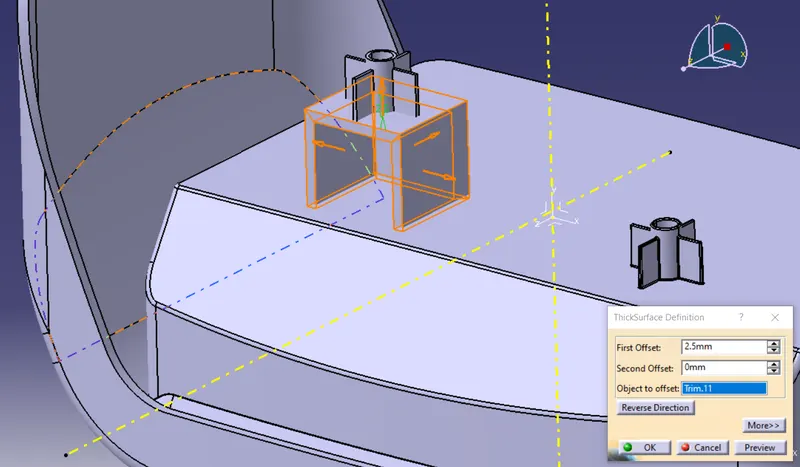

Then i created the thicksurface at 2.5mm

Then i gave a draft for all the walls

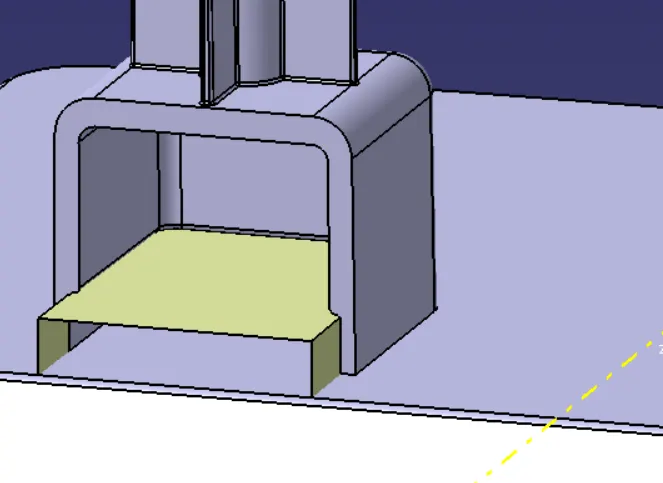

For create a cut out in bottom i exracted the surface and offseted outside 1mm since it should be 40 mm less than upper side

Then i create a profile like this one and split with solid part

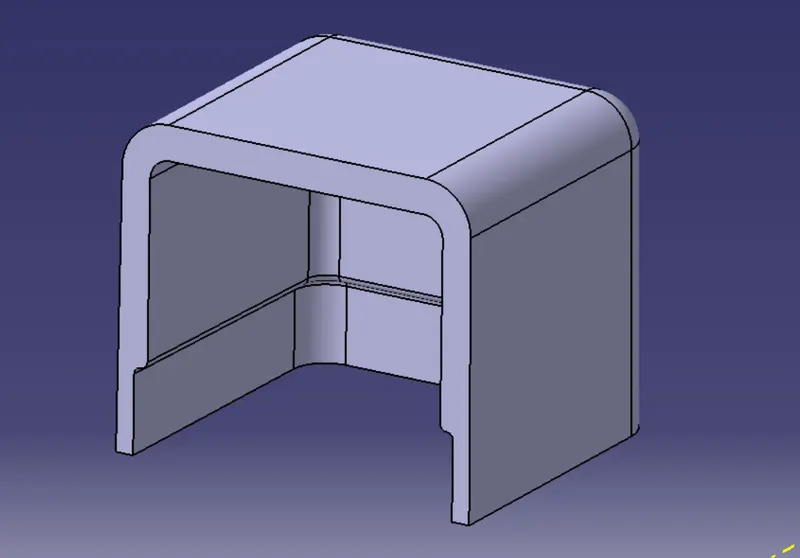

And here we've got a required output

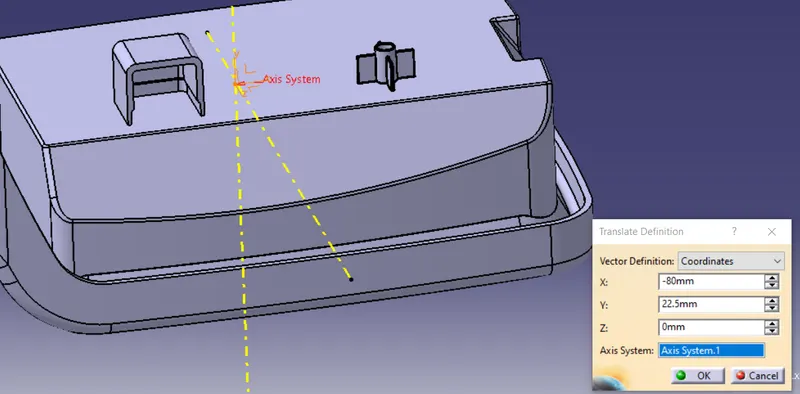

Then i translated the screw boss to locate itself in properway and i gave fillets

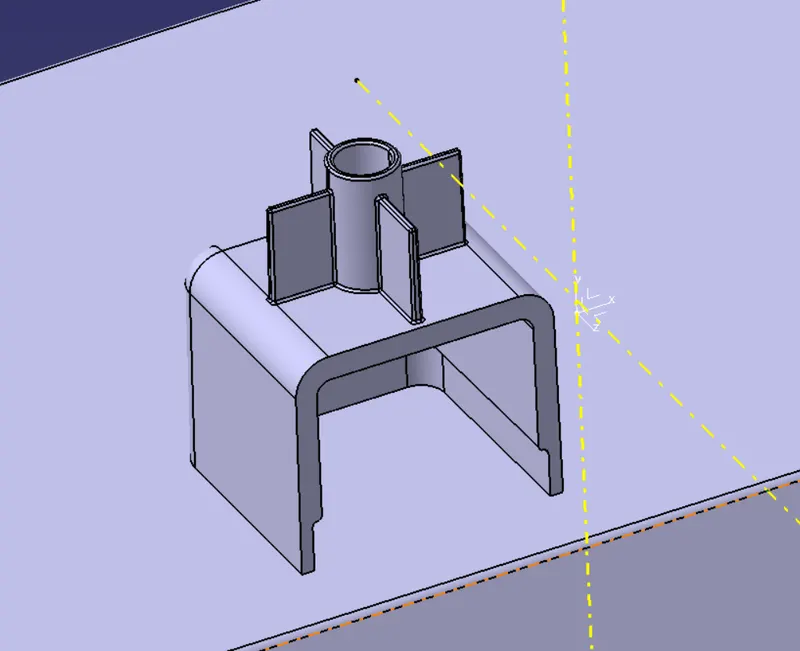

Here we've got a required output

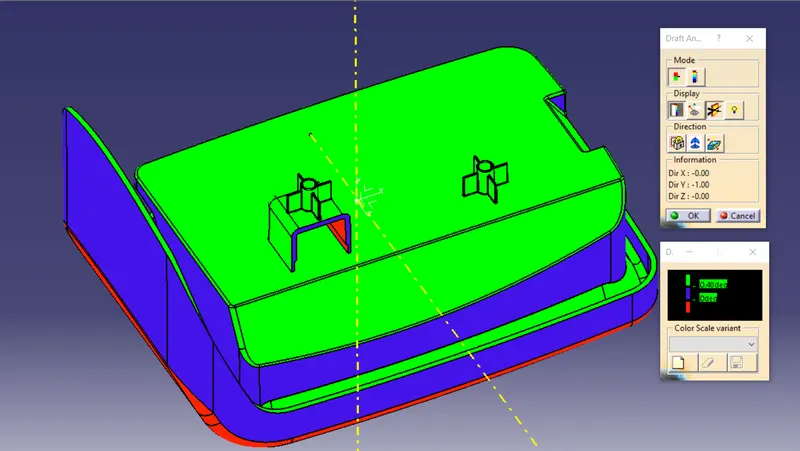

Draft analysis report:

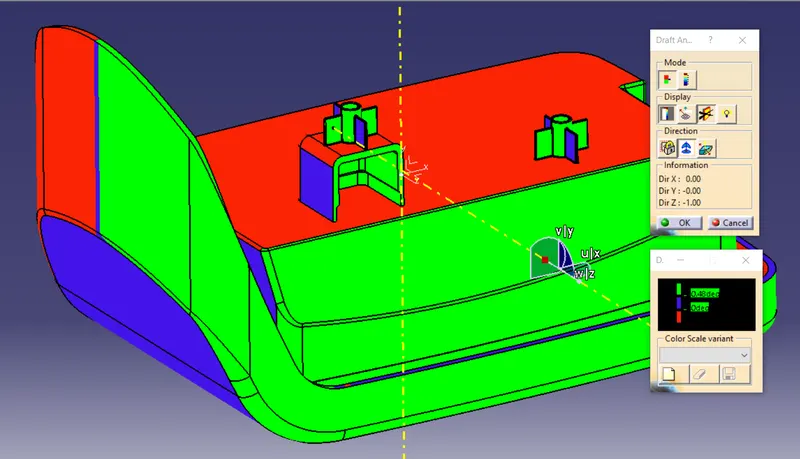

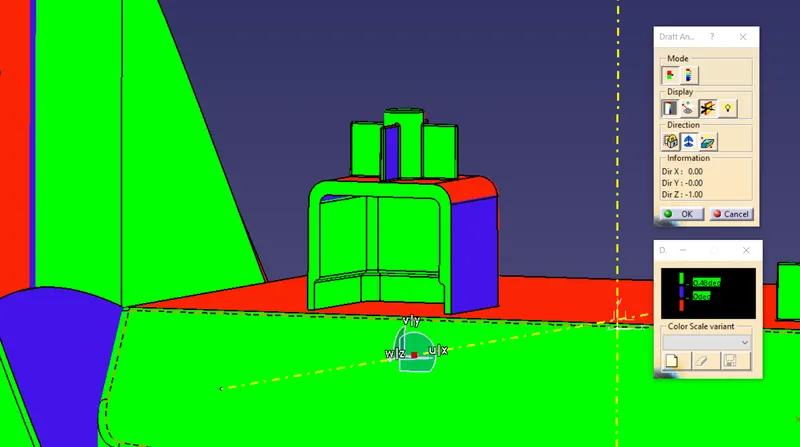

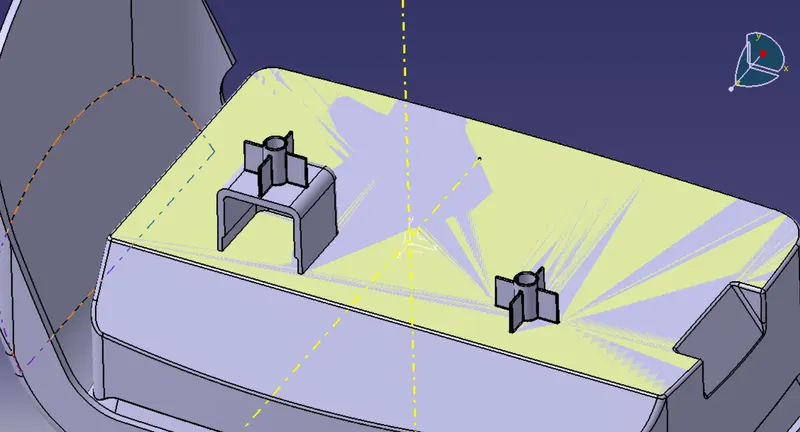

Draft analysis on main tooling axis

Draft analysis on side core axis

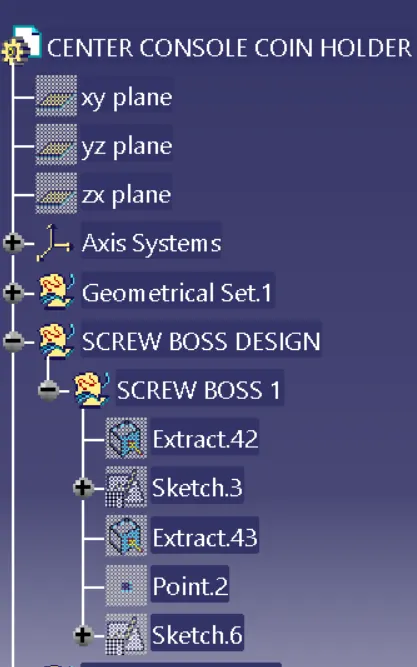

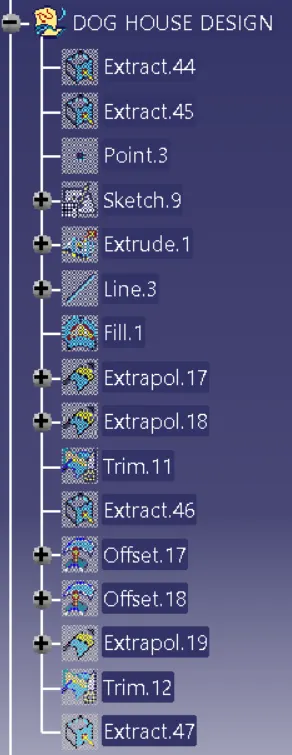

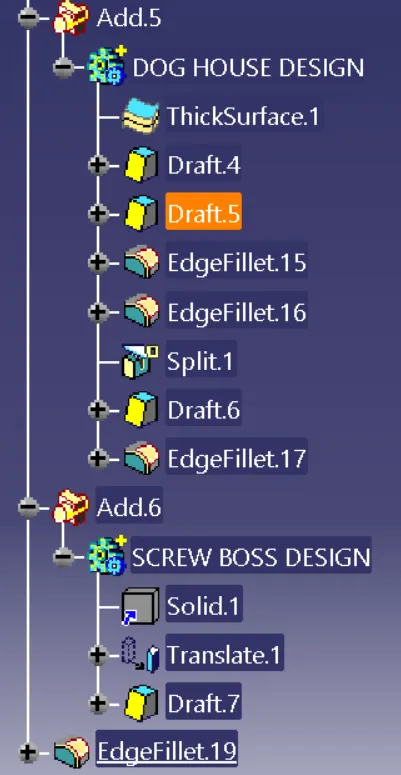

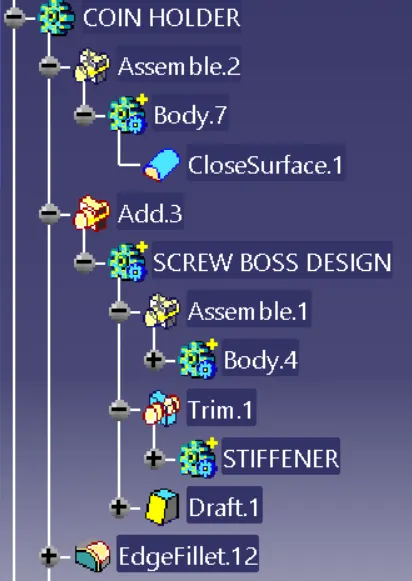

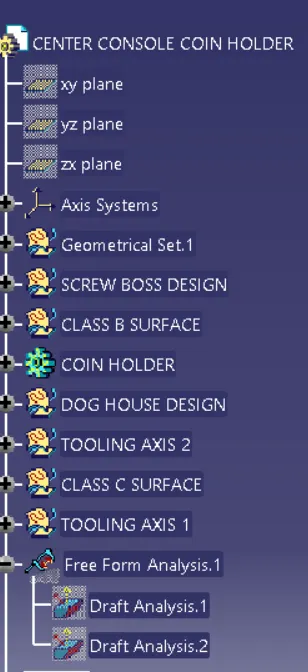

Tree structure of geometrical set:

Front view:

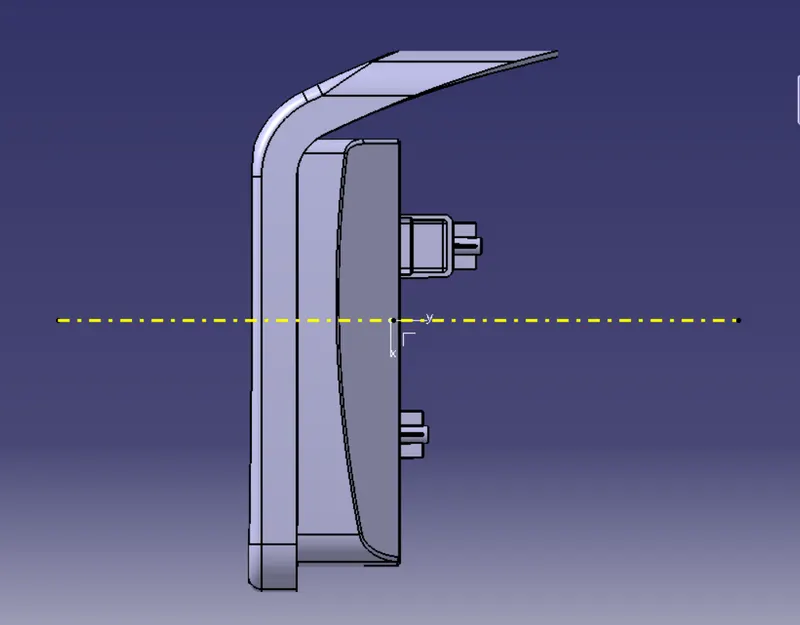

Left view:

Right view:

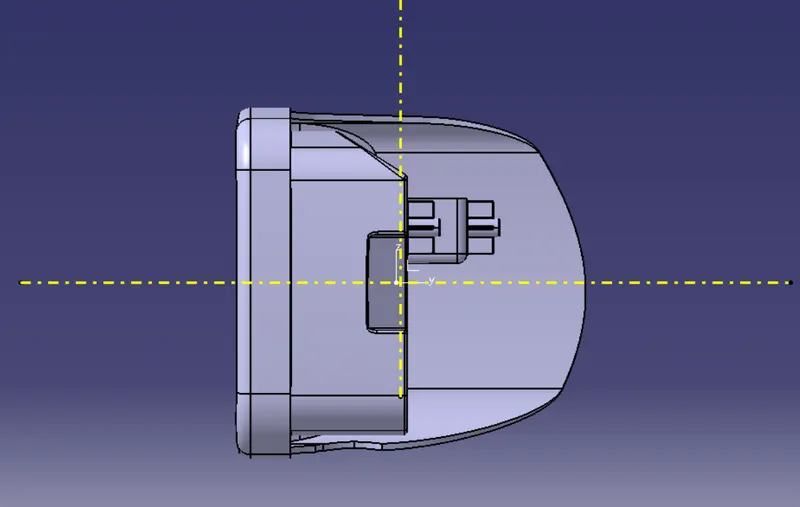

Top view:

ISO-metric view:
