Week 9 - Attachment Feature Creation - Challenge 2

AIM - TO CREATE TOOLING AXIS AND PERFORM DRAFT ANALYSIS.

- TO DESIGN B AND C SURFACE

- TO DESIGN DOG HOUSE

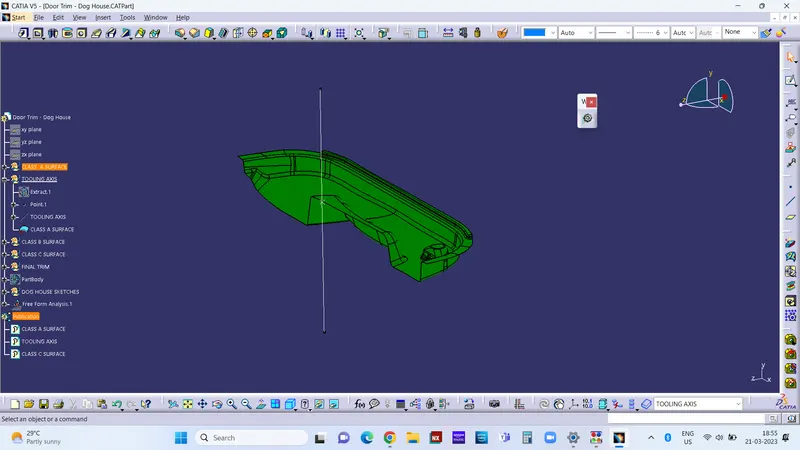

1) MIAN TOOLING AXIS CREATION

HERE WE CAN EXTRACT THE SURFACE AND TAKE A POINT ON THAT SURFACE .THEN CREATE THE LINE USING THAT POINT AND GIVING Y DIRECTION

.

2) DRAFT ANALYSIS

AFTER TOOLING AXIS CREATION CLICK ON DRAFT ANANLYSIS TOOL. CLICK ON COMPASS SIGN AND ALIGN IT WITH THE TOOLING AXIS.

THEN CLICK ON ANY SURFACE TO APPLY DRAFT ANALYSIS.

ALL THE FACES ARE IN GRREN COLOR EXCEPT THE TWO FACE WHICH DONT HAVE THE DRAFT IN A SURFACE ITSELF.

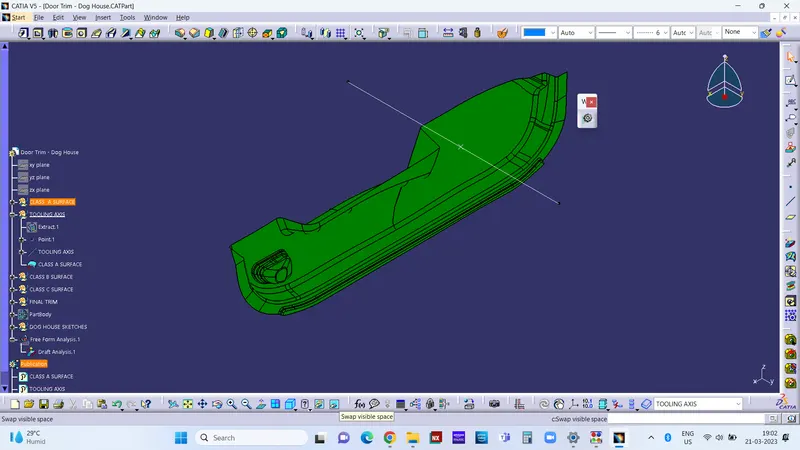

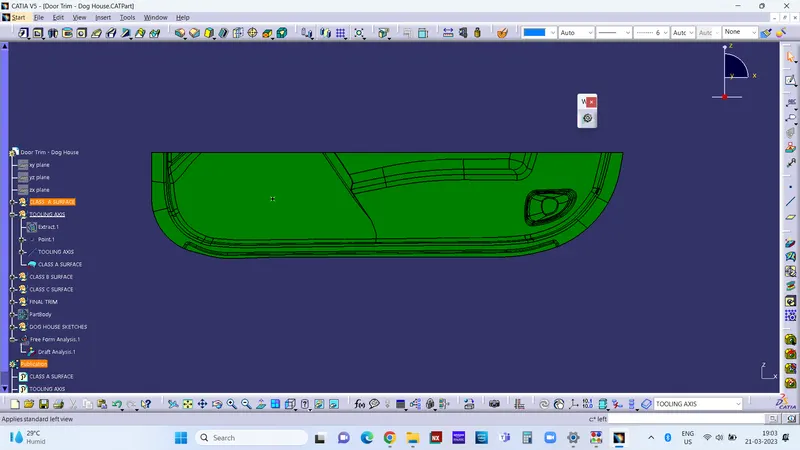

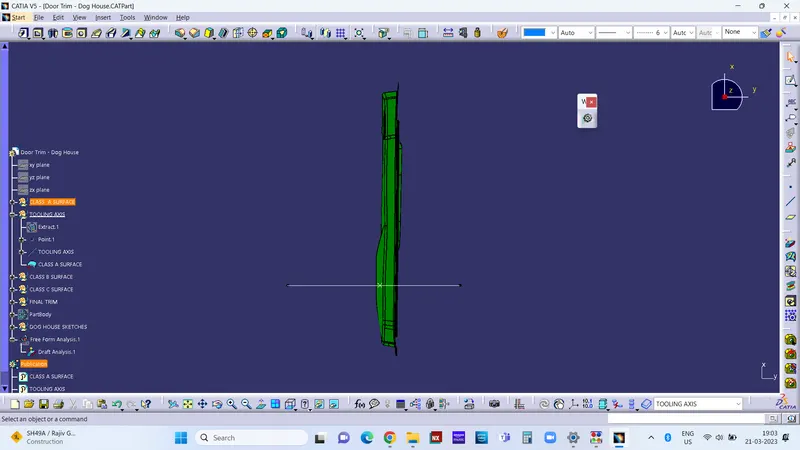

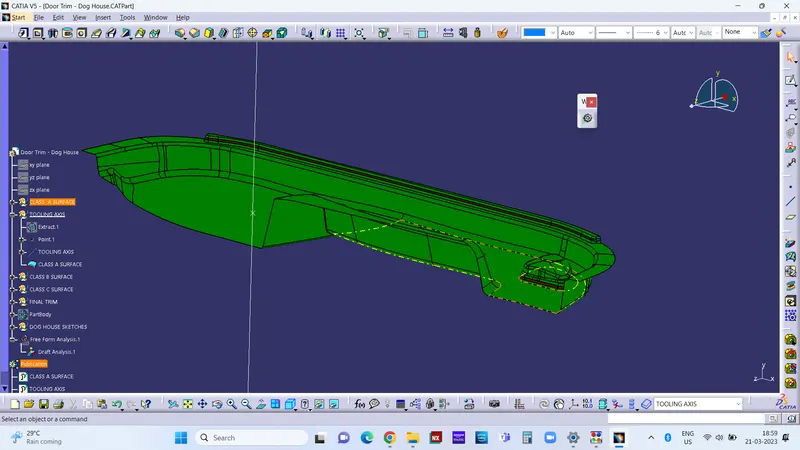

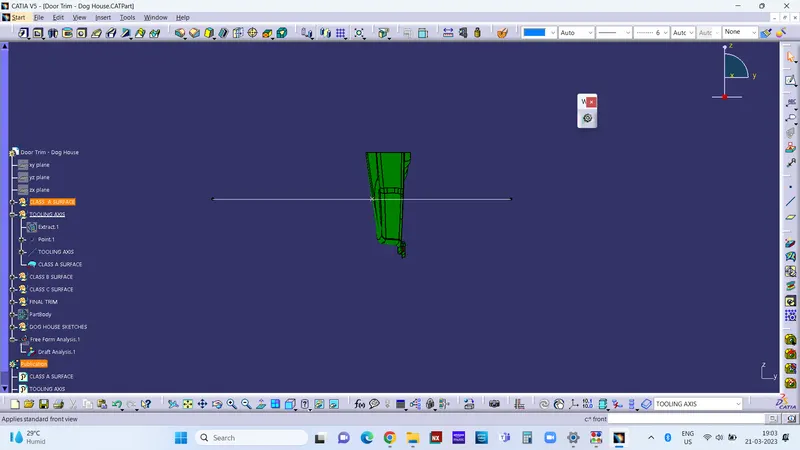

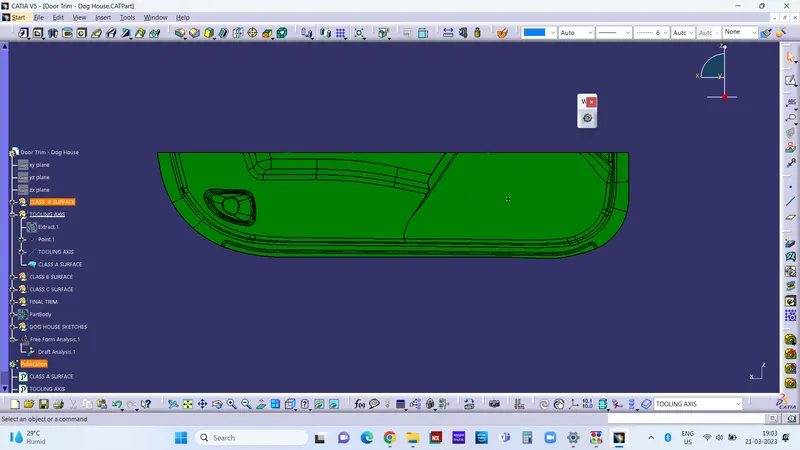

• DRAFT ANALYSIS PICTURES FROM ALL VIEWS

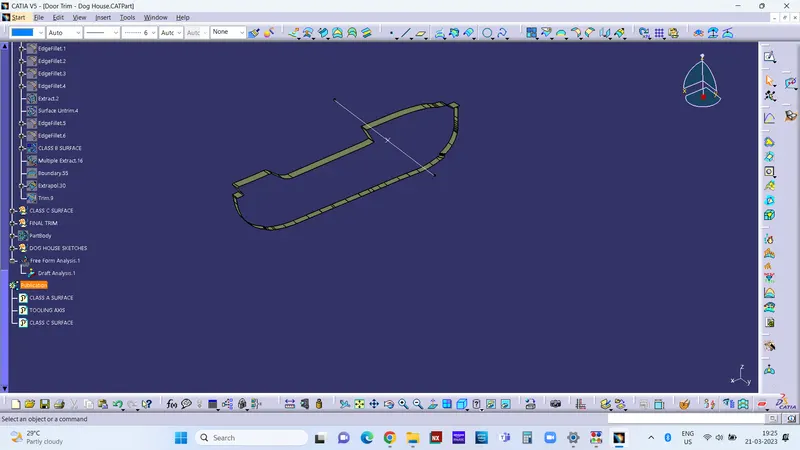

3) AFTER DRAFT ANALYSIS DESIGN OF B SURFACE

BY USING DIRECT OFFSET METHOD WE CAN DESIGN THE B SURFACE . AFTER OFFSITING NEED TO WORK ON THE PATCHES THAT HAS NOT COME IN OFFSET.

FOR PATCHES USE MULTIPLE EXTRACT (USE COMPLEMENTRY MODE) TO REMOVE UNWANTED FACES.

AFTER THAT EXTRACT THE BOTH SEPARATELY AND EXTRAPOLATE THE SURFACE TO TRIM.

AFTER TRIMING GIVE THE REQUIRED FILLET.

AFTER THAT REPEAT THE PROCESS ON EVERY PATCH.

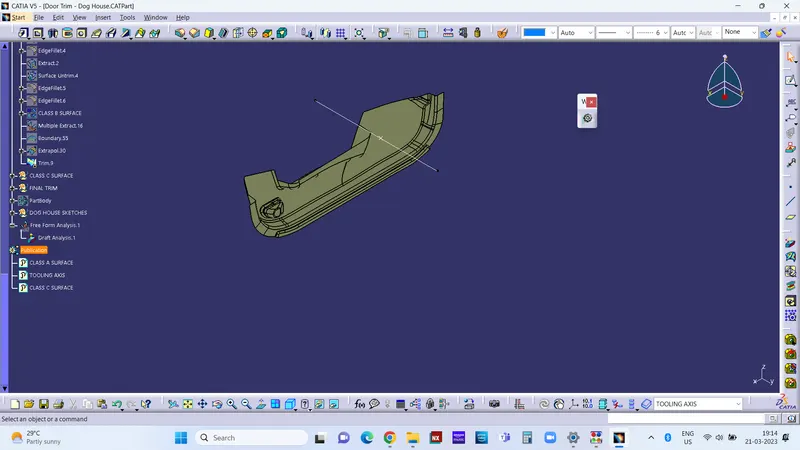

4) AFTER B SURFACE DESIGN START TO DESIGN THE C SURFACE.

SINCE ALL FACES IN C SURFACE ARE GOING TO BE PARALLEL TO TH TOOLING AXIS MUST GIVE DRAFT TO C SURFACE.

HERE WE CAN DESIGN THE C SURFACE BY USING THE SWEEP WITH DRAFT DIRECTION.

JIONING THE SWEEPS USING MULTI SECTION SURFACE.

AN D JOIN ALL TOGETHER BY USING THE JOIN.

AFTER THAT JOIN A AND C SURFACE TOGETHER TO TRIM IT WITH THE B SURFACE.

FIRST TAKE INTERSECTION BETWEEN A,C JOIN AND B TO CONFIRM INTERSECTION. IF ANY PATCH IS NOT INTERSECTING THEN EXTRAPOLATE THE PATCH TO INTERSECT AND THEN PERFORM THE TRIM.

AFTER THAT USE BOUNDARY COMMAND TO CONFIRM THE CLOSING OF A,B AND C.

AFTER USE CLOSE SURFACE COMMAND TO MAKE IT SOLID.

5) DOGHOUSE DESIGN

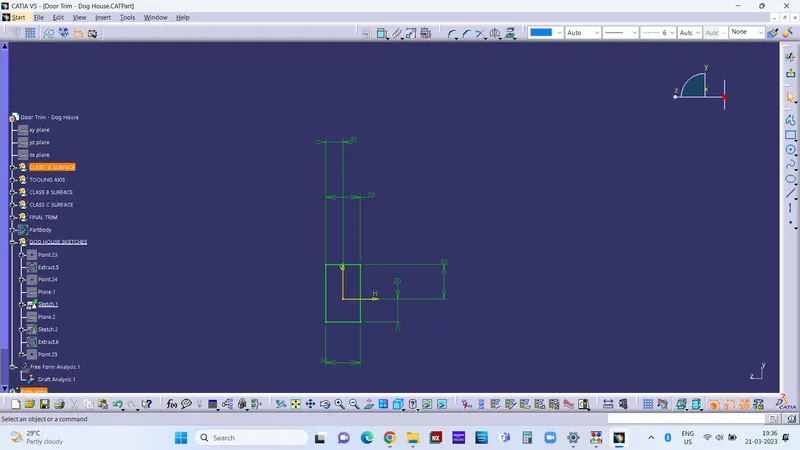

FOR DOG HOUSE DESIGN CRETE A PLANE AT DOG HOUSE LOCATION. AND CREATE DOG HOUSE SKETCH OF REQUIRED DIM.

AFTER THAT USE PAD COMMAND TO CREATE DOG HOUSE BODY. THEN USE SHELL TO CREATE INTERNAL PART REQUIRED THICKNESS.AFTER GIVE THE DRAFT WITH RESPECT TO MAIN TOOLING AXIS.

AFTER THAT CREATE DOG HOUSE BOTTOM THIN SECTION USING THE REMOVE BODY COMMAND.

THEN APPLY DRAFT ON INTERNAL PART OF DOG HOUSE WITH RESPECT TO THE SIDE CORE AXIS.

THEN PERFORM THE DRAFT ANALYSIS ON DOG HOUSE.

DRAFT ANALYSIS WITH MAIN TOOLING AXIS.

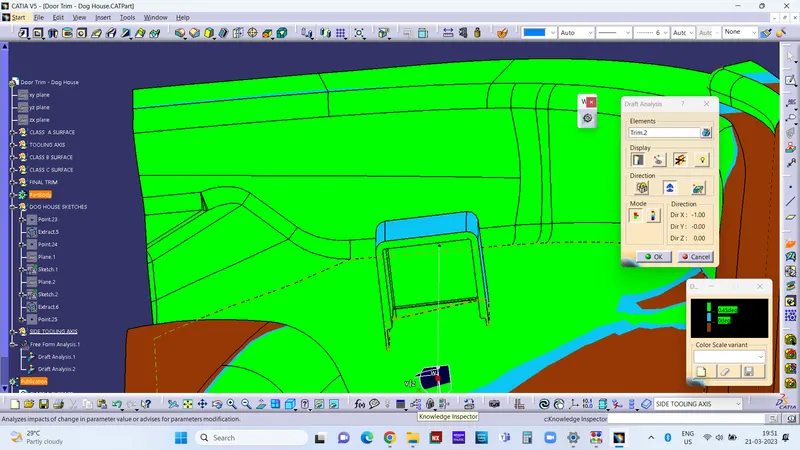

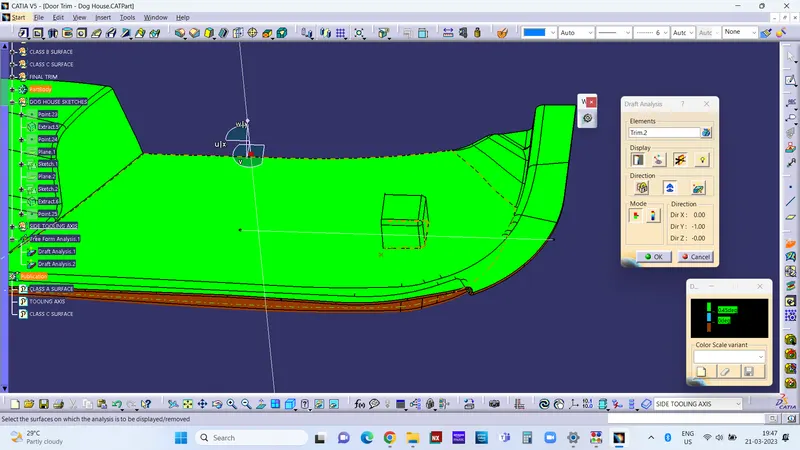

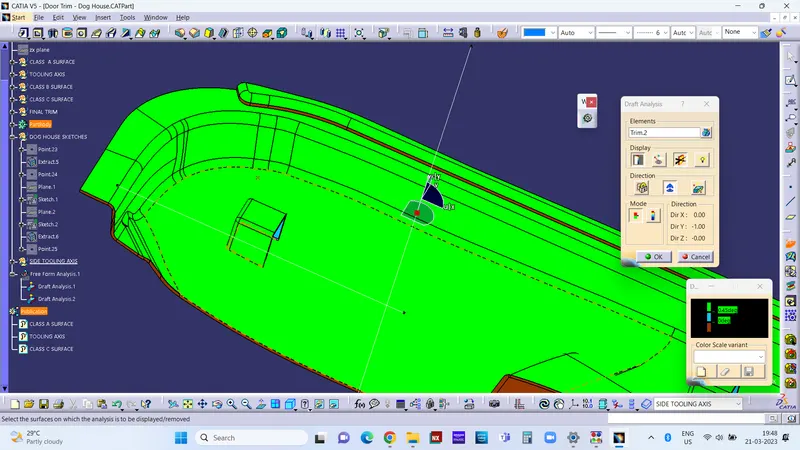

DRAFT ANALYSIS WITH SIDE TOOLING AXIS.

ALL FACES ARE CLEARING THE SIDE TOOLING AXIS.
