Week 9 - Attachment Feature Creation - Challenge 2

Door trim -Dog house Challange

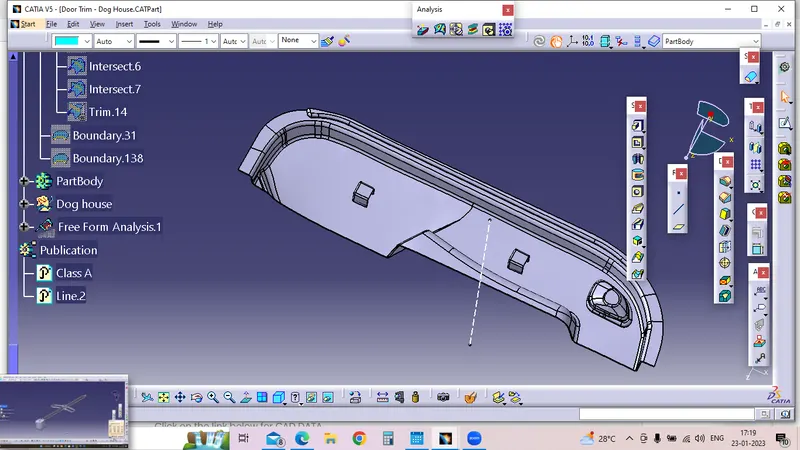

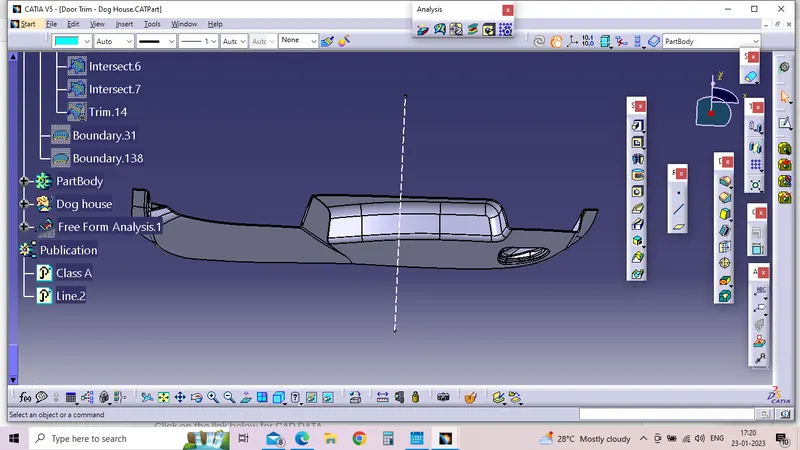

Class A surface:

Get the Class A surface from Door trim And check boundry for surface defect.

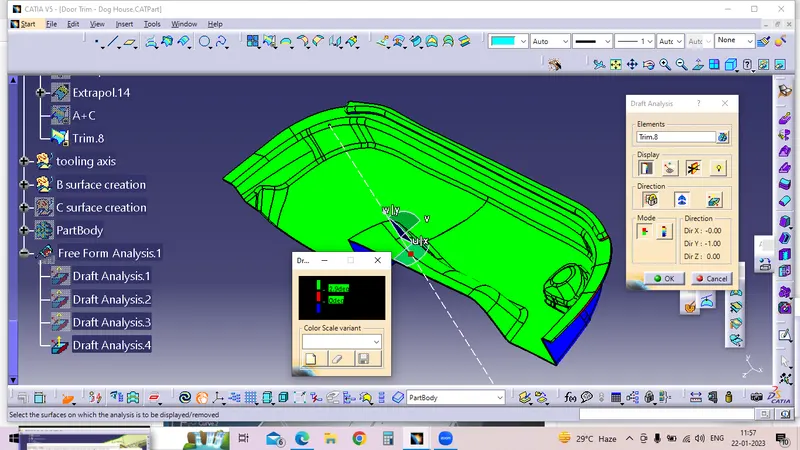

Tooling Aixs:

Extrect the flat surface point on the surface Draw the line in Point and direction Method This is the line my Tooling Axis.

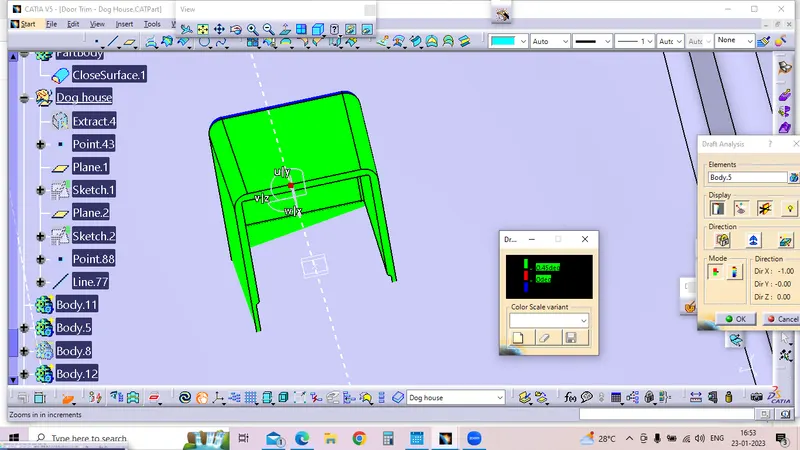

Side core Aixs:

Sire core aixs for Dog house this line also same point and Direction method but perpendicullar to the tooling Aixs.

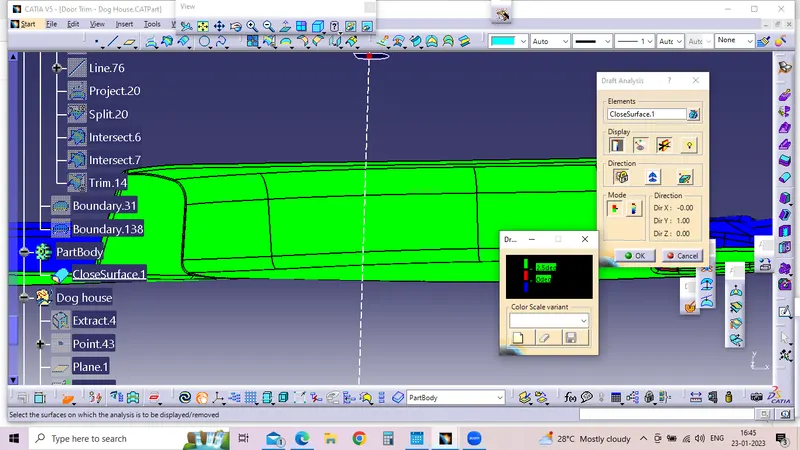

Draft Analayis:

Class A surface And B surface &C surface Clear with 2.9 Degree draft angles. my closed body also clearing Draft analayis.Dog house draft analayis with respect to side core axis with 0.45 degree draft angle Clearing.
