Week 9 - Attachment Feature Creation - Challenge 1

Plastic Product Design

Attachment Feature Creation: RIB

Aim:

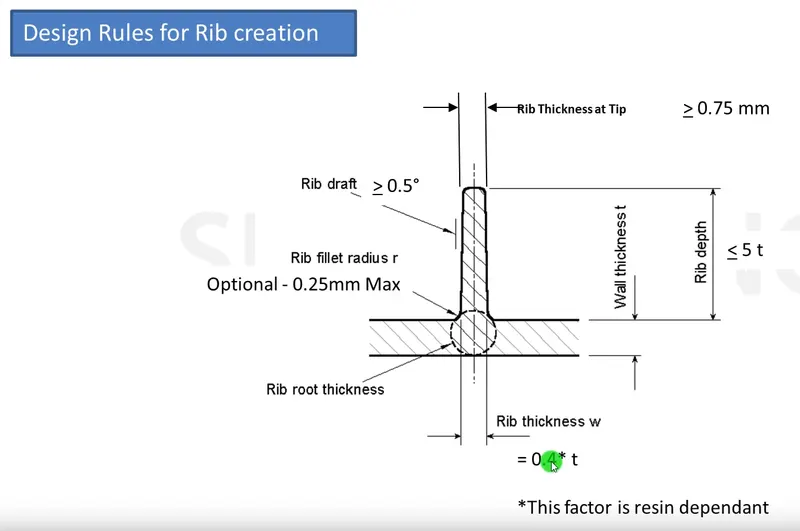

To create the rib for the Centre console coin holder considering the design rules.

Results:

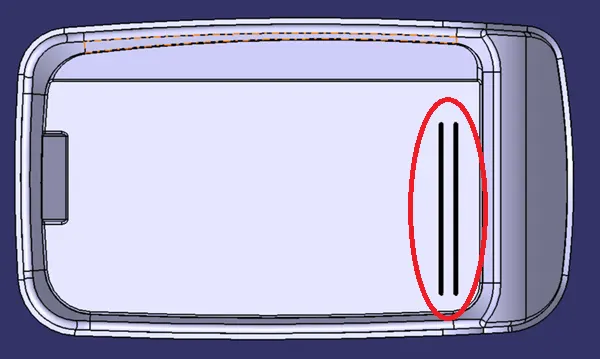

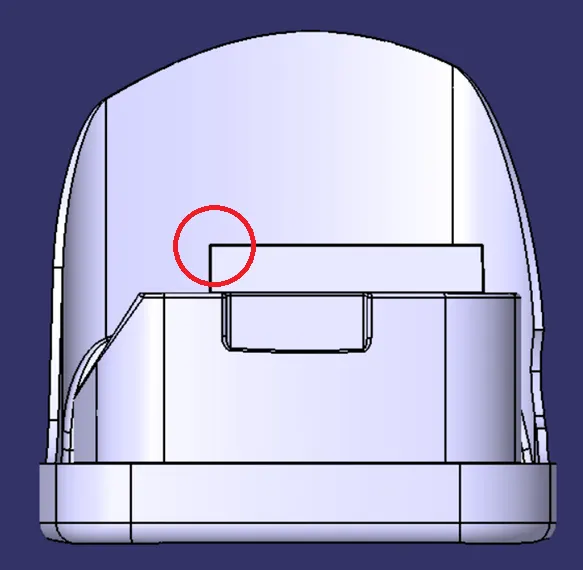

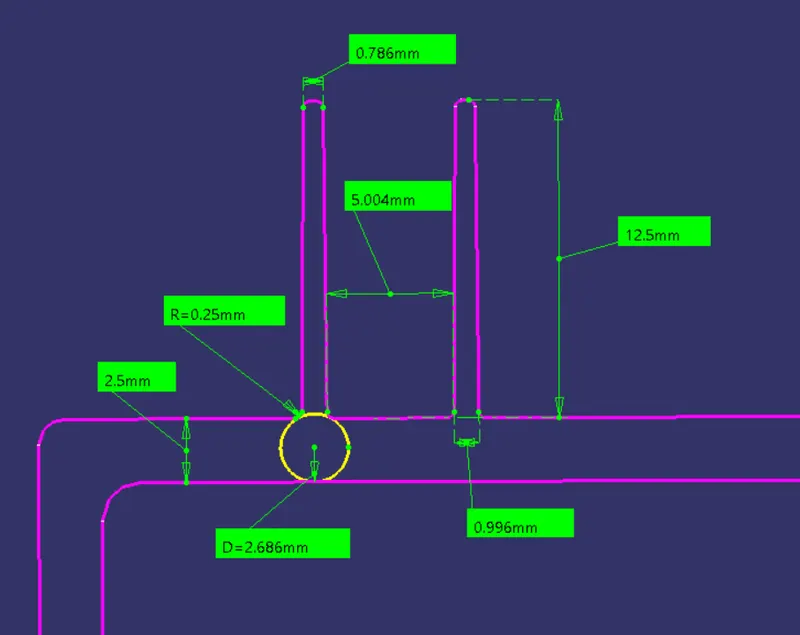

Note: Above image represents the intersection of a coin holder at the rib section.

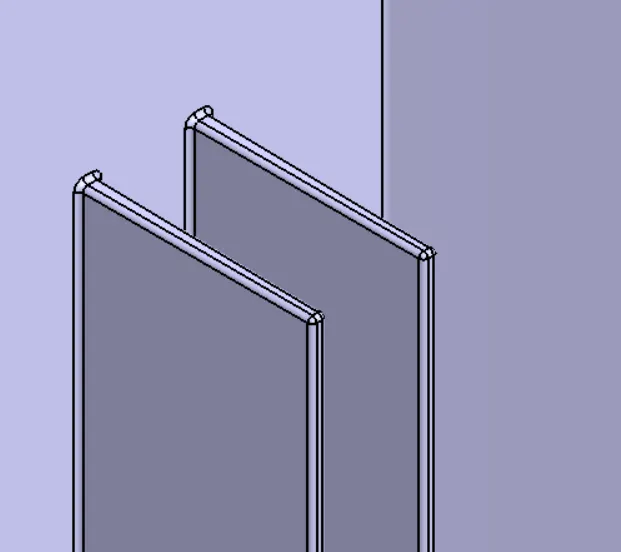

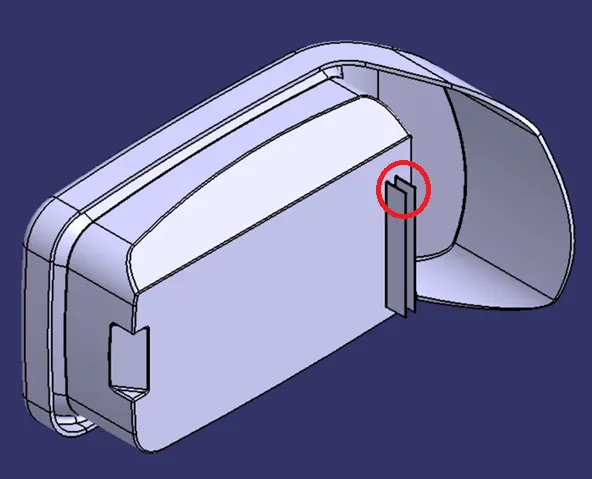

Isometric View

Front View

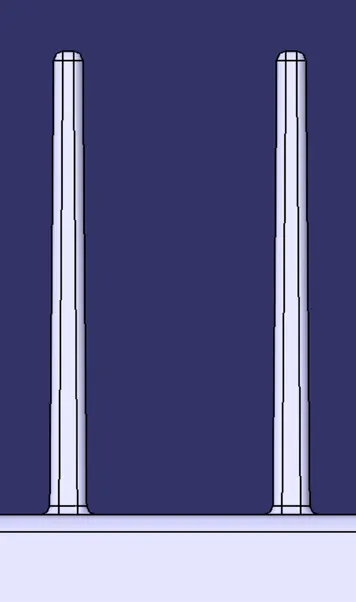

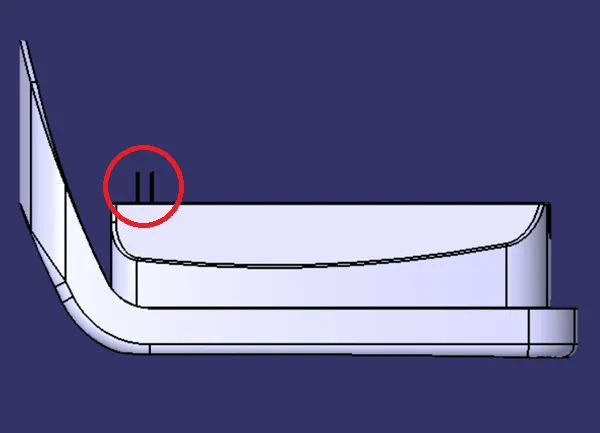

Side View

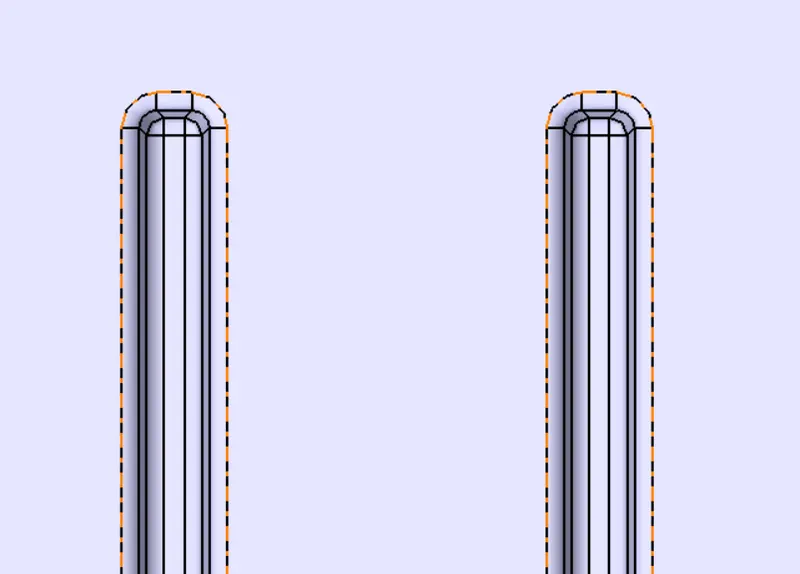

Top View

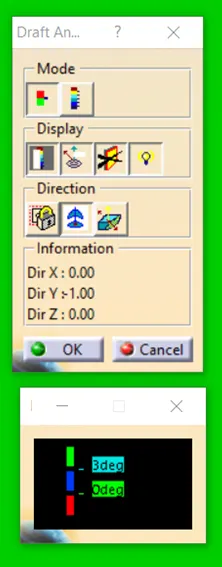

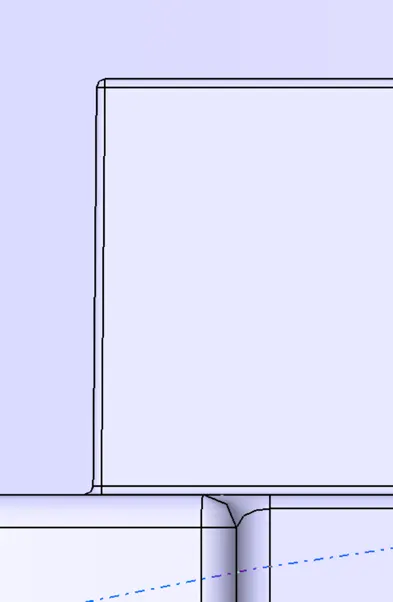

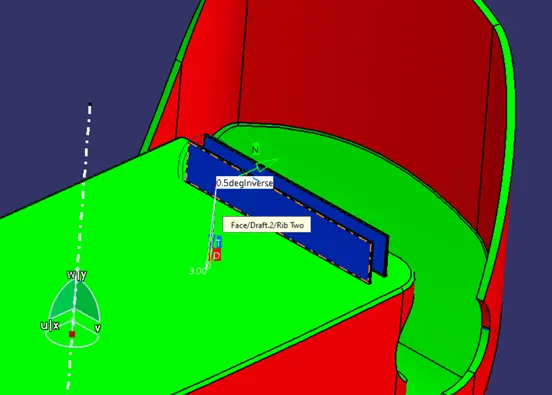

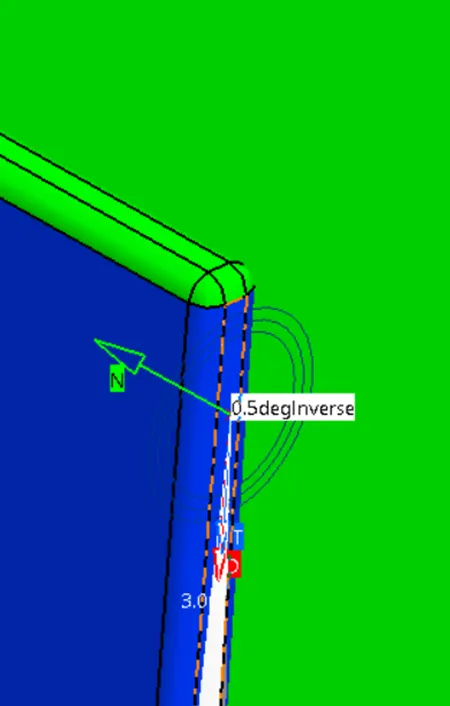

Draft Analysis:

Please Click/Browse on link mentioned bellow for Detailed draft analysis and the Tooling axis creation of Coin Holder.
