Week 8 Worm Gear Challenge

Aim-To Perfrom the Transient analysis for the worm gear.

Procedure-

1.we apply the structural steel for the worm gear and to worm wheel.

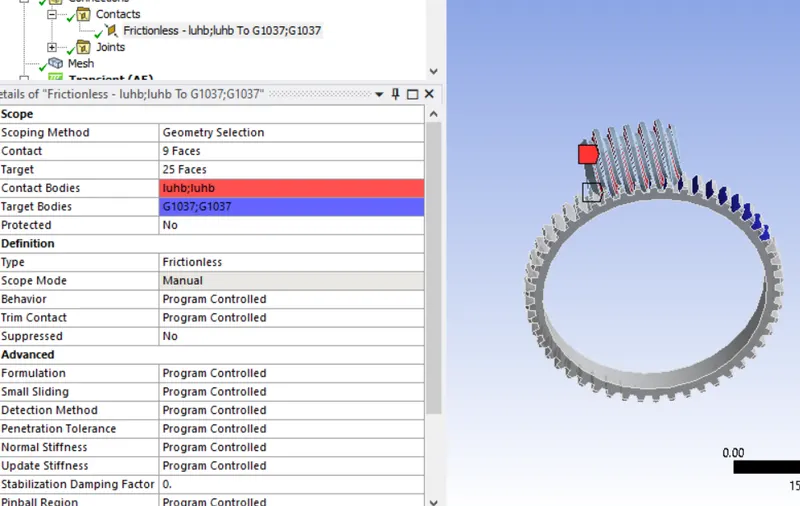

2.we provide frictionless cotact beween the worm gear and the worm wheel.

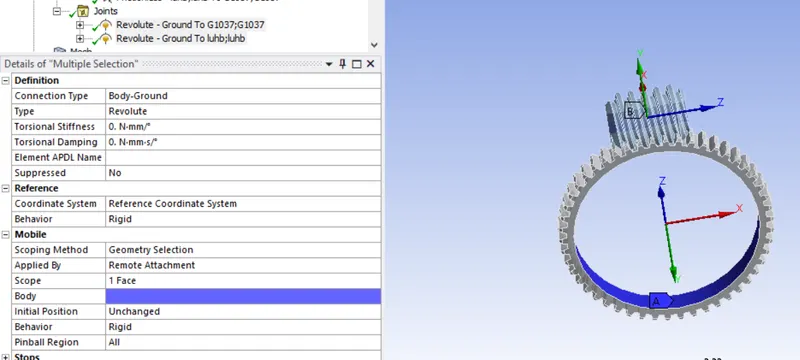

3.we provide revloute joint for the both gear and to the wheel.

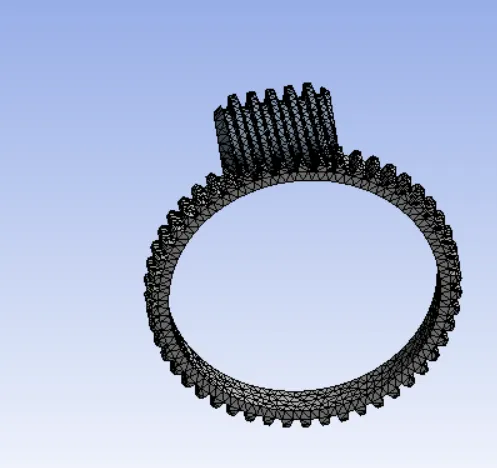

4.we mesh the compoments, of elemtal size of 1.5 mm.

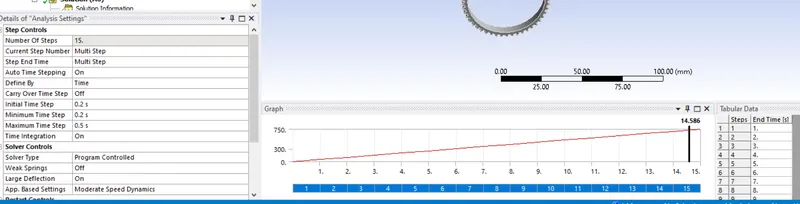

5.we provide the number of steps 15 in the analysis settings.

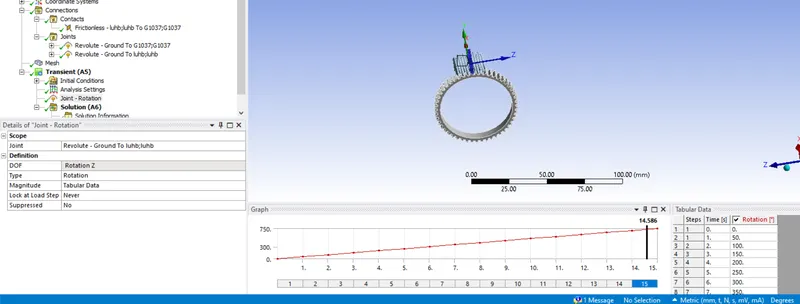

6.we provide joint load for the worm gear,

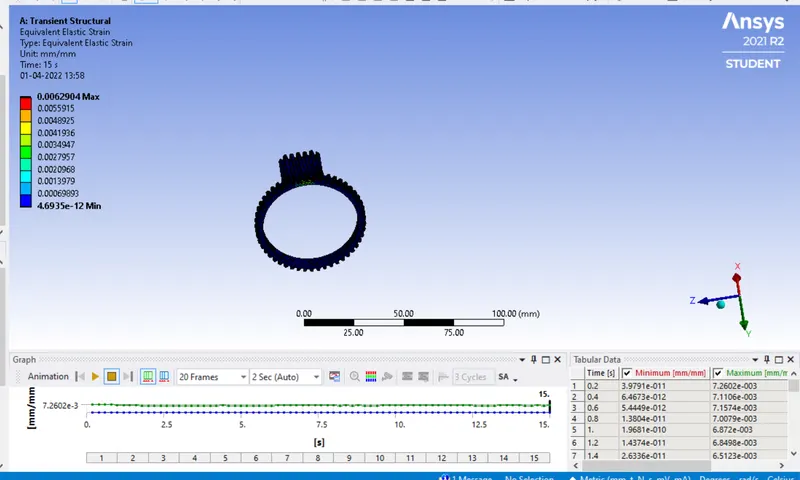

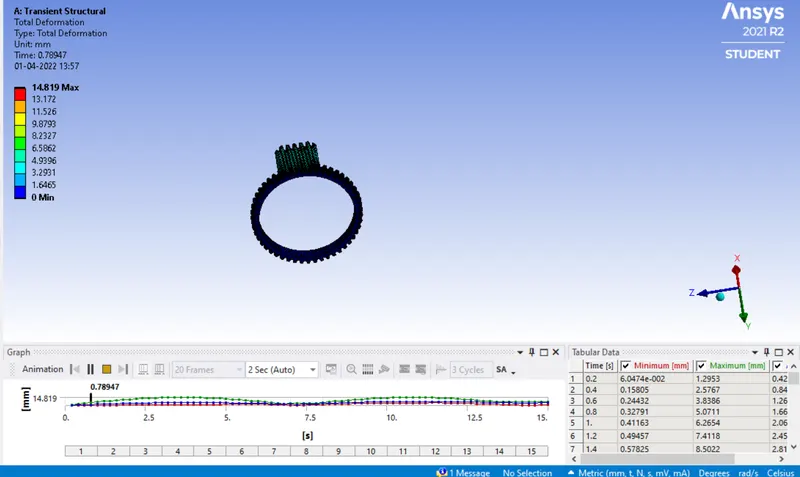

conclusion-

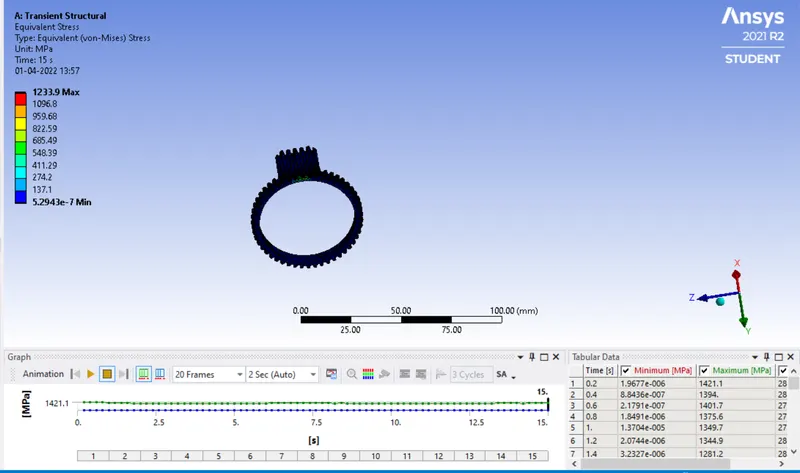

The stress generation is more on the wheel than on the worm gear.
