Week 8 Worm Gear Challenge

transient structural analysis of worn gear assembly

objective: perform transiet analysis on a worm gear assembly and write a detailed report explaining the results obtained .

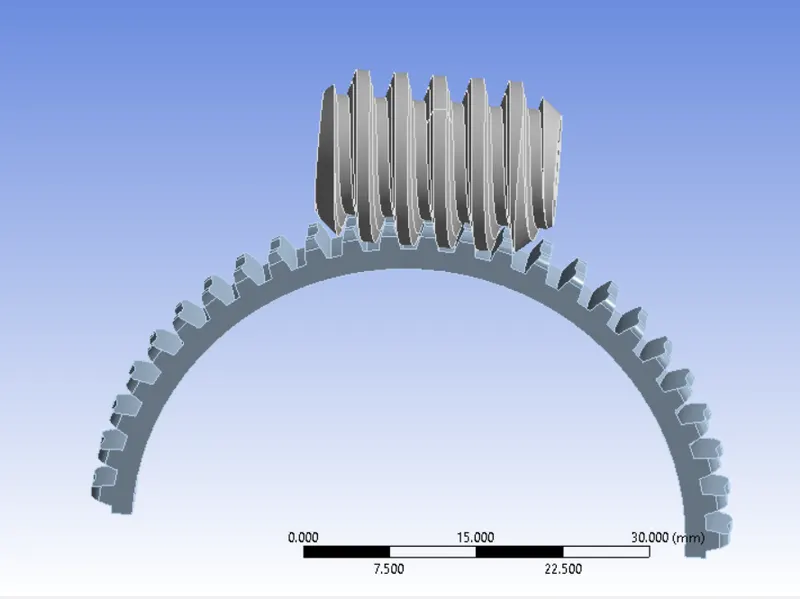

model:

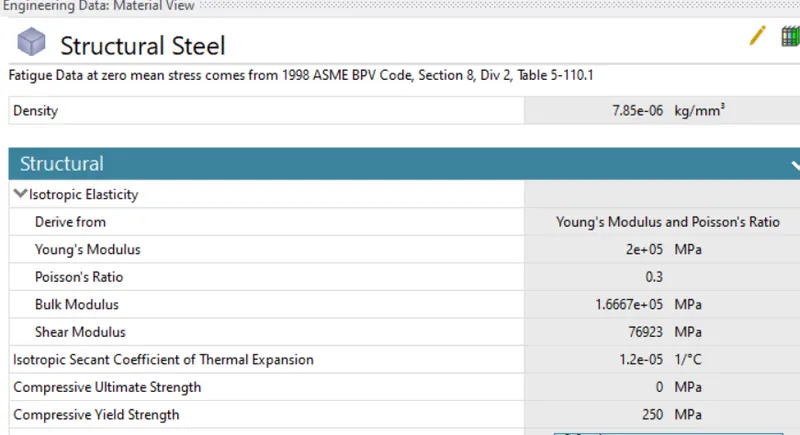

material:

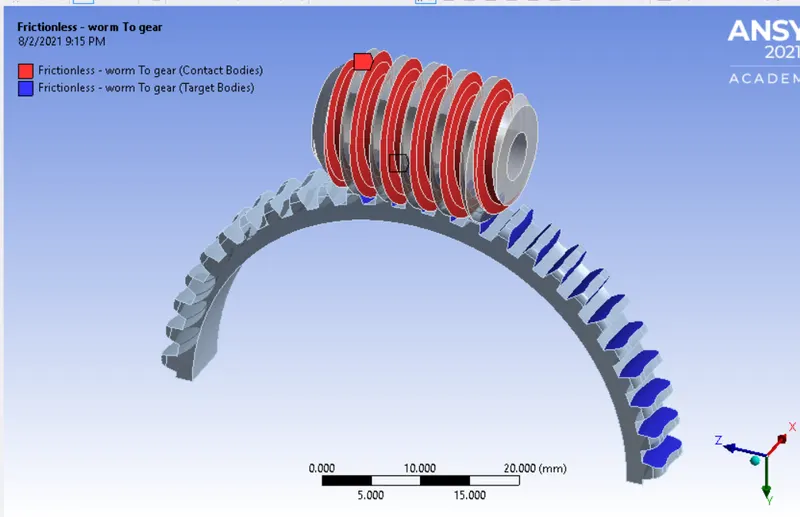

contacts:

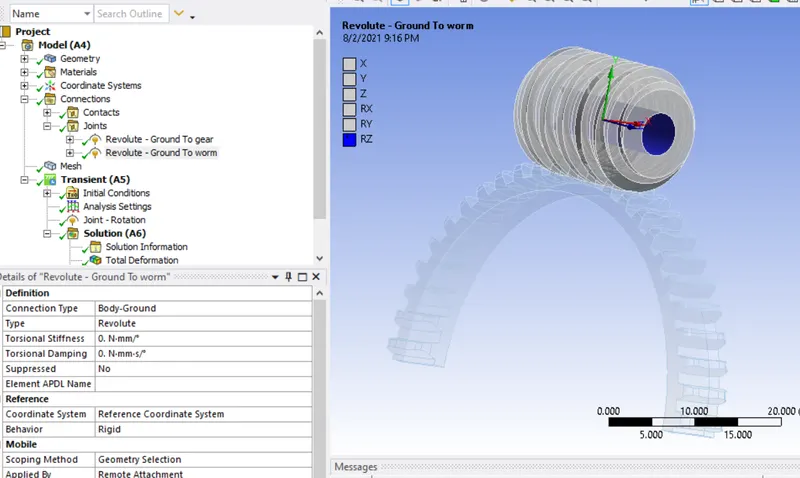

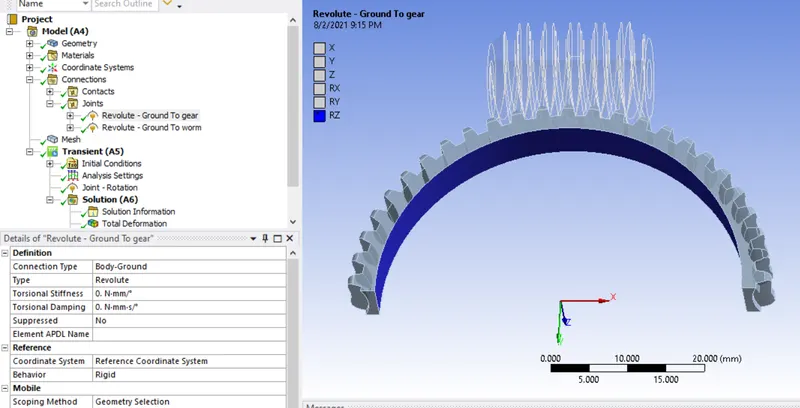

joints:

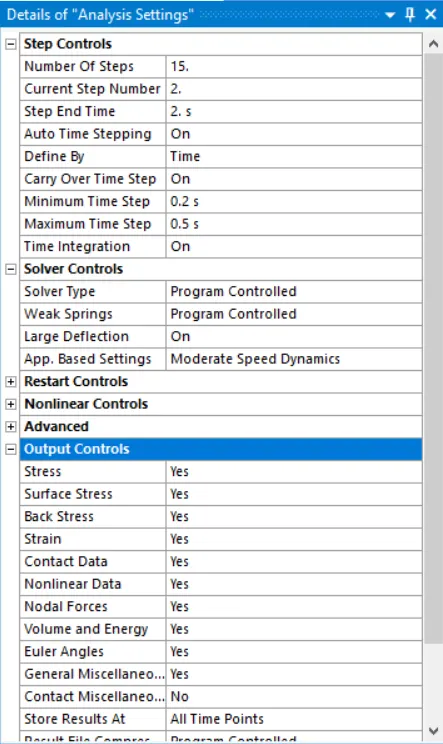

analysis settings:

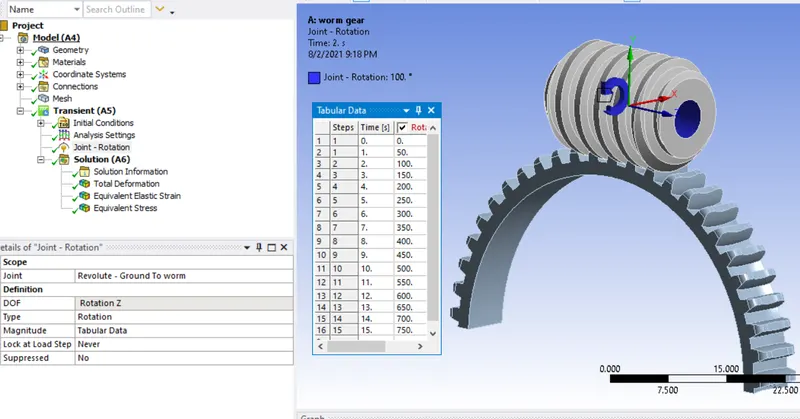

joint load:

results:

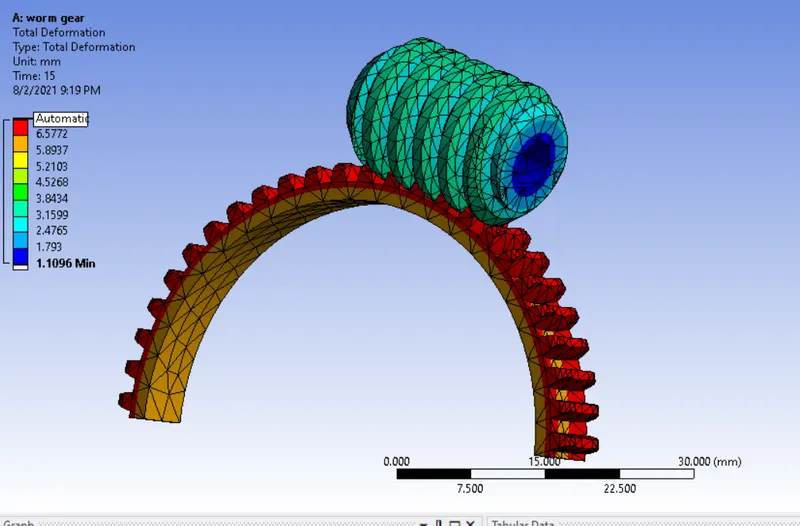

total deformation:

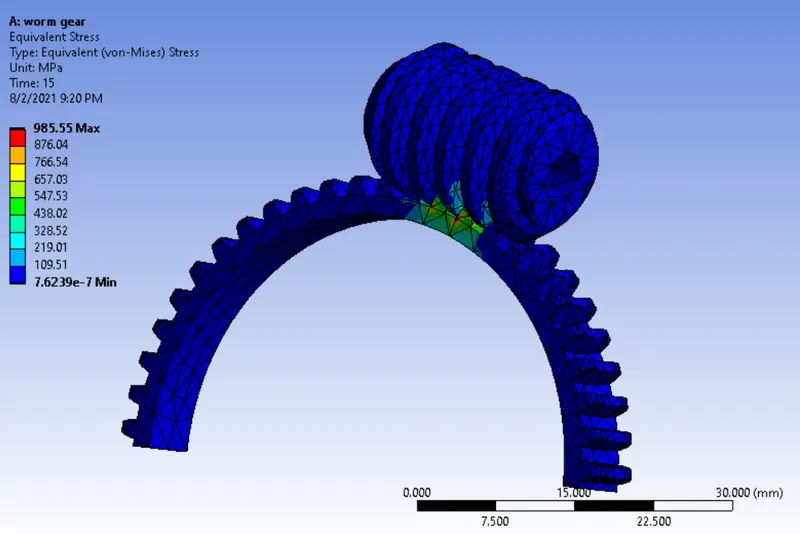

equivalent stress:

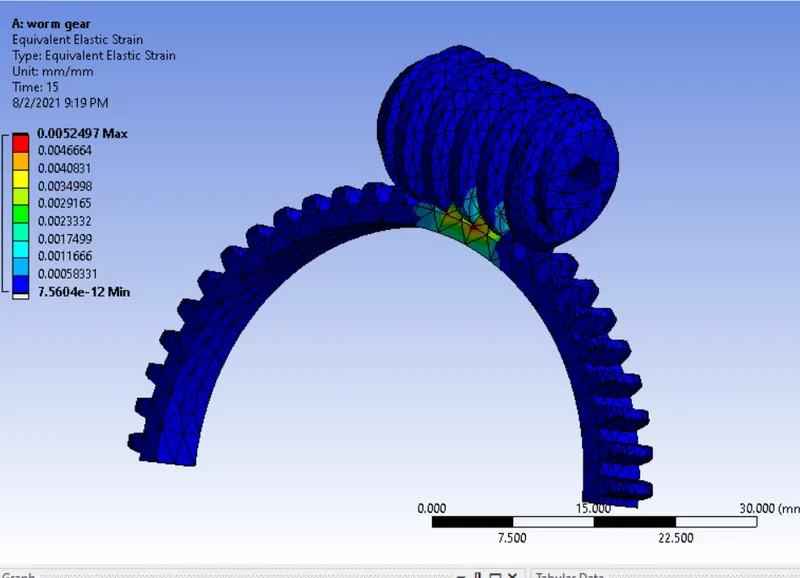

equivalent elastic strain:

conclusion:

worm and gear assembly analysed in the transient structural analysis results are obtained.
