Week 8 - Universal Joint

Challenge - Perform a transient structural analysis on a double universal joint with a spring. For 3 cases use 3 different materials (Structural steel, Stainless steel & Titanium Alloy).

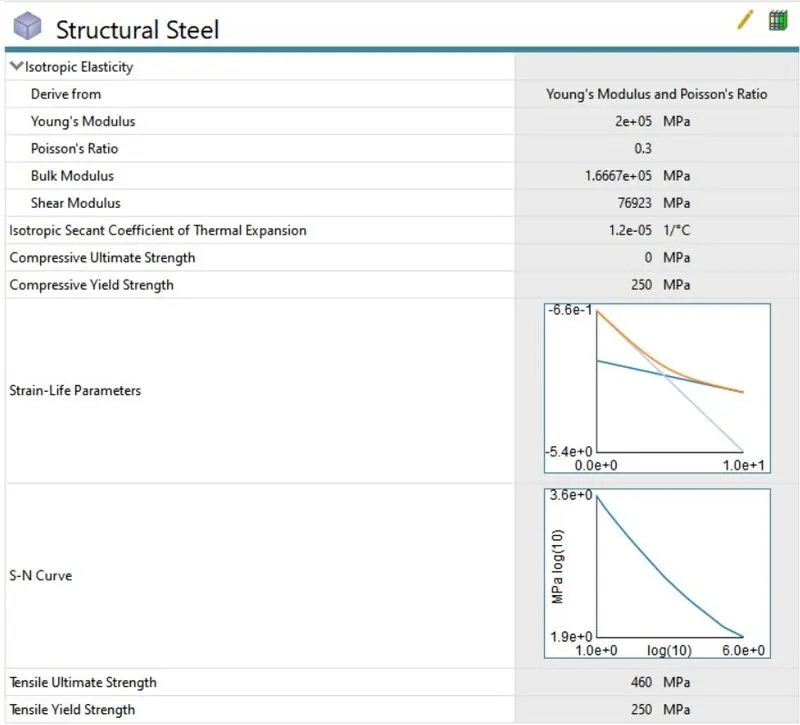

Case 1 - Material - Structural steel

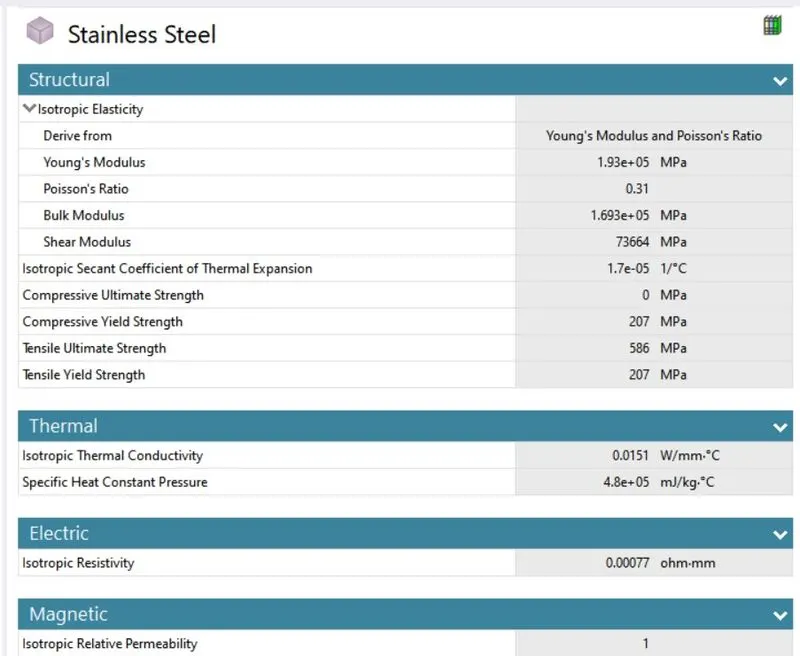

Case 2- Material - Stainless steel

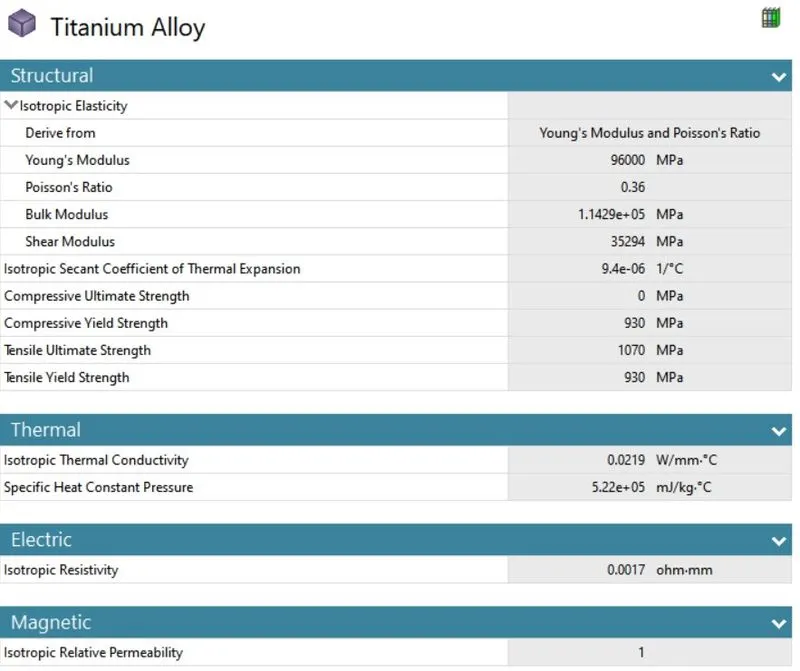

Case 3- Material - Titanium Alloy

Connections - Same for all cases.

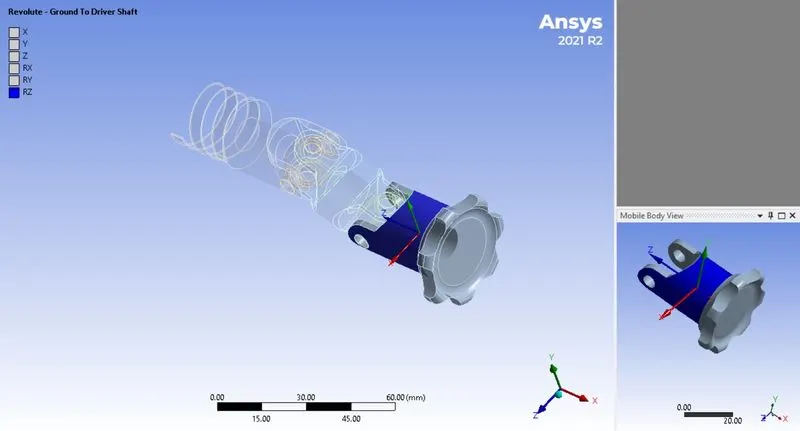

Ground to Driver Shaft - Apply revolute connection with ground to driver shaft.

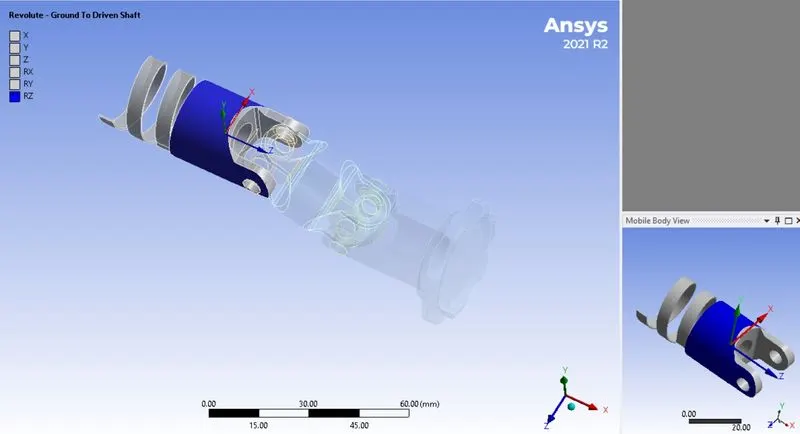

Ground to Driven Shaft - Apply revolute connection with ground to driven shaft.

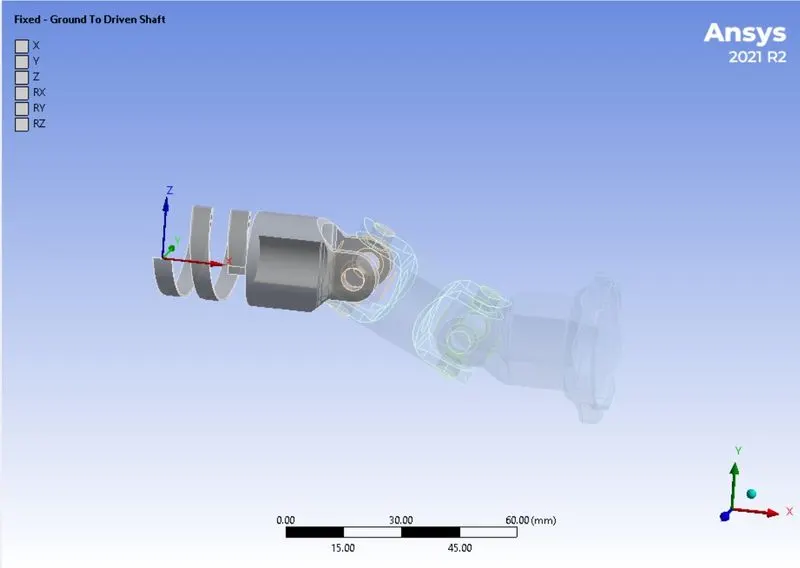

Ground to Driven shaft - Provide fixed joint with ground to spring of driven shaft.

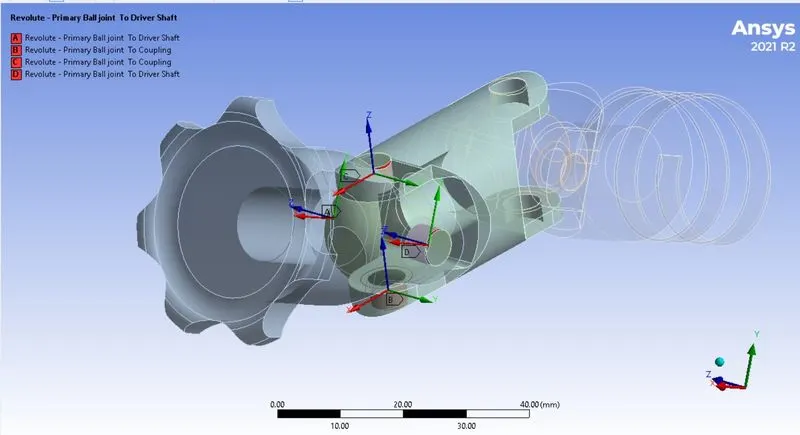

Primary Ball joint to Driver Shaft - Apply revolute joint of body to body contact between Primary ball joint & driver shaft.

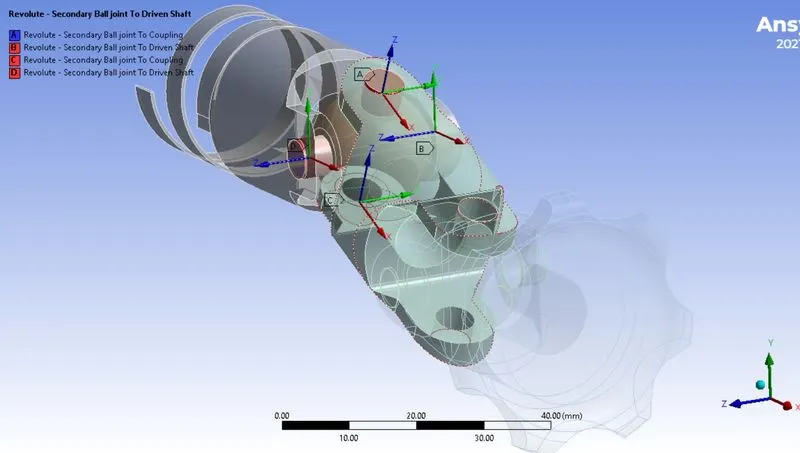

Secondary Ball joint to Driven shaft - Apply revolute joint of body to body contact between secondary ball joint & driven shaft.

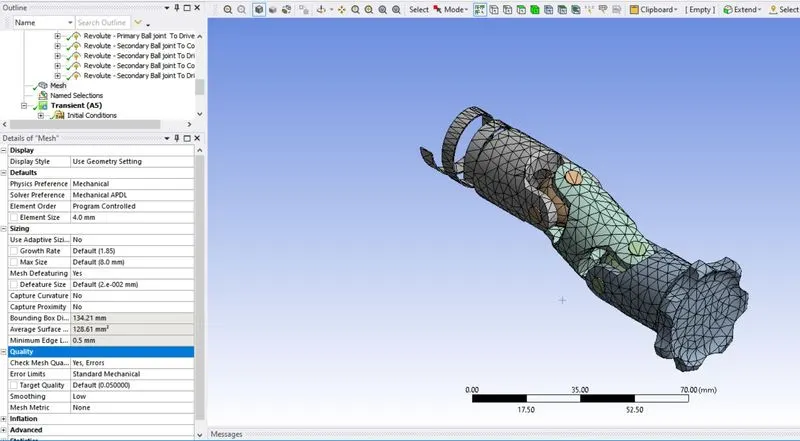

Meshing - Use meshing with default settings. Only use adaptive size to no.

Analysis settings - Same for all cases

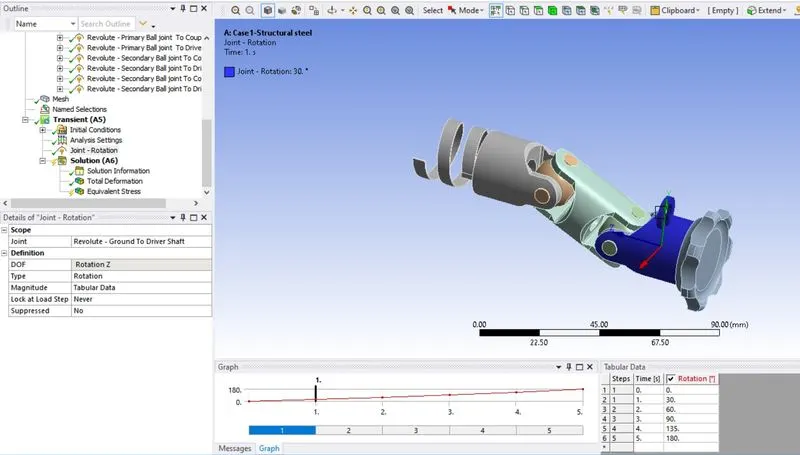

Rotation joint with steps - Apply 5 steps of Rotational joint for driver shaft to initiate motion.

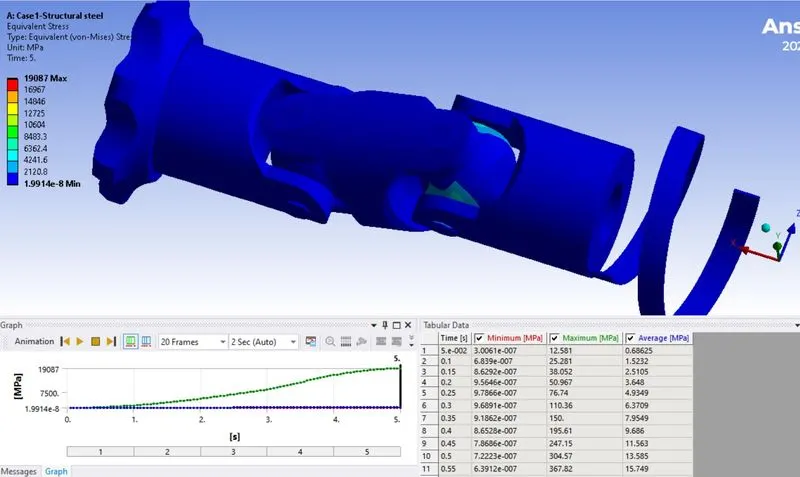

Case 1 - Results

Equivalent Stress -

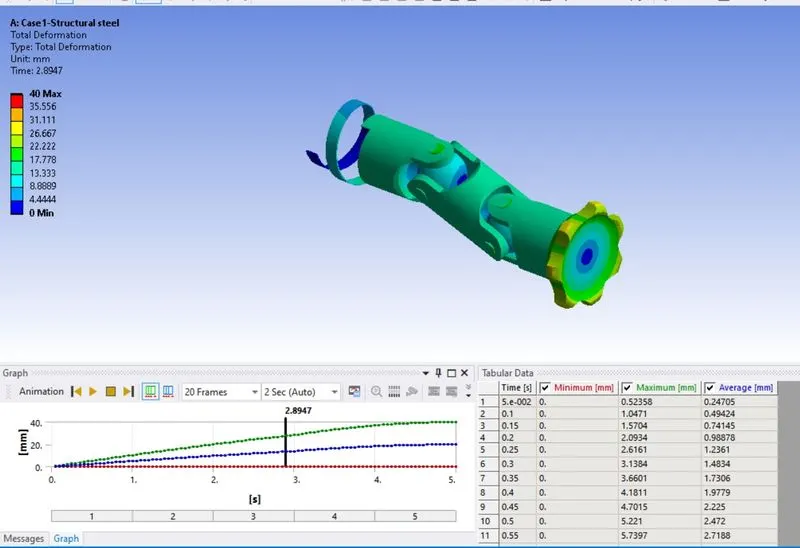

Total Deformation -

Case 2 - Results

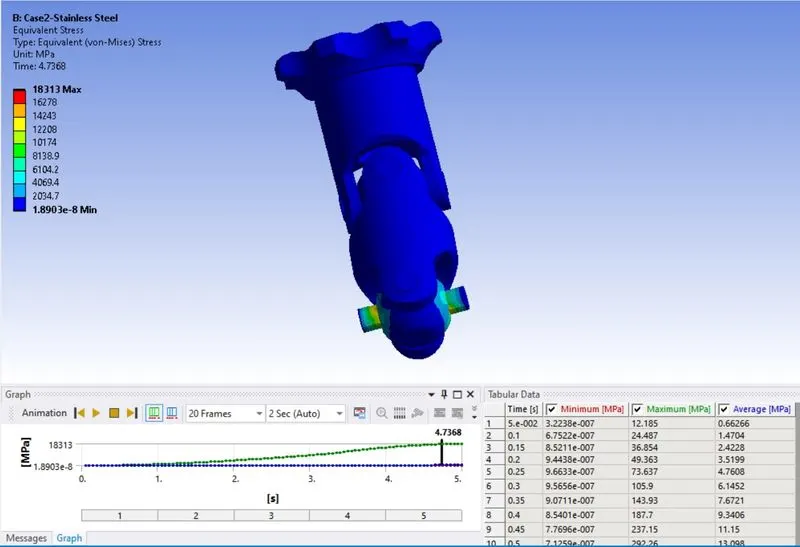

Equivalent Stress -

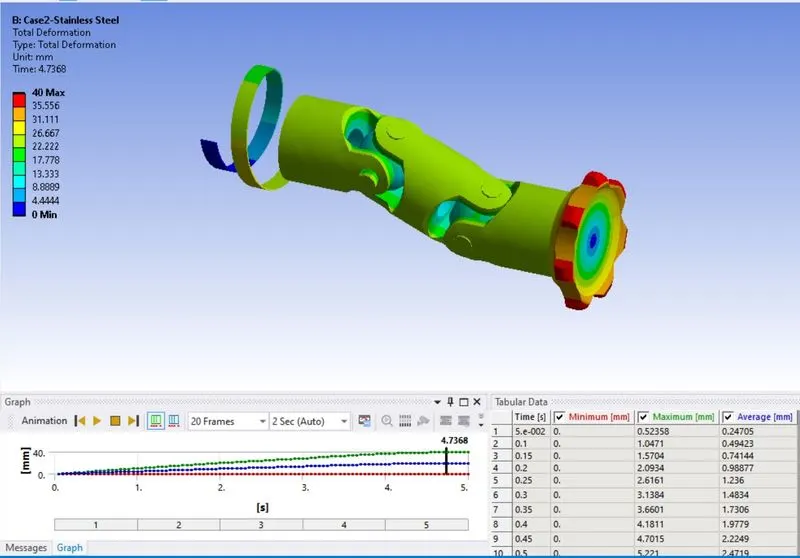

Total Deformation -

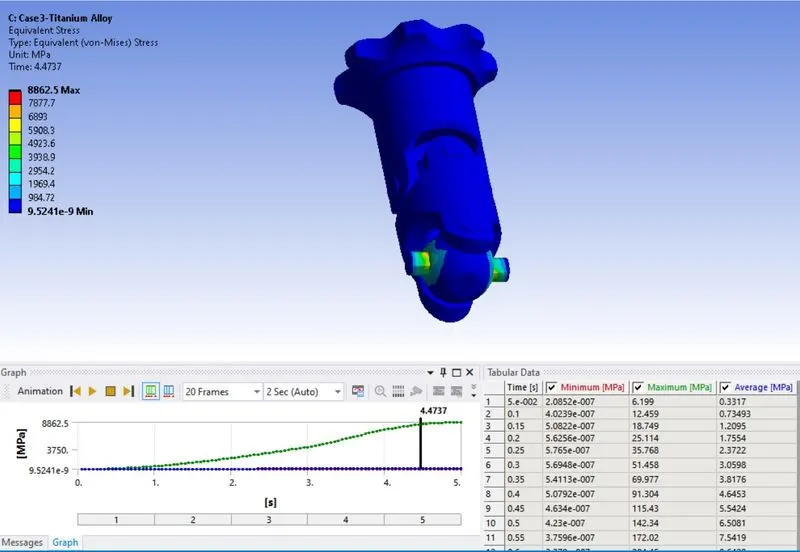

Case 3 - Results

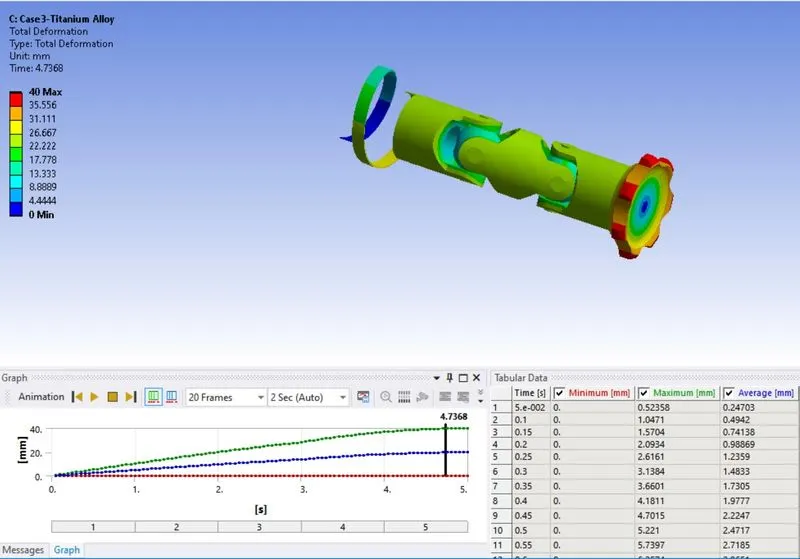

Total Deformation -

Equivalent Stress -

Parameters	Case 1	Case 2	Case 3
Total Deformation	40 mm	40 mm	40 mm
Equivalent Stress	19087 MPa	18313 MPa	8862.5 MPa

Conclusion :

• The total deformation observed in every case is similar (40 mm).
• The Equivalent stress observed in Case 3 with Titanium alloy is least, hence this material is more compatible compared to structural steel & Stainless steel.
