Week 8 - Universal Joint
Universal Joint
AIM
To run the analysis for Universal Joint on a total of 3 different cases with change in material terms and provide the inference on the output.
Objective
To find and compare the results of Equivalent stress, directional deformation, Equivalent elastic strain, and contact pressure in all cases.
For this challenge, you will have to perform a transient structural analysis on a double universal joint with a spring using three different materials: Structural Steel, Stainless Steel and Titanium alloy(They can all be found in the General Materials section) The three materials must be used on the joint with the springs alone. Use a refined mesh if possible for the academic license. You need to obtain the Equivalent stress and total deformation for all the three cases and compare them. Submit a report regarding the same.
CASE 1:Structural Steel
CASE 2:Stainless Steel
CASE 3:Titanium alloy
CASE 1:
Structural Steel

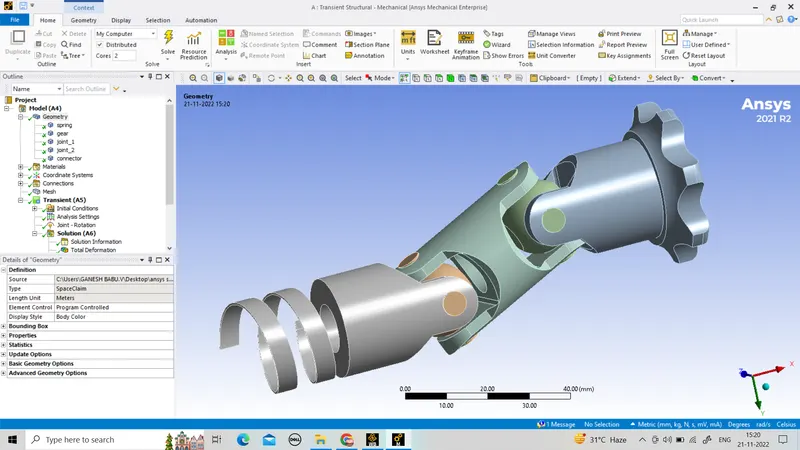

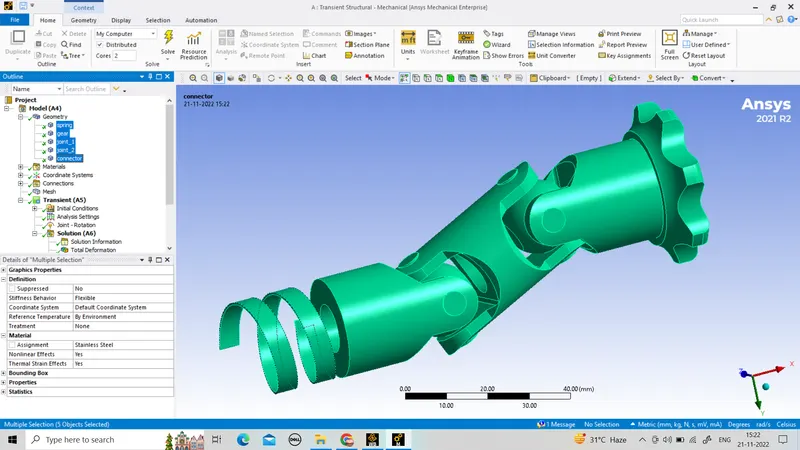

Import the model.
select the material.
Structural steel.
And open the model panel.
In connection panel connect
And delete the contact component
And create the joint

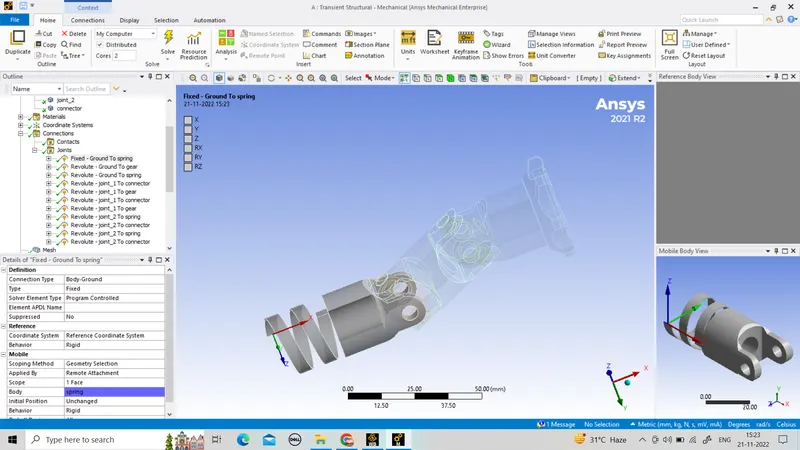

create the fixed joint

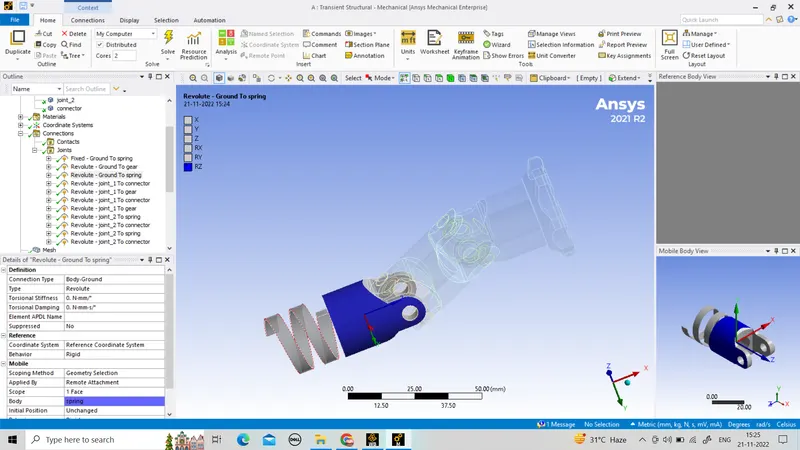

2nd revolute joint
ground to body
3rd revolute joint
body to ground

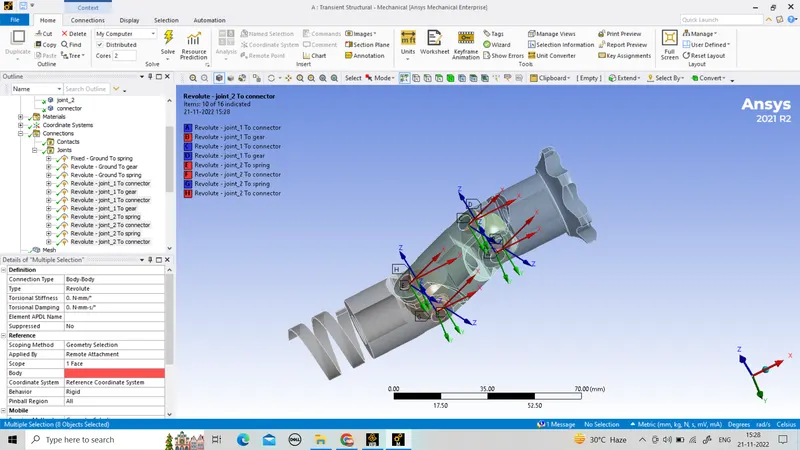

revolute joint
body to body to all 8 joint

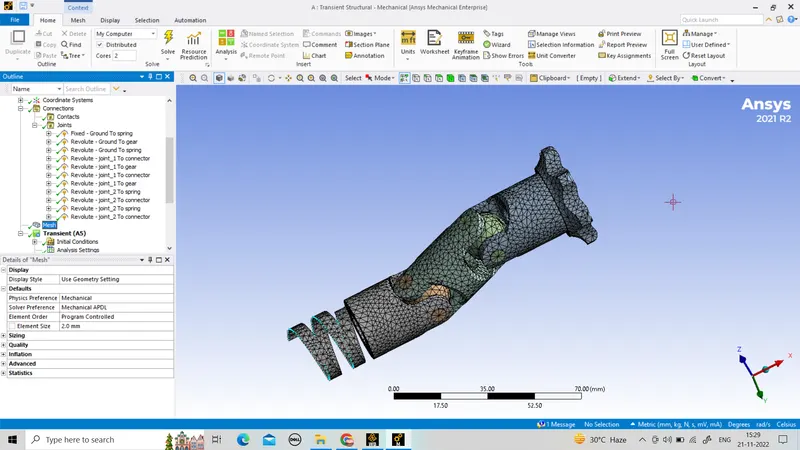

Mesh the component with mesh option.
mesh the component with element size of 2mm.

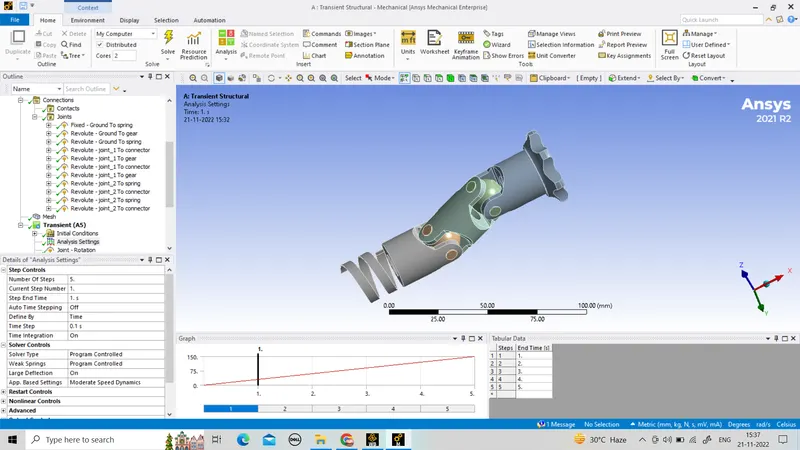

Analysis setting
step = 5
with large deflection = ON
weak spring = program control
Auto time step = ON
Output control = ON

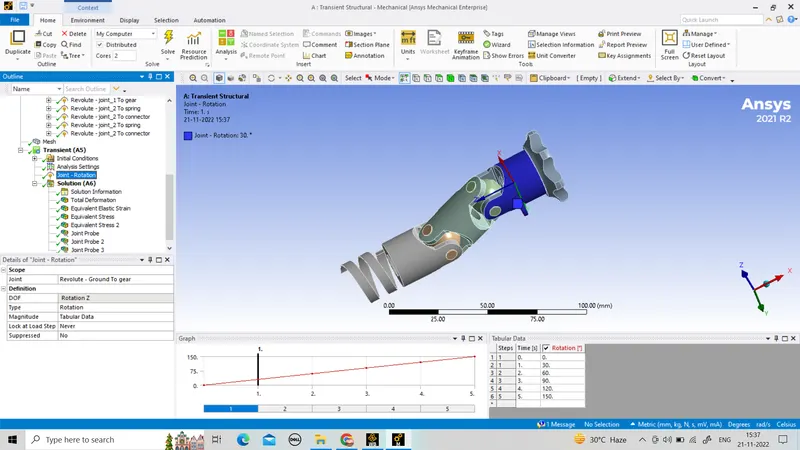

Create the joint rotation
CASE 2
Stainless Steel
structural steel.
Import the model.

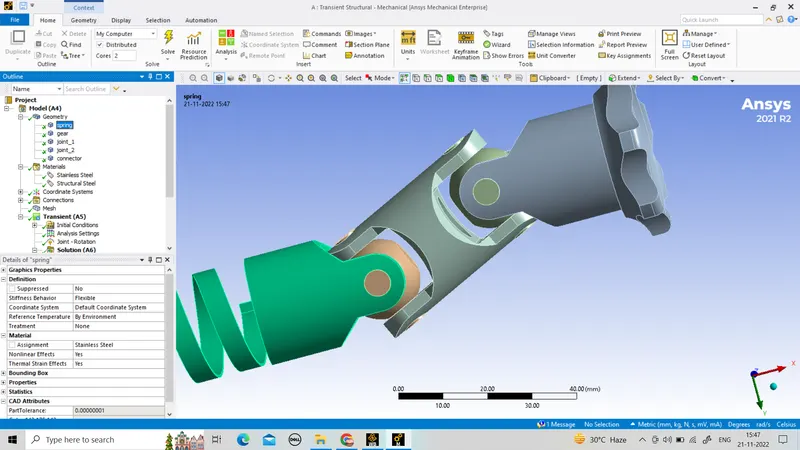

select the material.
Strainless steel.
structural steel
And open the model panel.
In connection panel connect
And delete the contact component
And create the joint
create the fixed joint

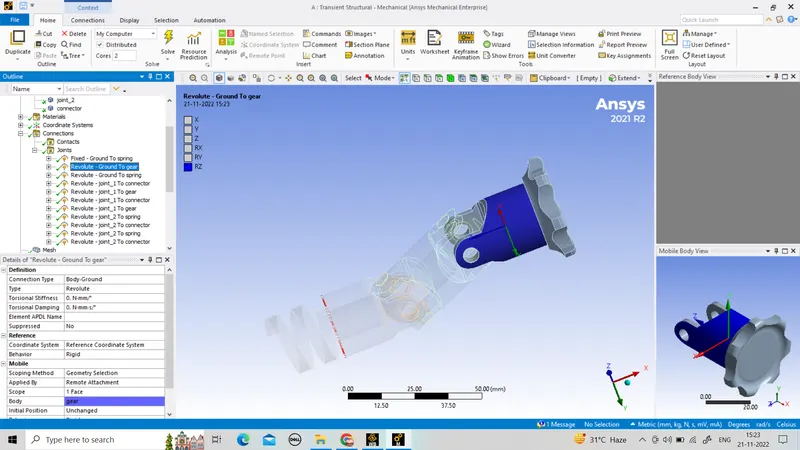

2nd revolute joint
ground to body
3rd revolute joint
body to ground
revolute joint
body to body to all 8 joint
Mesh the component with mesh option.
mesh the component with element size of 2mm.
Analysis setting
step = 5
with large deflection = ON
weak spring = program control
Auto time step = ON
Output control = ON
Create the joint rotation
CASE 3
Titanium alloy
Import the model.
select the material.
Structural steel.

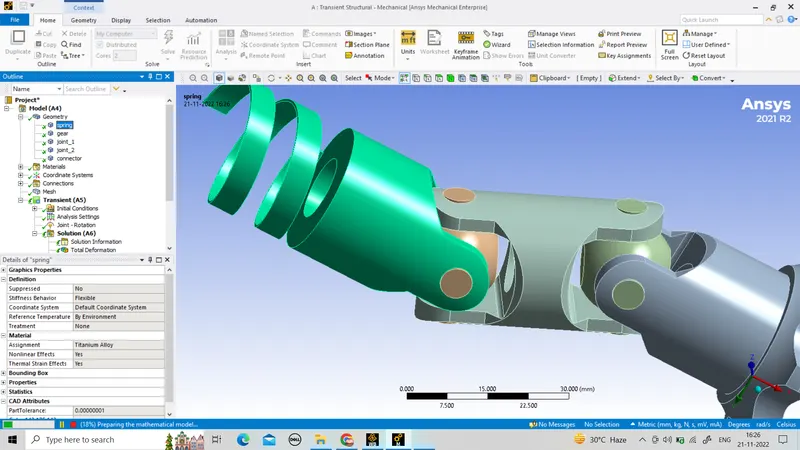

Titanium alloy
And open the model panel.
In connection panel connect
And delete the contact component
And create the joint
create the fixed joint
2nd revolute joint
ground to body
3rd revolute joint
body to ground
revolute joint
body to body to all 8 joint
Mesh the component with mesh option.
mesh the component with element size of 2mm.
Analysis setting
step = 5
with large deflection = ON
weak spring = program control
Auto time step = ON
Output control = ON
Create the joint rotation
RESULT
perform a transient structural analysis on a double universal joint with a spring using three different materials: Structural Steel, Stainless Steel and Titanium alloy(They can all be found in the General Materials section)
CASE 1
Structural Steel

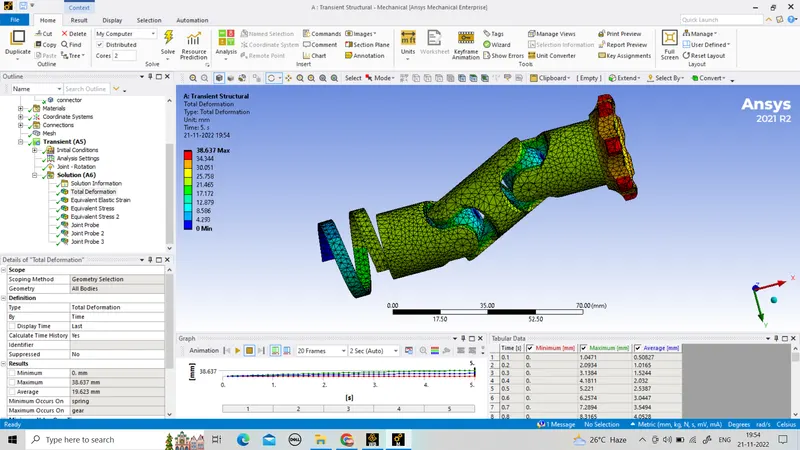

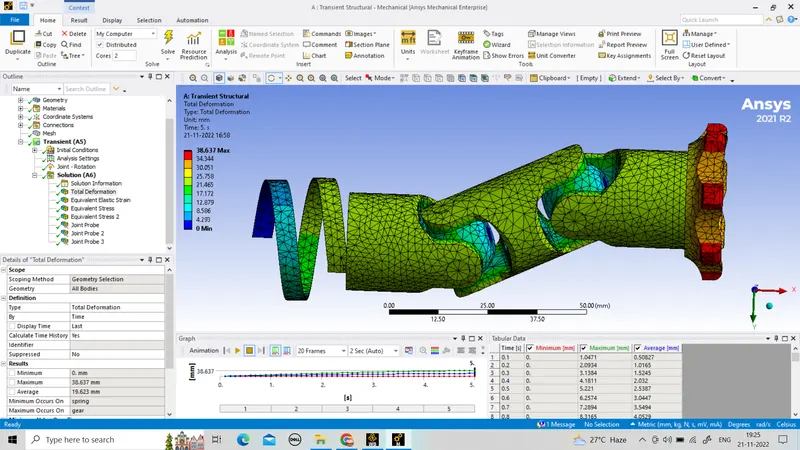

total deformation

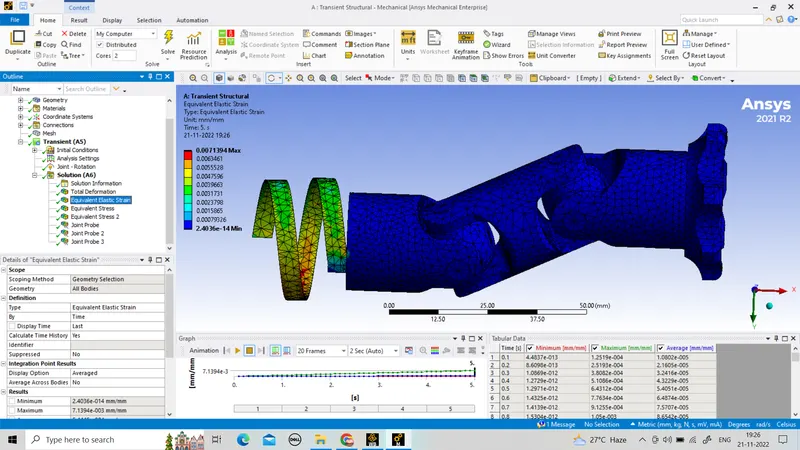

strain

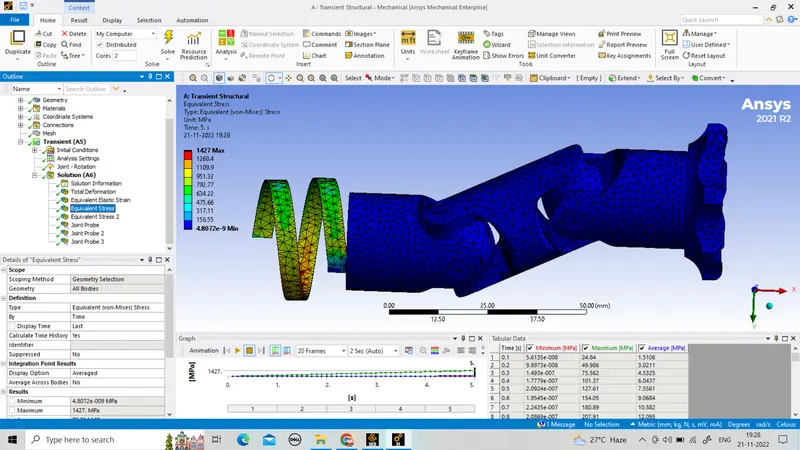

stress
CASE 2
Stainless Steel
total deformation
strain

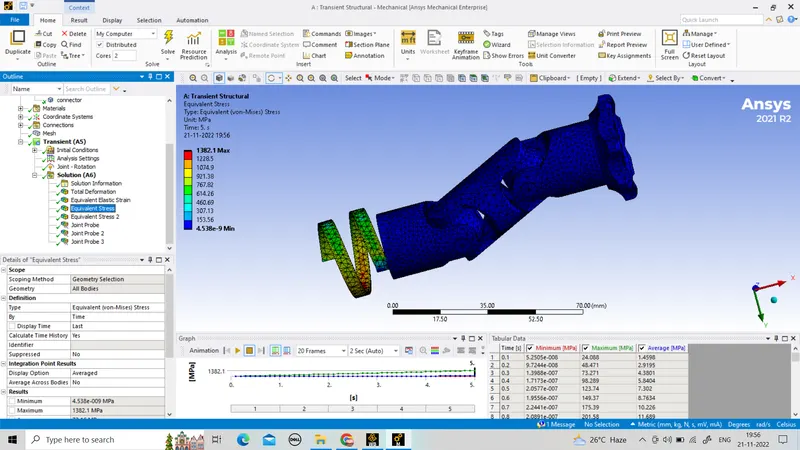

stress
CASE 3
Titanium alloy

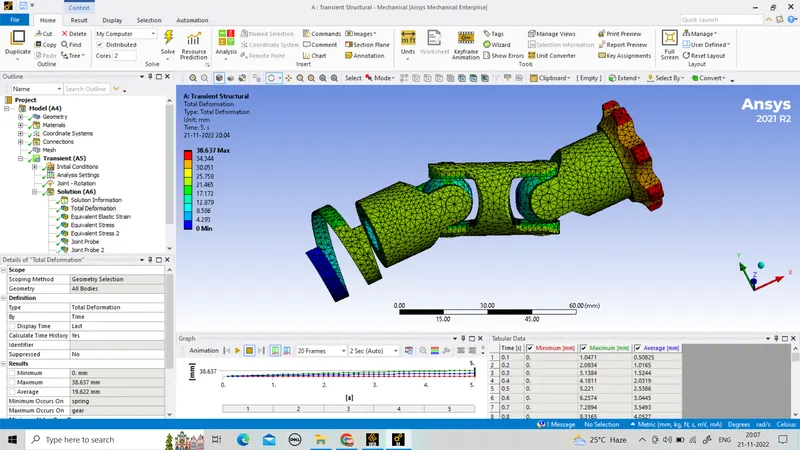

TOTAL DEFORMATION

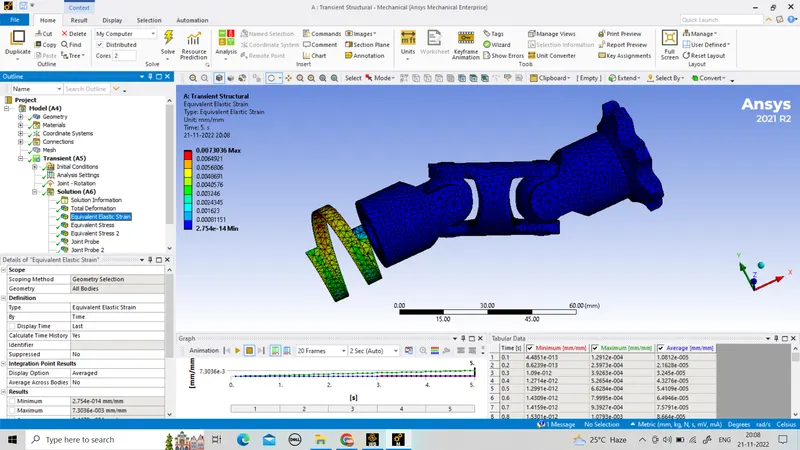

STRAIN

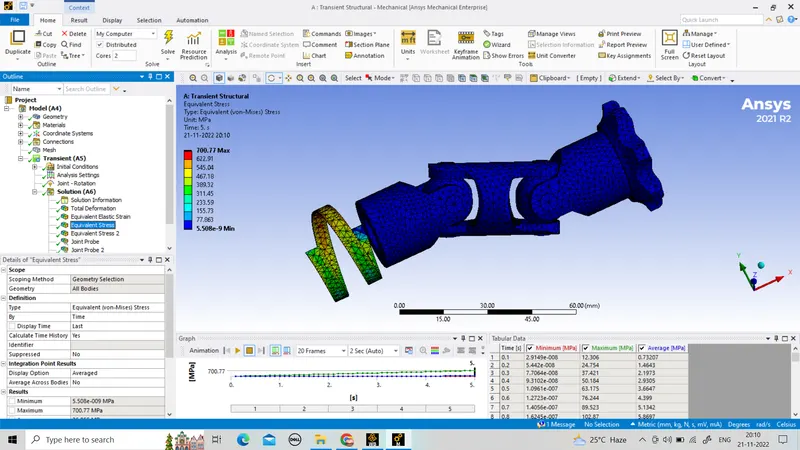

STRESS
CASE TOTAL DEFORMATION STRAIN STRESS
Structural Steel 38.637MAX 0.0071394MAX 1427MAX
Stainless Steel 38.637MAX 0.0071654MAX 1382.1MAX
Titanium alloy 38.637MAX 0.0073036MAX 700.77MAX
