Week 8-3D Tetra Meshing Challenge

Week 8-3D Tetra Meshing Challenge

AIM

To perform 3D tetra mesh or volume tetra mesh on the given models.

PROCEDURE

1. MODEL

Create a Teramesh for Housing component with the following quality criteria.

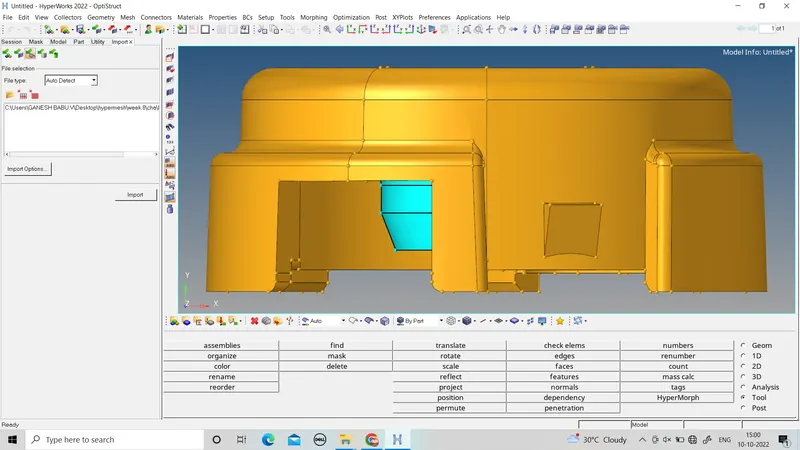

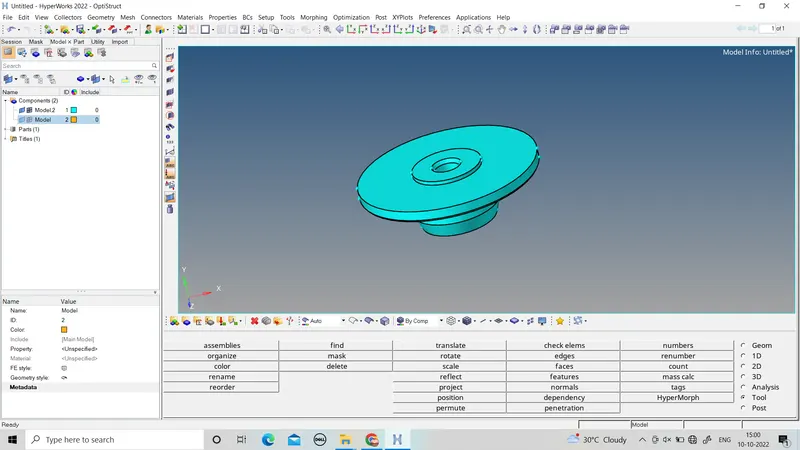

Import the model.

After import the model 2d mesh can be created by using given quality criteria.

minimum length can be clear for the mesh criteria.

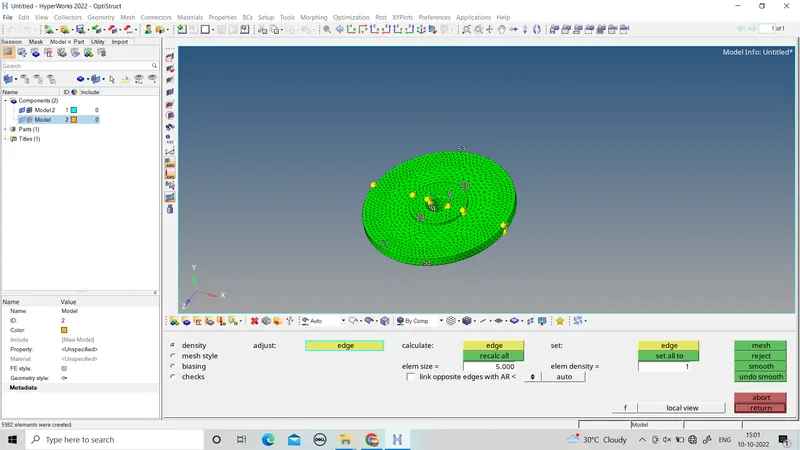

In 2d mesh panel Automesh can be selected and mesh acn be created.

There are two component

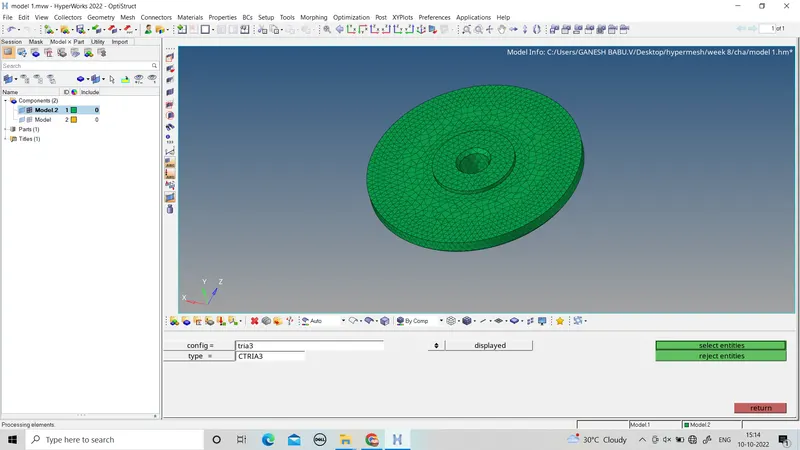

1st component

mesh can be done with proper quality criteria.

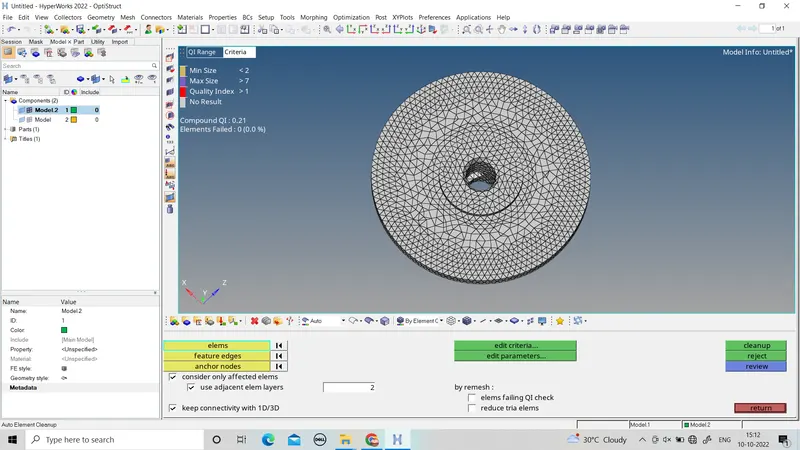

mesh quality check.

now 3d tetra mesh can be created.

After creating the 3d mesh the 2d mesh must be deleted.

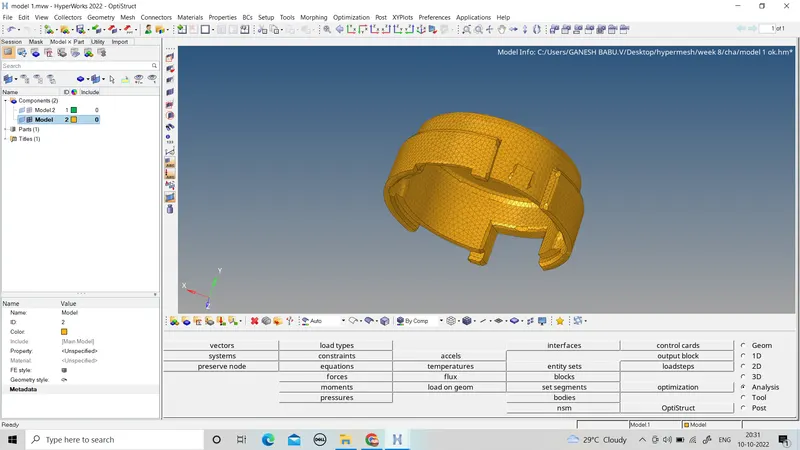

Secound model

2d mesh can be created

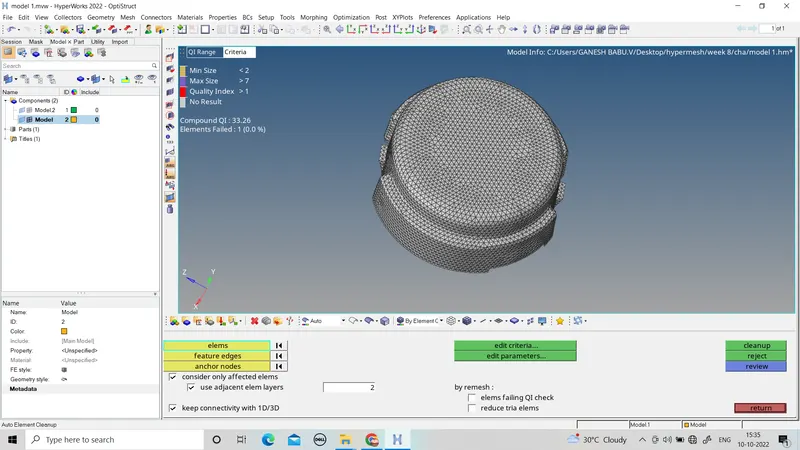

quality can be clear.

3d mesh can be created by using tetra mesh.

TetraMesh Generation Method: 2D to 3D Conversion

Elements sizes: Min- 2 Units, Target- 5 Units, Max- 7 Units

Tet collapse: 0.15

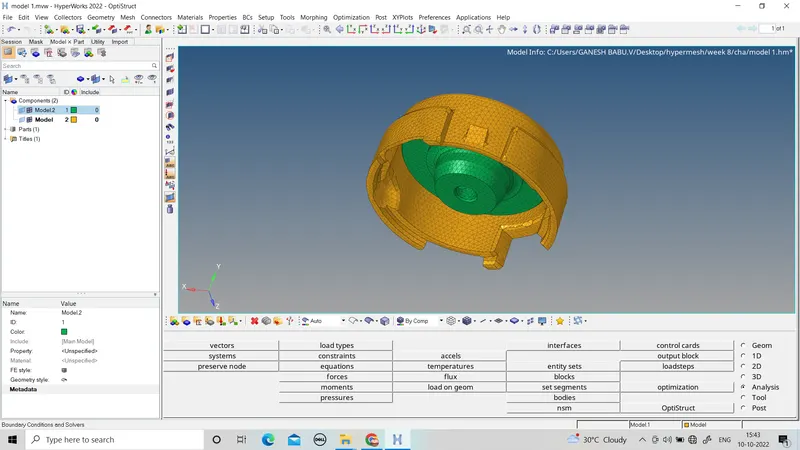

final model

all done with proper quality criteria.

MODEL

For the given model, Create a 3D Tetramesh with the following quality criteria.

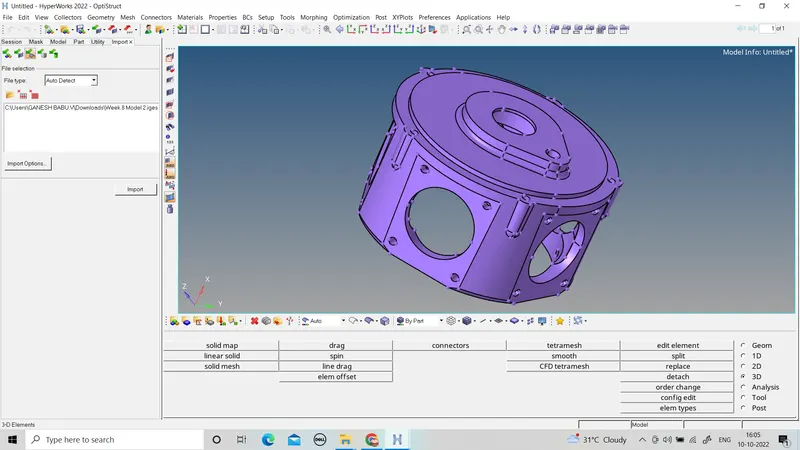

Import the model.

minimum length can be clear for the mesh criteria.

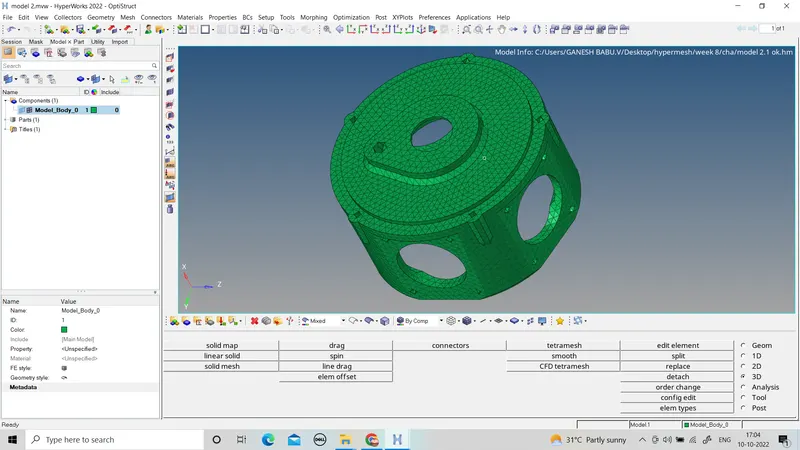

Quick tetra mesh can be created.

mesh can be created by using solid in volume tetre mesh.

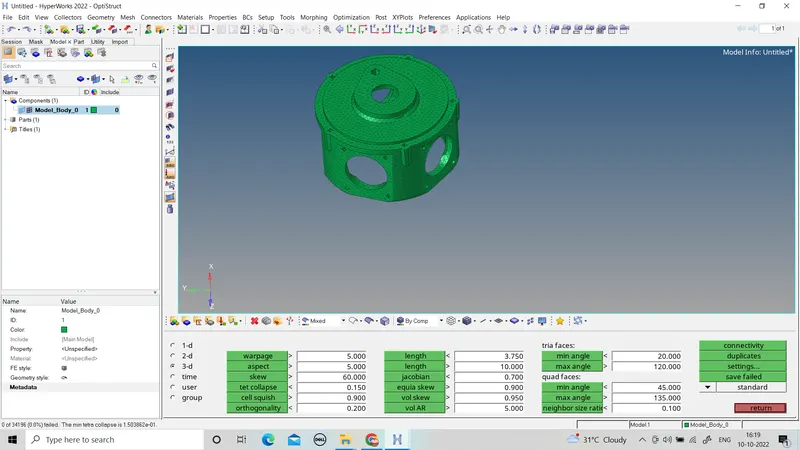

Quality can be clear for 3d.

TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh

Target Element size: 3 Units.

Tet Collapse: 0.15

MODEL 3

CONCLUSION:
