Week- 8 - Solid meshing

Aim : For the given Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias

Procedure : Upload the Geometry

clearing geometrical errors

refine the given geometry into 1 unit for both macros and perimeters

Start doing spot mesh for surface the geometry

Start doing tetra mesh for volume.

Define the volume

List the geometry

select the geometry right click and mesh the volume.

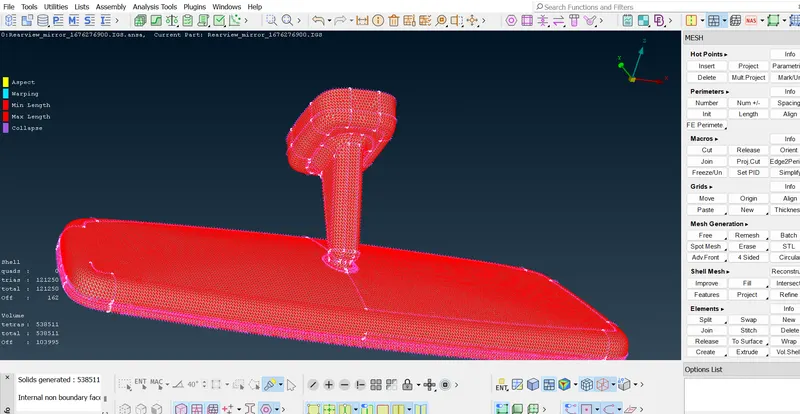

completed geometry

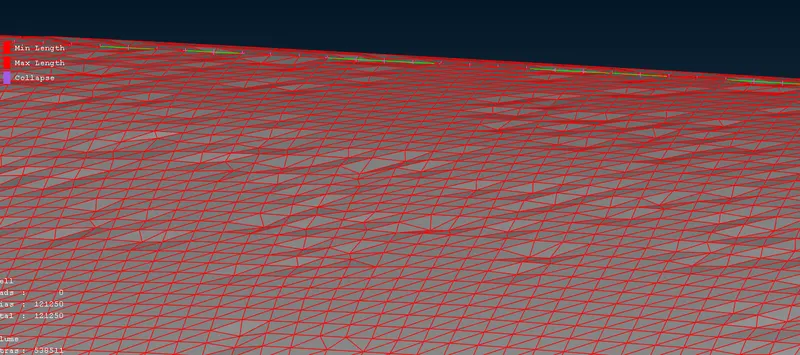

Note : i couldnt clear the collapse errors. There are lot of off elements there lot of kinks can see.
