Week - 5 - 2D meshing for Plastic components

1.Aim : To extract the mid surface

2.Procedures : Upload the geometry into the interface

3.clearing the topology errors

4.Enter the mesh parameters

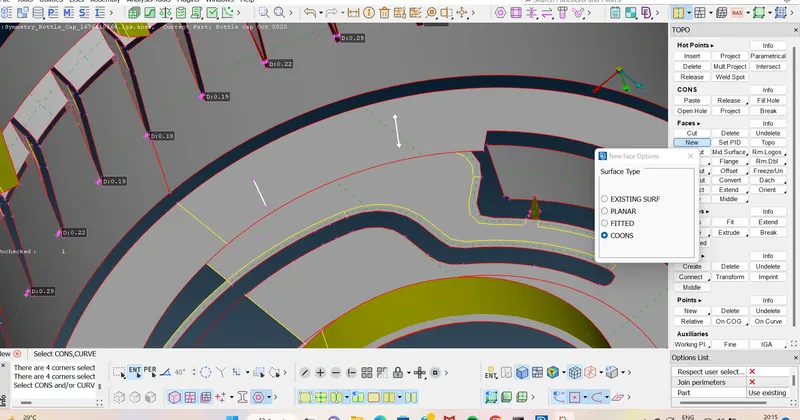

5.Take appropriate steps to make mid surface

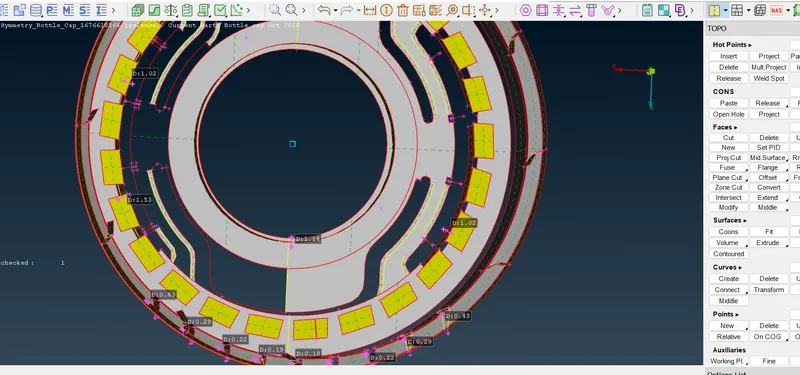

6.Start Doing meshing.

7.Once the mesh complete draw shell as solid.
