Week 4 - 2D Meshing for Sheet Metal

Aim : To mesh the given geometry.

procedure : 1) Upload the file into interface

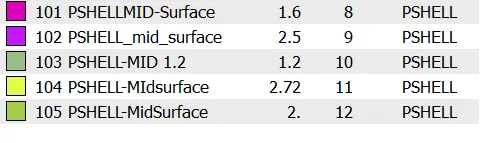

2) Cleanup the geometry.

3) Extract the mid surface. even though its a sheet metal, some parts have variable thickness.

4) Assign the differrent thickness parts into pids according to thickness.

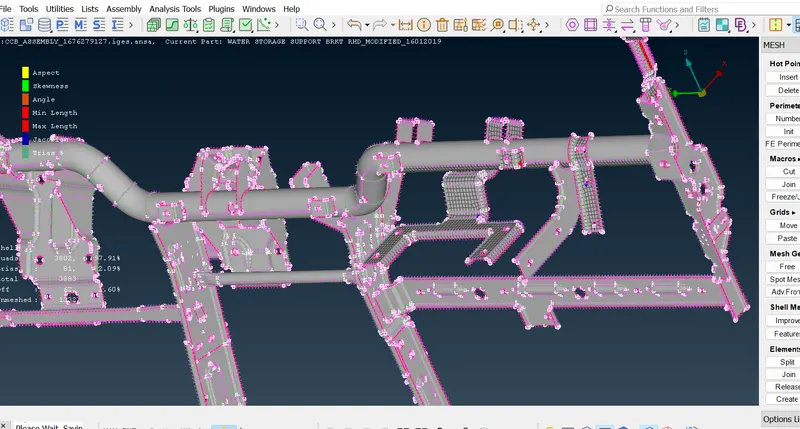

5) Start Meshing
