Week 3 - 2D meshing for sheet metal

AIM : To get mid surface extracted and find best mesh flow

Procedure : 1) Do topology after uploading geometry

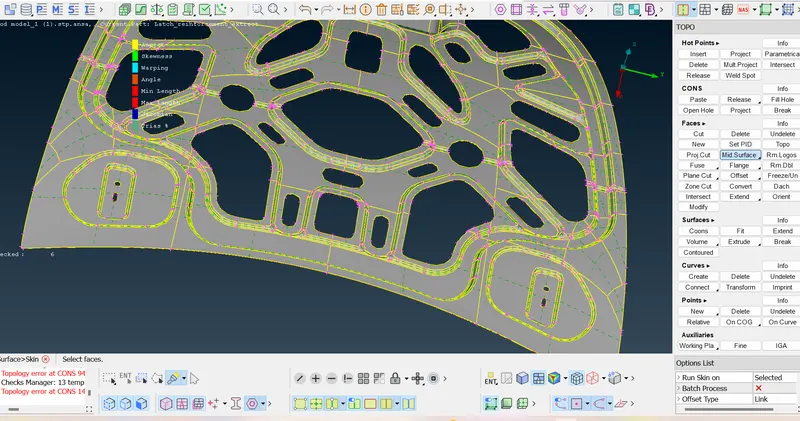

2) Cleanup the geometry

3) Set Pid for different parts in the geometry( I learned this way through mentoring session, it was very helpful.)

3) Start Mid surface extraction

4) after midsurface, set quality criteria , mesh parametres etc.

5) Mesh each and every part.

6) Draw shell as solid

Conclusion :Meshed all pid's
