Week- 8 - Solid meshing

Rearvier Mirror Model:-

AIM :

For the given Rear view mirror component, check for the geometrical errors and mesh the Surfaces with the given 2D element Quality criterias given below.

S.No	Quality Criteria	Value
1	Target/Average length	1
2	Minimum Length	0.5
3	Maximum Length	2

Use tetra elements to mesh the Volumes defined in the model and check for the below quality after Volume meshing.

S.No	Quality Criteria	Value
1	Tet collapse	0.2

GEOMETRY CLEANUP :

After that checked for any geometry errors and fixed the quality criteria for the required mesh.

Then, started doing volume mesh by using SPOT MESH command in MESH GENERATION tab.

MESH GENERATION :

On the curved surfaces took the mesh type as ortho tria mesh and whenever there was flat surfaces used tria mesh.

Checked mesh for quality and wherever there were errors removed them.

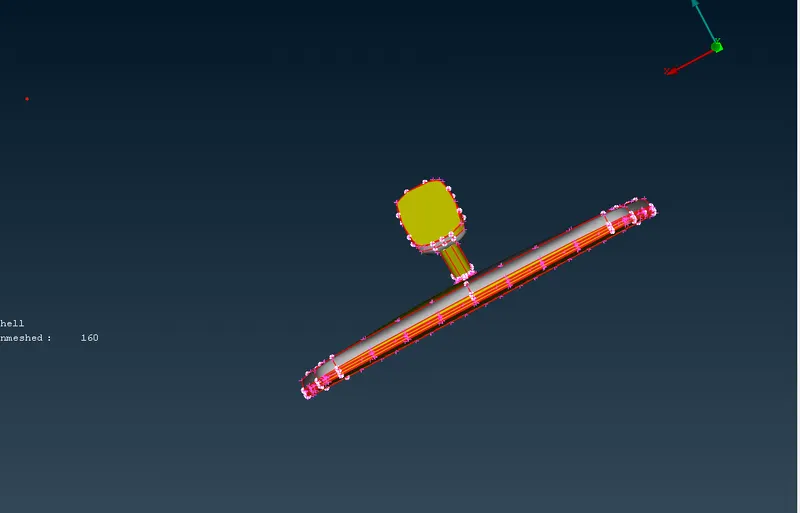

CAD MODEL :

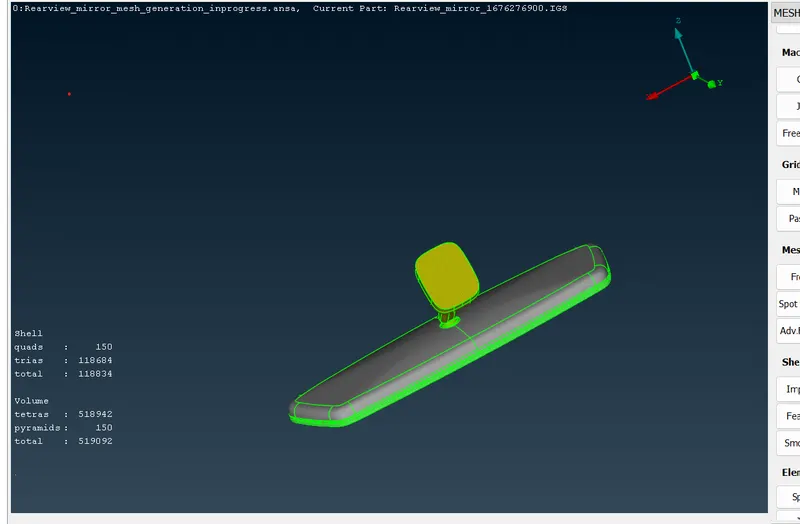

MESHED MODEL:
